Orbit Group Perungudi, Chennai, Tamil Nadu

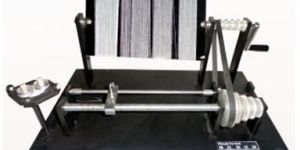

Features of Yarn Appearance Board Winder: Manually operated. Checks the evenness appearance of yarn. Precise preparation for accurate assessment of imperfection to grade the yarn against photographic comparison standards. Is used for winding the yarn on the blackboard for visual examination and grading the yarn as per ASTM standards. Choices of wide range of rectangular and tapered boards.

Features: Tensile strength and elongation of Yarn can be effectively determined. Force rating upto 9.999 kg Crosshead speed is 20 to 400 RPM variable. Extremely powerful interactive software makes the machine versatile.

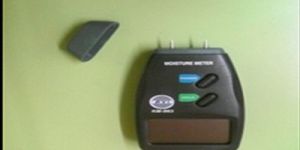

Features Digital Large size LCD display Range  5% to 40% Resolution  1% High Resolution response quickly Date Hold can hold value Power one 9V battery Dimensions 126 X 70 X 29 mm Operating Temp  0°C to 40°C (32°F to 104°F) 0 to 70% RH

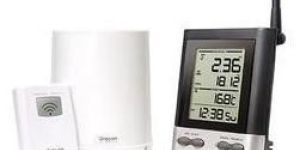

Features: Automatic self-emptying rain collector measures and then eliminates collected rainfall Wireless transmission range up to 300 feet for rain gauge—100 feet for thermometer Displays daily, ten-day historical, and total rainfall records Rainfall amounts are shown as inches or millimeters High daily rainfall alarm Displays outdoor temperature

Features of Water Repellency Tester: The tester is suitable for measuring the water-repellent efficiency of finishes applied to fabrics, particularly plain woven fabrics. Evaluation is accomplished by comparing the wetted pattern with pictures on a standard chart.

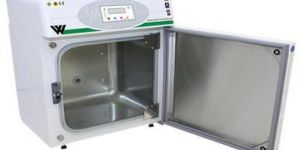

Clear LCD Display Dual Infra-Red Sensor Safety thermostats and over temperature protection Easy to use Round-Corner Chamber Design Low noise level Unique HEPA filtration system removes 99.97% of all airborne microbes and isolated particulates 0.3 microns or larger. Gas seal screen ISO certified Two point CO2 calibration Quick clean shelf system with allows users to disassemble shelves without tools CFC free refrigerator system RS 232 interface CFC free refrigeration unit

Features of Water Penetration Tester: Equipment is portable. Very convenient to use. White AATCC textile blotting paper is used for testing. Ensures accurate results.

Precision temperature stability Special fluid handling (materials, pumps, filtration) Portable and reliable Ergonomic designs Microprocessor based controller (HMI+PLC based controller option) CFC free refrigeration system Hermetically sealed compressor RS 232 interfacing for remote control and monitoring Options for recirculating fluids (see the technical matrix of all models) Water Deionized Water Deuterium Oxide / Methanol Fluorinert FC-3283 Ethylene Glycol Front to rear airflow Audio visual alarms for malfunction Castors for ease in mobility

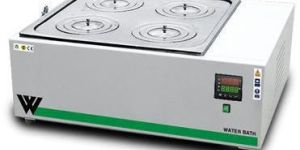

A water bath is a laboratory equipment made from a container filled with heated water. It is used to incubate samples in water at a constant temperature over a long period of time. Water baths are widely used for day to day bacteriological and varied laboratory applications requiring incubation as well as general tests and procedures in variety of research and testing laboratories. We specialize in both standard and customized models, specifically designed to meet the challenging demands of various test areas.   Salient Features: Versatile usage Ergonomic Design Energy Efficient Long life Low Maintenance Calibration And Protocol Documentation PID temperature controller Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values. Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the baths to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents. Energy Efficient – the baths uses less energy to provide the same level of performance, comfort and convenience, thus making it energy conserving. Sturdy Construction – the baths are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

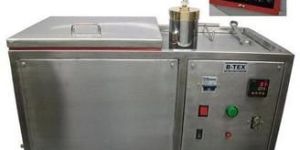

Features of Washing Fastness Tester: It is fabricated out of quality stainless steel. Possess electric heater to heat water in water bath. The microprocessor based programmer is provided for temperature control. Buzzer to indicate the completion of the process cycle or step.

Electric Supply :  Single phase 220 Volts, AC Supply

Inner Dimensions of the Main Bath :  450 X 410 X 295 mm

Overall Dimensions of the Unit : 700 x 470 x 370 mm

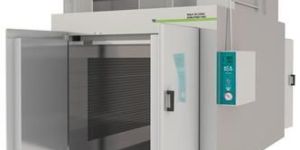

Maximum temperature range up to 10000F (5400) Microprocessor based digital control system (HMI+PLC control system as an option). Hi Tech double walled Oven Digital temperature setting with an accuracy of one degree Elapsed time indicator(Optional) Simple calibration and auto-tuning function Horizontal, recirculating air flow creates precise, consistent temperature uniformity throughout the oven. Models are fully assembled and factory tested prior to shipment Stainless steel interior minimizes corrosion problems and provides long life turdy, welded, double-wall construction Audio visual alarm for malfunctioning, over temperature, power failure etc. RS 232/485 interface. (optional) Universal Digital Data Recorder system(optional) USB ports for PC connectivity (optional) Temperature chart recorder/printer for printing graphs(optional)

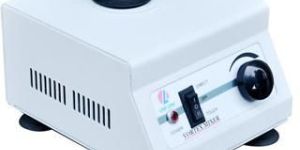

Mains Input :230V/50Hz |110V/60Hz A.C. SupplyW x D x H :160(W) x 190(D) x 115(H)Body :Metal BodyWeight :3.0 Kg. NetSpeed :0 – 2500 RPM ( Variable )Operation modes :Touch Or Continuous

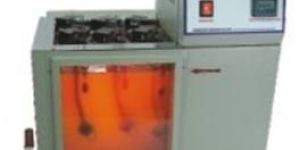

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under geavity or vacuum at precisely controlled temperatures. Rectangular model having double walled construction with toughened glass observation window (254 W x 225 H mm). Illumination from rear side provided. Oil immersion heater. Bath opening 254 x 200 mm with cover having 6 openings of 50 mm in diameter to hold 6 viscometers with six bakelite holders. Liquid capacity 22 Litres. Microprocessor based PID temperature controller with PT-100  digital read out, resolution, temperature accuracy of 0.02°C. Efficient stirring system

Advanced shaking mechanism for adequate agitation and aeration Suitable for timed as well as continuous applications Digital PID microprocessor based controllers for precise temperature control Easy to read, digital LED/LCD display for actual and set parameters An over-temperature protection feature with independent thermostat Beltless Drum Mechanism for increased efficiency Brushless DC motor for reduced noise and trouble-free, long-lasting operation Can be timed or runs in continuous mode Timer for setting operating time up to 99 hours An interlock stops motion when the door is open Shelf located at upper part of chamber, and Shaker at lower part of chamber Variable Flask Tube Support Light Bank for illumination ISO certified

Vertical Laminar Air Flow are conceptualized to provide a work area completely bathed in high efficiency perfect air, which is free from any kind of particulate contamination or impurities. These units are ideally suited in all the applications, requiring protection of biological specimens or products from the possible contamination during the process or test. OurLaminar Air Flow Bench is fast gaining popularity in other fields, such as pharmaceutical production, electronic industries and various other manufacturing applications. A vertical clean bench pushes air through a HEPA filter which is located at the top of enclosure. The air is directed downward onto the work surface at a constant speed. It is useful for various works that require maintenance of the cleanness and purity like plant tissue culture, examination and experimentation of precision electronic parts, medical science, entomology, pharmacy, agriculture sector, seed science, veterinary science. A vertical clean bench, on the other hand, offers a pivoting glass sash as a safety measure. This sash offers personal protection and a physical barrier when working with chemicals. Vertical clean benches are common place in microbiology, forensic, biotech and many other industries, which utilizes them during procedures that require clean work area.

Salient Features: ·         No lubricant required ·         Noiseless performance ·         Absolutely portable ·         Totally oil free construction ·         Practically maintenance –free ·         All parts made from special graded Aluminum die cast material for light weight and good strength ·         Diaphragms are made of special 2 ply nylon reinforced neoprene rubber. ·         Valves made of SS 316 material ·         Built –in micro suction filter Extra large bearings for trouble free and smooth running.

The vacuum ovens are available in various sizes and configurations and are completely customizable as per the specific requirements. They are designed in accordance with ASTM standards and bear CE certification for safety and reliability. The Vacuum ovens are essentially double walled equipments that feature high quality, heavy gauge SS 304 stainless steel internal surfaces and external surfaces made up of powder coated galvanized sheets with paint finish. The equipment features highly resistant and non-corrosive external and internal surfaces and the internal surfaces are argon welded for seamless welds and strong bracing. The gap between the outer and inner wall is filled with high-grade mineral glass wool for maximum thermal efficiency. The double plenum design of these vacuum ovens ensures a cooler outer surface for easy handling of the equipment. The equipment is also provided with a toughened glass door for increased visibility.

Uniform temperatures in the range 1100–1500°C (2000–2800°F) Low contamination of the product by carbon, oxygen and other gases Quick cooling (quenching) of product. The temperature control unit consists micro-processor based PID controller cum indicator. benefits of using PID controller: Processing speed is high Provides flexibility to alter the system by changing software. Compact in size. Operation and maintenance easier. Maintain precise values Over temperature limiter. Programmable Vacuum automatically control the vacuum on/off according to the user-defined value of temperature (vacuum start stop temperature) and time (vacuum holding time). PCRC Sheet Body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications. Digital Output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading. Precise Control of Environmental Parameters -The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement. Aesthetically Designed -Designed according to the standards and principles underlining industry’s aesthetic values. Corrosion Resistant Interior and Exteriors -Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents. Sturdy Construction-WEIBERfurnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

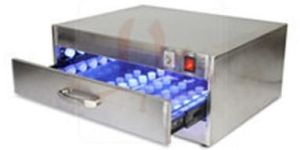

Enriched with immense industrial knowledge, we are engaged in offering a technically updated variety of UV Curing Oven that is highly demanded by the clients .

• Highly accurate position control with high range of speed• Accurate start and stop instantly using 32 bit microcontroller• Four line and 20 characters controller with multiple features• Automatic calculation of modulus @different strains selectable• Multi unit display in Kg, pound, Newton mm, cm, inch selectable• Direct display on controller and numeric printout facility• Safety norms of over load in auto as well as manual mode• Data lock for calibration and master controlled parameters• Safety norms of over travel in auto mode.• Tests preprogramming facility for Tensile, Flexural, Peel, Bond, Compression, Cyclic endurance based on load, travel, time

Features of Universal Tensile Strength Tester: Micro Controller based Panel-incorporating State of Art Technology. Digital Display of Force, Elongation Speed values on large Backlit LCD Display Unit. Choice of multiple load cells selectable via keyboard. Peak Force Memory Facility. Variable Testing Speed. Closed loop servo system in variable speed Model. Displacement measurement using Optical Encoder. Safety interlocks for overload and over travel. USB Communication port to interface instrument with any computer or laptop. Software for computer control of machine with online graphic display test report. Choice of 3 Grips Fixtures for variety of materials also available optionally. One set of pneumatic grips for yarn and two mechanical type grips come with standard supply. Compact Elegant design.

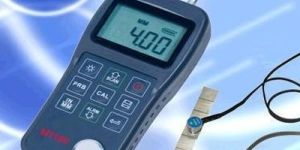

Ultrasonic thickness gauge which also known as D Meter is suitable for non destructive testing of thickness measuremet on variety of metallic and non-metallic materials. Ultrasonic thickness gauge is operated on micro controller based principle. NDT (Non Destructive Testing) technique is simple and instant thickness measurements are possible. LCD display for quick and best rediability. Digital Ultrasonic Thickness Gauge is useful for Steel, Mild Steel, Stainless Steel, Cast Steel, Cast Iron, Aluminum, Copper, Lead, Tin, Brass etc. Ultrasonic Thickness Gauge (D Meter) is pocket sized instrument can be taken to any place like Work Shop, Off sites. Ultrasonic thickness gauge ( Pocket D Meter ) adopts the theory of sound wave to measure a wide range of material, such as metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Most economical price ultrasonic thickness wall thickness measurements is possible very accurately using this handheld gage.

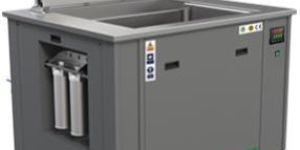

Temperature range from Heated ambient +5ºC to 70ºC SD port allows easy validation tracking between bath and PC. Improved software memory logs cleaning parameters allowing easy cycle repeatability and easy traceability of cycle number, time, temperature and Sonics validation Easy to use digital LCD control panel with user – settable parameters to suit individual requirements. Accurate process control of time, temperature, ultrasonic activity, degas and power Stainless steel basket – designed specifically to generate maximum ultrasonic activity, prevent items resting on the tank and prevent operators coming into contact with chemical solutions. Included as standard. Ergonomic ABS plastic lid – reduces noise volume and minimizes potential of aerosol escape. Included as standard. Drain valve for convenient emptying Clean finish, high-quality and robust design for long-term reliability and durability. Analogue timer (digital timer optional) Digital microprocessor based temperature controller
