Plastic Links Jafferkhanpet, Chennai, Tamil Nadu

VOLUMETRIC BLENDER • Consistent dosing brush less motor• PLC supported control• Saving on additives• Inclined Screw Setting for accurate dosing• Optional: Loader mounting provision GRAVIMETRIC BLENDER • Precise Dosing of pellets• PLC with touch panel• Saving on additives• Up to 100 Receipe storage• Dedicated PLC Module for Load Cell• Inventory Management• Selection of Volumetric / Gravi Mode• Intelligent self optimising control

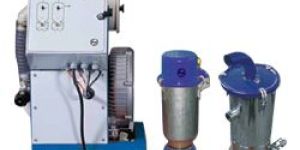

Models HLE, HLB-E, HLB-E , HBE 3/4 , HLS, SSL06 Conveying capacity - upto 1200 kgs/hr Options available - Unit with integral blowerSystem Loader with centralBlowerUnit with 3 phase, stand aloneBlower • PLC controlled• Automatic cleaning of filter after every cycle• Large discharge opening• Alarm when material is not being conveyed• System loader HLS 02-HLS 75 liters Proportioning Valve Models - PV dia 38/45/60• Stainless steel construction• Can be integrated with L&T Hopper Loader• Online recycling of regrind material   * SSL06 - for an equivalent length of 8mtr with dia 38mm hose in ML line. * HLBE... - for an equivalent length of 25mtr subject to Kg/Hr & RG usage Compressed air supply 5-6 bar moisture and oil free for loader implosion.

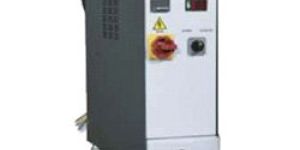

Models LT150i, LT150, LT200 MOULD TEMPERATURE CONTROL UNIT, 90 deg c with water,150 deg c with oil.Heat Transfer Unit Water/Oil.Insulated Sealed Tank.PID Based Temperature Control.Leak Stop Feature.

Precise metering of the dried material into the vacuum stream is done by the pneumatic operated suction box. The purging feature ensures no material is trapped in the pipe lines and hoses after every conveying cycle. Optional : Dry Air Conveying.

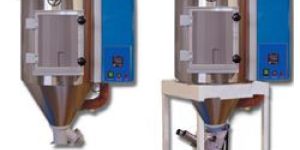

Models LHD30 , LHD60 , LHD100LHD150, LHD200, LHD300, LHD450LDL600, LDL1200, LDL2000LDL3000 , LDL4000 Hopper capacity in ltr - 30 to 4000Options availableLHD Series - Machine mounted / Floor mountedLDL Series - Only Floor mountedHD Series - Casted bins on request• Energy efficient• Compact and light weight• Fully insulated aluminium bin with SS cladding• PID control of temperature• Large cleaning window for quick materialchange overOptions available• Pneumatic Suction box for line purging

Models LSG-1, LSG-5 Scissor Cutting Action.Robust Construction.Safety Switch For Additional Safety.By using near an Injection Moulding Machine along with Hopper Loader and Proportioning Valve,the sprues can be Recycled in “Closed Loop”.

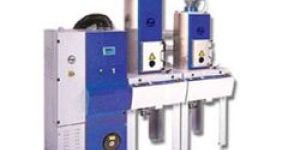

Models LMD50, LMD80, LMD120, LMD160, LMD200, LMD250, LMD 400, LMD600, LMD800 Also available - Dryers of capacity 1200 to 2400m3/hr (dry air generation) Dry Air capacity in m3/hr - 50 to 2400 Bin size in ltr. - 15 to 4000 and above • Continuous supply of dry air to the drying bin• Closed loop regeneration process• PLC Control facility to monitor all drying functions• Large cleaning windows from 100 liter bins• Integrated conveying versions   Options for LMD 50, LMD 80 and LMD 120, LMD 160, LMD 250, LMD 400, LMD 600, LMD 800 • Pneumatic Operated Suction box for purging operation during conveying • Dry air conveying• Water based after cooler for HT version 20 - 40 lpm (Tap / Chilled Water, 2 bar pressure ) • Dew point based change over with display

Benefits of Central Systems: • Increased machine uptime• Lower scrap/higher yield• Improved quality, reduced rejections• Reduced spillage and wastage• Improved or gained floor space• Improved safety• Reduced labour and maintenance• Reduced energy costs• Neat and clean shop floor• Better aesthetics• User friendly & Modular Drying System : Reduce drying costsand improve dryingperformance• Drying systems are energyefficient.• Modular & flexible

Off the Self Controller controls the conveying operation with a normal display or with a touch panel. Option of Bin Selection, Pre Drying Hours Confirmation, Throughput monitoring and other user required pages can be programmed to suit the needs of the operation.

The Central Blower Station Coupled with Central dust filter does the function of vacuum conveying . The fine dust from the raw material is collected at the dust filter. After the preset conveying time the by pass valve at the dust filter opens removing the load on the Blower.
