Reindeer Technologies Pvt. Ltd. T. Nagar, Chennai, Tamil Nadu

We are offering zigbee transceiver module - 2.4 ghz. this 2.4 ghz zigbee transceiver chip enables industrial grade applications by offering state-of-the-art selectivity / co-existence, excellent link budget and low voltage operation. In addition, the 2.4 ghz transceiver zigbee module provides extensive hardware support for frame handling, data buffering, burst transmissions, data encryption, data authentication, clear channel assessment, link quality indication and frame timing information. These features of zigbee transceiver module reduce the load on the host controller. The excellent coverage and low power consumption makes these 2.4 ghz zigbee transceiver an ideal choice for many applications. In a typical system, the 2.4 ghz transceiver zigbee module will be used together with a microcontroller and a few additional passive components.

We are offering wireless transceiver module in 868 mhz. the rdm-t8fz is a low-cost sub 1 ghz serial integrated transceiver designed for very low power wireless applications. The circuit in these spi interface rf transceiver module is mainly intended for the ism(industrial, scientific and medical) and srd (short range device) frequency band 868 mhz, but can easily be programmed for operation at other frequencies in the 779-928 mhz band. The serial interface rf transceiver is integrated with a highly configurable base band modem. the modem in these spi interface module supports various modulation formats and has a configurable data rate up to 500 kbps. Rdm-t8fz is a serial integrated transceiver provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio.

The Wireless relay control systems are capable of covering ranges from 400meters to 1KM line of sight with error free operation. We have RF relay control systems operating in 433 MHz/868 MHz/2.4GHz frequency band. It consists of a control unit and a relay unit. The control unit requires 5V DC for operation, while the relay unit requires a 12V DC supply. The battery life in the relay control system can come up to 1-year as the unit will be in sleep mode when not in operation. The relay unit can be used to drive any kind of AC or DC circuits or devices that can take up to 5 Amps load. The CSMA-CA protocol has been implemented in these relay control systems which avoids false triggering and collisions among the devices operating in the same frequency. The transmit/receive loop is complete with the control unit receiving the acknowledgement from the relay unit for all successful transmissions.  Applications Wireless Switches And Remotes Remote Control / Security Systems Keyless Entry Home And Industrial Automation Process And Building Control Automotive Systems.

The Wireless relay control systems are capable of covering ranges from 400meters to 1KM line of sight with error free operation. We have RF relay control systems operating in 433 MHz/868 MHz/2.4GHz frequency band. It consists of a control unit and a relay unit. The control unit requires 5V DC for operation, while the relay unit requires a 12V DC supply. The battery life in the relay control system can come up to 1-year as the unit will be in sleep mode when not in operation. The relay unit can be used to drive any kind of AC or DC circuits or devices that can take up to 5 Amps load. The CSMA-CA protocol has been implemented in these relay control systems which avoids false triggering and collisions among the devices operating in the same frequency. The transmit/receive loop is complete with the control unit receiving the acknowledgement from the relay unit for all successful transmissions.  Applications Wireless Switches And Remotes Remote Control / Security Systems Keyless Entry Home And Industrial Automation Process And Building Control Automotive Systems

We are offering wireless relay controls. we have rf relay control systems operating in 433 mhz/868 mhz/2.4ghz frequency band. It consists of a control unit and a relay unit. The control unit requires 5v dc for operation, while the relay unit requires a 12v dc supply. The battery life in the relay control system can come up to 1-year as the unit will be in sleep mode when not in operation. The relay unit can be used to drive any kind of ac or dc circuits or devices that can take up to 5 amps load. The csma-ca protocol has been implemented in these relay control systems which avoids false triggering and collisions among the devices operating in the same frequency.

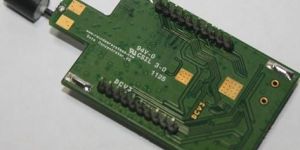

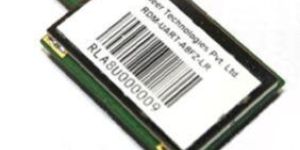

This is a versatile, long range wireless embedded module which can be interfaced through UART to the host microcontroller. The module works as a high power RF transceiver, to transmit the data given through the UART. The module has UART data interface and do the RF communication at 865 MHz to 870 MHz. The integrated RF front end gives an output power of +24 dBm. Most of the RF and other network parameters can be configured on the module through the AT command interface which makes it flexible for use. The UART data transfer between the Host processor and the RF module is done with three handshaking signals (RTS/CTS/EOF). This module can be integrated with the host controller with little customization and minimum effort.Applications Smart Metering IEEE 802.15.4g Lighting Control Home Automation Process And Building Control Wireless Sensor Networks (WSNs) Wireless Healthcare

Frequency : 865-867 MHz

Applications: Smart Metering IEEE 802.15.4g Wireless MBUS Home Automation Process and Building Control Wireless Sensor Networks (WSNs)

The rdm-t4fz is a low-cost sub 1 ghz wireless rf transceiver module designed for very low power wireless applications. This base band rf transceiver module circuit is mainly intended for the ism (industrial, scientific and medical) and srd (short range device) frequency band 433 mhz, but can easily be programmed for operation at other frequencies in the 387-464 mhz band. The wireless rf transceiver module is integrated with a highly configurable base band modem.

Frequency : 387 Mhz to 464 MHz

Dimension : 4.1*3.2*0.5(L*W*H) in cms

We are offering rs 485 rf converter. applications industrial automation crane control systems textile instrumentation panels instrumentation devices interface digital weighing systems wireless sensor networking remote data logging automated meter reading

We are offering rs 422 rf converter. applications: industrial automation crane control systems textile instrumentation panels instrumentation devices interface digital weighing systems wireless sensor networking remote data logging automated meter reading

We are offering rf converter. it is a complete plug and play system where the user can connect two boards and start a wireless communication between them instantaneously. They can be integrated to existing systems without tedious software or hardware changes. Serial Baud Rate. Parity. Stop Bits. RF Baud Rate. RF Channel. RF Output Power. Options To Set Device Address. Configuration Of The Device As Transmitter, Receiver Or As Repeater. User Driven Termination Character For The Transmission. PC COM Port Selection For Communication. Applications Industrial Automation Crane Control Systems Textile Instrumentation Panels Instrumentation Devices Interface Digital Weighing Systems Wireless Sensor Networking Remote Data Logging Automated Meter Reading

Reindeer’s Mastiff™ Reader is an Active RFID Reader with GSM and GPRS tracking which can be used indoors to track people, vehicles or assets. This is an ideal device to track and monitor students, employees, workers, visitors inside the buildings or outdoors. The reader collects the tag information from the compatible Mastiff™ active RFID tags through its dedicated RFID reader and updates the server through GPRS. Mastiff™ Reader can also be used for Fleet Management, Vehicle Tracking, Wireless Sensor Networking and other Machine to Machine (M2M) applications. It’s a stand-alone device which tracks the location of the vehicle and communicates to the down-stream software in a seamless way. It also measures other performance parameters such as engine status, door status, vehicle speed, tamper status etc. and sends them to the server along with timestamp. Mastiff™ Reader is fitted with fully functional GPS tracker and comes with GSM/GPRS connectivity for downs-stream communications. Besides, it has additional power backup which can maintain continuous uptime for 72 hours when external power is disconnected. It also comes with an additional storage of more than 5 GB which can be used as backup communication failures. Mastiff™ Reader has a robust power supply with surge protection and self-resetting fuse which provides excellent power supply isolation and protects from surges when connected to vehicle ignition or to any external devices. It also has self-healing and self-correcting mechanism which will ensure reliable and continuous operation in the long-run with no manual intervention. The rechargeable backup battery makes the device portable and it comes with complete protection such as reverse polarity protection, surge protection and fuse protection. Mastiff™ Reader is equipped with intelligent sensors and raises alarm when the device is tampered with or on over speeding and sends real-time notifications/alert to back-end software. It’s fitted in a heavy duty ABS material which protects the device from normal wear and tear and comes with a flame rating of UL94-5VA. Mastiff™ Reader comes with a sleek design and carries a host of LEDs indicators for various functionalities such as GSM/GPRS, GPS, Power Supply/Battery Supply, Low Battery Conditions and Tamper Alarms etc. These will be useful during troubleshooting and periodic maintenance. Remote management is another important feature of the Mastiff™ Reader which will help installation and maintenance engineers to cut down their time from site visits. Remote management and maintenance will help the engineers to upgrade the device configuration and settings, identification of alert situations, pinpoint the location of the device and monitor the health status of the device. Mastiff™ Reader also comes with an integrated RFID reader (UHF band) to track the personnel inside the vehicles or to authenticate the drivers to turn ON the ignition and enable automatic door opening and closing. The range of the RFID reader is adjustable and it covers up to 100 meters line of sight. Mastiff™ Reader comes with a small form factor, light-weight and carries an excellent appeal. It complies with standards such as EMI/EMC, FCC and CE making it fully qualified for international deployments with minimum changes.Based on the packet format used for down-stream server communication, there are three versions of Mastiff™ GPRS/GPS Active RFID Reader is available. Applications   Personnel Tracking And Monitoring Asset Tracking Internet Gateway For Wireless Sensor Networks Machine To Machine Communication (M2M) Remote Monitoring Applications Telemetric Applications

We are offering rf transceiver module in 868 mhz. the rdm-a8fz is a very low power, high performance, highly integrated fsk/gfsk/ook/msk/gmsk transceiver designed for operation in the frequency band 850mhz to 870mhz. Data rates from 1kbps to 300kbps are supported. the transmitter output power is programmable from ã¢ï¿½ï¿½20 dbm to +13.5 dbm, with automatic pa ramping to meet transient spurious specifications. The receiver is exceptionally linear, achieving an ip3 specification of ã¢ï¿½ï¿½12.2 dbm and ã¢ï¿½ï¿½11.5 dbm at maximum gain and minimum gain, respectively. The rdm-a8fz operates with a power supply range of 1.8 v to 3.6 v and has very low power consumption in both tx and rx modes enabling long lifetimes in battery operated systems while maintaining excellent rf performance.

The rdm-a4fz is a low power, highly integrated fsk/gfsk/ask/ook/gook rf designed for operation in the low uhf and vhf bands. The rdm-a4fz uhf transceiver module and vhf transceiver module uses an external vco inductor that allows users to set the operating frequency anywhere between 400 to 440 mhz. The transmit section in these uhf band transceiver modules contains a vco and low noise fractional-n pll with output resolution of

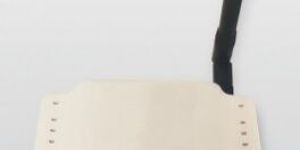

Reindeer’s Mastiff™ Power Over Ethernet Reader is an Active RFID Reader with Power Over Ethernet feature which can be used indoors to track people. When this reader is used with a PoE Switch, reader can draw power from the PoE Switch itself through the Ethernet cable. So no need for the AC power socket or the DC adapters. This device can be used to track and monitor students, employees, workers, visitors inside the buildings or outdoors. The reader collects the tag information the compatible Mastiff™ active RFID tags through its dedicated RFID reader and updates the server through Ethernet. Mastiff™ PoE Reader can also be operated with 12V/1A DC power supply. Server information, RF parameters and other parameters can be configured to the device through its USB port. It’s fitted in a heavy duty ABS material which protects the device from normal wear and tear and comes with a flame rating of UL94-5VA. Mastiff™ PoE Reader comes with a sleek design and carries a host of LEDs indicators for various functionalities such as Ethernet Communication, RF, Relay and Power. These will be useful during troubleshooting and periodic maintenance. The device firmware can be upgraded through its USB port. The range of the RFID reader is adjustable and it covers up to 500 meters line of sight. Mastiff™ PoE Reader comes with a small form factor, light-weight and carries an excellent appeal. It complies with standards such as EMI/EMC, FCC and CE making it fully qualified for international deployments with minimum changes.Applications   Personnel Tracking And Monitoring Asset Tracking Internet Gateway For Wireless Sensor Networks Boom Barrier Control Remote Monitoring Applications

Mastiff™ Tag is an active RFID tag ideal for monitoring people indoors or outdoors. Schools or organizations can use this tag as a ID card and do real-time tracking and monitoring of students, employees, visitors or contract workers inside schools, hospitals, high security offices or in construction sites or in moving vehicles. The periodic data sent by the tag can be captured by a compatible Mastiff™ active RFID reader. The captured data is sent to software for reporting or analytical reasons.The tag comes along with the user configuration utility which allows configuration of many parameters of the tag wirelessly. The utility is an easy to use software interface, through which the user can read and write the configuration data to the tag. Configuration data includes the tag ID, time interval of transmission, RF data rate, active/sleep mode and the signal strength of the transmission.The tag is completely sealed inside a rugged ABS plastic enclosure and certified with IP67 protection which will protect it from water and dust. It has an optional internal memory up to 128 KB which can store additional information about the students as per the customers’ requirements. The sleek design of the tag is comparable with the traditional ID card of the students making it an ideal replacement of normal ID cards.The tag design has been optimized for very low power consumption to give a higher battery life of 5 years. The tag sends a low battery warning to the software which will enable us to replace the tag before it dies down. The tag is a low power transmitting device complies with all regulatory requirements and certified as safe to use on people.  Applications   Real-Time Tracking Of Students, Employees, Workers And Visitors Student Attendance Management Employee In/Out Records Employee Productivity Management Visitor Management In High Secure Areas Access Control Safety And Securitys Emergency Response And Evacuation Energy Management Certification Safety Standards   The device has been approved By WPC (Wireless Planning Commission) of Ministry of Communication and IT, Government of India. Declaration letter is available indicating the device is safe to use by people. The certification and declaration letter is available on request.

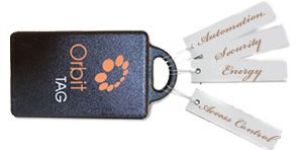

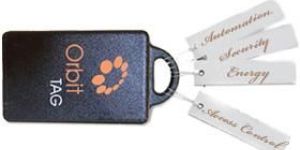

Imagine a fully automated office where all the electrical devices are turned on/off automatically without any human help. This might look like a distant dream to many of us, but Reindeer Technologies has made it possible through an innovative product called Orbit.Orbit is a cutting-edge product from Reindeer and is used for office automation, security, energy conservation, access control and many other areas. Orbit has two components. One is a tag and other is a reader. Orbit tag is a personal electronic tag which can be attached to a person or a property. The intelligent reader tracks the tags and manages the necessary devices through the secure communication from the tag.   Orbit comes with a configuration software tool to change the device settings through which the user can set the following parameters to suit the requirements:      Coverage Area    Time Interval Of Transmission    Frequency For Wireless Communication    Formation Of Secure Network. Orbit offers many unprecedented solutions for automation in the field of office and home security, energy management and conservation, machinery and vehicle safety, visitor management in highly secured area, patients monitoring in hospitals and also employee productivity management. It can also be used to protect valuable artefacts in museum. The orbit tag can be put to use in all areas where there is scope for automation. Nonetheless, it is the simplicity of the product that gives the users a major advantage. The sleek design and compact size of the Orbit tag allows the user to carry it very easily. Its function is very simple. No clicks or codes are required from the user. Features of Orbit   Benefits of Orbit     Device operates in license-free frequency band Plug and play device with no hassles of installation Miniature Tag Multi-functional tag Each receiver in the system supports multiple users Completely hands-free access control ,security and energy management device Battery life is about 12 months Better reliability than any sensor based technology Equipped with micro - USB for easy programming Customizable features through software Dust-proof Longer battery life with option to replace batteries No keypad or other devices that reveal the structure of the system are involved in Orbit. Energy conservation and management:     Orbit constantly tracks the number of people in the office or home and accordingly regulates the use of electrical devices and appliances like turning on/off the lights, fans, AC, copiers, coffee machines etc. If there is no person in a room then all the electrical devices in that room are switched off automatically. Similarly, when all the employees have left the office, all the electrical devices in the office shut down automatically. No one needs to perform these operations manually. This helps in bringing down the electricity consumption by 10 to 15%.   Security and Access Control:     Orbit is an innovative product that can be used in the field of security. It is a system that allows the user to completely stay away from alarm codes and keys to enter a secure area. Every authorized person is given a unique Orbit tag which is recognized by the Orbit reader. When the authorized user comes near the door, he is given access. If an unauthorized person tries to enter the secured area, the door does not open and is denied access. In a highly secured area, the orbit reader can be integrated with an additional alarm which is triggered when an unauthorized person tries to enter the room. This is an excellent feature of Orbit tag. The security of the area is maintained 100% without any codes or keys. Similarly, the Orbit tag can be integrated in different access points to eliminate the need of an access card.

We are offering orbit. plug and play device with no hassles of installation miniature and multi-functional tag each receiver in the system supports multiple users completely hands-free access control ,security and energy management device battery life is about 12 months better reliability than any sensor based technology

We are offering long-range rf transceiver module-2.4 ghz. the long-range rf transceiver module in 2.4 ghz is a low-cost 2.4 ghz transceiver designed for very low-power wireless applications is available with external antenna and integrated chip antenna.the circuit is mainly intended for the 2400-2483.5 mhz ism (industrial, scientific and medical) and srd (short range device) frequency band. The rf transceiver is integrated with a highly configurable base band modem. The modem supports various modulation formats and has a configurable data rate up to 500 kbaud. Long-range rf transceiver module in 2.4 ghz provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio.

Mastiff™ Long Range Asset Tag is a active RFID tag ideal for monitoring assets, cargo or any moving or stationary objects. Enterprises can use this tag to do real-time tracking and monitoring of assets, cargo in fleets or items in a warehouse. The periodic data sent by the tag can be captured by a compatible Mastiff™ active RFID reader. The captured data is sent to software for reporting or analytical reasons. The tag comes along with the user configuration utility which allows configuration of many parameters of the tag wirelessly. The utility is an easy to use software interface, through which the user can read and write the configuration data to the tag. Configuration data includes the tag ID, time interval of transmission, RF data rate, active/sleep mode and the signal strength of the transmission. The tag design has been optimized for very low power consumption to give a higher battery life of up to 1.5 years with two AA batteries. The tag sends a low battery warning to the software which will enable us to replace the tag before it dies down. The tag is built with a power amplifier which gives a maximum RF output power of +26 dBm which makes it highly suitable for long-range tracking. The typical tracking range offered by the tag is around 1000 meters (or 1 km) line of sight. The tag is completely sealed inside an IP65 flame retardant polycarbonate enclosure which protects it against dust and water. The tag comes with mounting flanges on both sides and it can be easily mounted using a cable tie. The silicone rubber gasket makes the tag ideal for outdoor use in a wide range of adverse conditions. The batteries can be easily changed without removing the tag from the mounted position.  Applications   Real-Time Tracking And Monitoring Of Cargo In Trucks Real-Time Tracking And Monitoring Of Assets In Warehouses, Hospitals, Enterprises Etc. Access Control Safety And Security Emergency Response And Evacuation Energy Management.

The VCO operates at twice the fundamental frequency to reduce spurious emissions and frequency pulling problems. The transmitter output power is programmable in 63 steps from −20 dBm to +13 dBm. The UHF transceiver module RF frequency, channel spacing, and modulation are programmable using a simple 3-wire interface. The RF transceiver module operates with a power supply range of 2.3 V to 3.6V and can be powered down when not in use. A low IF architecture is used in the receiver (200 kHz), minimizing power consumption and the external component count and avoiding interference problems at low frequencies. The RDM-A4FZ supports a wide variety of programmable features, including Rx linearity, sensitivity, and IF bandwidth, allowing the user to trade off receiver sensitivity and selectivity for current consumption, depending on the application. The receiver also features automatic frequency control (AFC) loop, allowing the PLL to compensate for frequency error in the incoming signal. An on-chip ADC provides read back of an integrated temperature sensor, an external analog input, the battery voltage, or the RSSI signal, which provides savings on an ADC in some applications. The temperature sensor is accurate to ±10°C over the full operating temperature range of −40°C to +85°C. This accuracy can be improved by doing a 1-point calibration at room temperature and storing the result in memory. Applications Low Cost Wireless Data Transfer Wireless Medical Applications Remote Control / Security Systems Wireless Sensor Networks Keyless Entry Home Automation Process And Building Control Automotive Systems Active RFID Solutions AMR – Automated Meter Reading

Frequency : 400 MHz to 440 MHz

Availability : 5 gms

Operating Temperature : -40° to +85° C

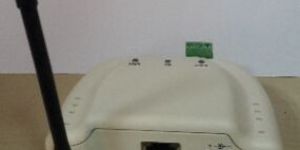

Reindeer’s Mastiff™ Ethernet Reader is an Active RFID Reader with Ethernet connectivity which can be used indoors to track people and for the access control. This device can be used to track and monitor students, employees, workers, visitors inside the buildings or outdoors. The reader collects the tag information along with the date and time from the compatible Mastiff™ active RFID tags through its dedicated RFID reader and updates the server through Ethernet.The Ethernet Reader has an RTC with battery backup. It also comes with an internal storage to store the tag data along with date and time at which the tag ID is read. The device can store upto 1300 tag records in its internal memory during network failures. Mastiff™ Ethernet Reader operates with 12V/1A DC power supply. The Reader is equipped with relay which is triggered when the tag is read. Relay comes back to normal state after the pre-configured time interval. Server information, RF parameters and other parameters can be configured to the device through its USB port. It’s fitted in a heavy duty ABS material which protects the device from normal wear and tear and comes with a flame rating of UL94-5VA. Mastiff™ Ethernet Reader comes with a sleek design and carries a host of LEDs indicators for various functionalities such as Ethernet Communication, RF, Relay and Power. These will be useful during troubleshooting and periodic maintenance.  The device firmware can be upgraded through its USB port. The range of the RFID reader is adjustable and it covers up to 100 meters line of sight. Mastiff™ Reader comes with a small form factor, light-weight and carries an excellent appeal. It complies with standards such as EMI/EMC, FCC and CE making it fully qualified for international deployments with minimum changes.Based on the protocol used for down-stream server communication, there are two versions of Mastiff™ Ethernet Active RFID Reader is available. Applications   Personnel Tracking And Monitoring Asset Tracking Internet Gateway For Wireless Sensor Networks Boom Barrier Control Remote Monitoring Applications Access Control Applications

Mastiff™ Clip Tag is a active RFID tag ideal for warehouse management. This tag is equipped with Tri-color LED and the clip in the enclosure to fix it in the item to be searched in a warehouse. This Clip tag is used with PoE/Ethernet Reader. The PoE/Ethernet Reader gets the command from the user through internet/intranet and sprays the command wirelessly. When the Clip tag receives the command, it checks whether the tag ID in the command matches with its own ID. If it matches the command will be executed in the tag. Typically the command is to turn ON/OFF the LEDs. The Clip tag operates with two AAA batteries and gives more than 18 months battery life on typical usage. The tag comes with a wireless configuration feature. The Tag ID and other RF parameters can be changed by doing the wireless configuration with an USB Dongle. These RF parameters includes RF baud rate, frequency channel and the RF receiver sensitivity. The details are given in the user manual.The Low battery is indicated by continuous RED LED blink which prompts the user to change the batteries.  pplications   Warehouse Management Real-Time Tracking And Monitoring Of Assets In Supply Chain, Warehouses, Hospitals, Enterprises Etc. Material Pick To Light Systems Material Flow Control And Order Picking

Our robust and highly efficient RF antennas come in different sizes and are available in all ISM band frequencies. These RF antennas are compatible with any wireless products. The RF antennas offer superior durability and continuous performance.

Country of Origin : India

Material : Stainless Steel

The critical environmental parameters which are monitored are light, humidity, temperature and smoke. 1.It also has options to plug and play 9 different external sensors. 2.Fitted with wireless, Ethernet, USB and serial interfaces, the device can seamlessly connect and interoperate with other communication devices.
