Sheth Graphics Chennai, Tamil Nadu

The flute rolls are perfectly finished thereby giving an even impression on the board. The machine is sturdy in 2 construction, simple to operate and easy to handle. Manually lifting twin shaft reel stand with three unwinding shafts is provided with the machine. Electric heaters are provided for lamination of the board. Sizes Available : 32”, 42”, 52” & 62” Optional : Slitting Attachment, Motorised reel Stand.

Standard model Plain Laminating machine to laminate Paper and Board by film, Slitting attachment, Heavy duty clutch, chrome coated Rollers complete with DC variable speed drive motor. Also Available Export Quality with carbon steel gears. Sizes Available: 24”, 32”, 36” & 42”.

Standard Model Window Cum Plain Laminating Machine to Laminate Paper and Board By Film, Slitting Attachment, Heavy Duty Clutch, Chrome Coated Rollers Complete with Dc Variable Speed Drive Motor. also Available Export Quality with Carbon Steel Gears. sizes Available: 24”, 32”, 36” & 42”.

To Press a whole lot of Corrugated sheets after pasting in order to avoid bubbles free & even board. Sizes Available : 45” x 52” & 62” x 72”

Sheet Pasting machine is meant for Gluing of 2 Ply Corrugated sheets to make corrugated board of different ply. The rolls of the machine are evenly finished to ensure even Gluing of the boards. This machine is simply designed, strong in construction and is easy to operate. Hard chromed rolls are optional with this machine. Sizes Available : 65”, 75”, 85”, 95” & 105”

Electromagnetic Clutch & brake, Hand clamp with lever operation, motorised back-gauge, measurement tape. Sizes Available: 33”, 36”, 42”, 45” & 52”

Rotary sheet cutter with gear system designed for high production sharp cutting of a ply corrugated board without damaging flutes as well as cut line paper. This cutter can be used as independent unit as well as a attached unit with a corrugation machine. Sizes Available : 48”, 55”, 65”, 75”

Heavy build, 99 Digital Programme, Hydraulic double Pressure Clamp, Electro magnetic clutch & brake, Photocell Safety device, Push button operation, Centrally lubricated. Also Available without Programme. Sizes Available: 33”, 42”, 45” & 52”

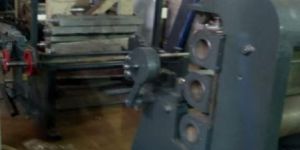

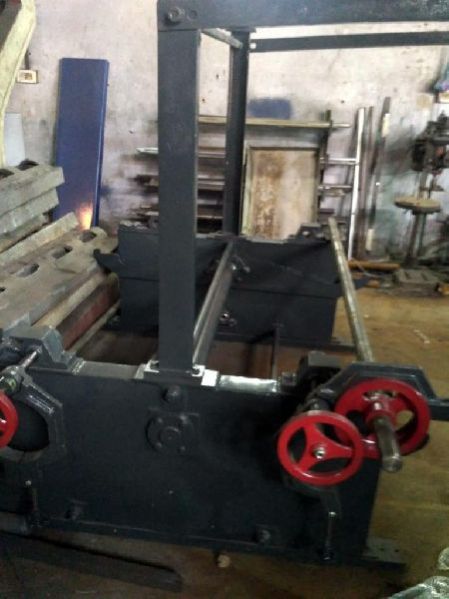

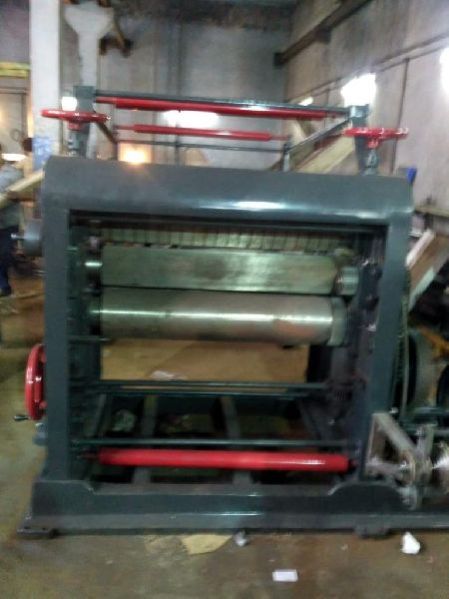

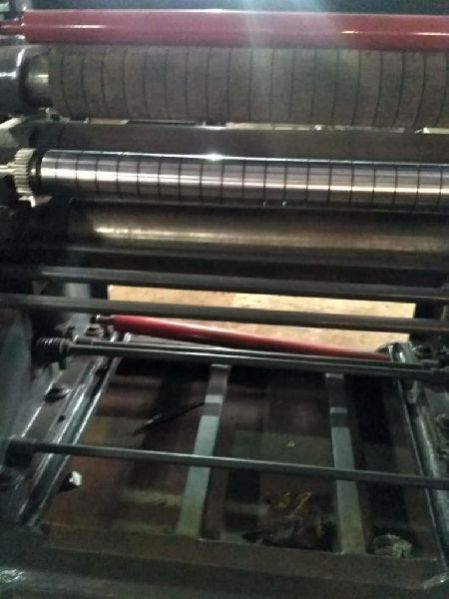

"PRINTOGRAPH" Vertical type Corrugation machine with E Fulte set motorised reel stand and Auto Sheet cutter machine complete with Electrical motor and control. Size: 42"

Number Of Flower : Vertical Paper Corrugating Machine

Availability : 3000-4000kg

Power : 25

Per Hour Capacity : 1-2ton

Heavy duty Platen Die Punching machine with high efficiency electromagnetic clutch & brake complete with Timer, Counter, Safety brakes, Robust Built and Centrally lubricated.

Number Of Flower : Die Platen Punching Press

Certification : CE Certified

Application : Cutting Die

Availability : 3000 - 14000

Country of Origin : 440V

Condition : New

Capacity : 2000/hr

Automatic Grade : Manual

Power : 3-6kw

Driven Type : Driven Type

Total Carbohydrate : 1year

Brand Name : PRINTOGRAPH

Power Source : Amritsar

After-Sales Service Provided : Chennai

PRINTOGRAPH Heavy duty Platen ideal for board converter. Handles a wide range of materials like paperboard, cardboard, fiber board & corrugated board, leather, Plastic & PVC Materials. Minimal make ready time. Good hourly production, compact for minimum floor spare. Works well on short and long runs. Platen are robust in construction, offers a range of different sizes to suit different applications. The machine works silently without jerks or vibration as they are built carefully by using special cast iron & give performance for years. All shafts are of quality steel & beatings used are branded.The impression can be adjusted in simple way through two eccentric bushes with graduate scale and amount of impression can be easily read off.

Brand Name : PRINTOGRAPH

Finishing : Powder Coated

Driven Type : Mechanical

Shape : Rectangular

Condition : New

Power : 7-9 KW

Standard Accessories Two nos. Steel Chase. One nos. MS quality Plates. One each of Feeding & Delivery Plywood Tables. Tool Kits Containing Spanners, L keys, Oil Can & Screw Driver. Wheel Spanner & Impression Spanner. Aluminium Platform stand for Size: 42” x 62” & above. Optional High precision, Tampered, Grounded, Mirror Finish imported Stainless Steel Plates. Automatic Centralised Lubrication System. Automatic Chase Adjuster. Extra no. of Chase & Plates. Sizes Available (Platen Size) : 23” x 29”, 25” x 35”, 28” x 40”, 36” x 46”, 40” x 54”, 46” x 66”,52” x 72” & 56” x 76”.

Features Handfeed, heavy duty, versatile and compact. Designed electromagnetic Clutch & safety Brakes. Control Panel with Digital Sheet Counter & Timer upto 20 seconds. Grade A quality Casting. Heavy duty Clutch Wheel to release Platen Frequently. EN-9, Quality Grade Shafts Attached with Helical Steel Gears. All Contectors, Switches installed in Electrical Panel Board & Motors are of Siemens Make or similar brand. Bronze Phosphorous Special Grade Bushes. Precision MS Steel Plates & Chase. Manual Centralised Oil Lubrication all over the body. All Moving Part are Protected by approved Safety Guards with full enclosed Wheel Cover. Colour & Finishing of Machine is with Special Grade Pigments & Deco Paints.

High speed Book Stitcher of Perfect harmony in shape, Robust, Versatile & Compact model for side and Centre Stitching, Adjustable table complete with AC motor. Sizes Available: 5/8”, 1” & Double Head ½” Option : Loop Stitching

Treadle Type, Manual type back-gauge & Pressure, with motor or without motor. Sizes Available: 26”, 32” 36” & 42”

Unwind Station with Break. sheet Counter with Photo Cell Sensor. ns Belt with P/u Belt System for Paper Passing. delivery Table with Sheet Stacker. pneumatically Individual Pressure Provided for Accurate Sheet Separation. 2hp Dc Variable Speed Drive Electric Control Panel with Front & Rear Control with Emergency Stop. sizes Available: 24”, 32”, 36”.

Oblique type Paper Corrugating machine fitted with gear box which runs in oil bath. The flute rolls mounted on bushes, the most important feature of the machine are minutely finished to give perfect impression on the board. One pre heater is provided to pre heat the liner Paper. The machine has motorized self loading twin shaft reel stand, Electric heater are provided for the lamination of the board. Optional : Eddy Current Variable Speed drive, Slitting Attachment, Bearing Mounted. Sizes Available : 42”, 52”, 62” & 72”

High speed Book Stitcher of Perfect harmony in shape, Robust, Versatile & Compact model for side and Centre Stitching, Adjustable table complete with AC motor. Sizes Available: 5/8”, 1” & Double Head ½” Option : Loop Stitching

Heavy build, Self clamp Pressure, Push button operation, measurement tape, Centrally lubricated with Electro magnetic Clutch, Photocell safety Device. Sizes Available: 33”, 42”, 45” & 52”

To Trim and Crease the Corrugated Board Simultaneously. The machine is easy to operate & sturdy in construction. The creasing heads & cutting heads can be easily set as required. The platform is provided with 2 side gauges for feeding of the board. Gauges are provided for accurate cutting & creasing. Sizes Available : 65”, 75”, 95” & 105”

Brand Name : PRINTOGRAPH

Material : Mild Steel

Driven Type : Electric

Condition : New

Rated Power : 1-3kw

Automatic Grade : Semi Automatic

Certification : CE Certified

0% Film Wastage. sturdy Design. quality Pasting. high Production. easy to Operate. new Technology. sizes Available: 20” X 24” & 16” X 20”.

This machine is useful to Slot & Corner cut the corrugated board simultaneously. The machine is provided with three slotting heads and one corner head. These heads can be easily movable by gear track mechanism provided in the machine. Sizes Available : 65”, 75”, 95” & 105”
