Sonel Instruments India Pvt. Ltd. Kolathur, Chennai, Tamil nadu

Voltage tester, High Voltage Tester HVT-7050 perform DC high-voltage testing of power cables (IEC 60502-2) up to 70 kV, power cables accessories (IEC 61442) as well as AC high-voltage testing, up to 50 kV at 50 Hz, of switchgear, reclosers, dielectric insulators, highvoltage dischargers (arresters), busbars and other dielectric materials with relatively low electric capacitance.

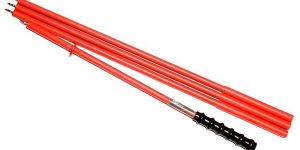

Voltage probe, The probe is used to measure loop impedance of the luminaires (or other objects) that are beyond the reach of the hand. It can also be used for insulation resistance measurements with test voltage up to 1 kV. The probe has an adjustable length from 1 to 2 m. Probe tip fits into 16 A phase socket.

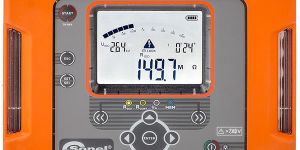

Voltage measuring instruments, 2.5kv Insulation Tester measurement: selectable measurement voltage in the 100…2500 V range with 100 V step, continuous indication of 2.5kv insulation resistance or leakage current, automatic discharge of capacitance of tested object after the insulation resistance measurement, acoustic signalling of five-second periods to facilitate obtaining time characteristics, The ability to charge from car lighter (12 V) socket (additional accessories).

Brand Name : Sonel

Model Number : VT 2

Country of Origin : 1000 V

Underground cable fault locator, The pinpointer Locator S is designed to locate cable (outer) sheath faults on shielded or unshielded plastic insulated cables accurately. It effectively measures step-voltage potentials in the earth that will develop during faults in underground cable sheaths. In combination with a suitable test generator (DC pulse or surge) the precise location can be detected offline. The Locator S consists of a digital voltage detector and two step voltage probes. After spiking the flexible probes of the detector will show the direction to the fault on the easy understandable display. The step voltage potential will increase when the fault is approached. The point of polarity reversal (zero) will indicate the precise location of the fault.

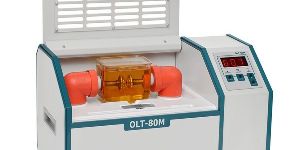

Transformer oil test kit, Oil tester OLT-80M is designed for determining the breakdown voltage of the transformer oil and other liquid dielectrics in accordance with IEC 60156 and other standards. Both A and M series of OLT oil testers bring out accurate and repeatable results of measured breakdown voltage. Fast high-voltage switch off time makes it possible to carry out test of dielectric liquids, which are easily destroyed under such influences.

Three phase power analyzer, Power quality analyzer PQM- 703 is a technically advanced product that allows for comprehensive measurements of the quality of electricity , analysis and recording of power network parameters, for frequencies 5060 Hz in accordance with European standard EN 50160. PQM -703 is another representative of a well, known family of analyzers line PQM- 70x . In relation to the PQM -702 has new functions like recording of transients with max. sampling frequency 10 MHz (rapid changes in voltage) and control signals. Minimal transient capturing time is 650 ns. It is intended for a very wide range of users who need to control the quality of power with a mobile device , which fulfills the requirements of a multi-sheet standard IEC 61000 for class A analyzers. This applies to measurement accuracy, measurement methods, and synchronization of time with a standard signal. The last condition is met with a built-in GPS module with an internal antenna. If the analyzer is installed inside, it is possible to use an additional antenna with a 10m-long wire. If the antenna is situated outside, GPS signal will be attainable without any problems and used for the synchronization of an internal clock.

Frequency : 40,00…70,00 Hz

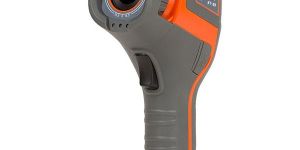

Thermal imaging system, Sonel KT series is an efficient, budget-friendly and professional infrared camera. This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes in an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVACR equipment and others.

Availability : 755 g

Thermal camera, Polish manufacturer of measuring instruments introduces the new high level cameras with many usable features, matched with a wide variety of IR lenses. A fully radiometric, high resolution cameras which records temperature at each point of the image. This cameras make shooting professional IR images fast and easy as never before. Everything closed in a durable, water and dust proof casing, small size and low weight. Can you expect more? Yes, and Sonel gives you more. More features, options and functions (compass, GPS, IR analysing functions, Wi-Fi reports printing, others). Additional we offer you fully free, professional but intuitive software for image editing and reports creating. You need only to enjoy the quality, professionalism and performance of new Sonel KT series.

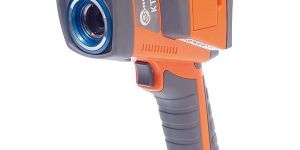

Sun visors, A fully radiometric camera which records temperature at each point of the image Auto Focus (manual focus also available), Large memory capacity (built-in memory + standard replaceable SD card) or a real-time transfer to a PC (USB) – unlimited recording capacity Water and dust proof casing (IP54); 2 m drop resistant

Resistivity meter, MRU-200-GPS is the only meter in the market which uses all measurement methods. Possible measurements: earth resistance measurment with 2-pole, 3-pole,4-pole method, impulse earth impedance measurement, three kinds of measuring impulse 410μs, 820μs, 10350μs, earth resistance measurement without disconnecting measured earths (using clamp), GPS coordinates of the measurement are stored in meter memory.

Reflectometer, SWG-121100R portable cable fault location system is a complex solution for safe, fast and easy locating a faulty place on low and medium underground voltage cables. It includes a powerful high-voltage unit, which has a test, burn and surge generation modules, and a time-domain reflectometer for locating faults on cables.

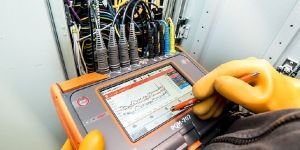

Pp clamps, Power Quality Analyzer Sonel PQM-707 is an autonomous meter allowing for versatile measurement, analysis, and registration of energy networks parameters DC and 5060Hz, including the quality of electric energy in accordance with the European standard EN 50160 and the Regulation of the Minister of Economy on detailed conditions of the electro-energetic system functioning. All parameters are measured in the S class of the IEC 61000-4-30 STANDARD guaranteeing high accuracy of measurements. The largest in this class of analyzers 7-inch colour touch screen enables intuitive and ergonomic operation. Thanks to the built-in lithium-ion battery, the analyzer allows for efficient work during the measurement without the necessity of connecting an external AC adapter.

Power supply testers, 10KV Insulation Tester Insulation resistance measurement:up to 40 TΩ measurement voltage any in the range of: 50…10000 V (50…1000 V at 10 V and 1…10 kV at 25 V), continuous indication of measured insulation resistance or leakage current, MIC-10s1 – Stable measurements in noisy environments such as 765 kV substations. Graphic LCD 5,6’’ backlit. Keyboard backlit. Power supply from battery packs. Built-in fast charger. The instruments meet the requirements of the EN 61557 standard.

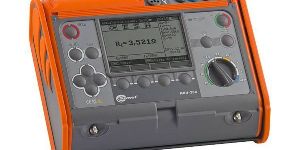

Pole clamp, MRU-200 is the only meter in the market which uses all measurement methods. Possible measurements: earth resistance measurment with 2-pole, 3-pole,4-pole method, impulse earth impedance measurement, three kinds of measuring impulse 410μs, 820μs, 10350μs, earth resistance measurement without disconnecting measured earths (using clamp),

Multifunction meter, MPI-530-IT meter is a multi-functional instrument for electric shock protection measurements including the option of various methods for measuring earthing and earthing resistance. Sonel MPI-530-IT allows testing of residual current devices (RCD), types AC, A, F and B also in IT network. Additionally the meter enables its user to analyse power supply parameters, records and displays them on its screen. The instrument automatically measures the insulation resistance in a socket and in 3 -, 4 – and 5-wire cables when used with AutoISO-1000C adapter. Measurement results may be continuously verified, depending on user’s demand or according to binding regulations. Memory of the instrument may store tens of thousands of measurements allowing users to store them in a structure of a protocol and describe individual measurement points.

Low voltage tester, Cable test van ETL-35K is a combination of testing equipment mounted in a van and designed to perform the following: High-voltage testing with AC voltage of up to 50 kV; High-voltage testing with DC voltage of up to 60 kV; Burning the defective insulation of cables and its further aftreburing; Determining the distance to the fault with Time Domain Reflectometer RIF-9; Finding cable faults using the induction method with the audio-frequency generator GZCH-2500 and the surge wave locator set P-900; Finding cable faults using acoustic method with the acoustic generator GAUV-32 and the surge wave locator set P-900; Measuring the parameters of power transformers using the low-voltage tester BNI; Determining the capacitance and dissipation factor of electrical facilities with voltages of up to 10 kV.

Accuracy : 10%

Brand Name : Sonel

Brand Name : Sonel

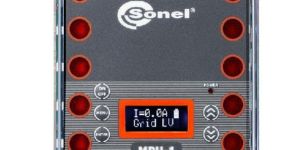

Leakage current tester, MPU-1 is dedicated to control (measure) leakage current in AC, low and medium voltage power networks. It is designed to make measurements, which results define network’s safety condition for leakage current. The device enables to set limit for maximum safe value of flowing leakage current and for values above this limit visual and sound alarm is activated.

Insulation tester, 2.5kv Insulation Tester measurement: selectable measurement voltage in the 100…2500 V range with 100 V step, continuous indication of 2.5kv insulation resistance or leakage current, automatic discharge of capacitance of tested object after the insulation resistance measurement, acoustic signalling of five-second periods to facilitate obtaining time characteristics,

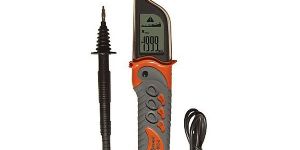

Insulation monitoring device, Digital insulation meter MIC-2 automatically select insulation measurements range at 250 and 500 V test voltages. This insulation meter is suited for insulation resistance measurements of electric installations, motors and other electric devices. MIC-2 can also be used to measure voltage up to 600 V AC and resistance up to 1999. Instrument is easy to use, professional tool in small and incredibly ergonomic case.

Application : Industrial

Frequency : 65Hz

Brand Name : Sonel

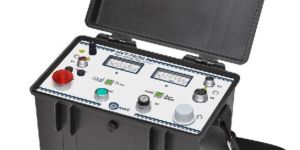

Hv cable, High Voltage Tester HVT-7050 perform DC high-voltage testing of power cables (IEC 60502-2) up to 70 kV, power cables accessories (IEC 61442) as well as AC high-voltage testing, up to 50 kV at 50 Hz, of switchgear, reclosers, dielectric insulators, highvoltage dischargers (arresters), busbars and other dielectric materials with relatively low electric capacitance.
