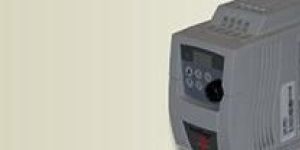

Variable Speed Drives
Main features - Only two physical frame sizes - Speed setting by buttons and knob - Six different physical frame sizes - Built-in PLC function always available Applications The VariFlex2 Series is a compact, user friendly, and feature-laden AC Frequency Drive to be used with 3-phase AC induction motors. The VariFlex2 employs state of the art microprocessor technology which controls all drive functions. VariFlex2 - RVCF motor drives cover general purpose motor control applications from 0.40 to 55.0 kW (0.50 up to 75.0 Hp) and offer a complete set of features and options usually available only on larger drives. VariFlex2 - RVCF series is available in six frame sizes, covering the main supply voltages (230 Vac - 13 ph. and 480 Vac - 3ph.).
...more

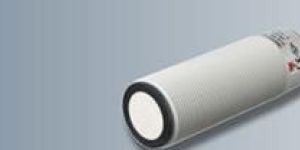

Ultrasonic Sensors
Main features - M18 and M30 housings - Sensing distance up to 8000 mm - Analogue models with 0-10 VDC or 4-20 mA outputs - Teach functions on advanced models to configure set-points Applications Carlo Gavazzi's Series Ultrasonic Sensors are designed for both distance measurement and object detection in tough environments. Discrete output types are available for presence and absence detection, and are ideally suited for detecting objects,such as transparent objects, that cannot be reliably detected by other sensors. Among our sensors range, analogue output types are available for applications requiring a measurement of the target object, such as detecting the level of fluid in a tank. The Windows version also allows settings to be saved and downloaded to multiple devices.
...more
Switching Power Supplies
Main features - high efficiency - single phase and three phase - unversal ac dc input - din rail, low profile and enclosed types - 5w to 960w , 5 to 48vdc output - overload and short circuit protection built-in applications carlo gavazzi presents the most complete range of power supplies for the automation industry. To select them you only have to choose the output voltage and the output power. Power supplies are also available with 3 phase input specifically tailored for the automation industry. These products, as well as the single phase power supplies and the enclosed type, feature very compact design, high efficiency and overall high specifications. The entire range carries full certification and offers a wide range of universal inputs and screw terminals connection.
...more
Solid State Relays
Main features - Single phase relays up to 125 amps - 3 phase relays up to 75 amps - Digital and analogue inputs (4-20 mA or 0-10 V) - Complete range of SSR's with a built - in heatsink Applications Carlo Gavazzi offers a comprehensive range of Solid State Relays (SSR's) featuring direct copper bonding technology for increased life and reliability. SSR�s are used extensively in the plastics, packaging, food processing, and HVAC industries - primarily for temperature control. Other applications include lighting and pump switching. Many of our relays feature horsepower ratings, that make them suitable for controlling motorized dampers in HVAC control systems. In these particular systems, our relays are the ideal replacements for mechanical contactors, because of their long life and noise-free switching. Furthermore, we also offer a complete range of SSR's with a built-in heatsink.
...more
Soft Starters
Main features - Lower inrush current - Protection of drives shafts and gearboxes - Millions of switching cycles - Easy to operate Applications Carlo Gavazzi offers a range of Motor Controllers for soft starting/stopping, dynamic braking, and reversing of three phase squirrel cage motors. Applications include conveyor systems, pumps, compressors, industrial dryers, mixers, automatic doors, palletizers, and fans. Our soft starters are available with a characteristic ramp suited to start both compressors and pumps. It also includes a 'Kick-Start' feature to start loads with a higher break-away torque. Our soft start controllers are provided by internal bypass relays which eliminate the need for large external heatsinks. This feature minimizes the space requirements in your panel and also greatly reduces the heat generated.
...more
safety modules
Main features - easy installation - immediate fault detection - simple working mode - 99x22.5x114 mm housing - 80x22.5(45)x99.5 mm housing applications carlo gavazzi's range of safety modules includes modules for light curtains, safety mats, two hand control (anti-tie down device), magnetic and safety switches, and emergency stop. They are available with up to 3 force guided relay safety outputs and are suitable for use in applications up to category 4. We also offer extension modules which are used in conjunction with our safety modules and allow you to increase the number of safety outputs. Our safety modules feature cul and tuv approvals. Our modules are powered by 24 vacdc, 110 vac, or 230 vac and feature led status indicators.
...more

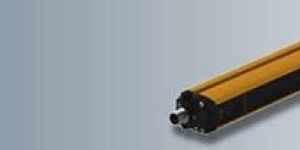

Safety Light Curtains
Main features - Failure diagnosis by LEDs - Easy alignment and mounting procedure - 161mm up to 1650 mm - Compact dimensions Applications Carlo Gavazzi's range of light curtains are available in various heights and are available with finger, hand, and body resolutions. Our light curtains are designed and manufactured in conformity with EN954-1 and EN61496 and have TUV and cUL approvals. Carlo Gavazzi light curtains, in conjunction with our safety modules, are suitable for use in applications up to category 4. Features include fixed and floating blanking, cascade operation (SB4M), external device monitoring, and on our body resolution curtains we also feature a muting function with built-in muting sensors. Accessories include deviating mirrors, floor stands, and supports.
...more

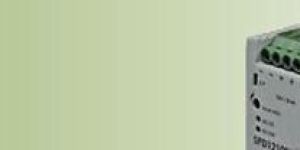

PV Monitoring Solution
Main features - Modular local control system for PV plant - Up to 16 DIN modules configuration - Freeware software for easy control Applications Carlo Gavazzi introduces the EOS Array, its advanced solution for the control of photovoltaic plant control. Eos-Array is a system comprised of individual modular elements that, when interacting with one another, provide efficient local control to the solar plant. Whether it is a smallmedium power or high power plant, you are assured there is effective information management.
...more

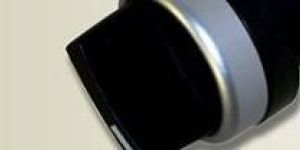

pilot lights
Main features - 22 mm (standard and bezel style) - 30 mm mounting (flush style) - Six colours plastic material - 22 mm (standard and bezel style) 6 to 380 AC and DC supply voltage Plastic material Applications Carlo Gavazzi offers a complete range of Push Buttons and Pilot Lights. Our push buttons - really easy to install and use - meet all application requirements of panel builders and industrial equipment manufacturers. Carlo Gavazzi also offers a broad selection of pilot lights featuring LED lights with a service life of more than 100,000 hours. In addition to a wide selection of colours, there are various lens types and styles, that make them suitable for most applications.We even offer dual colour indicators and, to top off our range, buzzers and flashing buzzers.
...more
power regulator
Photoelectric Sensors
Main features - Plastic and Metal housing - Sensitivity adjustment by teach in programming - Models with microprocessor control - Miniature sensors width only 10 mm Applications Carlo Gavazzi offers a large range of Photoelectric Sensors which are used extensively on packaging machinery, automatic door systems, and plenty of industrial applications. Our sensors are available in diffuse reflective, background suppression, reto-reflective, polarized, through beam, clear object detection, and colour recognition. We also offer a range of fibre-optic type sensors for applications where a conventional sensor cannot be used (space restrictions, temperature, atmosphere) Our range include VP series optical types (ideal for use in level applications). They are available in different housing materials which allow their use in various industrial cleaning solutions.
...more

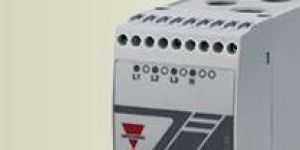

Motor Protection Relays
Main features - Motor protection: thermal image, phase loss and sequence, current imbalance, locked rotor, earth fault - Electrical variables monitoring and datalogging: current, voltage, harmonic distortion, power, energy - Motor control: start-stop, start-delta, emergency starting - Fast connection to Modbus TCPIP and Profibus to transmit all instantaneous variables and alarms to a central control system Applications Carlo Gavazzi offers a range of modular electronic relays to protect, control and monitor the motor. They are very effective for motors which are located in very sensitive positions, in the applications making any failure very costly (mining, water treatment, oil, gas and power stations). They allow the motor operations to be controlled, and simultaneously prevent out of service using warning alarms to solve any malfunction before the motor can be damaged. Our relays estimate the thermal motor status and prevent overheating. All the functions which control and protect the motor are freely configurable according to the needs of the plant.
...more
Motion Radar Sensors
Main features - Supply voltage : 12÷24VACDC - K-Band (24.125 GHz) - Changeover relays output - Vehicle andor person detection - Direction detection - Long range of detection Applications The Motion Radar Sensor is a digital unidirectional long range motion radar sensor, operating in the K-band (24.125GHz), for trouble-free opening of all types of automatic doors. It can be adapted to any application without additional accessories and can also be set up and controlled by infrared remote control. Mounting height up to 7m (23ft) to detect vehicles or persons, moving towards or away from the sensor. The sensor, based on microwave detection, works on echo doppler signal to detect movements.
...more
monitoring relays
Main features - Family available in three different housings - Standard DIN Rail for industrial panels - Plug in housing for fast and safe replacement - Mini D housings for smaller panels Applications Carlo Gavazzi offers a comprehensive range of monitoring controls for monitoring of phase loss, incorrect phase sequence, phase unbalance, overunder current, overunder load, overunder frequency, and overunder voltage. Our products include current monitors, voltage monitors, power monitors, phase loss relays, and current transformers. These monitors are used in a wide range of applications for protecting motors against the damaging effects of single phasing and overloads (elevators, compressors, pumps, air conditioning systems, mixing tanks). They are also used for monitoring instrumentation signals (4-20mA, 0-10V), verification of machinery operation, detection of broken heater elements, monitoring of lights in critical areas (runway lights at airports), monitoring of ventilation fans, and in building automation systems.
...more
Measurement Transformers
Main features - cylindrical housing from 4 to 30 mm - standard and extended sensing distance - flat-pack housing - stainless steel and polyester housing - flush non flush version applications carlo gavazzi offers a comprehensive range of inductive sensors - primarily used to detect metal parts and objects. These sensors are used extensively in packaging and plastics machines, assembly lines and conveyor systems. They are available in a wide variety of styles and feature both digital (scr, transistor) and analogue outputs. Carlo gavazzi offers inductive sensors in cylindrical housings (from 4mm to 30 mm) with both standard and extended sensing distance and in a flat-pack housing.
...more
Magnetic Sensors
Main features - Wide range of housing shapes and materials - Hall effect sensors - To be used in several application and suitable for a lot of different fixing systems. - Atex sensors for use in explosive environments Applications Carlo Gavazzi offers a comprehensive range of Magnetic Sensors to be used in proximity of detection applications. They are employed in conjunction with an external magnet: when the sensor approaches the magnet, the output from the sensor will change state. Typically these sensors will have a longer sensing distance than typical proximity sensors. Moreover, the output will be a mechanical contact. There is a wide variety of styles available including rectangular, cylindrical, and slotted ones. In addition, special coded magnets and sensors are available for use in safety applications. Magnetic sensors are frequently used on elevators and lifts, gate control, level detection, and access control.
...more
loop detectors
Main features - Single or Dual Loop Detector - Automatic adjustment of detection level - Pulse or presence relay output - LED indication for power,relay status, loop fault Applications The new Loop Detector for vehicle detection continues the Carlo Gavazzi tradition of providing superior sensing technology and solutions for the door and entrance control market. The pulse mode relay can be configured to activate when the vehicle enters or leaves the loop. The output signal is useful for controlling all kinds of doors, shutters, swing gates, sliding gates etc.
...more

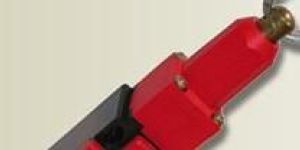

Limit Switches
Main features - Two housings available (plastic and metal) - Limit type and safety type switches - Different head types and sizes to suit different applications - Different configurations for more installation flexibility Applications Carlo Gavazzi offers a complete range of limit and safety switches, providing machine manufacturers and panel builders with global and exhaustive solutions allowing machinery to operate correctly and minimizing process stops and personnel risk. Switches may be operated by process variables such as pressure, temperature, flow, current, voltage and force, acting as sensors in a process and used to automatically control a system.
...more
Lifts Components
Inductive Sensors
Main features - Cylindrical housing from 4 to 30 mm - Standard and extended sensing distance - Flat-pack housing - Stainless steel and Polyester housing - Flush Non flush version Applications Carlo Gavazzi offers a comprehensive range of Inductive Sensors - primarily used to detect metal parts and objects. These sensors are used extensively in packaging and plastics machines, assembly lines and conveyor systems. They are available in a wide variety of styles and feature both digital (SCR, transistor) and analogue outputs. Carlo Gavazzi offers inductive sensors in cylindrical housings (from 4mm to 30 mm) with both standard and extended sensing distance and in a flat-pack housing.
...more
Current Transformers
Main features - Reduced size to meet the most harsh applications - 0.5 1 3 class, currents from 1 A to 4000 A (in 4 models) - 2 to 6 bus-bar isolated fixing screws - Double screw terminals (up to 8-wire connections) Applications The new current transformers and split-core current transformer with bus-bar mounting facility from Carlo Gavazzi can be connected with all the existing wire terminals and can be installed either in DIN-rails or directly on panels. In addition, the CTD devices avoid any output overvoltage, during the maintenance and installation procedures, bridging the secondary without changing the connections.
...more
Energy Management - Modular
Main features - Plug and play modules common to all, providing maximum in-field flexibility. - Possibility to expand the number and the type of outputs according to application needs Applications In addition to the obvious need to improve the performance of the measuring instruments to keep them up-to-date with state of the art technology, it is important to offer user friendly instruments easily and quickly adaptable to the applications and management needs of the customers. To meet these needs we offer a new modern range of instruments which, according to the various criteria of signal processing and displaying, can be modified into transducers, indicators or controllers.
...more
DUPLINE BUILDING AUTOMATION system
Main features - Energy efficiency - Easy handling and simple programming - Simplified wiring - Extremely flexible and cost effective Applications Carlo Gavazzi's modular concept for Home and Building automation. This system is based on a patented digital bus, the two-wire Dupline® and controls and monitors applications such as lighting, roller blinds, heating, air-conditioning and alarms. This innovative system allows considerable savings in energy consumption, increasing the comfort and safety. Operation, service and maintenance are simplified, with complete status overview anytime and anywhere. It can also be interfaced to any building automation system via BACnetIP.
...more

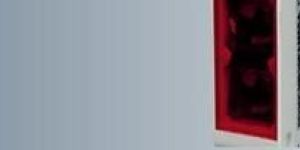

conductive sensors
Main features - Compact housing - Adjustable sensitivity by teach-in function - User-defined electrode length - Mounting probe head for up to 4 different levels - Multiple application operations by means of dip-switch settings Applications Carlo Gavazzi range of conductive Level Sensors is well suited to solve most level control applications. The new CL-series of intelligent conductive level controllers is used for level monitoring and pump control of conductive liquids. CLH models with flexible conductive level probe can accomodate up to five rods for four different levels of control. Operating levels in the tank can be easily modified by extending or cutting short the length of the electrodes. Conductive sensorsÂ’ typical applications are level control and flow detection, in agriculture, chemical, food and beverage, water distribution and treatment markets. Carlo Gavazzi Level Sensor range also includes sensors to detect non-conductive liquids, granulates, grains, and plastics: capacitive level sensors, ultrasonic sensors, magnetic level probes, and optical sensors
...more
Meanwell PCD Series LED Power Supply services
Single Output Power Supply services
High Efficiency Din Rail Power Supply services
Meanwell SMPS services
Three Phase DIN Rail Power Supply services
Dupline Irrigation services
