SRIRAM POWER SAVER Sholinganallur, Chennai, Tamil Nadu

Welding ideal energy saver is a electronics sensing unit its the detects the voltages across the electrode gun and these non-weld periods and switches off the power to the welding transformer by using a contactor (contactor not supplied by us). After preset time interval and hence saves power during these periods. When welding operator need to touch the electrode to the material to be welded and the unit instantly starts the weld, which then can be carried on continuously.

Input Voltage : 380–415 V

Output Current Range : Up To 200 A

Automation Level : Automatic

Duty Cycle : 20–40%

Cooling Method : Air Cooled

Mounting Type : Industrial

Power Source Type : Transformer Based

Facilities: 1. Easy of connections 2. Indications of hours and minutes in seven segment led, 3. Relay on and repeat function status of led, 4. Battery back up 7 days, 5. Clock accuracy plus or minus 30 sec per month.

A star-delta starter reduces high inrush current during induction motor startup by initially connecting windings in a star configuration  and then automatically switching to a delta configuration once speed increases and more..

Material : ABS

Automation Grade : Semi Automatic

Voltage : 220V

Usage/Application : Industrial, Automation

Shape : Rectangle

Certification : ISI Certified

Power : 9-12kw

A soft starter is an electrical device that enables a smooth start for an electric motor. Instead of supplying full voltage immediately, it will increase the voltage gradually. This controlled increase in supply voltage helps reduce inrush currents. It also lowers mechanical strain on the motor and connected equipment

Feature : SOFT START,

Brand Name : SRIRAM POWER SAVER

Injection motor solid state energy saver is a electronic unit .it comes along with current transformer. The current transformer is to designed and match the each capacity of full load current. The current transformer sensing line current is below 50 percentage of full load current.the energy saver unit motor is to operate in star mode and till the line current rises to 48 percentage of full load . When the sensing current reaches set current of 48 percentage i.e line current of full load injuction motor energy saver unit to operate ,the motor in delta.

Energy saving lamp controller works by delaying the trigger pulse to some point in the half cycle of the ac wave. This trigger point, from 0 to 180 degrees, is referred to as the phase angle .the scr will turn on when triggered, and remain on for the rest of the half cycle. Increasing the control fireing will cause the trigger pulse to occur earlier in the half cycle, thus delivering a greater portion of the wave to the load. (note: some rfi can be generated from the unit). We maintain the output supply voltage constant (200 volts a.c)by varying the scr firing angel automatically.

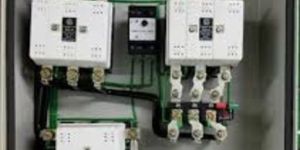

A large percentage of electrical energy is utilized in running motors in industries. A wide variety of motors are used depending upon the application.Star Delta Starters are used with squirrel cage induction motors to reduce the starting current. They operate the motor in star mode at start and after the set time delay, it switches over to Delta mode and continuous to run in delta irrespective of whether the load is low or high.

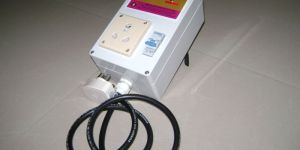

AirConditionerPermanentlykeptON is one of highest energy consumers in  the residential and industrial sectors air conditioner is not customized for each climate zone separately .Hence common setting for hottest climate zone is getting employed in all the Air conditioner Since air conditioners are not designed for different climatic zones. When the set temperature is achieved, the compressor continues to run for an additional fixed period say 6-8 minutes known as the over cooling period which is required only for few hours in a day in peak summer

Brand Name : SRIRAM POWER SAVER

Color : Gray

Condition : New

Automation Grade : Automatic

Feature : Easy Operate

Voltage : 220V

Output Type : AC Single Phase

Energy Saving Star Delta Starter Can be used with three phase squirrel cage induction motors for starting mechanism of D.O.L Starter and Soft Starter. (A panel built with contactors and energy savers.)
