VELWIN TECHNOCRATS Koyambedu, Chennai, Tamil Nadu

Submicron filters Cleansweep Very low installation clearance - Install anywhere Oil Removal (Coalescing) and particulate Flow from 60 cfm to 1065 scfm Particle Removal 0.01(Micron) Max. Oil carryover 0.003(mg/c3)   Working PrincipleCoalesing is a continuous natural process in which oil and water particles that pass through the filter element come into contact with a fiber stand and unite with other collected aerosole to form droplets. The droplets fall to the bottom of the housing and are drained away.

Coldspell Large condenser for high ambient temperatures Microprocessor based controller Anti-recycle feature for compressor protection Low pressure drop across advanced heat exchangers saves Energy The dryers have been designed for nominal standard inlet conditions as per ISO 7183 - 2007 l Dryer Quality class - ISO 8573 - 1 : 2010 (E) class -5-

  Prompt Air Equipments uses its advanced engineering techniques and designing know how to devise a range of cost efficient Air compressor, Bore well compressor, Vacuum pump, etc. for fulfilling the rising demand of the market. These air compressing products are designed and developed ar par with the international standards.We have been practicing this profession of manufacturing air compressors since 1996 and the rewards accruing in from this consistent efforts are unmatched recognition wide customer base and gradual rise in the sales graph. We are a leading manufacturer, supplier, and distributor of technically advanced air compressor which are quoted at nominal price for total customer satisfaction.We sell many major types of air compressor including single stage air compressor, two stage air compressors, multi stage heavy duty compressor, vacuum pump (for used hospital purpose), air dryer, air compressor parts, motor, and anything air compressor related.Features Designed for continuous duty. Aero dynamically designed fan with large blades for higher air flow. Optimal distribution of load on cylinders for energy efficiency (two stage models. Optimal operating speed for longer service life. Air receiver, conforming to ASME and EURO norms. Study, robust cast iron crank case. Pressure relief safety valve provided after each stage of compression for safety. Stainless steel valves for lower wear and lasting compressor efficiency. Efficient air filters to ensure clean intake air for long service life. Low expansion aluminium alloy piston with international standard piston rings for positive sealing at elevated temperatures. PRODUCTS High volume reciprocating air compressor. High pressure reciprocating air compressor. Bore well compressor. Non lube air compressor & vacuum pump (for used Hospital purpose). Prompt series reciprocating air compressor. Oil filter, air filter, oil separator. Receiver tank. (Vertical and horizontal).

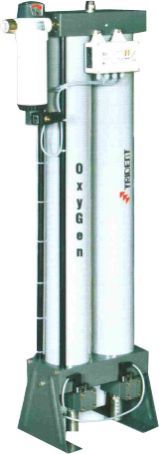

Maximum working pressure                   : 5to 7 bar (b)Air inlet condition : ISO 8573 – 1           : 2010 Class 1-4-1Pre filter rating                                     : 0.3 micronOperating Voltage                                 : 85-265 V AC, 50/60 Hz, 1Ph While pressure building on aluminum tower, second remains without pressure. A part of produced gas is used for the regeneration of the molecular sieves.For OxyGen, Zeolite type sieves is used and it will be fully regenerativeWorking PrincipleAir from the dryer is sent through the coalescing filter. Here water & Oil coalesces, gets purged through the auto drain valve.Here uses two aluminum tower filled with molecular sieves to ensure continuous production. The dry air passes through the aluminum tower. Nitrogen is tied to a molecular sieve during building of pressure on aluminum tower and then the Oxygen is let out through the outlet port for use.Application Fish Forming Sewage Treatment Veterinary Welding and Brazing Battery manufacturing Cement and Lime Kilns Melting Pulp & Paper Mining & Gold Processing Bead Making, Lamp working, Glass blowing Ozone Generator Medical Rough Cutting Mini steel mills Metal spraying Furnace Enrichment Chemical oxidation Fermentation Working PrincipleAir from the dryer is sent through the coalescing filter. Here water & Oil coalesces, gets purged through the auto drain valve.Here uses two aluminum tower filled with molecular sieves to ensure continuous production. The dry air passes through the aluminum tower. Oxygen is tied to a molecular sieves during building of pressure on aluminum tower and then the Nitrogen is let out through the outlet port for use.

While pressure building on aluminum tower, second remains without pressure. A part of produced gas is used for the regeneration of the molecular sieves.For Nitrogen, carbon molecular sieves is used and it will be fully regenerative.Application Metallaurgical Industry Synthetic and fiber Industry Chemical Industries Food Packaging Industry Pharmaceutical Industry Cable & Optical Fiber Industry Electronic Industry Plastic Injection Molding Laser Cutting Semiconductor Manufacturing Metal Heat treatment Glass Industry Working PrincipleAir from the dryer is sent through the coalescing filter. Here water & Oil coalesces, gets purged through the auto drain valve.Here uses two aluminum tower filled with molecular sieves to ensure continuous production. The dry air passes through the aluminum tower. Oxygen is tied to a molecular sieves during building of pressure on aluminum tower and then the Nitrogen is let out through the outlet port for use. Maximum working pressure         : 12 bar (g) Air inlet condition                        : ISO 8573 – 1 : 2010 Class 1-4-1 Pre filter rating                           : 0.3 micron Operating Voltage                       : 85-265 V AC, 50/60 Hz, 1Ph

Desiccant Compressed Air Dryers Medical Breathing Air Dryers Guaranteed dew point performance Desiccant immobilized to eliminate dusting Design Simplicity No Refrigerants used Purge saving control (Optional) CO &Dewpoint monitor (Optional) Air quality mandated by NFPA 99 Bacterial removal upto 99.99% Complete Non-Corrosive Aluminium and SS Construction in Air line   Dryspell Medical Dryers Dryspell medical dryers delivers a dewpoint of +2°C as mandated by NFPA 99. The dryspell medical dryers operates with the principle of pressure Swing Adsorption, hence removes more moisture than a refrigeration air dryers, and it delivers moisture than a refrigeration air dryers, and it delivers moisture free dry air consistently irrespective of flow variation.Based on medical application criticality, the package comes with one working and one stand by dryers. So there is no need to stop the air dryers for maintenance. Optional purge saving system saves purge air upto 60% for a typical hospital load of 30% to 40%. Optional dewpoint and Co monitor enables to monitor dewpoint and Co levels as mandated by NFPA 99. Operating ConditionsElectrical                                 : 85-265V/1 Ph / 50/60 HzMinimum working pressure       : 4 bar gMaximum working pressure      : 16 bar gMaximum inlet air temperature : 45°C

Stainless steel plate type heat exchanger for better efficiency High pressure stainless steel pumps for 24 hrs operation R407C/R134a environmental friendly Refrigerant Indicators and alarms for notification Trident’s New TC Series chillers are designed in accordance with the customers input from various applications. Implementing all the input factors into product specification Trident TC Chillers are designed to perform its best in the industry to meet ypurdesired quality and reliabiltyTrident six sigma design characteristics ensure the choice of best performing components and value enengineering to meet the global requirements. Trident TC Industrial chillers are features with;Stainless steel plate type heat exchanger for better effciencyCounter flow pattern Stainless steel reservoir for continuous flow Reliable contoller & water outlet temperature display on the front panel Indicators and alarms for monitoring High pressure,high volume stainless steel pumps for 24 hrs operation Refill water filter to eliminate dust particles R407C/R134a environmental friendly Refrigerant Compact design Easy to InstallX Applications :Industrial Plastic MouldingMetrology PackagingPharmaceuticalPrintingSemi conductorLeather Industry

PRODUCT QUALITY SUPPORTED BY EFFICIENT SERVICEFleeguard is well established in the filtration industry as one of the leaders in its field, offering a wide range of standard, high quality products as well as customized products designed to satisfy specific needs and requirements thanks to the support of our technical department.Evidence of the high quality of our products lies in the fact that Fleetguard has been cooperating with compressor manufacturers for a long time and on a regular basis , providing expertise and technical solutions, developing new products with OEMs, as well as providing assistance to the numerous small, medium and large firms which are all part of the wide network of Fleetguard customers all over the world.Fleetguard Offers:- Filters and products for compressors Filters and products for vacuum pumps   AIR – OIL SEPARATORSDuring the last century compressed air became associated with many industrial applications and compressor manufactures focused their attention on rotary screw and vane compressor whose compression systems use lubricating oil as a coolant. Hence the necessity of using air/oil separators. Fleetguard designs and manufactures separators specifically for installation in rotary screw andRotary vane compressors and they are available in vertical, horizontal and spin on configurations. Their purpose is to separate the oil droplets from the compressed air, thereby producing cleaner air and allowing the oil to be scavenged and re-circulated in the compressor. Fleetguard separators are manufactured to satisfy OEM’s needs in terms of :-Physical principle of air/oil separation-Element dimensions according to the compressor’s performance and tank dimension.-Oil consumption to ensure a correct functional performance-Use of high grade filtration and separation media to ensure the best quality of clean air neededfor industrial applications.Additionally it is very important to highlight that Fleetguard separators can be used with all types of oils, whether standard, mineral based, synthetic or partially synthetic. In order to decide which is the best separator to be used for a specific compressor, OEMs have to consider what level of separation needs to be achieved, in other words to target the minimum of parts million of residual oil content required. Then a technical solution is needed in order to reduce the oil concentration in the air.Often OEMs need to consider a pre-separation system, which will reduce the PPM and increase the life of the air/oil separator CONSTRUCTION AND SEPARATION: Corrosive resistant materials are used in the construction of the air/oil separators. Careful welding procedures and the use of the latest twin pack adhesive ensure that the element has high mechanical strength and can endure operating temperature up to 120°C.Normally, the air and oil mixture passes from the outside to the inside of separator and the coalescing effect is carried out through a multi stage separation process resulting in the recovery of the oil and producing clean air. PRESSURE DROP – EFFICIENCY AND PERFORMANCE At a nominal working pressure of 7 bar, the pressure drop on a new element varies between approximately 0.15 and 0.25 bar.By using our separators, the oil carryover after separation is limited to about 1 to 3 ppm. The life of the separator depends on many factors : the designs and regular maintenance of the compressor, clean environment, working temperature, quality of the air and oil filters. To ensure maximum separator efficiency, the joints must create a perfect seal. Correct installation and also using the correct type of oil Fleetguard separators can have a life expectancy of many thousand of hours.

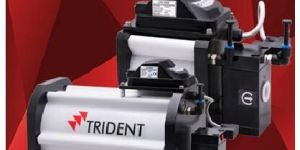

  LDV 1000 LDV 2000 LDV 3000 Series LDV Condensate Sensing Type Zero Air Loss Design Patented Noise Free With CE mark The LDV SeriesTrident’s condensate sensing type automatic drain valve is the latest advancement in drain valve technology. Instead of operating through cycle timer, these valves sense the condensate level for activation, ensuring absolutely no loss of compressed air and hence enormous energy saving. Trident condensate sensing type drain valves are highly efficient and reliable. These drain valves can be fitted directly on the equipment simply by replacing the manual drains.Features The electronic level control ensures proper draining of condensate and avoids unnecessary loss of air. All the functions of the valve are accurately indicated by the LED display. Test switch (or) manual drain allows function test at anytime. Intelligent Controller detects valve, probe failure and acts accordingly. Noise free, as air is not discharged.

  Dryspell .Microprocessor Controller .Pre-filter rating 0.3 microns (coalescer)  .Shuttle valve for Low Presssure drop  .All Aluminium resist oxidation & scale formation .Dewpoint better than -40 c .Design Patented  Principal of operation Drying Cycle : Moist air from the compressor is sent through the coalescing filter. Here water & oil coalesces, gets purged through the auto drain valve. The relatively clean air with water vapour passes through the aluminum drying tower filled with desiccant gets completely dried (upto 40 c dew point) and then passes through a built in after filter. The desiccant fines from the towers are completely removed and clean dry air is let out through the outlet port for use. Regeneration cycle : During the regeneration cycle. The sudden depressurization brings out water molecules trapped in the Desiccant pores to the surface of the beads. A small portion dry compressed air from the drying TOWER then passes over the desiccant through the regeneration orifice built in the Top Block. This results in complete regeneration of the Desiccant.

Brand Name : Trident

End Connection : Inlet 1/2 Inch BSP(M),Outlet 1/2 Inch BSP(F)

Maximum Working Pressure : 10 Kg/cm2

Availability : 1.25 Kg

Automatic Drain Valves Series EDV-X More than 2 Lakhs Installations Designed specially to drain sludge and rust laden condensate Reliable all digital electronic circuitry ON and OFF timing adjistable Power & Drain Status indicator

  Heat of Compression Air Dryer [Series DC]  Trident Refrigeration Compressed Air Dryer is an ideal solution for clean and compressed dry air. It is the result of extensive design and prototype testing and provides a consistent dew point of 3 c. Compared to other Air Dryers the HX Series of Trident has a very low running cost.No-loss Split Flow Air Dryer [Series DS] Trident make split flow dryers offers dewpoint of -40c depending on the  requirements. These dryers utilise heated part of air for regeneration and there is no air loss in this type of dryer. These dryers are available for any capacity higher than 500 scfm. Internal Heated Type Air Dryer [Series DI] Trident make internal heated dryer offers good dewpoint.Heaters are kept inside the insulated tower and the tower is heated to the required temperature and pumped.These dryers are available for any capacity higher than 500 scfm. Blower Heat Reactivated Air Dryers Trident Blower Heat Reactivated Air Dryers offers a very good dew point of 50c or better  depending on the requirement.These dryers are useful for instrumentation air meeting the quality requirement of ISA s7.34. Available for any higher capacity from 500 cfm to 4000 cfm.  Operation  The Blower Heat Reactivated Dryer works on the principle Thermal swing. The desiccant adsorbs moisture from the compressed air to deliver dry air. The desiccant bed saturates over a period of time. The saturated bed is regenerated by heating with hot air generated using a blower. Hence the dryer is called blower heat reactivated desiccant dryer. Since the temperature of the bed swings between the compressed air temperature and the regeneration temperature it is called Thermal swing type. The hot air from the blower passed through a heater. This makes the air very dry. The hot air then heats up the desiccant bed. When the bed is heated it gives up the moisture adsorbed and is ready for adsorption. The hot air carries this moisture to the atmosphere. After the regeneration, heated desiccant bed is cooled by the flow of air to suit the application conditions. Final Cooling is achieved by a no loss compressed air cooling method, resulting in a no Dewpoint spike system. Trident dryer comes with a dewpoint based control system as a standard. The tower changeover takes place only when the bed is saturated, resulting in energy saving and extended life. The dryer with its control valves and controller manages the drying, regeneration and repressurisation of the desiccant columns automatically and thereby delivering continuous dry compressed air.Blower Heat Reactivated Dryers are best suited for applications requiring large volume of compressed air at low dewpoint. For the above conditions the dryer works out very economical energy wise. Trident blower heat reactivated dryers are built from the start for customization. Since the air volume is large cusomisation delivers substantial energy savings.Salient Features  Accordance with ASME or IS codes. Offered for 3rd party inspection.  Typical operating pressures are 5 to 9kg/cm Micro processor based control panel.low dewpoint Low pressure drop Low energy cost for given dew point Compact Ready to use Reliable design and components Available to various standards Dew point based tower changeover controls Low total cost of ownership Extensive operation and maintenance manuals   Contact us or visit our web site for the design input details to enable us to give you a correct solution.Application  Power stations Plant air Instruments.  Designed for Air Inlet Pressure 7 Kg/sq.cm Designed for Air Inlet temperature 38C Designed for Ambient temperature 35C Desiccant : Activated alumina with adsorption capacity 14%
