VR Associates George Town, Chennai, Tamil Nadu

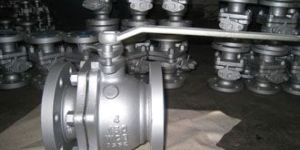

TYPES Ball Valve Gate Valve Globe Valve Check Valve Plug Valve Butterfly Valve Pressure relief valve SIZES Forged Valves – ¼” TO 4” Casting Valves- ½” to 48”

TYPES Coils Plates UB UC IPE I-Beam H-Beams Channels Angles Hollow sections.

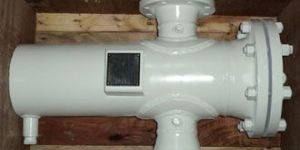

TYPES Y Strainer T Strainer Basket Strainers Duplex Strainers Fabricated Strainers END CONNECTION Threaded Flanged Socket weld Butt weld

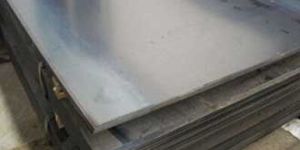

SIZES WIDTH: 2000 – 3000 (MM) LENGTH: 6000 – 12000 (MM) THICKNESS: 6 – 150 (MM)   STEEL GRADE A515/SA515 - 60/65/70 (NORMALIZED, IMPACT TESTED AT - 46C WITH UT TESTING AS PER 578 SPECIFICATIONS HIC TESTED) A516/SA516 - 60/65/70 (NORMALIZED, IMPACT TESTED AT - 46C WITH UT TESTING AS PER 578 SPECIFICATIONS HIC TESTED) A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36

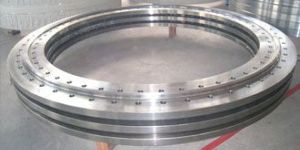

TYPES WIND TOWER FLANGES BEARING & GEAR BLANKS SLEWING BEARING FORGINGS

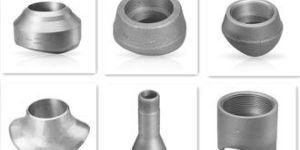

TYPE Weldolet Sockolet Threadolet Elbolet Nippolet Laterolet Sweepolet

SIZES SMLS - 1/8” to 24” (NPS) ERW/HFW- ½” to 24” (NPS) SAW – 18” to 48” (NPS) SCHEDULE 5S to XXS (Odd Thickness will be available on request). MATERIALS Carbon Steel, Stainless Steel, Duplex & Super Duplex, Alloy steel   VALUE ADDED SERVICES Galvanizing Fusion bonded Epoxy Coating 3 layers PE Coating 3 layers PP Coating Lacquer Finish

TYPES FULLGRATING – BEARING BAR (2MM TO 5MM) HEAVY DUTY GRATING - BEARING BAR (8MM TO 12MM) LOUVRE GRATING – BEARING BAR (2MM & 3MM) FULL PRESS LOCKED LOUVRE GRATING – BEARING BAR (2MM & 3MM) PATENT GRATING - BEARING BAR (2MM) ULTRA GRATING - BEARING BAR (2MM & 3MM)

TYPES Spiral Wound Gaskets Corrugated Gasket Ring Joint Gasket Metal Jacketed Cam profile Gasket

Thickness : 3mm-7mm

TYPE Long Radius 90º & 45º Elbows Short Radius 90º & 45º Elbows Equal Tees Reducing Tees Lateral Crosses Reducers Street Elbow Coupling Caps Inserts Bushing Union

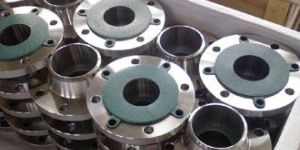

TYPES Weld Neck Slip‐On Socket Weld Blind Threaded Lap Joint Long Weld Neck Types ORIFICE FLANGE ANCHOR FLANGE SWIVEL RING FLANGE WIND TOWER FLANGES PADDLE SPACER, BLINDS & SPECTACLE BLINDS (ACCORDING TO ASME B16.48)

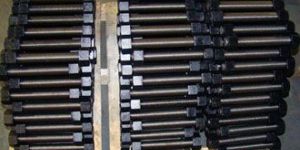

TYPES Stud Bolts Anchor Bolts Turbine Bolting High Tensile Threaded Rods Hex Head Bolt Cap Screws Nuts Washers GRADES A193- B5, B6, B7, B8, B8C, B8M, B8T, B16, B7M A194-2H, 2HM,3,4,6,7,8, 7M, 8C, 8M, 8T A320 -L7, L9, L10, B8, B8C, B8M, B8T, L7M

TYPES PERFORATED LADDER TRAY TYPE PT – PLAIN TYPE FLANGE IR – INSIDE RETURNED FLANGE OR – OUTWARD RETURNED FLANGE CP – C-PROFILE FLANGE SIZE RANGE SIDE HEIGHT: 25 MM TO 100 MM WIDTH: 50 MM (2”) TO 900 MM (36”) MATERIAL THICKNESS: 1 MM TO 2 MM LENGTH: 2440 MM / 3000 MM MATERIAL FINISH HOT DIP GALVANISATION EPOXY PAINTED STAINLESS STEEL ACCESSORIES FLAT 90DEG BEND FLAT 45DEG BEND OUTSIDE RISER INSIDE RISER FLAT EQUAL TEE FLAT 4 WAY EQUAL INTERSECTION REDUCER STRAIGHT COUPLER CRANKED COUPLER FISH PLATE EARTH LINK

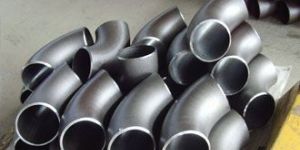

TYPE Long Radius 90º & 45º Elbows Short Radius 90º & 45º Elbows Long Radius 180º Returns Short Radius 180º Returns Straight Tees Reducing Tees Lateral Tees Barred Tees Concentric Reducers Eccentric Reducers Crosses Caps Stub Ends

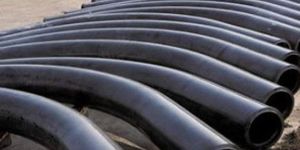

Application : Gas Pipeline, Oil Pipeline, Water Pipeline & Other Industrial Process plants

Thickness : 5mm to 100mm (0.2” to 4”)

BUSHES Load Range: 0.5kN to 600kN Size: OD 10 – 400 mm SANDWICH MOUNTS Load Range: 0.1kN to 450kN Rectangle or Square: 10 x 10 x 10 to 300 x 300 x 300 mm Bobbin Size: OD 10 – 150 mm BUMP STOPS Load Range: 0.5kN to 50kN Size: 10 t – 250 mm GENERATOR MOUNTS Power: 0.5 kN – 200 kN Size: as per Customer Requirements SPECIAL VIBRATION ISOLATOR Power: Ball Joints & Tunion Bushes for High Axial & Torsional Load INDUSTRY Wind Energy, Defense, Industrial, Electronics, Marine, Process, Railways, Specialized Vehicles & Automotive
