Wittmann Battenfeld India Pvt Ltd Porur, Chennai, Tamil Nadu

The design of the unit is based on the proven modular system of the flow controller series 101 and 301: 2 to 12 circuits per unit (in steps of 2 circuits).flow sensor and temperature sensor are integrated in in the plastics case in a space-saving.

Flow volume is indicated in accordance with the float measuring principle: a cone is lifted by the water flowing in the return of the mold circuit.Technical Data   Flow range per circuit: Standard 0 – 10 l/min. On request: AI, PVC-cones. Standard: Mold connections with 12 mm brass socket for 3/8" hoses.On request: Threaded connection with G 3/8" brass threaded sleeve with screwed 14 mm brass socket for 1/2" hose, or screwed 20 mm brass socket for 3/4" hose.

We are offering water flow regulator. The essential device for your plastics processing machines for open and closed cooling circuits. Flow volume is indicated in accordance with the float measuring principle: a cone is lifted by the water flowing in the return of the mold circuit.

Offers vertical injection molding machine. Symmetrical 3-point force transmission with below positioned clamping cylinders ensure optimal force distribution in the mold. Exact platen parallelism across the entire stroke. Fully hydraulic clamping concept. High opening and closing speeds thanks to differential control system and interconnection of both pumps. Short dry cycle times. High repeatability of all parameters.

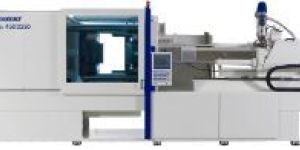

Offers toggle machine. Short footprint. Extremely rigid, sturdy clamping plates and machine frame. Precise platen parallelism across the entire stroke. Low-maintenance linear guides to support the moving platen. Self-locking 5-point toggle system. Reinforced toggle bearings with low-maintenance toggle sleeves. Adhesive central oil lubrication of toggle system. High opening and closing speeds thanks to differential gears. Short dry cycle times. Flexible parts removal in three directions. High repeatability of all parameter settings. Sensitive mold safety device. Mold protection thanks to precise platen, parallelism, minimal platen eflection and linear guides. Low-maintenance and service-friendly design of all machine parts. Clamping unit tm 180 – 500 t.

Drive Mode : AC

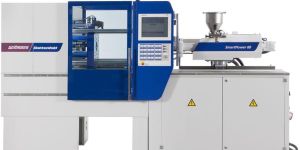

We are offering servo drives. Clamping forces ranging from 25 to 120 t, these smart servo hydraulic machines are terms of precision, efficiency and user-friendliness. Smartpower is extremely versatile and optimally adapted to multipurpose use. The powerful unilog b6p control system offers numerous options for process monitoring and documentation

We are offering mold temperature controller. Booster pump (for filling under pressure at temperatures of more than 100 °c) touch-screen display, 5.7", windows ce heat exchanger made of stainless steel (incoloy heating element) pump and system pressure gauges maintenance free magnetically coupled pump (standard in the tempro plus d140160180) heating control via solid state relay

Offers micropower injection molding machine. Wittmann battenfeld as a system supplier of cost-efficient solutions all from a single source has also adapted the entire range of peripheral equipment to the production of small and micro parts, from material feeding devices and material dryers for small volumes and throughputs to tempering systems with corresponding performance levels. Main benefits: wider processing window. Higher dimensional stability of parts. Less warpage of parts. Less degradation of plastic materials. Less rejects. More stable production.

Offers macropower injection molding machine. The powerful large machine model of the powerseries with clamping forces ranging from 400 to 1,600 t. Extremely short footprint. High rigidity and stability thanks to short tie bars and femoptimized platens. Synchronized locking of tie bar nuts completely integrated in moving platen. Low-maintenance linear guides to support moving platen. Clean mold space. Precise platen parallelism over the entire stroke. High opening and closing speeds through differential control system.

Brand Name : Wittmann

Country of Origin : 415V

Driven Type : AC

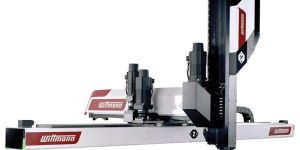

We are offering industrial robots. Rugged design of the robot. Reinforced profiles for higher load rating and longer durability. Integrated connection technology for vacuum and gripper circuits. Modularity of the robot mechanics and of the drive and control system architecture.

We are offering injection molding equipment. A wide variety of solutions with top or side entry robot. A complete range of label magazines for sizes from 30 ml up to 20 lit. Containers. Standard teachbox for all wittmann robots. Worldwide services for start-up and training. Turnkey solutions with injection molding machines. Numerous options for control and stacking. Open programming

Offers hydraulic machine, design with extremely short footprint. Rectangular clamping platens. High rigidity and sturdiness. Precise platen parallelism maintained during the entire stroke. Moving platen support by low-maintenance linear guides. Fully hydraulic clamping system. High opening and closing speed thanks to differential circuit central transmission of force when moving and under clamping force. Short dry cycle times. Flexible parts removal in three directions. High repeatability of all parameters. Highly sensitive mold protection. Optimal mold protection through minimized platen deflection and linear guides. All components with excellent serviceability and low maintenance requirements.

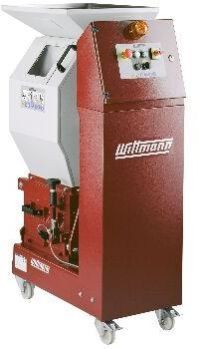

We are offering granulator. For closed loop automatic reclamation of injection molded sprues, runners and defective parts. Low rotor speed (200 rpm @ 50 hz) for higher regrind quality, lower sound levels. Compact design with direct drive motor. Low feed height, and large top feed opening allow easy use by means of sprue picker, conveyor belt, part separator, dumping the content of a box or by hand. High capacity stainless steel regrind collection bin designed for vacuum evacuation. High stand with plastic bag mounted below cutting chamber for regrind collection (option).

We are offering eoat. End of arm tooling for robotic arms custom grippers of multiple components picking light weight and regid profiles modular assembly for maximum flexibility local suppports & fast delivery for spares maximum durability with minimum maintenance 3d eoat customised design

Offers ecopower injection molding machine, the all-electric ecopower, with clamping forces ranging from 55 to 300 t, combines efficiency with precision. The beltless ecopower scores with a compact injection unit and the clean design of its clamping unit, together with a highly efficient direct drive. The machine also offers a small footprint and is open at the top and on the injection side. Integration of the servo-hydraulic aggregate for ancillary strokes in the machine frame. Patented beltless direct drive for the spindle nut. Clean mold space free of lubricating grease through linear guides and sealed toggle encasements. Sensitive mold protection. Precise platen parallelism across the entire stroke.

Robust Stainless Steel ExecutionAll components in contact with the material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications. Efficiency Enhancing InsulationThe drying hoppers are equipped with 40 mm thick insulation across the entire height in order to reduce heat losses and increase drying efficiency. SmartFlow Intelligent Air DistributionAutomatic air distribution to adjust to different materials and fluctuating material demands. Integrated CAN InterfaceAllows extensive data exchange and status forwarding between the dryer and a central system for visualization. Convenient Clean Out DoorDrying hoppers of sizes 100 l and up are equipped as standard with a clean-out door ideally suited for the respective hopper diameter. The perfect geometry of the hopper guarantees uniform drying of the material across the entire cross section. Integrated Sight GlassFor the convenient visual inspection of material flow and material level. Material Slide GateAll drying hoppers are included as a standard with a manual slide gate.

Connection of up to 32 Battery Dryers with 240 Drying Hoppers. Optimized Control: Manages internal process of the dryer with failure analysis. Dew Point Recording: In the presence of a dew point sensor the actual values are captured and recorded over a 12 hour time period. Management of Material Data: Includes all drying hoppers attached to the networked dryer. Central Error Display: All error messages are transferred to the M7.2 control and centrally displayed.

Country of Origin : 220 - 240 V

Material : Mild Steel

Capacity : 0.5 - 1 Ton

Reliable WITTMANN microprocessor controller. Large surfaced built-in air condenser with fan neck. Automatic filling: visual control via sight glass. 3-7 bar centrifugal pumps with flow volume of 13.2 m3/hr. Hermetically welded quality compressor. Anti-freeze control. Pressure relieve valve in the cooling circuit

We are offering industrial conveyors. Flatinclined z type with height adjustable conveyors stable aluminium profile body special antistatic belts-pvcpuhigh temp resistant available with geardrum motor variable frequency drives castor wheels with locksflat foot-pads onoff function and emergency switches belt tension adjustments

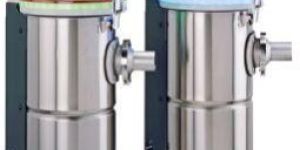

Optimized single loader for flexible conveying of smaller material volumes of up to 20 kgh in permanent operation. Peak performance of up to 250 kgh. Robust stainless steel construction Polyester filter with dedusting Proportional valve (Option) Remote teach pendant (Option)
