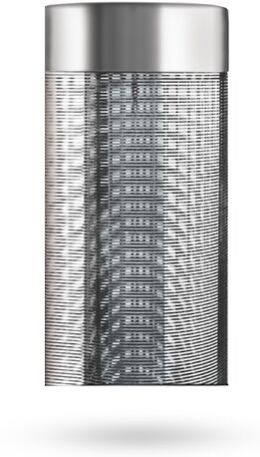

Champion Wedge Wire Filter Nozzles - Fully Metallic are made with a blind cap on one end and washer fixed with a threaded stem on the other end and can be secured with a nut and washer, usually installed in a vessel by an orifice plate. The Filter Screen is an all welded wedge wire screen. By virtue of its unique all metallic construction it offer very superior mechanical load capacity unlike plastic filter nozzles which fail very often in some load conditions.
Excellent non clogging wedge shaped opening from 100 microns to 1000 microns and above
Very good slot width precision
High mechanical load capacity
These wedge wire filter nozzles are manufactured to suit customer requirements and are not restricted by screen diameter, connection type, slot or length. Applications include common water treatment processes like activated carbon absorption, removal of suspended solids, sand, gravel or ion exchange.
MOC – Stainless Steel 304/316/321/Duplex & Super Duplex Stainless Steels, Monel/Hastelloy/Titanium
