POWER CONTROL CENTERS
We offer the POWER CONTROL CENTERS for easy distribution of High Voltage, Medium Voltage, Low voltage systems as per the customer requirements. Load Break Switch( LBS) Vacuum Circuit Breakers (VCB) POWER CONTROL CENTER (PCC) (433V AC) Medium Voltage Panels (MV Panel) DC Distribution Panel (Solar Application) Sub switch Boards (SSB) Distribution Boards(DB) Fuse Distribution Boards MCB Distribution Boards MCCB Distribution Boards Lighting Distribution Boards MV PANELS Aatithyaa Techno India Private Limited MV Panels applications span operation and protection of networks from 3.3 kV in public, industrial distribution. They are used in either new or renovation installations. The Circuit-breakers are available in fixed, MDO, EDO type with microprocessor trip unit(ACB) and Switch disconnected Fuse Unit (SDF) in double Break Type and in current ratings of 32A to 6300 A and short-circuit current from 25 to 95 kA. Here again the specialty of Aatithyaa Techno India Private Limited MV Panels is the Modular feature which makes the compartmentalization of Incomer with CT Chamber, Outgoing with bus bar Extension facility, separate compartment for Control& Metering Chamber.
...more

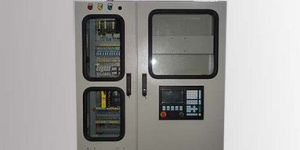

Plc Panels
We offer to our clients a range of intelligent, flexible, powerful, expandable and effectively programmable logic relays with expandable inputs and outputs. These programmable logic relays have the capability of analog inputs, high speed counters and communication options. Energy Management Systems/ SCADA Systems Our range of EMS/ SCADA systems are user friendly, robust and comprehensive in the display of Power parameters, graphs, single line diagrams, history, trends, data, help menu for the Control Panel operation, and remote start stop facility as called for by the application. We can provide Web version package Production Data, Accurate Energy Monitoring & accounting the energy spent and the energy consumed by the feeders & machines is required to monitor the energy consumption & losses which helps to save energy and reduce the maintenance costs also.
...more

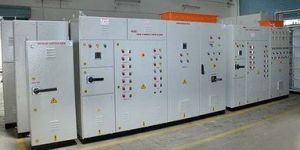

MOTOR CONTROL CENTERS
Power may be distributed through: 1. Switchgear,2. Switchboards,3. Transformers, and4. Panelboards. Power distributed throughout a commercial or industrial application is used for a variety of applications such as heating, cooling, lighting, and motor-driven machinery in many commercial and industrial applications, a few electric motors are required, and it is often desirable to control some or all of the motors from a central location. The apparatus designed for this function is the motor control center (MCC). The complete modularity of this system allows maximum freedom when designing Motor Control Centres. The physical dimensions of each compartment can be varied in width, height and depth to accommodate the various space requirements for Different starter types, viz., Direct on Line, Star Delta, Soft Start, Auto transformer Starters, Variable Frequency Drives (VFD Panels (or) AC Drive Panel), etc. MCC PANEL: 1. We manufacturing and supply of Motor Control Centre in type-‘2’ Co-ordination, Iq=50KA at 415V, 3 50HZ as per IS/IEC 60947-4-1 standard with excellent efficiency and long term durability. 2. We Customize MCC Panel in Customer’s preferred design, control and system layout.Our MCC suitable for EFF, IE, IE2 , Standard Motor’s
...more
Metering Panel & raising
Metering Panel & raising main for High rise Buildings & Industrial Application For high rise Apartments, complexes and commercial establishments, individual metering provision for each LT supply. These Panels are generally approved by the Electricity Authorities and involve sealing of compartments in such a manner we made the metering Panel. The current limiting devices are used to each LT supply, ensure that the Main Transformer is not overloaded and individual raising main cables are also protected. Wherever, DG Power is to be supplied to the Apartment or Commercial establishment during times of EB Power failure, an Automatic Changeover cum Current Limiter is used. This not only automatically changes over the Power from EB to DG and back, but also limits the use of the DG power to a pre-set limit so as not to overload the DG set.
...more
LOW VOLTAGE MEASURING CURRENT TRANSFORMER
Toroidal CRGO core CT in ABS / polycarbonate shell design Design according to IEC, IS Standards Busbar fastening clamps are intergraded The secondary terminal can be sealed and are accessible from two sides Fastening foot is available as accessory
...more
Genset Control Panels
We offer DG Synchronizing Panels which are based on Auto / Manual sharing, Auto Synchronising, Auto KW & KVAR sharing and Load dependent start / stop features. Changing of schemes are made through PLC & software which work in tandem with the Generator Control Package Relay that also takes care of power monitoring, Communication, display as well as protection. For any type of load addition or reduction, manual intervention with respect to DG Set operation is not required. However, in case of emergency, manual operation impossible. Load dependent stop and stop facility can also be incorporated in the logic in order to further save fuel costs and wear & tear of the DG sets. Unequal sizes of DG sets can also be synchronised with special relays and PLC logic. Multiple DG sets can be Synchronisation is possible. AMF / ATS PANEL We manufacture and supply of Automatic Mains Failure Panels as per consumer’s requirements. FEATURES Generator starting, stopping Automatically. EB & DG Automatically Source Change Over. Continuous monitoring of three phase voltage current / Frequency and Battery Volta
...more

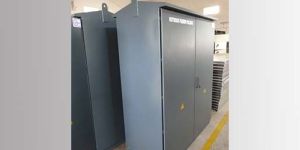

Feeder Pillar
Whenever Power needs to be controlled, monitored, distributed etc in outdoor applications like in a transformer yard Commercial Buildings or in group housing projects spread out over a large space and so on, Feeder Pillar Panels or outdoor Kiosks are used. These can be supplied in powder coated CRCA Sheet Steel or in Stainless Steel as required. The Panels are manufactured generally to IP55 clause of protection to ensure no ingress of water, dust or vermin with a canopy on top.
...more
Electrical Panel Board
We manufacturing the electrical panel boards in ms, ss enclosures along with reputed make switch gears as per customers need.
...more
Control Panels
Inside a switchboard there will be one or more busbars. These are flat strips of copper or aluminum, to which the switchgear is connected. Busbars carry large currents through the switchboard, and are supported by insulators. The operator is protected from electrocution by safety switches and fuses. There may also be controls for the supply of electricity to the switchboard, coming from a generator or bank of electrical generators, control of AC power and load sharing controls. Modern industrial switchboards are metal enclosed and of “Single & Double front” construction; no energized parts are accessible when the covers and panels are closed. The metal enclosure of the switchboard is bonded to earth ground for protection of personnel. Large switchboards free-standing floor-mounted enclosures with provision for incoming connections at either the top or bottom of the enclosure. A switchboard may have incoming bus bars or bus duct for the source connection, and also for large circuits fed from the board. A switchboard may include a metering or control compartment separated from the power distribution conductors. The control Panel Consist of the following components : Incoming & Power distribution System. Short circuit and over load protection. Earth Leakage protection and surge portection. Motor Control Starters, Drives, PLCs and relays. Control accessories Like Push buttons, Pilot Lights, Instrumentation. Power and energy management systems.
...more
Bus Duct
The bus bar system forms the main power distribution within an assembly and is one of the critical elements determining the assembly’s operational reliability and safety. The bus bar system is designed to withstand the mechanical and thermal stress existing during normal service as well as under fault conditions. The main bus bar can be arranged at the top, bottom or at any module in between in the enclosure. The bus bar support insulators are used a high grade SMC/DMC/FRP which can withstand all the mechanical and thermal stresses involved. All systems up to 8800 A can be assembled as standard. Multiple Bus bar per phase arrangement is used. This allows connections and extensions to be made with either Copper or Aluminium bus bars. For higher ratings interleaved bus bar arrangements are also offered for lesser temperature rise and efficiency in conducting current.
...more

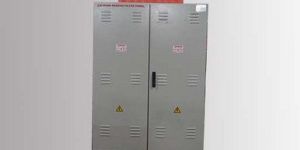

APFC Panel
APFC Panel has microcontroller based programmable controller which switches the capacitor banks of suitable capacity automatically in multiple stages by directly reading the reactive load (RKVA) which works in the principle of VAR sensing tends to maintain the PF to 0.99 Lag. The capacitor banks may be selected in number of stages as 4/6/8/10/12/14 according to the load pattern. Install APFC Panel to avoid penalties and enjoy the benefits automatically. Features Modular design, Non-compartmentalized, Panel Colour RAL 7032 Indoor, Floor mounted, cable entry from bottom/Top. Incomer MCCB, 3 pole, 25KA / 35KA Step protection MCB / MCCB Step switching Capacitor duty contractors with Damping Resistors. Microprocessor controlled relay Germany Make Switching option – Auto / Manual Busbar – Aluminium / Copper Protection class IP42 / 53 Capacitors – Heavy Duty Can / Box type 440, 480, 525. Compatible As per IE Standers, EC 61921, Wide Range 20KVAr to 400KVAr Benefits Consistency in Power Factor under fluctuating load conditions. Elimination of Power factor penalty from electricity board Prevention of leading power factor Energy savings Applications Fluctuating loads such as Steel Rolling mills Chemical industry Cement plant Sugar plant Textile Hospitals / Hotels Building segment Automobile industry etc Foundry, Coir, Food, Engineering Passive Filter D Tuned Filter: Suitable for systems, which contain harmonics of several fluctuating orders. Active filters, unlike passive filters, measure the harmonic currents of the load and generate a spectrum of harmonics in phase opposition to the distorting harmonics. This results in elimination of harmonics. It involves electronic circuitry that can provide partial or full compensation as desired. It can also deliver reactive power to take care of power factor correction requirement. Each of these products helps you in energy saving – restricting the spread of the ‘pollution’ created by non-linear loads or rapidly fluctuating power demands. Depending upon the nature of the industry, an installation might require a combination of different types of compensation. For example, a combination of high speed compensation and fixed compensation is most useful in applications like fabrication workshops where welding loads and induction motor loads are comparable in magnitude. Similarly, in cement plants, where variable frequency drives co-exist with conventional a.c. motors, the application of both fixed capacitor banks and passive harmonic filters is common. Adithya Mechatroniks offers you these engineered solutions.
...more
Apfc Panel
Manufacturer of apfc panel in 6 stage, 8 stage,12stage, 14stage available in as per consumer requirements.
...more

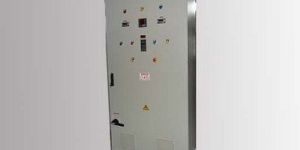

Ac Drive Panels
SOFT STARTER Panel A soft starter has different characteristics to the other starting methods. It has thyristors in the main circuit, and the voltage is regulated with electronic circuits. The soft starter makes use of the fact that when the motor voltage is low during start, the starting current and starting torque also low. During the starting time the motor will accelerate slowly to increase the speed and achieve the specified speed with fixed time frame. Eliminating unnecessary jerks during the start the motor. Application Crushing Centrifugal Fan, Pump Compressor Conveyer Belt VFD or AC Drive Or Variable Speed Drive Panel The drive consist to AC to DC and DC to AC. As the speed of the motor depends on the frequency this makes it possible to control the speed of the motor by changing the output frequency from the drive and this is a big advantage if there is a need for speed regulation during continuous run. Application All energy saving applications. Pump, Fan, Belt, Chain drive, Crushing etc.
...more
CAPSULES
Dry Syrup
ht switch gear panels
lt switch gear panels
Metering Panels
PCC Panel
Mcc Panel
Bus Ducts
Plc Automation Systems
Special Purpose Machine

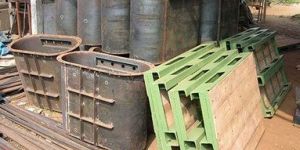

Sheet Metal Fabrication
To make possible the most complicated fabrication requirements, we have in-house the following machines and connected power of more than 50 HP. Cable Trays (GI, Hot Tip) Lader Type, Perforated Trolley Stainless Steel Fabrication (SS 202, 304,316 ect) Working Table Gratings Street Light Poles Plat forms Structural Fabrication
...more
