K.U. SODALAMUTHU AND CO. PVT. LTD Mettupalayam Road, Coimbatore, Tamil Nadu

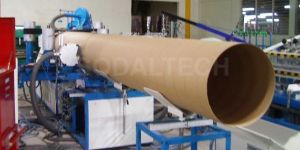

Ultra Heavy Duty model for Construction Paper Cores This model is highly suitable for producing larger diameter cores for construction pillars, storage cores etc.

Depending upon the application, the specification of the cone varies. The popular sizes in the present Textile Industries are 9 Deg 15', 5 Deg 57', 4 Deg 20', 3 Deg 30', etc. In all yarn winding application, tension at the traverse extremes pulls yarn towards the cone centre. So we have to provide suitable surface finish to the cones like Embossing, Velvet Finishing, etc.

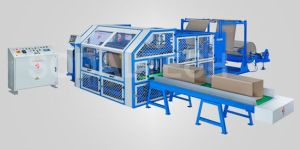

SALIENT FEATURES OUTPUT OF THE MAIN WINDER (APPROX) :- Upto 2000 drums per day depending on the sizes and raw materials used. SIZES OF THE PRODUCTS MADE (APPROX) :- Minimum Inner size – 300 x 300 mmMaximum Inner size – 400 x 400mmMinimum height : 300mmMaximum height : 700mmMinimum wall thickness : 2mmMaximum wall thickness : 4mm

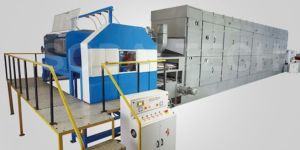

The Rotary Model Moulding Machine is of state-of-the-art design and is operated by electro-pneumatic power. The advanced design of control has independent control circuits for all operating units and conveniently located remote control operation ensures the operator to work comfortably and to have close monitoring of the process. Most of the sensitive operations are logic controlled and fail safe.

This model is recommended for entry level pulp moulding, project, with medium output. (e.g.: egg trays, fruit trays etc) This is similar to the conventional Wet moulding process with transfer mould and forming mould working on reciprocating method. The forming mould goes down to the pulp and comes out as product formed over the mould. The transfer mould comes down, does wet press and goes up by holding the wet product with it.

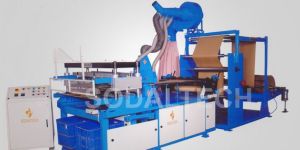

  SALIENT FEATURES   Highly versatile to cut patterns for cone tapers 5°57', 4°20', 3°30' etc Automatic paper feeding and edge grinding Rapid changeover between conicities Online printer for precision printing with great flexibility Inner logo printer (Optional) Maximum output : 100 patterns per minute

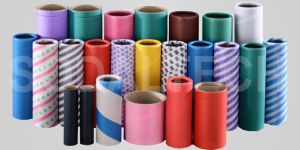

Industry Applications   Paper Cores for winding fax rolls, telex rolls, toilet tissue paper,newsprint, kraft paper etc. Packaging Cores to wind BOPP tapes, polyester films, metalized foil etc. Textile Yarn carrier for POY winding, DTY winding, open-end spinning, fabric and jute winding, non-woven fabrics, carpet yarn winding. Others - Thermo-couple tubes, electronic cores, civil construction cores, storage tubes, pyrotechnic cores and mailing tubes.

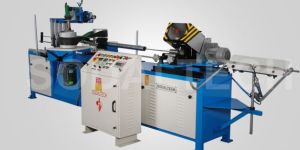

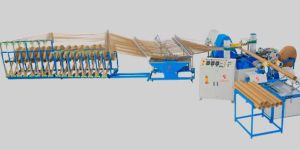

This versatile spiral Paper Tube Winder is to deliver high output of pre-cut cores for toilet tissue winding, kitchen foil winding etc.

This machine is used to manufacture thin, medium walled Paper Tubes and Cores for tissue rolls, fax rolls etc. Higher output Electronic proportional control system for winding speed adjustment Rapidly interchangeable mandrels Pneumatic control of winding belt tension Built-in control panel with remote station

Paper Cores for winding fax rolls, telex rolls, toilet tissue paper,newsprint, kraft paper etc. Packaging Cores to wind BOPP tapes, polyester films, metalized foil etc. Textile Yarn carrier for POY winding, DTY winding, open-end spinning, fabric and jute winding, non-woven fabrics, carpet yarn winding. Others - Thermo-couple tubes, electronic cores, civil construction cores, storage tubes, pyrotechnic cores and mailing tubes.

This production line is used to manufacture cylindrical Fibre Drums using Kraft Board. These drums are used to pack bulk drugs, chemicals, dyes, pharmaceuticals, engineering, consumer goods, adhesives etc. In Textile Mills the fibres are also transported through these drums. Fibre Drums are the most preferred option wherever there is a need for a cost-effective, light weight but strong packing material. This machine is used to manufacture spirally wound paper tubes using various plies and glue.

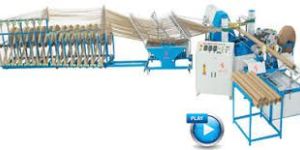

This heavy duty Spiral Paper Core winder is suitable to produce thick walled cores for various applications like paper mill reel cores, film winding cores, carpet cores etc. This machine is easy to operate and maintain. The cutting carriage moves on free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation. Higher output Electronic proportional control system for winding speed adjustment Rapidly interchangeable mandrels Pneumatic control of winding belt tension Built-in control panel with remote station

higher output extra strong tubes, electronic proportional control system for winding speed adjustment, rapidly interchangeable mandrels, pneumatic control of winding belt tension, built-in control panel with remote station. Easy to operate and maintain, easy interchangeability of toolings, highly suitable for dty tubes production.

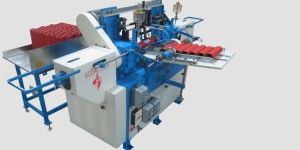

this automatic tube finishing machine is suitable for finishing textile yarn carriers like dty and poy tubes and fitted with automatic tube transfer mechanism..

Higher output Extra strong tubes Electronic proportional control system for winding speed adjustment Rapidly interchangeable mandrels Pneumatic control of winding belt tension Built-in control panel with remote station.

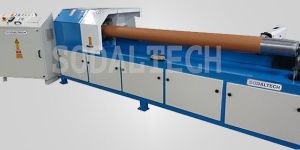

sodaltech manufacturers and exporters of paper core cutting machine  salient features:    minimum inner diameter : 50 mm    maximum inner diameter : 203 mm    maximum wall thickness : 12.5mm (higher wall thickness on extra cost)    maximum length : 1500 mm    minimum cut length : 15mm    accuracy : +/- 0.5mm depending on the sizes    length selection : by touch screen    operator : one person

Certification : ISO 9001:2015

Automatic Grade : Automatic

Driven Type : Electric, Penaumatic

Warrenty : 1year

Brand Name : SODALTECH

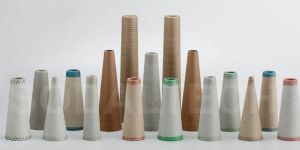

Depending upon the application, the specification of the cone varies. The popular sizes in the present Textile Industries are 9 Deg 15', 5 Deg 57', 4 Deg 20', 3 Deg 30', etc. In all yarn winding application, tension at the traverse extremes pulls yarn towards the cone centre. So we have to provide suitable surface finish to the cones like Embossing, Velvet Finishing, etc.

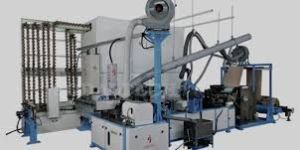

The fully Automatic high performance Paper Cone production line from Sodaltech is designed for efficient manufacturing of paper cones in various sizes required by the spinning industry. The production line comprises the following machines: 1. Automatic Cone Making Machine with Cone Drier 2. Automatic Cone Finishing Machine This production line facilitates cost-effective results in comparison with production with individual operation.

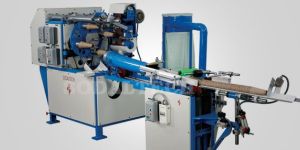

  SALIENT FEATURES   Base cutting, grooving, bull nosing, velvet finishing and automatic counting cum nesting operations done in a single machine Easy interchangeability of mandrels and abrasive belts Automatic indexing of cones as per operational sequence Bull nosing pressure, cutting depth and nosing axis - all adjustable independently Versatile to finish various cone tapers viz., 3°30', 4°20', 5°57' etc. Mechanism to disengage cutting knife when no cone is in mandrel to improve life of mandrel and knife. No air ejection when no cone is in mandrel to save compressed air. No velvet finishing when no cone is in mandrel thus increasing the life of emery belt.

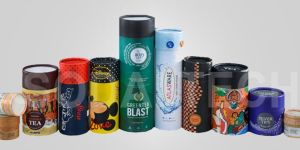

composite containers are designed to suit the individual requirements of end users with distinct unique graphic designs and the most attractive sales appeal for shelf/retailing, special protection to the contents, convenient handling with suitable handles. for brand enhancement and visual impact at the point of purchase, composite containers offer an eye-catching, cost-effective and environmentally acceptable way to display, package and protect product.

This model is highly suitable for high volume production of egg trays, fruit trays etc. This machine is fitted with sophisticated indexing mechanism to ensure optimum performance levels.

This versatile spiral Paper Tube Winder is to deliver high output of pre-cut cores for toilet tissue winding, kitchen foil winding etc.

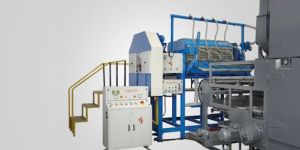

This Moulding Machine is used to mould the pulp products by using the relevant moulds. The moulding machine is of state-of-the-art design and is operated by combination of mechanical indexing and electro-pneumatic system. The advanced design of control has independent control circuits for all operating units and conveniently located remote control operation ensures the operator to work comfortably and to have close monitoring of the process. Most of the sensitive operations are logic controlled and fail safe.

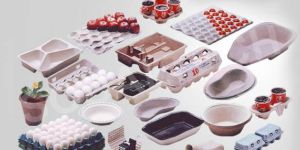

As bio-degradable materials are fast replacing other alternatives in packaging, pulp moulded products are gaining popularity nowadays. The cost-effectiveness, design range and soft texture make it suitable to pack any material including sensitive goods like eggs, fruits, etc. Its bio-degradablity makes it eco-friendly and acceptable to any international standard.
