Kasthuri Machine Builders GN Mills, Coimbatore, Tamil Nadu

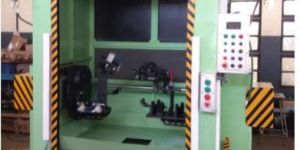

Kasthuri Machine Builders designed the Horizontal Welding machines and Vertical Welding machines. This horizontal welding machine will be fully automatic machine. The machine can be equipped with number of welding guns as per the requirement. The Welding machine is completely made of sheet metal cabin fabricated. The main machine stand is Fabricated with heavy metal to withstand the load of the fixture.   The Welding machine is completely automated cycle and manual cycle helps operator to operated the machine in optimum conditions and cycle time. Welding Machine controls are put in front where as the main electrical control panel is kept in the back side of the machine. a small window is also provided in the backside of the machine, which makes easy to control the machine for the operator.   Separate electrical controls for welding source in the rear main control panel, which is easy for the operator to run the machine without actually running the welding machine, in the same time operator can also control the machine from the front. Operator and supervisor easiness is so good that the every thing to start the machine or while?running, complete welding process can be monitored from the front side of the machine.   All necessary gauges, valves & controls, switch controls, RPM displays of the rotary welding machine can be controlled and monitored. We use Festo or SMC for our welding machine for all the necessary required pneumatic controls in the machine. We offer the machine with the complete welding source. In some cases the welding sources are supplied by the end user as the direct procuring cost is less.   These Welding machines can be used for many applications like complete Exhaust system parts welding, welding of Frame and complete frame welding machines, Steering parts and complete steering welding machine, Swing arm sub assembly parts and complete swing arm can be done. There are so many 2 wheeler parts like Fork assembly to be welding, Welding of seat frame.We can also arrange welding machine fixtures and inspection gauges against request for any component.

Drilling head 12-125 is highly precise auto-feed Vertical drilling machine with Hydraulic feed. Hard and ground pillars for stability. The drilling head of the machine tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers.

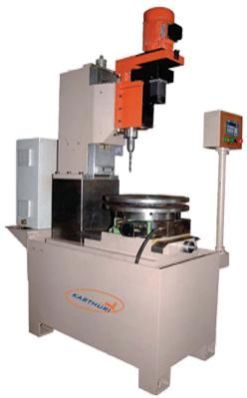

This machine is used to drill in various PCD named as Variable Pitch Circle Diameter (PCD), PCD from 0 mm to 1200 mm (47") and drill size maximum to 32mm (1 1/4"). Components like flanges, Brake drums, motor end covers, Valve bodies, and disc brakes etc... Which has small and medium batch quantity can be done very cost effectively. Through our experiences in the market, we found people are using expensive VMC for these operations. There are components in small and medium batch quantities. Lot of companies are facing problem on delivering components on time. They are using expensive VMC and very high skilled labor to meet target, finally they spend more money and the production cost goes up very high. All this will be replaced by this low cast machine. An unskilled labor can also start working in 2 or 3days training. Thus, you can cut down the cost by 30 - 50% approximately. Same as all VMC, this machine head fixed in vertical column, which has up and down Z-axis movement through LM guide ways with Ball Screws with single spindle. The slide is fixed in the base for X-axis movement. Hydraulic Indexing Table is mounted in the slide. The slide movement towards and away from the column generates X-axis. With the Digital Read out (DRO), the PCD can be varied as required very easily. Basic & Types of Variable PCD Drilling Machine The basic machine consists of following and function will not differ. VPCD Machine Base The head, spindle drive by motor Vertical column (Hydraulic / Servo) drive for Z-axis movement Indexing table Hydraulic drive Cross slide for X-axis to vary PCD. Mechanical drive with DRO to set PCD (DRO optional)

Kasthuri offers Auto Feed Tapping Head with self feeding tap and auto reversing for high precision and productivity operations. Kasthuri tapping head also has a better tap tool life and consumes less power. KMB Auto feed tapping head housing is made up of S.G. Iron. Hardened and ground spindle is provided which is assembled in a quill and guided in between precision bearings. Separate motor is provided to drive the spindle through the timing belt.

Specially used in rubber industries to Slicing rings and rubber sleeves as per requirement.

Motor Power : 0.75kw, 1440 rpm

KMB Self feed drill head housing is made up of S.G. Iron. Hardened and ground spindle is provided which is assembled in a quill and guided in between precision bearings. Separate motor is provided to drive the spindle through the timing belt. Drilling heads are tested in the drilling machine

Total stroke : 125mm

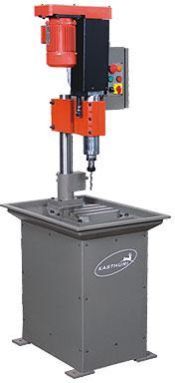

Drilling head 12-125 is highly precise auto-feed Vertical drilling machine with Hydraulic or pneumatic feed. Hard and ground pillars for stability. The drilling head of the machine is tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers. It Increases production with consistency and reduces almost 70% of the labor cost.

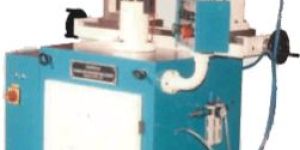

Specially used to trim flashes of various kinds of cup seals. Oil seals, Packing seals and soft objects.Feed Stroke-25mm (infinitely variable), Spindle RPM through 'V' Belt 900, 1100, 1320

Specially used to trim flashes of various kinds of cup seals. Oil seals, Packing seals and soft objects.

Specially used to trim flashes of various kinds of cup seals. Oil seals, Packing seals and soft objects.

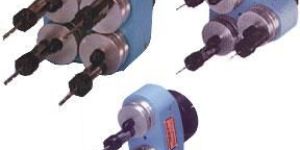

Multi spindle heads are well designed for almost all types of drilling and tapping machines. Multi spindle heads will increase your production as many spindle you increase and components in one fixture and the type of operation done like drilling, tapping, countersink, reaming and burnishing. Multi spindle heads are the best method to do drilling and tapping when the holds are close.This can be divided into two Adjustable Multiple Spindle Drilling Heads and Fixed distance or Special Purpose Drilling HeadsAdjustable multi-spindle drilling heads can be used in many components, where you can change the center distance to some range.It will increase your drilling capacity in single special purpose machine.Adjustable and fixed distance multiple spindle heads with the adapters to fit manual, automatic and fixture type drilling machines. Our multiple spindle heads are high quality and priced to be affordable. The spindle and gears are hard and ground for its best performance. Adjustable Multiple spindle heads for drilling and tapping can be supplied immediately but Fixed distance or special purpose has to be designed and manufactured. This can take three to four weeks of time with suitable adapters. They are machined in about two weeks. Multiple Spindle heads are sometimes referred to as: cluster drills, tandem drills, or gang drills. Multi spindle drill heads is made up of Aluminum casting which is precisely machined. All rotating parts are hardened and ground. Change over of PCD of the spindle can be set easily and accurately by jigs. Spindle run on needle and thrust bearings. Drill revolution is usually identical with machine rpm, it may also vary according to drilling requirement.

Auto-feed Tapping machine is an affordable machine for tapping needs. The lead screw type auto feed mechanism has a self feeding tap with auto reversing tapping head. Kasturi tapping machine increases your production and reduces your costs. Auto-feed Tapping machines manufactured in Kasthuri are tested in our lab. It is an affordable machine for tapping needs. The lead screw type auto feed mechanism has a self feeding tap with auto reversing tapping head. Kasturi tapping machine increases your production and reduces your costs.

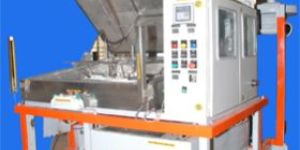

Esteem Multi Systems manufactures aqueous based industrial washing machines for specific component cleaning and general washing applications. Engine and transmission manufacturing in the automotive industry is the key area of application. Component cleaning machines are essential where critical factor for quality is that all components are completely free of dirt prior to assembly, as even the smallest amount of residue can lead to damage. Our Component cleaning machines /Industrial washing machines offer high standard precision cleaning to meet stringent requirements. Our machines are built with latest technology using advanced elements to achieve the desired results. Single stage washing machines are designed for specific cleaning and general cleaning of various components with processes like washing, air blowing / hot air blowing. The components may be positioned in a basket or on a fixture. The components can be washed and dried either fixed or moveable water and air jets respectively. Loading and unloading can be manual or automatic depending on the applications. These machines are applied for engine parts, transmission parts and other similar applications. This single stage washing machine is designed for general washing of automotive cylinder block and head. Alkali based hot liquid media is used for washing the components. The machine is built using advanced technology elements to achieve the desired results. Thermo well type tubular heaters are used for liquid heating. The machine is provided with PLC based control panel. The machine is also equipped with oil skimmer, duplex basket filter, float indicators, operating panel and main panel box etc. Various Types of Washing machines: General Purpose Rotary Type Washing Machine. General Purpose Conveyorised Type Washing Machine. Special Purpose Batch type Washing Machine. Special Purpose Conveyorised Washing Machine. Dunking Type Conveyorised Washing Machine. The Main Sectors that uses parts washing machine: Automotive parts cleaning Auto services Engine replacement and rectifying Machining Metal parts Cleaning Mould cleaning Stainless Steel Kitchen sinks and pots cleaning Cleaning before coating and painting Laboratory - Medical Equipment cleaning Environment We use friendly technologies for the environment. The cleaning solution can be used for several working cycles until it becomes an ineffective cleaner. Every cycle runs in a closed loop and never gives dirty liquid outside. Working place remains clean. We are using high quality materials in the machines. So, that we offer 10 years warranty Our special purpose cleaning machine gives an engineering way in cleaning technology by using high pressure spray cleaning and degreasing of any industrial component. Precision engineered, our machine is capable of cleaning components of any size and in any quantity as per the required parameter. Manufactured in closed chamber type and conveyor type, using optimum quality components and raw material, it can also be customized as per the specific requirement of clients. Designed for single or batch of components based on the required output, it is appreciated for listed below features: Pre-cleaning High pressure spray cleaning Rinsing Drying Rust preventive oil coating Advantages Increase in performance & life of the component Reducing use of manual effort Changing for better standards Very clean surface, which creates attraction Savings in operational costs Safe for workmen

High volume production with less semi skilled or unskilled operator.Repeatability and consistency of diamensions.Easily interchangeable hydraulic fixtures can be designed.Fully tooled up machines can be supplied, start production immediately, when machine reaches your factory.

Drilling head 12-125 is highly precise auto-feed Vertical drilling machine with Hydraulic feed. Hard and ground pillars for stability. The drilling head of the machine tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers."T" slots in the table to clamp components in a better way. Increases production with consistency and almost 70% reducing the labor cost. The machine has the robust construction.

Drilling head 12-125 is highly precise auto-feed Vertical drilling machine with Hydraulic feed. Hard and ground pillars for stability. The drilling head of the machine tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers.

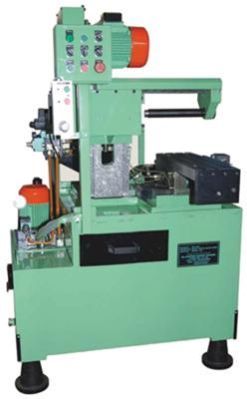

Cabinet Steel Fabricated Cabinet designed to flow the material to scrap collection area with taper ribs to strengthen the cabinet Head KMB Milling head ISO 30 /40, with Taper roller bearing and Hardened spindles Slides Heads movement the slides in LM guide ways front and back with hydraulic Variable feed Component clamping Self-centering V block clamping, Hydraulic component clamping, separate cylinders used to clamp the total length. Electrical Complete PLC based machine, with complete auto cycle after initial setting.

Kasthuri Machine Builders manufactures SPM Deep hole Drilling machine with maximum capacity of 10mm X a depth of 150mm with multiple spindles. Normally for a deep hole drilling it takes long time to drill the component, our basic idea is to drill more than 2 or 4 components at the same time of drilling / machining. The whole head moves on LM guide ways for the movement accuracy. The drilling head drive is given through servo motors like CNC machines or VMC machines. The spindles of this machine are direct driven with timer pulley by AC induction motor. So the power loss in this machine is also saved. As the deep hole drilling machine has only one axis the machine movement is controlled through PLC (Programmable Logical Control) and controlled through the MMI (Man & Machine Interface). We can control the movement of the drilling head by input the data's in the MMI with a semi skilled operator. In the deep hole drilling machine, the feed, No. of peck cycles and the RPM ranges also varied. The multiple spindle in this machine will also improve the production. This is great advantage in this deep hole drilling machine is where you can replace the CNC machine and VMC machine, if you are using the machine only for drilling purpose. The drilling head of the Deep hole drilling machine is tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers. The deep hole drilling machine gives you consistency in production and almost 70% reducing the labor cost. The machine has the robust construction We can manufacture custom made deep hole drilling and custom made drilling / tapping machines according to your specification / drawing The drilling head of the Deep hole drilling machine is tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers. Consistency and almost 70% reducing the labor cost. The machine has the robust construction.

Auto-feed Tapping machine is an affordable machine for tapping needs. The lead screw type auto feed mechanism has a self feeding tap with auto reversing tapping head. Kasturi tapping machine increases your production and reduces your costs.

Drilling head 12-125 is highly precise auto-feed Vertical drilling machine with Hydraulic or pneumatic feed. Hard and ground pillars for stability. The drilling head of the machine is tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers. It Increases production with consistency and reduces almost 70% of the labor cost.

Drilling head 12-125 is highly precise auto-feed Vertical drilling machine with Hydraulic or pneumatic feed. Hard and ground pillars for stability. The drilling head of the machine is tested for its best performance. It is perfectly suitable for mass production and second operation drilling single or multi holes after machining in CNC lathes and machining centers. It Increases production with consistency and reduces almost 70% of the labor cost.

KMB Self feed drill head housing is made up of S.G. Iron. Hardened and ground spindle is provided which is assembled in a quill and guided in between precision bearings. Separate motor is provided to drive the spindle through the timing belt. Drilling heads are tested in the drilling machine
