Lexis Tooling Systems Private Limited Pollachi, Coimbatore, Tamil Nadu

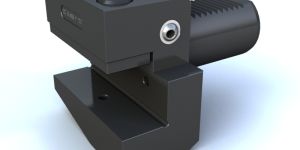

VDI tool holders rigid tapping collets with square drive are available in inch or metric sizes, standard or sealed for internal or external coolant flow.Lexis Toolings also offers RDT Tapping collets. These collets will inexpensively convert a standard collet chuck into a length compensating, Quick change tapping chuck with square drive.

Traub collets using for work piece clamping and bar or chuck work. No axial movement while the chuck is clamping. The collets are made from special spring steel. Where possible, by partial tempering the hardness of the taper and clamping bore is approx. 60 HRc. The shank and spring area are hardened to spring. Bore smooth and with round grooves from 6.0 mm, serrated in the case of round bores greater than 9.0 mm for higher clamping force. The clamping taper is lightly ground at the slot edges to ease removal of the collets from the mounting thus making possible low undersized clamping. The taper of the clamping sleeve should be 15’ per side flatter than the taper angle given in the tables. This frees the collets on release and provides low undersized clamping. In the case of stepped bores or when using collets stops the clamping point should be within the taper of the collet, otherwise the collet will tend to break due to bending stresses.

Size : Customised

Number Of Flower : Traub Collet

Material : SSTEEL

Thickness : Customised

Application : Machinery

Condition : New

Finishing : Polished

Tap sleeves user-friendly at par with International standards suits to most of the Hydro Grip Holders available in market. We are manufacturing Hydrogrip Reduction Sleeves from high quality steel and hardened for long life usage.OD20 Hydro Grip Reduction Sleeve regular model minimum range starts from Dia 3

Tap ColletsTap Collets manufacturing and supplying by LEXIS are with High Quality and Accuracy. Lexis tooling offers the most extensive program for tapping collets in the industry. Tapping collets will allow user to convert collet chucks used for many purposes into tapping chucks. ER Tapping Collets with Square Drive for synchronous tapping operations using any RD/ER collet chuck. Collet bore is exact tool diameter, with square drive, for accuracy and rigidity. Square in the ER Tap collet is offer tight grip for Tap which reduces slippage in Collets. Available sealed for coolant-through applications, as well as in DIN and JIS standard metric sizes.Lexis ER Tap Collet rangesER08 Tap ColletER11 Tap ColletER16 Tap ColletER20 Tap ColletER25 Tap ColletER32 Tap ColletER40 Tap ColletER50 Tap Collet.

Number Of Flower : Er Tap Collets

Application : Tap Use

Condition : New

Finishing : Polished

Brand Name : LEXIS

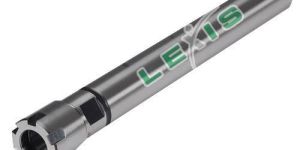

Straight shank arbor to assure quality & 100% accuracy Straight Shank Collet Chucks to its customers and Straight shank collet chucks available in Mini Type and Hexagon Nut Clamping for ER Collets, Standard, Intermediate and Extended Length available for drilling bit applications, mounting drill chucks on to milling machines, automatic system etc. The plain shank can be clamped in a collet or in a milling chuck. Straight-shank drills must be held in a chuck that squeezes them between jaws

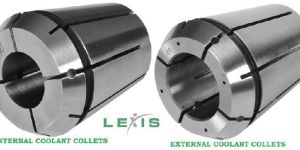

Sealed Collet also known in the industry as Through Coolant Collet and Rubber Sealed Collets. LEXIS ER Sealed Collets have High Accuracy, Versatility, Multiple Applications, Wide Clamping Range, Long Life, Ideal for Tool Extensions, and Precision Manufactured to DIN 6499.Sealed collets are high precision exact size collets and have no collapse range used for Coolant through applications.Sealed Collet (IK) also known as Internal Coolant Collets to direct the fluid internally to the cutting tool,Sealed Collet (EK) also known as External Coolant Collets to direct fluid through the collet to the cutting tool tip,

Number Of Flower : Machine Collet,Coolant Collet

Length : Standard & Customised

Availability : 5-6 Kg

Finishing : Polished

Country of Origin : India

Brand Name : LEXIS

Application : Coolant Through Applications

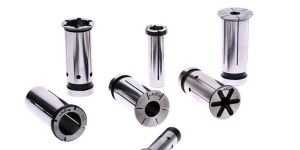

Reduction sleeve are manufactured with compact design and user-friendly at par with International standards suits to most of the Hydro Grip Holders available in market. Hydro Grip Collets - SleevesHydro grip Reduction Sleeves of Lexis tooling are specially designed to meet superior grip force which ensures maximum rigidity with the tool holder which leads to longer tool life also clues to sinking tooling cost and lesser downtime of the machine.Lexis Hydro Grip Reduction Sleeves are designed and must be used at exact size it does not have a collapse range like ER Standard Collets. Suitable for high precision applications, run out controlled and certified less than 5 micron accuracy.Lexis tooling Hydro grip Reduction Sleeves available in different ranges (OD12, OD20 & OD32) with Standard Model and Special Model and Sleeves ID range starts from Dia3 upto Dia 25 and also available in Inches sizes on request

Size : Customised

Number Of Flower : Reduction Sleeve

Material : SSTEEL

Application : Industrial Use

Feature : Corrosion Resistance

Condition : New

Thread : Metric, Inches

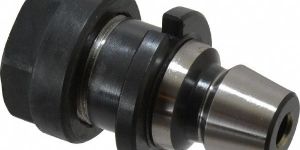

Quick change collet are standardized and manufactured as per DIN 6499 standard guidelines and are truly interchangeable. This becomes important to users that may have toolholding systems from different Toolholding System Manufacturers.

Lexis Tooling Systems Pvt Ltd has a wide range of Tool holding product including Pull studs. It also known as Retention Knobs. LEXIS is one of the well-known companies that manufacture, supply and export an extensive range of various models of Pull Studs includes BT30 Pull Stud, BT40 Pull Stud, BT50 Pull Stud as per DIN 69872 standard guidelines. All our Pull stud also identified as Retention Knobs are designed to meet the international standards for maximum safety and long life. We are offering these products at reasonable prices.Pull stud types/RangesBT30,BT40,BT50 PULL stud BT30,BT40,BT50 Retentionknobs MAS Standard Pull studsISO 7388/2 Pull StudMAZAK PULL STUDCAT ANSI Type Pull studsDIN 69872 Standard Pull studsSpecial Pull Studs

Number Of Flower : Pull Stud

Certification : ISO 9001:2015

Application : link between the machine drawbar and the toolholder

Availability : 1-2kg

Condition : New

Automatic Grade : Customised

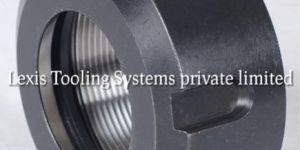

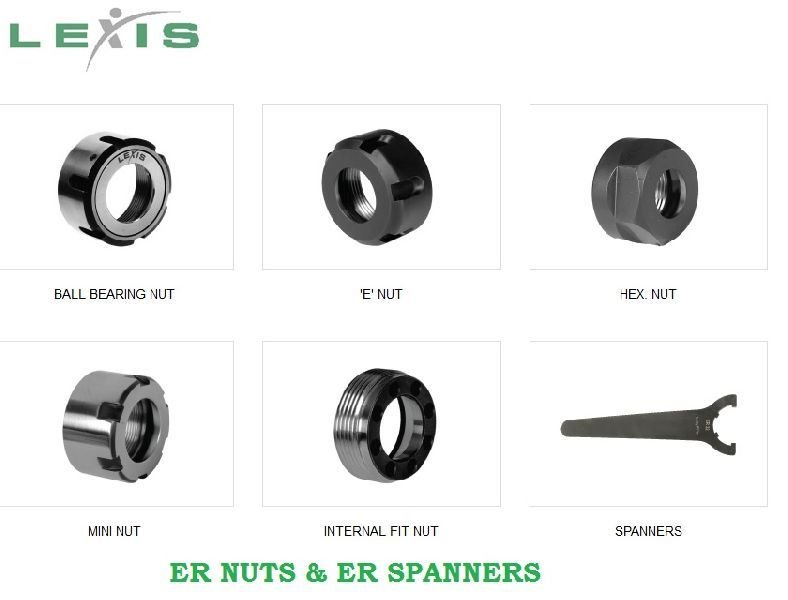

Nut lock are used on collet holders and the unique internal thread on the Type E Insert Nut ensures secure fixing and offers strong resistance in special high speed applications and Lexis E Nuts comes with precision balanced to deliver optimum performance results

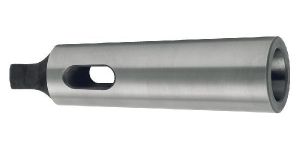

Morse taper sleeve are accurate in their dimensions, rust proof in finish and sturdy in design, these tools are designed and engineered for quality and durability. Tool holding products are available in different sizes as per DIN Standards & ANSI standards

Milling chuck meet the growing demands of the Machine tool and Cutting tool industry, Lexis has started a new manufacturing facility in India. This not only manufactures products for India, but also for the export market worldwide.

Brand Name : Lexis

Application : Tool holding

Packaging Type : Customised

Hydro grip Reduction Sleeves of Lexis tooling are specially designed to meet superior grip force which ensures maximum rigidity with the tool holder which leads to longer tool life also clues to sinking tooling cost and lesser downtime of the machine.Lexis Hydro Grip Reduction Sleeves are designed and must be used at exact size it does not have a collapse range like ER Standard Collets. Suitable for high precision applications, run out controlled and certified less than 5 micron accuracy.Lexis tooling Hydro grip Reduction Sleeves available in different ranges (OD12, OD20 & OD32) with Standard Model and Special Model and Sleeves ID range starts from Dia3 upto Dia 25 and also available in Inches sizes on request

Size : Customised

Number Of Flower : Reduction Sleeve

Material : SSTEEL

Application : Industrial Use

Feature : Corrosion Resistance

Condition : New

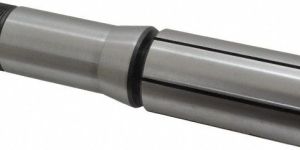

Expanding collets for the machine tool industry market. Based on the above factor a research analyst forecasts the production of machine tools in India to grow at a CAGR of 13% during the forecast period.

Country of Origin : India

Material : Springsteel

Brand Name : LEXIS

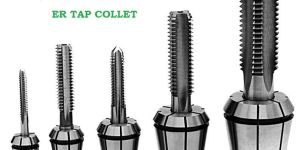

ER tap collets user to convert collet chucks used for many purposes into tapping chucks. All our ER Tap collets are manufacturing at par with DIN 6499 Standard. Our ER Tapping Collet ranges starting from ER11 Tap Collet, ER16 Tap Collet, ER20 Tap Collet, ER25 Tap Collet, ER32 Tap Collet, ER40 Tap Collet and ER50 Tap Collet.

Size : Customised

Number Of Flower : Er Tap Collets

Material : SSTEEL

Application : Tap Use

Condition : New

Finishing : Polished

Brand Name : LEXIS

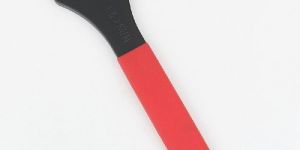

ER spanner are manufactured using quality materials and we manufacture every product with the utmost attention which leads Premium quality and exceptional value in machine tool accessories.

Size : Customised

Thickness : Customised

Length : Standard & Customised

Packaging Type : Box

Packaging Size : As Required

Usage : Collet Nut Clamping

Feature : Non Breakable

Number Of Flower : Collet Wrench

Brand Name : LEXIS

Country of Origin : India

Type Of Spanner : Collet Nut Spanner

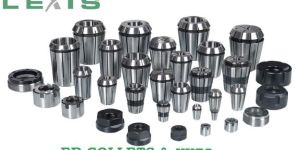

ER collets are precision engineered by our dexterous and experienced team. They are made from optimum grade raw materials to ensure high reliability to client's end. These ER Collets are highly appreciated by our esteemed clients and are available at economical costs.

Size : Standard & Customized

Number Of Flower : ER Collet

Material : SSTEEL

Application : Collet Application

Condition : New

Finishing : Polished

Brand Name : LEXIS

Material : Steel

Shape : Round

Material : Steel

Feature : High performance, Abrasion resistance, Low maintenance

Material : Steel

Application : Tool holding

Brand Name : Lexis

Drill collet in both Metric and Inch sizes. RDA Collets DA Collets are available in 164 increments and in .5mm increments for metric sizes. RDACollets DA collets metric sizes starting from 1mm Dia to 15mm with 0.5mm incremental and RDA Collets DA collets Inch sizes available

Number Of Flower : Drill Collet

Material : SSTEEL

Country of Origin : India

Diamond machinery tools in manufacturing machine tool accessories, Lexis toolings aware that the highest-quality products start with the very best toolings, hence we are secure to manufacture and ensuring high quality tooling products to our customers.
