Following kinds of tubes are available for single shot lubrication system:   Steel Tubes: These are zinc plated MS Seamless tubes with thickness of 0.89mm.   Steel Tube 6mm OD: Tube with 6mm OD is used for Main Line from pump to each junction blocks. It has smallest   bending radius of 22mm and permissible pressure more than 200 kg/cm sq.   Steel Tube 4mm OD: Tube with 4mm OD is used for branch line from metering cartridges to end points. It has   smallest bending radius of 8mm and permissible pressure more than 200 kg/ cm sq. Nylon Tubes: These are semi transparent flexible tubes of material Nylon 6. These tubes are easy to work with. These are necessary for the points, which have motion. For better tube life, it can be protected with springs available with us. Thickness of tube is 1mm.   Nylon Tube 6mm OD: This tube has minimum bending radius of 70 mm and maximum permissible operating   pressure 45kg/cm sq.   Nylon Tube 4mm OD: This tube has minimum bending radius of 50 mm and maximum permissible operating   pressure 60kg/cm sq.

It is designed with new seal material and buffer, with low starting pressure, stable operation, good seal, and long service life. It adopts electrophoresis, with handsome shape. It is widely applied to the automatic equipment in light industry, chemical industry, textile industry, electronic and machinery industry.

Good corrosion resistance. Resistance to fire, moisture, abrasion and penetration.Absorbs vibration and noise from pumps, compressors, engines etc.Compensates for intermittent or constant movement.Compensates for thermal expansion of contraction of piping.

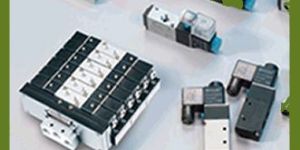

This series solenoid valve adopts integral slot throttle structure. The valve hole is processed with special high precision finishing technique. The product has good performance and good change over with long service life, handsome shape and large airflow. It is widely applied to pneumatic system  .

Hose Construction: PTFE Convoluted Inner Core with AISI 304 Stainless steel Wire Braid Reinforcement. Temp. Range: -60° C To +200° C Application: Chemical Transfer, Steel Processing. Paint Spraying, Fuel and Lubricant Handling, Hydraulic Systems, Plastic Molding Machines, Food Processing, Marine & Transportation Industries. End Connection :  Can Be Manufactured As Per Customer's Specification with PTFE LINED

Polyurethane tubes are used in industry robot, pneumatic equipment. They are used for controlling lubricating oil system and also for various air tools. These coil tubes are rugged in performance and robust in design. Coil Tube: The various coil tubes made by us are compact in design and useful in small space working area. They are more flexible than nylon and have high resistance to cold temperature. These coil tubes are light in weight and can easily be designed as per the clients need and requirement.

Application Pneumatic control and power lines. Air tools. Assembly work stations. Service stations / Garage equipments.     Machine tools.   WHC series: Polyurethane Coiled Tube - Ø4, 6, 8, 10, 12mm OD   Features Self retracting & space saving

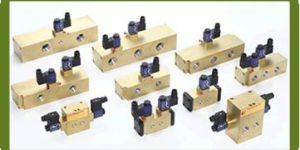

Electro pneumatics makes pneumatic valves suitable for compressed air, water, vacuum, gases and low pressure oil. They are available as solenoid-operated, pneumatically-operated and manually-operated.     Solenoid coils are available for AC and DC voltages.   The valve range consists of     Directional control valves- 2, 3, 4-way, 2, 3-position, single/double solenoid, direct/pilot /pneumatically/ manually operated   Flow control, check and needle valves   Quick exhaust valves   Shuttle valves   Rotor seal couplings   Dual sensing valves   Rotary actuators   Stackable valves- 2, 3, 4-way, 2, 3-position,single/double solenoid   Accessories like silencers, mufflers, air preparation units

Electro pneumatics' standard pneumatic cylinders are available with bores from 10 to 500 mm in any stroke length up to 3500 mm. Pneumatic cylinders made to ISO 6431 standard with bores from 32 to 125 mm are also available. These cylinders are manufactured to a high degree of precision and come with a wide variety of mounting style options.

'SamsoN' Brand PVC Flexible Hose reinforced with Nylon yarn on fully automatic plant and it is a result of many years of experience combined with advance technology. Perfect quality control before and throughout production gives the ultimate users maximum quality assurance. We are totally committed to the achievement of excellence in our products and our services to customers. The significant market share in the field of modern Hose that are effectively meeting a wide range of needs in modern industries. Samson Hose has successfully replaced conventional braided Rubber Hose and have been widely accepted as a permanent replacement by large and medium scale public / private sector industries throughout India.   We deal with various kind of hoses for different applications.   Samson Regular.   Samson Pesticide Spray hose.   Samson Special P.V.C Gas welding hose.   Samson Special TPU Gas hose.   Samson Garden hose.   Samson Power Spray hose.   Samson Car washing hose.

  Motorized Lubrication units are electric motor driven pumps along with reservoir, oil filter & breather, suction strainer, pressure relief valve & bleed valve etc. The units installed are suitable for Single Shot Automatic Oil Lubrication. These motorized Lubrication Units are to be run intermittently only. During Motors ON time (Normally 5 seconds) all the metering cartridges eject out predetermined amount of oil at various points of the machine. And during motors OFF period (selectable) the metering cartridges get recharged for the next Lubrication Cycle. If desired, these units can be supplied without float & pressure switch as per customer requirements. We also deal with the Units for liquid grease (fluid grease).

In Single Shot Centralized Lubrication System, amount of oil at each lubrication point is controlled by the element known as Metering Cartridge. For each lubrication point, at least one metering cartridge has to be used. The metering cartridges are Metering Valves where stroke of the Piston determines the amount of oil to be ejected. The Cartridges operate as soon as pressure builds up in lubrication line. When the pump is off and the pressure in the lubrication line drops, Cartridges get recharged for the next cycle. Small time gap (minimum 1 minute) is allowed between the subsequent operations of the Pump for proper recharging of the Metering Cartridges.

  Lubrication line from Pump is further connected to the side port of the junction Block and the other side port is meant for joining the next Junction Block in line with 6mm OD tube. Metering Cartridges are directly screwed on top outlets of Junction Blocks. Type of Junction Block is selected depending upon the metering cartridges to be fitted. A junction Block should cater all the lubrication points lying in the same vicinity.

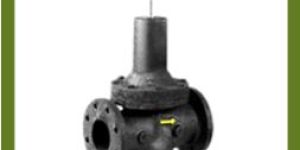

3",4",6" Pressure Regulators are specially designed for high flow applications of large compressed air installations. These regulators provide stable output pressures at high flow with minimum pressure droop. Ideal for lines where differential pressure between inlet and outlet is low. Suitable for flows up to 2000 Scfm. Standard body construction is graded C.I. body with brass and S. S. Internals. Diaphragm is nylon-reinforced nitrite. Seals are nitride. Balanced valve disc gives instantaneous response. Maximum inlet pressure is 150 PSI (10.6 Kg/Cm2) for C.I. body. For High pressure C.S./S.S. 304 or S. S. 316 are also available. Output pressure can be 0-60 PSI (4.2 Kg/Cm2) or 0-150 PSI (10.6 Kg/Cm2). End connections can be flanged or threaded. Pilot type regulators also available as option.

    We hold expertise in offering our clients an extensive range of Hydraulic Ferrule Fittings that is fabricated with utmost precision. Quality tested Hydraulic Ferrule Fittings efficiently functions in adverse conditions and leak proof joints. With the assistance of skilled and dedicated professionals, we are able to cater to the diverse requirements of the clients satisfactorily. Precisely engineered, Hydraulic Ferrule Fittings is functionally efficient and requires low maintenance.   Thermostatically balanced High functionality Low maintenance cost .

Maximum Pressure: 210 Kg/CM2 Reduced Pressure Range: up to 70 Kg/CM2   Maximum Temperature: 80° C Size Available: 1/4" BSP (F), 3/8" BSP (F), 1/2" BSP (F), & 3/4" BSP (F). Other sizes available on request.

Hand operated single shot pumps are spring returned piston type pumps. The piston is operated by pulling the cam handle. These pumps are suitable for manual centralized lubrication for light duty machines such as Small Power Presses, Die Punching Machines, Grinding Machines, pouch Packing Machines, Pharmaceutical Machines and etc. Normally these pumps are recommended for the machines with lubrication points within 2-20.

High physical strength combined with light weight. Good corrosion resistance. Resistance to fire, moisture, abrasion and penetration. Absorbs vibration and noise from pumps, compressors, engines etc. Compensates for intermittent or constant movement.

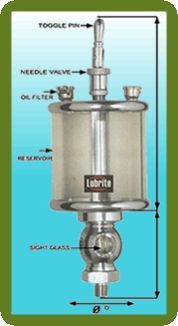

  Drip Feed Oilers are Single Point Lubricators and are mounted directly on the Lubrication Points. These oilers dispense oil by gravity from transparent reservoir through Needle Valve. The Needle Valve is joined with Toggle Pin by which the Operator can On / Off the flow manually. The flow of the oil is controlled by adjusting the needle Valve and can be visualized from the in-built Sight Glass. These Oilers are available in different Thread Size from 1/8" BSP to 3/8" BSP.
