MCKINNON INDIA PVT. LTD. Mettupalayam Road, Coimbatore, Tamil Nadu

Type : Waste Oil Drainer

Material : Iron, Stainless Steel

Weight : 0-25 Kg, 25-50 Kg

Color : Dark-red, Red

Voltage : 220V, 240V

Capacity : 0-40 Ltr, 40-80 Ltr

Power : 0-1000 W, 1000-2000 W

Working Pressure : 0-5 Bar, 5-10 Bar

Drining Hose : 0-2 Mtr, 2-4 Mtr

We are exporters and suppliers of this products.

Heating Resource : Wood fired / Diesel fired

Max Temperature : 40 - 45 Deg C

Voltage : 380 / 415 Volts

We offer pre cleaner. Precleaners are designed to clean and screen coffee, prior to feeding on to the next processing stage. The machine effectively removes iron particles, stone, sand, rubble, leaves, twigs and other foriegn materials. Separation is achieved by a series of screens, the first screen removing large impurities and the bottom screen removing fine materials such as sand and dust. The middle screen separates the coffee and delivers it clean. To increase the efficency of cleaning, and air sifter is used after the precleaning. Description machine (hp) aspiration fan (kw) air lock (kw) dry cherry dry parchment green coffee pst3 0.75 2.2 0.75 800-1200 1000-1500 1800-2100 pst3r 2x0.75 4.0 0.75 800-1200 1000-1500 1800-2100 pst7 0.75 0.75 0.75 1700-2500 2000-3000 4200-5000 pst7r 2x0.75 4.0 0.75 1700-2500 2000-3000 4200-5000

we are offering Peeler-Polisher-Motorised.

Mini wet plant machine is a three in one compact unit which caters to small growers. It is capable of process up to 800 Kgs of ripe cherry fruit input in an hour. It pulps the coffee, separates skins and washes the coffee ready for drying. It consists of : 1. Single Disc pulper 2.Rotary Sieve 3.Mucilage remover

We are offering mini pulper. Mini pulpers have been designed to cater to the needs of small farmers, who have a need for small hand operated equipment in an environment where no basic infrastructural facilities are available. The small pulpers, in view of their lightweight, are mobile and can be erected and operated with very little help or expertise. Models available : 1.hand operated 2.fitted with motor 3.fitted with engine

We offer green bean separator. This machine is used to segregate unriped greens from full matured ripe coffee berries. Instead of manual sorting automated sorting can be done using this machine. principle of operation : coffee fruit enters into the central conveyor which will move the coffee fruit through the machine. The ripe fruit will be squeezed through the surrounding sieve and fall down to the collection chute which leads the fruit to the pulper. Green bean will be collected at a separate outlet.

We are offering drum pulper. Drum pulper machine is used for processing ripe coffee fruit. it is hand operated and particularly used by farmers with very small amount of cherry to be processed.

we offer Disc Pulpers. Disc Pulpers are used in wet processing plants to pulp ripe coffee fruit to parchment. The coffee is fed from large fruit tanks and the wet parchment is discharged into fermentation and washing tanks. The fruit skin is discharged into a pit to be used later as fertilizer. The water is channelled for recovery and recycling. Disc Pulpers can be used for Arabica and Robusta varieties. They are made with One, Two, Three or Four Discs, according to the capacities required. The Single Disc Pulper can be manually operated with a short leg option . The Disc Pulpers can be configured with Rigid Chop or Flexible Chop option. The pulping operation takes place between the rubbing action of the bulbs on the disc and the lateral pulping bars called chop rails. The gap between the surface of the bulb and the chop rail can be adjusted to allow for any clearance that may be required according to the variety and size of coffee fruit processed. The hopper is fitted with stone catcher and a feed mechanism which ensures even feeding of the fruit to all the discs. Disc Pulpers require minimum amount of water for pulping and the water can be recirculated for reuse after filtering of skins. Disc Pulpers can be run with Electric Motors or Diesel Engines and have a input capacity of 1000 kgs. of fruit intake per hour per disc. Disc Pulpers can be used in conjunction with Cherry Feeders, Aagaard Pregraders, Rotary Sieves and Shaking Sieves

Type : Digital Moisture Meter

Weight : 100-200gm, 200-300gm, 300-400gm, 400-500g

Color : Brown, Grey

Voltage : 3-6VDC, 6-9VDC

Application : Moisture Measurement, Moisture Measurement For Wood

Display Type : Digital

Frequency : 50Hz-65Hz

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Body Material : Aluminum, Stainless Steel

Power Source : Battery, Electric

Feature : Accuracy, Lorawan Compatible, Low Power Comsumption

Warranty : 1Year, 2Years

Type : Indented Cylindrical Graders

Application : Construction Use

Weight : 0-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg

Color : Brown, Light Yellow

Condition : New, Used

Automatic Grade : Manual, Semi Automatic

Power : 0-20BHp, 20-40BHp, 40-60BHp, 60-80BHp

Warranty : 1yr, 3yrs

Ground Clearance : 400-450mm, 450-500mm

Stroke : 2Stroke, 4Stroke

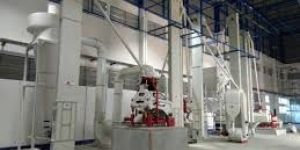

Type : Coffee Processing Plant

Application : Processing Starch

Weight : 0-5000kg, 10000-15000-20000kg, 20000-25000kg, 5000-10000kg

Color : Brown, Light White, Silver, White

Voltage : 110V, 220V, 380V, 440V, 480V, 580V,600V

Condition : New, Used

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Power : 1-3kw, 12-15kw, 15-18kw, 18-21kw, 3-6kw, 6-9kw, 9-12kw

Driven Type : Electric, Hydraulic

Warranty : 1year, 2years

We are offering africa coffee hullers. Africa hullers are specifically designed to treat dry cherry. The machine consists of a cylinder fitted with feeding and hulling ribs, enclosed in a strong casing, the lower portion of which is perferated to allow the husks to pass into the husk chamber. The hulling is effected by means of the triturating action between the hulling blade and the ribs on the cylinder. Technical specifications : description power required output capacity no:0 40 h.p 800-1000 kgshr no:1 25 h.p 400-500 kgshr no:2 15 h.p 100-250 kgshr no:5 5 h.p 75-125 kgshr no:6 1.50 h.p 10-15 kgshr

We are offering dry destoner. Dry destoners are used for removing stones from green coffee, dry parchment and dry cherry. The destoner is designed to take advantage of the difference in specific weights between the stones and the coffee. Description machine (hp) aspiration (kw) air lock (kw) dry cherry dry parchment green coffee pvs 3 0.75 0.75 0.75 600-1000 800-1200 1800-2100 pvs 7 0.75 10.0 0.75 1600-2000 1400-2000 3200-4000 pvs 15 2x0.75 15.0 0.75 3200-4000 2800-4000 5000-6000

We offer peeler-polisher-hand operated. sample peeling polishing can be carried out by using smout peeler & polisher machine. It can be used to determine the yield of coffee bean from the dry parchment form (ideal moisture level between 10.50% to 11.50%). This peeler & polisher is capable of handling 10-15kgshr green coffee. Cone and liner are made up of phosphor bronze material.
