Refrigerated Air Dryers Dealers in Coimbatore

Make Refrigerated air dryer quality compressed air free from dust and moisture. The drier high efficiency with less power consumption and compact size. Negotiable pressure drop and no purge air loss.Range: 10 cmf to 5000 cmf at working pressure 16 kg/cm². High pressure models also available.

We are offering Refrigerated Air Dryer. Customers can buy from us refrigerated air dryer 50, which is widely used in numerous industrial applications. Appreciated for its trouble free service life and less maintenance, this is offered by us at industry leading prices. We are looking for queries from Rajasthan. With the support of our vendor’s state-of-the-art infrastructural facility, we are catering to the diverse requirements of our clients by providing an excellent quality array Refrigerated Air Dryer. This dryer is widely used in number industrial application for lowering temperature. Our offered dryer is made available in different specifications for our clients to choose from. Clients can avail this dryer from us at pocket friendly prices.   Salient  Features   High temperature compressed air (80 degree c) allowed at the inlet Reliable and high efficiency refrigeration system Stable dew point temperature Effective water vapor separator Selectable quality mechanical and electronic drainage system Integrated control panel, easy operation, easy view

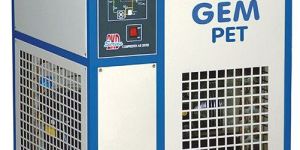

10 - 1000 CFM High Pressure Compressed Air Dryer is engineered to deliver dry, clean, and moisture-free compressed air for demanding industrial and process applications. Designed to operate efficiently under high-pressure conditions, it ensures consistent performance and long-term reliability.Built with a robust heat exchanger and high-quality refrigeration components, this dryer provides stable dew point, low pressure drop, and energy-efficient operation.Key Features: Suitable for high-pressure air systems Rugged design for reliable performance Efficient moisture and oil removal Compact, easy-to-maintain construction Energy-efficient refrigeration technology Applications:Ideal for petrochemical plants, testing facilities, bottling units, engineering workshops, and industrial pneumatic systems requiring high-pressure air treatment.

Function: Used for evaporation, dryer, demisting Material of Construction: AluminumStructure: Bar and Plate Heat Exchanger Specialty: High Heat Transfer ability , Energy-Saving Heat Exchanger Application: Air Dryers General Process: 3-in-1 and 4 in 1 heat exchanger and water-oil separator model is designed specially for the Refrigerated Air Dryer. It consists of Precooler (Air to Air Plate Fin Heat Exchanger), Evaporator (Air to Refrigerant Plate-Fin Heat Exchanger) and stainless steel mesh Gas-Liquid separator filter. It has four functions: Precooling, Cooling, Separation and Filtration. There is insulating layer outside of this unit in order to reduce the loss of heat and increase the effectiveness. Precooler and Evaporator are both aluminum vacuum brazed Plate-Fin Heat Exchangers. Compared with shell and tube heat exchanger in traditional refrigerated air dryer, the heat transfer area of plate-fin heat exchanger is larger and so the exchanger effectiveness is higher. Generally, the heat transfer area density of plate-fin heat exchanger can be 1500m2/m3, but the shell and tube heat exchanger’s is only about 160m2/m3. And the heat transfer coefficient of plate-fin heat exchanger is 5-10 times higher than shell and tube heat exchanger. Air-water separator uses optimized spiral guide structure and the main principle is to separate the liquid and gas according to the difference of the liquid weight and gas weight and using gas flow direction and the inertia of speed changing. Mesh filter is made of some steel mesh and it can filterate air secondary to increase the dry efficiency.   Features and Advantages（1）Compact size:- Reduces the total air dryer size- Significantly reduces the refrigerant hold-up volume（2）Highly efficient thermal performance and low pressure drop minimizes power usage.（3）Low price.（4）Easy to repair and long service life.（5）Full compatibility with the most common refrigerants. TestingAll of our 4 in 1 heat exchangers undergo a hydrostatic test of 1.5 times the design pressure with water for 30 minutes and a leak test of 1.1 times the design pressure with air for 10 minutes for the air side. After passed by the above tests, each unit is to perform 24 hours’ keeping pressure of 18 bar and conduct helium test for the refrigerant side, respectively.

Compact Steel Cabinet,Maintanance free multiple - stage condensate seperator,Solid state timer operated drain trap,Solid state information system, Consisting of three digit LED temperature display with operating range from -20o C to +100o C,Service gauge for refrigeration suction pressure,Air-to-refrigerant heat exchanger with smooth surface copper tubes,Air-to-Air heat exchangers with smooth surface copper tubes.

Available with is an advanced range of refrigerated airdryers that are suitably to match the varied atmospheric conditions. These refrigerated air dryers are based on cooling the compressed air up to 3°c, which facilitates the moisture to condense and drain out. Furthermore, these refrigerated air dryers are also available in various custom-made designs.   Characteristics:   Refrigerant used are environment friendly. No loss of air Optimum performance   We are the leading manufacture in refrigerared  air dryers & also supplier in tamilnadu(chennai, coimatore, trichy , madurai, salem, erode, thirunelveli, ) kerela( cochin, thiruvanathapuram, palghat, calicut, karnataka, andhrapardes

Refrigerated dryers use of mechanical refrigeration system to cool the compressed air and at the same time condensate water and hydrocarbon vapor, most of these dryers cool the compressed air to a temperature of around 2 deg C which leads to a pressure dew point of 3 deg C. This is the preferred range because it allows the pressure dew point to fall with in the range that is attainable with common refrigeration system control working principle.

Compact DesignLow Pressure DropConsistent Dew PointPower SavingHigh Quality FinishingNon-cyclic SystemMore ReliabilityEase of InstallationEnvironment FriendlyReduced Maintenance

Air discharged by any air compressor always contains water vapour, which also depends on the ambient temperature and the relative humidity. When air is compressed, the volume decreases proportionally. This results in condensate formation. Condensate causes corrosion in compressed air pipe line. Compressed air driers are used to separate the condensates. Refrigerated Air Dryer removes moisture from compressed air to the desired dew point temperature. The performance of a dryer is quoted in terms of ‘pressure dew point’, which is the temperature at which water vapour will start to condense out of the air. For example, a dew point of 4ºC at 7 bar (g) (700kPa (g)) means that no water will condense from the air until it goes below a temperature of 4ºC. Working principle: The saturated compressed air enters in air-to-air heat exchanger. Here the incoming hot air is cooled by the outgoing cold air. The pre-cooled incoming air enters in the air-to-refrigerant heat exchanger further reducing the air temperature to specified dew point 2ºC to 4 ºC. The air leaving this evaporator is directed to the cyclone separators and water vapour condensate liquid droplets gets removed automatically by Automatic drain valve.

Refrigeration Air dryer Range from 20 Cfm to 1,000 Cfm, Our Refrigeration Air dryer reduces compressed air moisture. Its help to give the pure air to given a machine and Our Refrigeration air dryer designed as per Indian standard and its heat exchangers built-up copper pipes and maximum working pressure 50 kg. We gave best quality dryer for various applications for our customer requirements. Refrigeration air dryer is comfortable all temperatures.

  Refrigerated dryers are general purpose dryers, most economical being less running cost. SAI refrigerant system is environmentally friendly in nature. Refrigeration dryer remove moisture from compressed air to the desired dew point temperature. The dryer includes two separate circuits like compressed air circuit & refrigeration circuit.    SALIENT FEATURESCompact DesignRunning cost is Very LowHot Gas by-pass circuit for partial Load.Maintains Constant Pressure Dew PointAuto Drain Valve Provided for cyclone separatorNon-cyclic SystemLow Pressure DropEnvironment Friendly systemCompressor safety through maintain Low/High Constant PressureNote : High Pressure / flow range can be offered on request. Operating Pressure standard at 14kg/cm

We offer our clients Refrigerated Air Dryer, which are available in self cleaning smooth surface.
