Seal Engineering Vadamadurai, Coimbatore, Tamil Nadu

Material : Stainless Steel

Country of Origin : Made in India

Sealing Type : single cartridge seal

Temperature Range : Up to 150 Degree

Speed : 2990rpm

Pressure : 10 bar

Shaft Diameter : 25.00MM TO 120.00MM

Material Grade : SS316,SS316L,SS317,TITANIUM

Our company holds expertise in manufacturing & supplying of Mechanical Seal (Series SE 900). The Mechanical Seal (Series SE 900) is an Agitator Seal. The Mechanical Seal (Series SE 900) is ideal for application involving sticky, pasty and dry media. This Mechanical Seal (Series SE 900) is a cartridge type pre-assembled and tested seal .The Mechanical Seal (Series SE 900) is mainly used for mixers, dryers, agitator and reactors in Plastic, Food, Paint and Pharmaceuticals industries. The Mechanical Seal (Series SE 900) is used with pressurized buffer fluid preferably clean soft water because of good heat transfer qualities and fluids like oil hydrocarbons solvents, etc. The Mechanical Seal (Series SE 900) has two mechanical seals, one sleeve, gland housing and bearing assembly. These bearings which are closed to the seals ensuring optimum running and seal conditionings. Used In Pharmaceutical industryFood industryChemical industry Application harmaceuticals productsFood productsCorrosive chemicalsMixersDryersAgitators vessels Face Materials : Carbon, Ceramic, Silicon Carbide, Tungston carbide, etc. Metal Parts : SS 316, Alloy 20, Hastelloy-c, Titanium Secondary Seal : PTFE, viton Operating Limits Shaft Diameter : 25.00MM TO 150.00MMPressure p : vacuum to 10 bar (max)Temperature t : 60. To 240 C maxVelocity : 10m/s Seal Characteristics Agitator sealDouble actingBoth Balance & Unbalanced sealIndependent of direction of rotationPressurized buffer fluid required Minimum Order Quantity : 10 Units

We are counted amidst the leading Manufacturers & Suppliers of Mechanical Seal (Series SE 800). The Mechanical Seal (Series SE 800) is a dry running seal. The Mechanical Seal (Series SE 800) is a balanced and a compact seal which is easy to install. The Mechanical Seal (Series SE 800) is designed for especially for Agitator, mixers &vessels. The Mechanical Seal (Series SE 800) is used on top side of the agitator as a dry running seal. When pharmaceutical products or food products are agitated in agitator, mixing of any other liquid will contaminate the product & affect its quality, hence these dry running seals are used. The Mechanical Seal (Series SE 800) does not require any external media for lubricating the faces, that is why it is known as dry running seal. Used In Pharmaceutical industryFood industryChemical industry Application Pharmaceuticals productsFood productsCorrosive chemicals Face Materials : Carbon, Ceramic, Silicon Carbide, Tungston Carbide, etc. Metal Parts : SS 316, Alloy 20, Hastelloy-c, Titanium Secondary Seal : PTFE, viton Operating Limits Shaft Diameter : 25.00MM TO 100.00MMPressure p : 20 bar (max)Temperature t : 125 c max Seal Characteristics Dry running sealSingle actingBalanced sealOutside Mounted SealIndependent of direction of rotation Minimum Order Quantity : 10 Units

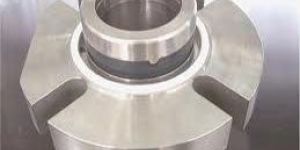

We are a chief Manufacturer & Supplier of Mechanical Seal (Series SE 700). The Mechanical Seal (Series SE 700) is a catridge type seal. The Mechanical Seal (Series SE 700) is an internally balanced and compact seal which is easily to install. The Mechanical Seal (Series SE 700) is designed for especially for high pressure application. The Mechanical Seal (Series SE 700) is mainly used in paper pulp ,chemical and slurry pumps. Used InPetro chemical industryRefinaryOil industryPaper industryPharmaceutical industryWater and waste water industryChemical industry Application Petro chemicalsPharmaceuticalsPaper pulpOil pumpChemical pumpSlurry pumpRefinery pump Face Materials : Carbon, Silicon Carbide, Tungston Carbide, etc. Metal Parts : SS 316, SS 304, Alloy 20, Hastelloy-c, Titanium Secondary Seal : Viton, Silicon.Epdm, PTFE, Grafoil Operating Limits Shaft Diameter : 25.00MM TO 100.00MMPressure p : 25 bar (max)Temperature t : _ 20 ... +220CVelocity v : 20 m/sec Seal Characteristics Catridge type sealSingle actingInternally balanced sealIndependent of direction of rotationSingle & double seal Minimum Order Quantity : 10 Units

We are a reliable Manufacturer & Supplier of Mechanical Seal (Series SE 600). The Mechanical Seal (Series SE 600) is a metal bellow seal. The Mechanical Seal (Series SE 600) is an internally balanced and compact seal which is easily to install. The Mechanical Seal (Series SE 600) is designed for especially for high temperature applications and for high-viscosity media in chemical, petrochemical plants and refineries. The bellow is constructed by welding a series of diaphragms together at the edges. The bellows unit eliminates the need for springs, dynamic secondary seals and provides flexibility to the seal face wear. The Mechanical Seal (Series SE 600) seal is available in catridge model also. Used In Petro chemical industryRefinaryOil industry Application Petro chemicalsRefinaryHot Oil pumps Face Materials : Carbon, Silicon Carbide, Tungston Carbide, etc. Metal Parts : SS 316, SS 304, Alloy 20, Hastelloy-c, Titanium Secondary Seal : PTFE, Grafoil Operating Limits Shaft Diameter : 25.00MM TO 100.00MMPressure p : 20 bar (max)Temperature t : _ 20 ... +350CVelocity v : 20 m/sec Seal Characteristics Metal bellow sealSingle actingInternally balanced sealInside Mounted SealIndependent of direction of rotationWelded Metal Bellow seal Minimum Order Quantity : 10 Units

Our company is involved in manufacturing & supplying of Mechanical Seal (Series SE 500). The Mechanical Seal (Series SE 500) is a Teflon bellow seal. The Mechanical Seal (Series SE 500) is an unbalanced seal and compact seal which is easy to install. The Mechanical Seal (Series SE 500) is designed for extremely corrosive chemicals, including concentrated acids, salts, strong oxidizing & reducing agents, and chemically active organic compounds. The bellows are made out of PTFE and the faces are made out of GFT,the springs and clamps are in SS 316,SS 316L Alloy 20 Hastelloy- C & Titanium. The Mechanical Seal (Series SE 500) is available in replacement model face also. Used In Dyeing industryChemical industry Application AcidsHighly corrosive liquidsAlkalisSulphuric acid Face Materials : Carbon, Ceramic, Silicon Carbide, etc. Metal Parts : SS 316, SS 304, Alloy 20, Hastelloy-c, Titanium Secondary Seal : PTFE Operating Limits Shaft Diameter : 18.00MM TO 100.00MMPressure p : 6 bar (max)Temperature t : _ 20 ... +120CVelocity v : 20 m/sec Seal Characteristics Teflon bellow sealSingle actingUnbalanced sealOutside MountedIndependent of direction of rotation Minimum Order Quantity : 10 Units

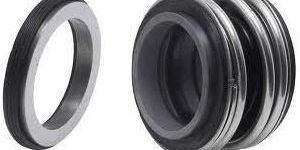

We are a trustworthy Manufacturer & Supplier of Mechanical Seal (Series SE 400). The Mechanical Seal (Series SE 400) is a rubber bellow seal. The Mechanical Seal (Series SE 400) is an un balanced and compact seal whoch is easy to install. The Mechanical Seal (Series SE 400) has a self aligning feature which compensate abnormal shaft end play and run out and leads to improved service life. In the Mechanical Seal (Series SE 400), elastomeric bellows protect shaft and sleeve from fretting .Various seal face materials (Sic ,Carbon, Ceramic ) and elastomers (Viton,Epdm,Silicon,) can be offered for wide service application. The Mechanical Seal (Series SE 400) can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals can be supplied on request. Used In Food processsing industryDyeing industryChemical industryPaper and pulp industryWater ,waste water,slurriesOils Application Water pumpsChemical pumpsMilk pumpsBreweries & DistilleriesFood applicationSubmersible pumps Face Materials : Carbon, Ceramic, Silicon Carbide, etc� Metal Parts : SS 316, SS 304 Secondary Seal : Viton, Nitril, Epdm, Silicon, Operating LimitsShaft Diameter : 12.00MM TO 100.00MMPressure p : 10 bar (max)Temperature t : _ 20 ... +180 CVelocity v : 20 m/sec Seal Characteristics Single spring bellow SealSingle actingUnbalanced sealInside MountedIndependent of direction of rotation Minimum Order Quantity : 10 Units

We are ranked amongst the leading Manufacturers & Suppliers of Mechanical Seal (Series SE 300). The Mechanical Seal (Series SE 300) is a conical spring seal. The Mechanical Seal (Series SE 300) is an unbalanced seal with �o� ring as secondary sealing member. It is a compact seal which is easy to install. The Mechanical Seal (Series SE 300) depends on shaft direction of rotation; clockwise rotating shaft requires right handed spring and anticlockwise rotating shaft requires left-handed spring. Various seal face materials ( Tc, Sic ,Carbon,) and elastomers (Viton,Epdm,Silicon,) can be offered for wide service application. Operating Limits Shaft Diameter : 12.00MM TO 90.00MMPressure p : 10 bar (max)Temperature t : _ 23 ... +180 CVelocity v : 20 m/sec Seal Characteristics Conical Spring SealSingle actingUnbalanced sealInside Mounteddependent of direction of rotation Used In Food processsing industryDyeing industryChemical industry Application Water pumpsChemical pumpsMilk pumpsBreweries & DistilleriesFood appllication Face Materials : Carbon, Ceramic, Silicon Carbide, Tungsten Carbide, etc. Metal Parts : SS 316, SS 304, SS316 L, ALLOY 20 Secondary Seal : Viton, Nitril, Epdm, Silicon, PTFE. Minimum Order Quantity : 10 Units

We are a reputed Manufacturer & Supplier of Mechanical Seal (Series SE 200). The Mechanical Seal (Series SE 200) is a multi spring seal. The Mechanical Seal (Series SE 200) is developed for low and high pressure applications . The Mechanical Seal (Series SE 200) is a mechanical seal range which is designed for universal application and ideal suited for standardization. The compact design of the Mechanical Seal (Series SE 200) permits its use in all types of centrifugal pumps. The Mechanical Seal (Series SE 200) is available in metric & inches sizes. All the parts are interchangeable and the Mechanical Seal (Series SE 200) is available in �O� Ring type Also. Used In Dyeing industryChemical industryPharma industryPaper industryPetrolium industryFood processing industryGas industry Application Water pumpsChemical pumpsPetroleum pumpsRefinery ApplicationBreweries & DistilleriesFood appllication Face Materials : Carbon, Ceramic, Silicon Carbide, Tungsten Carbide, etc. Metal Parts : SS 316, SS 304, SS316 L, ALLOY 20 Secondary Seal : Viton, Nitril, Epdm, Silicon, PTFE. Operating Limits Shaft Diameter : 25.00MM TO 100.00MMPressure p : 10 bar (max)Temperature t : _ 23 ... +200 CVelocity v : 20 m/sec Seal Characteristics Multi spring SealSingle actingBoth Balanced & UnbalancedInside MountedIndependent of direction of rotation Minimum Order Quantity : 10 Units

We are a major Manufacturer & Supplier of Grundfos Pump Seals. The Grundfos Pump Seals we supply are sturdy, durable, efficient and anti-corrosive. The Grundfos Pump Seals are used in for booster pump and various other industrial applications such as cooling purpose, etc. The Grundfos Pump Seals are available in various models as per different specifications. We supply Grundfos Pump Seals at the most reasonable prices. Attributes Strong constructionDimensionally accurateDurableHighly efficient Minimum Order Quantity : 10 Units

Our company is one of the leading Manufacturers & Suppliers of Compressor Seals. We manufacture Compressor Seals using high grade material in different models as per various specifications. The Compressor Seals are used for compressor purposes in various industries. The Compressor Seals we supply are known for their superior quality, strong construction, high strength, low maintenance and high performance. Highlights Superior qualityExcellent strengthHigh performanceLow maintenance Minimum Order Quantity : 10 Units

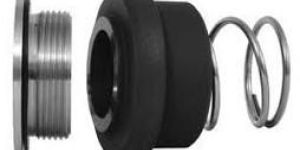

We are engaged in manufacturing & supplying of Alfa Laval Seals. Our team of expert technicians manufactures the Alfa Laval Seals with complete precision and accuracy. The Alfa Laval Seals supplied by us are widely used in alpha pumps used in the in food industry. We supply high quality, efficient and extremely functional Alfa Laval Seals at the market leading prices. Highlights Excellent qualityDimensionally accurateHighly functionalReasonably priced Minimum Order Quantity : 10 Units

We are a prominent Manufacturer & Supplier of Mechanical Seal (Series SESPE). The Mechanical Seal (Series SESPE) is manufactured using high grade parts and components. We supply Mechanical Seal (Series SESPE) that is rigidly constructed, durable and high in performance. The Mechanical Seal (Series SESPE) can be availed from us at competitive prices. Operating Limits Shaft Diameter : 12.00MM TO 100.00MMPressure p : 14 bar (max)Temperature t : _ 23 ... +200 CVelocity v : 20 m/sec Minimum Order Quantity : 10 Units
