SERVOCOM TECHNOLOGIES Nallampalayam, Coimbatore, Tamil Nadu

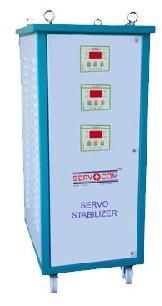

Salient Features:   High efficiency & Fast response.   Wide input voltage range & Audiable alarm for trip conditions.   99.99% failure proof control circuit.    No over under, shoots and hunting.    Built in bypass switch upto 100 Kva.   Less active component avoids failure ratings.    Special electronic circuit to operate on gensets.    No effect of power factor and frequency variations.    Single PCB for three phase sensing and correction.    Voltage at speed related to rate of fluctuations and avoids oscillations & hunting In dc motor drive.    Variable speed high torque dc servo motor proportionally controls corrections.    Rugged and smooth ac motor drive control through optoisolator circuit which is Highly reliable.    Separate isolated PCB for triac switching for motor. High Reliablity :  High reliability due to digital and controlling using micro controller   All components sourcedfrom reputed manufacturers, confirm to IS/BS/VDU standards    All raw material inspection as per internal components manual    Individual assemblies and sub assemblies tested separately.    Individual assemblies tested on full load at 55 deg c in oven for 48 hours to minimize failure    Final equipment tested for accelerated life test to identify and replace any weak links. Productions:  Input and Output Low Voltage protections.   Input and Output High Voltage protections.    Phase rotation/single phasing preventer.    Input protection using HRC fuse.    Control circuit protection using fast blow fuse.    Electronic overload protection. Panel Control:  VAF / VF 3 Phase Model Start, Select, Stop / Reset LCD Specifications:   16*4 lcd display is used for easy reading of parameters.   True rms sensing and reading of voltage and current.    100 event error log facilities for easy diagnosation of fault level.    Internal variable timer is adopted for on time delay and overload trip of scvs.    Selectable phase reverse function.    Selectable auto on function.    Less analog circuit and hence failure rate is reduced.    Built in digital meter for monitoring the voltage / current & frequency.    Separate isolated PCB for triac switching for motor.

Input Voltage : 140-270v / 170-270v 1Phase AC , 240-460v / 295-465v / 340-460v , 360-460v / 340-480vv 3Phase AC

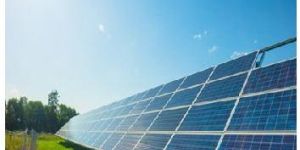

High Performance::  Power tolerance of to +3% provides a stable, high-energy system output   Better performance under low light condition    More power per unit area for cost effective    Engineering excellence:    Increased cell to frame clearance reduces the effect of soiling    High wind/snow load tolerance (pass mechanical load test of 5400pa) Reliability & Clarifications:  Product range : 20 KVAr to 5000KVAr   25 tears limited warranty on power output    5 year product warranty    IEC 61215,IEC 61730 Features:  Transformer with peak efficiency (96.0%)   Isolation of primary & secondary circuit    Wide operating temp.ranges:-25 C to +70 C    Full power up to 57 C (without de rating)    Rs 485 (ELA485) communication interfaces    Intelligent MPP tracking    Suitable for indoor and outdoor application (Ip65)    Without fan (for 2.5 to 9.9KVA models)    Simple and direct on-screen dada display (for 5kVA model)

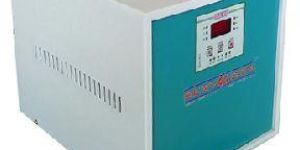

Special protections:   Over load Protection   Short Circuit trip   ime Delay controls    High voltage cut-off    Low voltage cut-off Servocom Features:   97 to 98.5% efficiency (Achieved by use of hi-quality core and copper Transformers)   Speed of correction up to 60v/sec    Immune to load power factor and frequency variations    Very high reliability, easy and simple maintenance    Life expectancy 20-25 years    System conforms to IS 9815-1994    Transformer oil: IS 335,IEC 296 µcic-2016 Features:  Input and Output Low Voltage protections.   7-Segment Display to using view of input & output voltage, Output current.    Output ON adjustable time delay    Over load cut off time setting    Voltage cut off time setting    Output voltage adjustable setting (210-245)Volt    Sensitivity and regulation adjustable    Microcontroller based Programmable Control circuits Key Function:Specifications:   Menu Key : To view parameters/ settings   Start Key : To switch ON output load/ select the digit (SET Mode)    Stop Key : To switch OFF output load/ edit the selected digit (SET Mode)

Input Voltage : 140-270v / 170-270v 1Phase AC , 240-460v / 295-465v / 340-460v , 360-460v / 340-480vv 3Phase AC

Output Voltage : 230v / 240 +_ 1% 1phase AC 380 / 400v / 415 +_ 1% 3phase AC

Special protections:   Over load Protection   Short Circuit trip   ime Delay controls    High voltage cut-off    Low voltage cut-off Servocom Features:   97 to 98.5% efficiency (Achieved by use of hi-quality core and copper Transformers)   Speed of correction up to 60v/sec    Immune to load power factor and frequency variations    Very high reliability, easy and simple maintenance    Life expectancy 20-25 years    System conforms to IS 9815-1994    Transformer oil: IS 335,IEC 296 µcic-2016 Features:  Input and Output Low Voltage protections.   7-Segment Display to using view of input & output voltage, Output current.    Output ON adjustable time delay    Over load cut off time setting    Voltage cut off time setting    Output voltage adjustable setting (210-245)Volt    Sensitivity and regulation adjustable    Microcontroller based Programmable Control circuits Key Function:Specifications:   Menu Key : To view parameters/ settings   Start Key : To switch ON output load/ select the digit (SET Mode)    Stop Key : To switch OFF output load/ edit the selected digit (SET Mode)

Capacity : 1Kva to 1000Kva

Input Voltage : 415V+10%-20%

Battery Type : SMF/ Tubular/ Automotive

Model Number : 3 PH Input/ 3PH Output

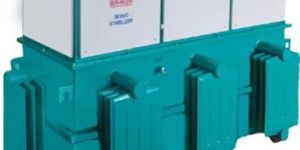

Servocom Features:  97 to 98.5% efficiency (Achieved by use of hi-quality core and copper Transformers)   Speed of correction up to 60v/sec    Immune to load power factor and frequency variations    Very high reliability, easy and simple maintenance    Life expectancy 20-25 years   System conforms to IS 9815-1994    Transformer oil: IS 335,IEC 296

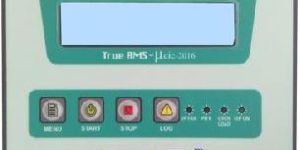

Micro controller-2016 Features:  LCD monitor is used to view of input & output voltage,Output current and freis quency.   Auto/manual output on.    Output ON adjustable time delay    Over load cut off time setting    Voltage cut off time setting   Last 30 fault events Data log view    Output voltage adjustable setting (210-245)Volt   Sensitivity and regulation adjustable   Microcontroller based Programmable Control circuits   Salient Features:   High efficiency & Fast response.   Wide input voltage range & Audiable alarm for trip conditions.   99.99% failure proof control circuit.    No over under, shoots and hunting.    Built in bypass switch upto 100 Kva.   Less active component avoids failure ratings.    Special electronic circuit to operate on gensets.    No effect of power factor and frequency variations.    Single PCB for three phase sensing and correction.    Voltage at speed related to rate of fluctuations and avoids oscillations & hunting In dc motor drive.    Variable speed high torque dc servo motor proportionally controls corrections.    Rugged and smooth ac motor drive control through optoisolator circuit which is Highly reliable.    Separate isolated PCB for triac switching for motor. High Reliablity :  High reliability due to digital and controlling using micro controller   All components sourcedfrom reputed manufacturers, confirm to IS/BS/VDU standards    All raw material inspection as per internal components manual    Individual assemblies and sub assemblies tested separately.    Individual assemblies tested on full load at 55 deg c in oven for 48 hours to minimize failure    Final equipment tested for accelerated life test to identify and replace any weak links. Productions:  Input and Output Low Voltage protections.   Input and Output High Voltage protections.    Phase rotation/single phasing preventer.    Input protection using HRC fuse.    Control circuit protection using fast blow fuse.    Electronic overload protection. LCD Specifications:   16*4 lcd display is used for easy reading of parameters.   True rms sensing and reading of voltage and current.    100 event error log facilities for easy diagnosation of fault level.    Internal variable timer is adopted for on time delay and overload trip of scvs.    Selectable phase reverse function.    Selectable auto on function.    Less analog circuit and hence failure rate is reduced.    Built in digital meter for monitoring the voltage / current & frequency.    Separate isolated PCB for triac switching for motor.

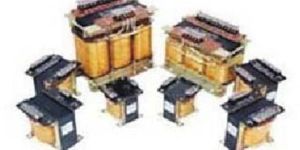

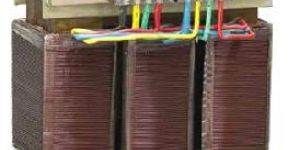

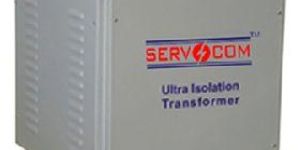

Servocom Features:  Servocom Transformers are used to step up and step down the voltage for imported machinery and to eliminate all the negative transients in the electrical supply and also, to avoid the neutral wire problems, isolation transformers will be used where neutral wire is taken in the secondary usage.   Other Transformers are of Five Types:    Control transformers    Auto transformers    Step up transformers   Step down transformers    Isolation transformers

Advantages:  Reduction in maximum demand   Low power factor penalty can be avoided    Extended life for shift gears, capacitors & cables    Avoid manual disruption    Micro processor based automatic controller display   We provide solutions for improving plant power factor by installing our APFC panel Features:  Product range : 20 KVAr to 500KVAr   All major components of standard make like SLEMENS,L&T, and HAVELLS    SERVOCOM Provides multiple stages, like 8, 12, 16…more    By using special designed electronic control circuit
