Submersible Well Pump Dealers in Thudiyalur, Coimbatore (9 products available)

• Name: RMP COMPRESSORS

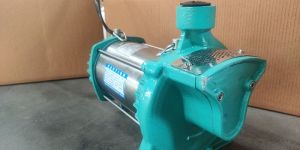

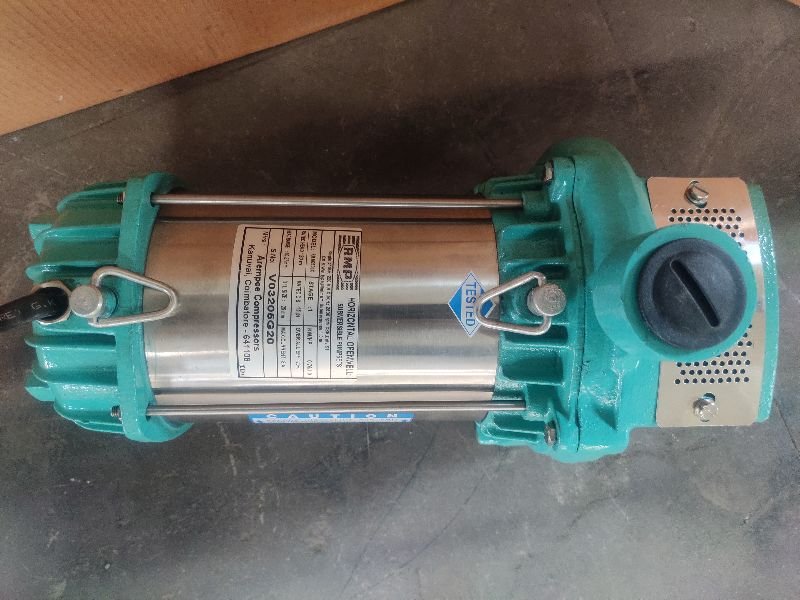

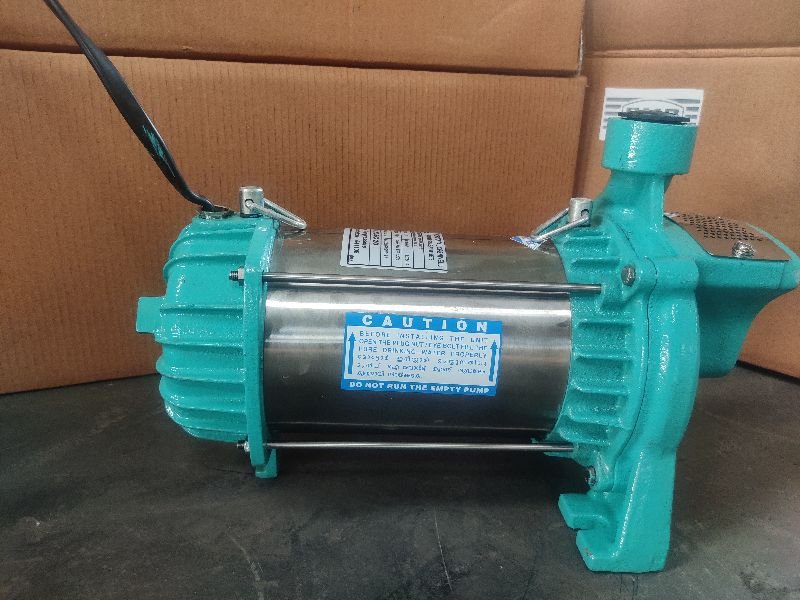

We are a leading Single Phase Open Well Submersible Pump Manufacturer, Exporter and Supplier from India. The Single Phase Open Well Submersible Pumps we manufacture offer trouble free performance and are appreciated for offering the convenience of not to change the position of the pump with changing water levels in the well. Construction Features Three Phase water-filled submersible induction motor with easily rewindable statorSuitable for Single Phase, 200 � 240 V, 50 Hz. power supplyRigid cast iron motor frameRigid bronze / Stainless steel / Cast iron impellerCarbon Vs Ceramic mechanical seal Applications Residential Specifications Power0.5 to 3.0HPSpeed2900 RPMHead Max.42 MDischarge Max1428 LPM

• Power Range: 3.0 to 30.0 HP
• Voltage Range: 340V- 440V, AC Three phase , 50Hz
• Speed (rpm): 2900
• Motor Type: Water-filled and water cooled Induction motor
• Head: Maximum 90 m
• Discharge: Maximum 2640 lpm
• Liquid temperature: Maximum 33ºC
• Operating Pressure: 80 bar
• Sand content: maximum ,5

• Number Of Stages: Single-stage Pump
• Motor Horse Power: 1- 3 HP
• Brand Name: Grundfus
• Type: Borewell
• Motor Phase: Single Phase
• Power Source: AC Powered
• Warranty: 12 months
• Voltage: 240 V
• Discharge Outlet Size: 1 to 2 inch
• Country of Origin: Made in India
• Head Size: 15 to 50 m
• Maximum Discharge Flow: 100- 500 LPM

• Maximum Rotational Speed: 2850
• Available Type: Submersible
• Country of Origin: India
• Application: Industrial, Domestic, Submersible
• Color: Green or Black
• Fuel: Electric
• Automatic Grade: Manual
• Warrenty: 1 Year
• Voltage: 220V
• Theory: Centrifugal Pump
• Power: 1-3kw
• Pressure: Medium Pressure
• Structure: Single Stage Pump
• Brand Name: WINMAX
• Diameter: Delivery Pipe -25 mm
• Motor Phase: Single Phase
• Brand Name: WINMAX
• Type: Open Well Submersible Pump
• Motor Phase: Single Phase
• Material: Motor Body SS Body
• Max Flow Rate: 3000 LPH
• I Deal In: New Only
• Color: Green or Black
• Material: SS Body
• Warranty: 1 Year
• Country of Origin: India
• Size: 25 mm

• Power: 3hp to 7.5hp (5.5kw)
• Motor: 140mm dia motor 3 hp to 7.5hp Three phase 415 Volts
• Head Range: up to 407 meters Pumps 100mm (4”) submersible pump
• Head: up to 407 meters (1330 feet)
• Discharge: up 540 LPM

Bore well COMBO submersible pump for 6” (150mm) bore well. Applicable for deep bore wells ( 500 to 1330 feet) with low water yield. When  Compared to a regular  6”(150mm) bore well pumps , for a 1000 feet depth, HP  required for a 6” bore well pump is  minimum12.5hp( minimum water   discharge is 110 LPM). But when the yield in the bore well is less than 70 LPM, this combo pump requires only 5 hp   FEATURES: Pump designed and constructed with casing tube and with tie bolt to arrest whirling effect and thus increase the life of the pump. With low power, high head is achieved. 3hp -235 meters , 5hp-370 mts, 6hp-407 meters. Thus suitable for low yielding bore wells . Existing V6 motors can be used . Standardized spares engineered to perfection makes this pump a world class pump APPLICATIONS: For pumping water from deep bore wells A regular 6” Bore well motor can be used as prime mover A low discharge 6” pump of 5hp can be used max up to a depth of 450 feet. But this combo pump of 5hp can used for a depth of 1300 feet. Thus savings in cost and power Existing 6” motor can be used with this pump

Taro Stainless steel Bore well submersible pumps are suitable for corrosive environments. The weight to power ratio of these pumps is very low compared to conventional cast iron pumps. This facilitates easy handling and low installation cost.

Submersible pumps, Submersible Motors

Borewell Submersible, pressure boosting systems, TEFC Induction Motors
