MountingHorizontal Mounting. Certain Models are available in Vertical Mounting
Maximum Pressure10 KG/CM2
Maximum Temperature350 ° C
Maximum Viscosity3550 CST
MountingHorizontal Mounting
Maximum Pressure40 KG/CM
Maximum Temperature150 ° C & 350 ° C for Heat Jacket
Maximum Viscosity750 CST
MountingHorizontal Mounting & Vertical Mounting
Hydro Prokav offers Wide Variety of high performance Triple-Screw Pumps which are highly efficient in handling a wide range of liquids with varying viscosity at high pressures, for use in a variety of industrial and marine applications. The pumps are manufactured using premium quality materials matched to service requirements.

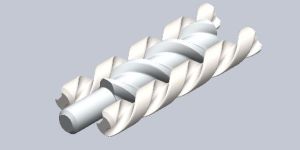

Hydro Prokav Three screw pumps employ just three screw elements-one power screw and two idler screws running in the three precision bores in the housing or liner. The screws are so profiled that they form a liquid tight seal between the thread. As the screws rotate, pocket/cavities are formed where liquid gets trapped and conveyed from one end of the screws to the other end –similar to the action of the piston pump with extremely low noise and vibration levels, almost impossible to be achieved by any other design of positive displacement or other types.
The power rotor does not drive the idlers as commonly believed. The hydraulic forces acting on the screw flanks turns the idlers torquelessly thus reduce the friction. Thus idler simply roll over the root diameter of main screws and float freely in casing/liner bores. Large surface areas on idlers dia. reduce the unit pressure centralize the power rotor and absorb the redial loads. A balance piston integrally machined on power rotor takes care of axial thrusts.
SALIENT FEATURES
High reliability
Long Service Life
Negligible Maintenance
High efficiency
Self Priming
Smooth Pulsation Free Flow
Low Noise and Vibration
High Speed Capability
Insensitive to viscosities
High Pressure Capability
Axial flow – No churning , Chewing or shearing
Excellent suction capability
Hydraulic balancing of forces eliminates need for any bearings
Fast, Easy replacement of Parts
Mounting configurations to fit any spaces limitation :-Horizontal, Vertical, Close-Coupled ,Sump
In – Line Construction enables simplified piping arrangement.
ANSI or DIN flanges
While in operation, the screws are in hydrodynamics balance on film lubrication and do not require any additional bearings. The one ball bearing often used is only for axial positioning of rotor and safer operation of mechanical seals. Small rotor dimensions enable the pump to be operated at high speeds directly coupled 3000 or 3600 RPM motors or other prime movers. Such unique design and features had demonstrated excellent reliability with pumps in operation continuously non- stop for decades together without replacement of any components or maintenance on clean fluids.
Key Features – Benefits that Reduce life cycle cost
Maximum Reliability of System to Increase Revenue
Pumps delivers smooth flows with minimum pulsations
Hydraulically balanced screws
Lower Maintenance Costs by up to 50 %
Pumping elements contained in one cartridge assembly
Fast, easy replacement of parts
Reduced overhaul turn around time
No timing gears required and fewer wearable parts
One or no bearings required and fewer wearable parts
Versatility to meet Customer Specification
Custom design fabricated pump and per API standards
A choice of shaft seals for every application
Mounting configurations to fit in any space limitations: Horizontal, Vertical, Close Coupled, Sump
In – line construction enables simplified piping arrangements
ANSI or Din Flanges
One pump size designed to offer flexibility in flow
Pump Series
KTS – Series Triple Screw Pump
General Pump with Cast Iron construction.
Maximum flow 250 M3/hr
Typically Confirms to API 676KTS HC – Series Triple Screw Pump
Special Pump with Heat Jacket Arrangement
Maximum flow 250 M3/hr
Optionally available to API 676KTS NH – Series Triple Screw Pump
Special Pump with option of Heat Jacket Arrangement
Maximum flow 150 M3/hr
Option of Various Material of construction line SS 304 / SS 316.
User Industries
Cement Industry
Power Stations
Petro Chemical Refineries
Oil Depots
Ship Building Industry
Rayon, Staple fibres
Steel Industries
Fertilizer Industries
Paper Mills
Food Processing Industries Breweries
Bitumen and Asphalt Industries
These Pumps are designed for handling clear viscous liquids and are suitable for different pressures upto 70 bars. The pumping elements comprise of a power screw and two idler screws, running in a close fitting insert. The idler screws serve to maintain the closed chambers that pump the liquid. Each screw is provided with a drum so that axial forces are hydraulically balanced. The shaft seal chamber is connected internally to the inlet and the seal is therefore always subjected to the inlet and the seal is therefore always subject to inlet pressure only. The inserts screws and balancing bushes together with bearing and seals for a replaceable cartridge that is located inside a casing. The pumps can be supplied in a variety of materials of construction and for various mounting arrangements.
Hydro Prokav offers Wide Variety of high performance Triple-Screw Pumps which are highly efficient in handling a wide range of liquids with varying viscosity at high pressures, for use in a variety of industrial and marine applications.
