We are offering a wide range of SSB panels which are made of superior quality of CRCA steel sheets that provides resistance from dust and vermin. Durable and cost effective, these provide superior performance and are highly reliable. Keeping in mind the specific requirements of the end users, we design our products in varied specifications and offered at competitive prices and we also do have some standard SSBs readily available with us with the following specifications.   TECHNICAL SPECIFICATION: SUB SWITCH BOARD TYPE FREESTANDING CUBICLE COMPARTMENTALIZED – FORM 4 SHEET STEEL 16 SWG / 1.6 MM CRCA FOR ENCLOSURE OUTER SHELL POWDER COATING AS PER CUSTOMER REQUIREMENT 14 SWG / 2.0 MM CRCA FOR PANEL DOORS BUS BAR SUPPORTS SMC/DMC INSULATORS PARTITION 3.2 MM FRP SHEET SHROUDING 1.6 MM FRP SHEET INCOMER UP TO 800 A, TPN, FUSE SWITCH UNIT OR MCCB– 35 K A OUTGOING AS PER CUSTOMER REQUIREMENT – FUSE SWITCH UNIT OR MCCB -25 K A IT IS ALSO A DISTRIBUTION BOARD. IT IS TO RECEIVE POWER FROM MAIN PANEL AND DISTRIBUTE THE POWER TO VARIOUS MACHINES FROM ONE PLACE. IT WILL BE A SINGLE FRONT FLOOR MOUNTING PANEL AND HAVE MANY OUTGOING NUMBERS OF FEEDERS. THIS TYPE OF BOARD IS USED IN INDUSTRIAL INSTALLATION. THESE ARE TOTALLY ENCLOSED AND CONSIST OF BUS BAR. INCOMING MCCBS AND OUTGOING MCCBS.

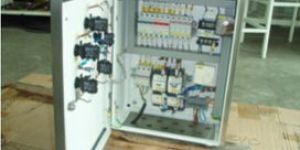

Our company is known for manufacturing and supplying precision engineered Industrial MCC Panels. These customized MCC Panels have created a higher demand among customers for having unmatched quality, excellent efficiency and long term durability. Designed to perfection, these are widely renowned for simple operation and low maintenance. These have the capacity to feed larger loads and are designed as per the client’s specifications. The MCC panels are conventional to the international standards and are available with multiple power stabs that help in supporting high capacity industrial motors.We can provide number of vertical sections of motor control centres in different amps with mains and lug compartments. We provide controllers with manual or automatic means of starting or stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque and protecting against overloads or faults. We can make motor controllers with different features and complexities depending on the task that the motor will be performing.   TECHNICAL SPECIFICATION: RATED INSULATOR VOLTAGE - 660 VOLT RATED OPERATOR VOLTAGE - 415V+ -10% WITHSTAND VOLTAGEN - 8-KV RATED CURRENT - 400A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 3000A FAULT LEVEL - 50KA FOR 1 SEC, 42KA FOR 1 SEC, 35KA FOR 1 SEC AMBIENT TEMP - 50°C TEMP. RISE - 35°C OVER AMBIENT BUSBAR SUPPORT - SMC/FRP DEGREE OF PROTECTION - IP-54 DIMENSION (MM) - H=1875/2175/2400, D=500 (SINGLE FRONT), =800(DOUBLE FRONT), W=MULTIPLE OF 500+300MM)   CABLE TERMINATION:- Power and control wiring bunches are carried in vertical cable alley DIN CHANNEL is provided to accommodated NYLON COLOUREDE POWER TERMINAL AND CONTROL TERMINALS, represented by markers & headers. Transparent shroud are provided in incoming side to avoid accidental contact in case door is opened.   SALIENT FEATURES:- SPACIOUS ARRANGEMENT IS MADE FOR CABLE TERMINATION ENSURING COMFORTABLE OPERATION & EASY MAINTENANCE. PANELS ARE VERY SLEEK AND AESTHETICS IS EXCELLENT. BOLTED MODULAR CONSTRUCTION FACILITIES MODIFICATION, RETROFITTING, EXTENSIBILITY IN MINIMUM POSSIBLE TIME. SPECIALLY DESIGNED CONCEALED PROFILE OF NEOPRENE IS USED FOR GASKETING TO ENSURE DUST PROTECTION. USE OF QUARTER TURNKEY FLUSH TYPE STEEL DOOR LOCKS FOR CONVENIENT OPERATION. EACH PANEL IS PROVIDED WITH PLASTIC DRAWING POCKET TO HOUSE RELEVANT DRAWINGS. METALLIC/TRANSPARENT BARRIERS ARE PROVIDED, WITHIN THE CUBICLE FOR PREVENTION OF HUMAN CONTACT WITH LIVE PART ACCIDENTALLY. ALL COVERS, DOORS INTER PANEL JOINTING ARE PROVIDED WITH NEOPRENE GASKET FOR PERFECT DUCT PROTECTION. A PERFECT COMPARTMENTALIZED CONSTRUCTION. HIGH QUALITY EPOXY POWDER COATED SWITCH BOARDS TO WITH STAND CORROSIVE ENVIRONMENT AND LONG LASTING ELEGANT DOOR. SPECIALLY DESIGNED CONCEALED PROFILE OF NEOPRENE IS USED FOR GASKETING TO ENSURE DUST PROTECTION.

Keeping in mind the diverse requirements of the clients we manufacture and supply qualitative range of Medium Voltage Switchgear Panels. With the assistance of skilled and dedicated professionals, we are able to carve distinguish position in the industry. Our products are available in different capacities and can be customized as per the clients’ preference nod requirement. Additionally, clients can avail the entire product line at leading industrial rates.   FEATURES: ACCURATE DETECTION QUALITY TESTED NOMINALLY PRICED   THE MAIN COMPONENTS ARE: DRAW OUT CIRCUIT BREAKERS (OIL, AIR, SF6, VACUUM) SWITCHING DEVICE (LOAD BREAK OR DISCONNECT) WITH OR W/O FUSES (POWER CURRENT LIMITING OR POWER EXPULSION TYPE) WITH OR W/O BLOWN FUSE INDICATOR/ACTUATOR. INSTRUMENT TRANSFORMERS CAPACITOR TRIPPING DEVICE RELAYS METERS & INSTRUMENTS MAIN BUS CONTROL & INDICATING DEVICES, JUMPERS, CABLE LUGS, CABLE SUPPORTS AND POTHEADS BARRIERS AND SHUTTERS INSTRUMENT COMPARTMENTS TEST SWITCHES AND BREAKER ACCESSORIES

Country of Origin : 3.3 TO 36 KV

We design and manufacture standard as well as custom built panel to suit customer requirements using our own expertise and updated technology. With years of experience, we are supply these Low Voltage Switchgear Panels. We utilize optimum quality raw material and advanced technologies in manufacturing the entire product line thereby rendering maximum client satisfaction. Shockproof, excellent performance, low power consumption, reliability and durability are the key driving features of our entire product range.   FEATURES: COST-EFFECTIVE RELIABLE PERFORMANCE SAFE TO USE   THE MAIN COMPONENTS ARE: MOLDED CASE (MCB) OR POWER (AIR MAGNETIC) CIRCUIT BREAKERS (DRAW OUT OR FIXED) COMPLETE WITH OR WITHOUT INTEGRAL OVER CURRENT PROTECTION DEVICE (THERMAL MAGNETIC, SOLID STATE OR MICROPROCESSOR BASED) WITH OR WITHOUT ZONE INTERLOCKING PROVISION. CRADLE (FOR DRAW OUT VERSIONS ONLY) FIXED POTENTIAL AND CONTROL POWER TRANSFORMERS CURRENT TRANSFORMERS INTERFRAME AND BACK BARRIERS MAIN BUS BARS, RUN BACKS, BUS RISERS AND CABLE LUGS (COMPRESSION OR MECHANICAL) PROTECTIVE FUSES FOR BREAKER CONTROL CIRCUITS, INSTRUMENT COMPARTMENTS CIRCUIT BREAKER ACCESSORIES, BREAKER LIFTING DEVICES (INTEGRAL WITH GEAR) FUSED OR INFUSED INTERRUPTER SWITCHES PROTECTIVE AND MONITORING AUXILIARY RELAYS METERING DEVICES (AMMETERS, VOLTMETERS, WATTHOURMETERS, WATTMETERS AND DIGITAL METERING PACKAGES ¬D.M.P.) CONTROL SWITCHES AND INDICATING LIGHTS

Country of Origin : 1000 V

Most of the commercial and Industrial installations in the country have large electrical loads which are severely inductive in nature, such as motors, large machines, air conditioners, drivers etc. Which results in a severely lagging power factor? This means loss and wastage of energy and heavy penalties by electricity boards. In case of fixed loads this can be taken care by manual switching of capacitors.However in case of rapidly varying and scattered loads it becomes difficult to maintain a high power factor by manually switching on/off the capacitors in proportion to variation of load within an installation. This drawback is overcome by using an APFC panel (Automatic Power Factor Correction Panel) which not only maintains a high power factor but also eliminates the need for constant manual intervention.   ADVANTAGES: ECONOMICAL WITH FASTER PAYBACK PERIODS. ABILITY TO MAINTAIN A CONSTANT HIGH POWER FACTOR. ELIMINATES LOW POWER FACTOR PENALTIES LEVIED BY EB. REDUCES THE KVA DEMAND CHARGES. IMPROVES EFFICIENCY OF THE SYSTEM BY REDUCING LOSSES. PREVENTS LEADING POWER FACTOR IN THE INSTALLATION DURING LOW LOAD CONDITIONS THERE ARE VARIOUS PARAMETERS ON WHICH THESE APFC WORKS: CURRENT - SENSING BASED APFC POWER FACTOR SENSING BASED APFC (IT IS THE MOSTLY USED TYPE OF APFC PANEL) KVAR SENSING BASED APFC TYPES OF APFC PANELS CONTACTOR BASED APFC’S THYRISTOR BASED APFC   STRUCTURAL DESIGN OF AN APFC PANEL CABINET OF SHEET METAL DULY POWDER COATED. MAIN INCOMING SWITCH FUSE OR CIRCUIT BREAKER FOR THE BANK. CAPACITOR BANK BUS BAR. CAPACITOR BANK CT'S. AMMETER SELECTOR SWITCH. AMMETER FOR BANK CURRENT. SECTIONAL CIRCUIT BREAKERS OR FUSES OR ANY OTHER BREAKING DEVICE. AUTOMATIC CONTROL RELAY. POWER CONTACTOR. PUSH BUTTON & AUTO/MANUAL SELECTORS SET FOR MANUAL MODE WORKING. INDICATING LAMPS ON EACH BANK. COOLING FAN OR ANY ARRANGEMENT.     APPLICATION: Automatic power factor correction panel is installed at the induction load areas where the power factor comes down. Generally installed at Factories, Big Offices, etc.Models & Amps/ Kva Rates: Upto 2000 Kvar     FEATURES: WORLD ADVANCED MICRO CONTROLLER TECHNOLOGY IS USED. AUTO/MANUAL SELECTOR IS AVAILABLE. KVAR BY KVAR SELECTABLE SYSTEM STAGE ON LED INDICATIONS ARE AVAILABLE STAGE TO STAGE CAPACITOR BOOSTING & RECONNECTION INTERVALS; 20 SECS DELAY PANEL MOUNTABLE, SERVICEABLE FULLY ENCLOSED WALL MOUNTABLE WORKING TEMPERATURE UP TO 55 DEGREE CELSIUS CABLE ENTRY: BOTTOM (TOP OPTIONAL) INCOMING CONTROL AND TOTAL PROTECTION OF PANEL WITH 3POLE/ MCCB SOFT RELAY OPERATION OF CAPACITOR: BOOSTING HELP FOR SMOOTH POWER FACTOR MANAGEMENT & AVOID SOUND AND DISTURBANCES POWER & CONTROL WIRING: BY COPPER MULTI STRAND ISI WIRE CAPACITOR BANK RATING: 440V/ACCORDING TO YOUR LOAD REQUIRED KVAR FOR STANDARD SAFETY ON CAPACITOR EFFICIENCY LOSSES, HUNTING ETC., IEC (INTERNATIONAL ELECTRIC CODE) STANDARDS HIGHER, HEALTHY PF MAINTAINING (BETWEEN 0.94-0.99)BRINGS GOOD QUALITY & HEALTHY RUN OF YOUR INDUCTION LOAD(MOTORS, AIR CONDITIONERS, COMPRESSORS, CHOKES, ETC IT ADDS LIFE TO YOUR, A/C, TUBE LIGHTS, COMPRESSORS, MOTOR & OTHER LOADS. OFF COURSE, GREAT ESCAPES FROM THE PENALTY FROM THE ELECTRICITY BOARD. AND CHANCE OF GETTING GOOD INCENTIVE FROM THE ELECTRICITY BOARD
