Devendra Techno Industries A.B. Road, Dewas, Madhya Pradesh

Specifications Fully N C control Hydraulic operated all slide Job clamp through hydraulic cylinder Easy to operate Vertical and horizontal head as per job requirement

Number Of Flower : Special purpose Hydraulic Press

Brand Name : DTI

Automatic Grade : Semi-Automatic

Brand Name : DTI

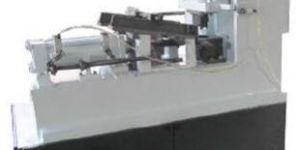

Features Machine shall be generally as per SPM standard. Hardened & ground machine components in appropriate material. Heavy duty bottom base and top ensure accurate displacement of punching during operation. The top/bottom pusher/cushioning Slide operated thru Geared Motor guided with LMG and Ball Screw ensure precise displacement during height adjustment of motor body. The Piercing die set placed in the bottom for easy and fastsetting Inside space of machine can be modified according to customer requirement. Job clamping from top side by pneumatically operated cylinder guided with LMG and Ball Screw. Machine suitable for 8 holes at a time unto dia. 15 mm All the hydraulic accessories will be Renoth,Yuken, Dowty make. Machine will work both in auto and manual mode. Operation control thru two hand push buttons with all the safety measures. Suitable for hole making purpose in any tubular component. Capacity of machine at present 15 ton. Can increased according to requirement.

Brand Name : DTI

Features Machine shall be generally as per SPM standard. Hardened & ground machine components in suitable Alloy Steel material. Heavy duty bottom base with LM Guide ways. Both the head on LM Guide ways mounted on Heavy Duty Bottom Base ensure precise and accurate displacement during setting. Low setup time is ensured using Hydraulic jacks Controlled by a single Geared Motorfor initially holding of job and supported by rollers in the middle base. The tube clamping vice with top and bottom semi Radius support to accomodate wide rage of diameter in single vice. Stroke length adjustment of main head controlled thru servo motor precise and accurate displacement of work head. Both the Beveling head movement of 3.5 Mtrs and 6.5 meter fixed middle roller suppon ensure 13.5 meter length of pipe resting and movement. The Beveling head to be planned at both ends with precise pipe positioning before pipe beveling. The face plate RPM adjustment is maintained thru geared motor with VFD. The facing depth can be reduced or increased separately according to requirement. The clamping vice will be lifted by two hydraulic cylinder at both ends. The max dia of pipe radius gripper providing with the machine. (additional gripper as per requirement can be supplied at extra cod)

Brand Name : DTI

Features One way or Two way option available Compact Design can storage up to 15 type of materials separately.

Features DTI offering wide range of Industrial Hydraulic Press and Hydraulic Cylinders as per IS standard in various ranges and sizes up to 1000 ton capacity. In H frame, Column based and V type as per requirement of our respective clients. Can be customized as per operation requirement. Can be customized on line automatic with PLC.

Capacity : 1000 Ton

Brand Name : DTI

Material : Mild Steel

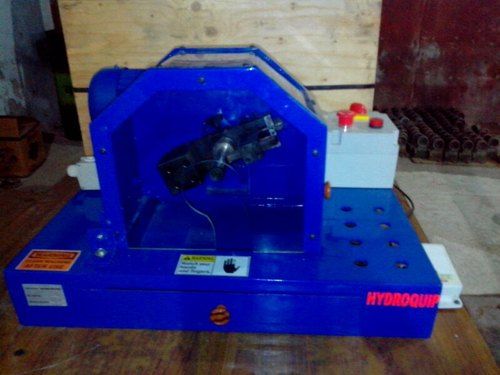

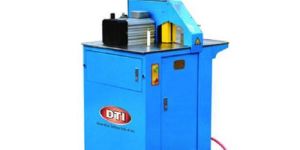

Features Useful to make Hydraulic Hose Pipe In-House. Robust design. Can run 24 Hours Regularly. Front Safety Guard to Protect operator from dust during operation. All Safety Protection available.

Automatic Grade : Semi-Automatic

Capacity : 2500 pieces per 8 hours

With the help of our skillful professionals, we have come out as a proficient manufacturer and supplier of Fully Automatic Vertical Wire Spooling Machine up to 2 Ton Capacity from Indore, Madhya Pradesh, India. The unmatched features and fine quality along with durability have made our Fully Automatic Vertical Wire Spooling Machine up to 2 Ton Capacity the preferred choice among buyers.This machine is widely used for various purposes.Owing to our brilliant logistics network we are capable of delivering bulk orders of the product within the stipulated time.

Condition : New

Application : Industrial Use

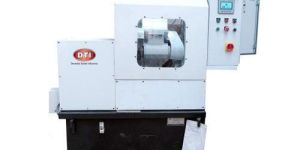

Features of our all ranges of Machines Fully Automatic Operation. Straight 90 Degree cutting with high accuracy. Servo controlled Vertical slide movement on ball screw ensures precise cutting. Counter Balance System for maximum stability through the entire cut. Precise feeding systems ensure superior cutting length accuracy and smooth Material handling. Rigid and reliable clamping vice provides rigid material holding. Automatic lubrication system maintains trouble free performance of Machine and long life of Components. Built-in chips tray for convenient cleaning and maintenance.

Brand Name : DTI

Availability : 310 Kg

Material : Aluminium, Copper, Iron

Automatic Grade : Automatic

Brand Name : DTI

Material : Mild Steel

Features This range is known for its tool seat and clamping jaws that ensure easy and dent free gripping This range evenly chamfers the inside, outside and face of the tube These products are available with varied rotation speeds for different material and requirement (pulley setup) Two step chamfering process Fast approach for time saving Feed speed ensures infinitely adjustable chamfering speed Smooth finish

Availability : 750 Kg

Condition : New

Brand Name : Devendra Techno Industries

Features Precision built, sturdy design and robust construction suitable for high production and uninterrupted service. Hardened & ground machine components in appropriate materials. Heavy duty clamping cylinders ensure precision and accurate clamping during operation . Chamfering length adjustment thru rear Limit Switch interlocked with main slide . Quick release tooling ensures lowest setting time during setup change. All electrical components parts will be L&T, OMRON, ROCKWELL make. Floor to floor cycle time shall be 6 to 10 seconds or less per side . The machine set up/ change over time shall be 10 min. maximum. Spindle slide and stopper control through Hydraulically/ Hydro Pneumatically Suitable for Solid Rod/Bar, round Pipe etc, precise movement of Chamfering or radius spindle head control by HMI.

Brand Name : DTI

features specially designed tool seat and clamping jaws for easy and dent free gripping evenly chamfers the inside, outside and face of the tube simultaneously different rpm suitable for various materials and requirements (pulley setup) two step chamfering process rapid approach of tool slide for time saving feed & speed for infinitely adjustable chamfering speed for smooth finish optional chamfering seats for centering (solid bar)at extra cost .

Availability : 160 Kg

Brand Name : Devendra Techno Industries

Brand Name : DTI

Material : Mild Steel

Power : 6 kW

Brand Name : DTI

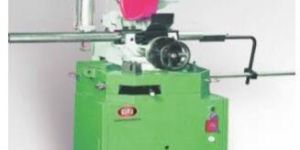

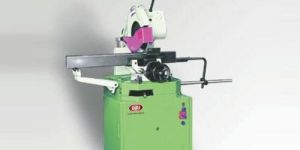

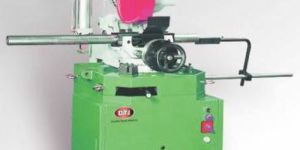

features & benefits of our all range of machines semi-automatic operation straight or angle cutting both option available. vertical sliding saw head ensures stable and precise cutting. counter balance system for maximum stability through the entire cut rigid and reliable clamping vice provides rigid material holding automatic lubrication system maintains trouble free performance of machines. circulating coolant system results in smooth cutting surfaces and longer blade life built-in chip tray for convenient cleaning and maintenance. .

Automatic Grade : Semi-Automatic

Brand Name : DTI

Power : 2.5 kW

Features Provided with Servo Motor for XX axis. HMI provision to control all programs. 4 positioning turret option for faring, taming, drilling and tapping operation. Suitable for all CNC related operations including threading operation Machine capable to turn 200 mm length and 100 Fern dia max. It can be varied according to requirement. Tailstock option for long job can be provided. VFD controlled spindle Motor. Machine repeatability +/- 10 micron . Program can be changed through HMI.by the help of G Code & M Code. Hardened & ground machine components in appropriate materials.

Automation Grade : Semi-Automatic

Material : Mild Steel

Number Of Flower : Vertical

Automatic Grade : Automatic

Power : Electric

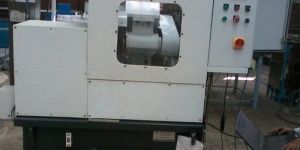

Features of our all Range of Machines Fully automatic operation Straight 90 degree cutting with lowest surface squareness All sliding movement through servo ensures stable and precise cutting with servo movement through ball screw attachment Backlash eliminating device prolongs the life of saw blade Counter Balance system for maximum stability through the entire cut Precises feeding systems insure superior cutting length accuracy and smooth material handling Rigid and reliable clamping vise provides secure material holding Automatic lubrication system results in smooth cutting surfaces and longer blade life

Brand Name : DTI

Material : Mild Steel

Features Machine shall be generally as per SPM standard. Hardened & ground machine component in appropriate material. Two hand switch start ensure 100% safety during operation. Front safety crotons ensure 100 safety during working. Quick release tooling ensures lowest change overtime of tools. Floor to floor cycle time shall be 10 sec. or less per com ponent. The machine set up/ change overtime shall be 5 min. maximum Can use for cap pressing, tubular component leaktesting etc,.

Automatic Grade : Semi-Automatic

Features Suitable for all kind of material handling work like, IT Industries, Pump/ Motor assembly line ,or any small component assembly etc Can use Belt Conveyor or Roller Conveyor according to need of customer.

Material : Stainless Steel, Mild Steel or Aluminium

Brand Name : DTI

Application : IT industries and Pump/Motor assembly line

Details Corrosion resistance Excellent performance Less power consumption Easy operation

Automatic Grade : Automatic

Usage : Plate Cutting

Brand Name : DTI
