Dewas Hydroquip Pvt. Ltd. A.B. Road, Dewas, Madhya Pradesh

Tube components are made as per customized design and profile in STEEL & SS PIPES    Bending is controlled through CNC BENDING m/c to maintain profile    Child parts (like FLANGES, CLIPS, BENJO's) brazed through skilled working    Range from 4mm dia to 76mm dia tube    Suitable for automobile industry for Air brake routing, Bundy tubes, Benjo brazed engine components, Oil & Fuel line

Hose    Stainless Steel Hoses produced From 1/4’’ to 10’’    Grades SS-304/321/316/316-L    Applicable Standards : BS-6501 Part 1 : 2004- Metal Hose Assemblies ISO- 10380: 2003- Pipe Work- Corrugated Metal Hose and Hose Assemblies Assemblies    Stainless Steel Hose Assemblies produced as per customer drawing and specifications    The process of assembling of hose, braid and fitting is carried out through TIG welding    Type of end connections    a) Threaded Type: BSP, BSPT, Metric, JIC & Other standards    b) Flange Type: As per BS, ASA, DIN etc   c) As per customer requirement Advantagees    Compensates for thermal expansion/ contraction in the piping system    High physical strength    Fire resistant    Moisture resistant    Longer life    Good corrosion characteristics    Resistant to abrasion, penetration and damage    Connects misaligned rigid piping, absorbs or dampens vibration of similar equipments    A flexible and quick option for rigid piping in difficult locations

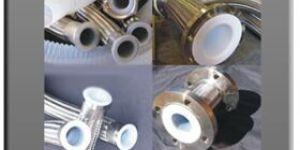

Polytetrafluoroethylene (PTFE) is a fluorocarbon plastic with outstanding chemical resistance, a very low coefficient of friction and properties that allow its use in high continuous use temperatures. PTFE Hose has a liner tube made from convoluted, extra flexible grade PTFE, with an outer stainless steel wire braid reinforcement. DESIGN AND PURPOSE Convoluted PTFE lined hose has excellent flexibility in bore sizes from 1/4", to 3". It is designed for use in a wide variety of general purpose applications such as automotive, steam transfer, refrigeration and other applications where the temperature resistance, chemical resistance and ease of cleaning of the PTFE liner are necessary requirements.

Manufactured with SS304SS430 material as per customer drawings & specifications. As per flexibility requirement, flexible bellows are provided in between the standard or customized end connections. An EGR Tube is the primary passage way in the EGR System that directs engine exhaust emission from the exhaust manifold through the EGR System and eventually back into the combustion chamber.

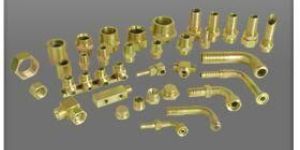

Machined & Forged Components as Adaptors two way, three way, brazed & welded Components    Manufactured in various, STEEL and SS Grades as ENIA, IS2062, SS304, Brass    Raw material procured from reputed sources    All parameters controlled through gauges & instruments    Duly coated with Zinc chromate/green passivated and maintain desired surface coating

   End connections manufactured as per customer specifications and drawings    Range from sizes 1/4’’ ID to 1-1/2’’ ID    All assemblies are checked and tested for leakages    Suitable for Oil water, Vacuum, Air and Fuel Lines

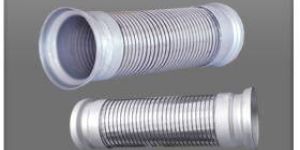

   Dewas Hydroquip Pvt. Ltd. manufactures a wide range of Interlock Hoses and Exhaust Hoses with End Connection Systems for Automotive applications.    Manufactured according to ISO 15465 : 2004 standard in Polygonal & Round profile

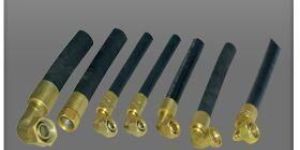

   Manufactured as per SAE and DIN STD    Range from sizes 1/8’’ to 3’’    100% Pressure testing at specified pressure    Reverse traceability of product    Suitable for Air, Water, Oil, Chemical transfer and Power steering assemblies    End connection manufactured on CNC machines and controlled through gauges

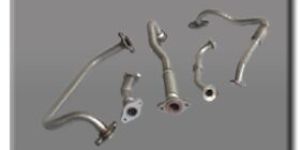

   Manufactured with SS304/SS430 material as per customer drawings & specifications. As per flexibility requirement, flexible bellows are provided in between the standard or customized end connections.    An EGR Tube is the primary passage way in the EGR System that directs engine exhaust emission from the exhaust manifold through the EGR System and eventually back into the combustion chamber.    The EGR system is designed to reduce tailpipe emissions (NOx) by re-circulating exhaust gases back into the combustion chamber. This efficient combustion reduces NOx and reduces fuel consumption, especially under low-load cruising conditions.

   Manufactured as per SAEJ – 1401 specification    End connection manufactured with suitable steel grades    Hydro testing of assemblies at proof pressure    Range 1/8’’ & 3/16’’ ID    Suitable for Hydraulic braking system for vehicles    Type tests (like WHIP TEST, PULL TEST, BURST TEST) are carried-out periodically

DHPL Manufactures Automotive Exhaust Connectors in the sizes ranging from 1½ to 4 inch nominal bore diameter and in lengths ranging from 4 to 12 inches. All the sizes can also be supplied with welded ends.

 DHPL Manufactures Automotive Exhaust Connectors in the sizes ranging from 1½ to 4 inch nominal bore diameter and in lengths ranging from 4 to 12 inches. All the sizes can also be supplied with welded ends. Bellow : Stainless Steel Braid : Stainless Steel Cap : Stainless Steel/ Aluminized

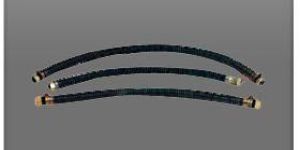

   Manufactured as per SAE-1402 specification    End connections manufactured customers specifications & drawings    Range ¼’’ ID to 1’’ ID    Suitable for air braking system of light & heavy vehicles
