Ampoule Washing Machine Dealers

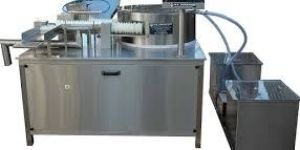

Multijet Ampoule Washing Machine is a simple, compact, versatile and a reliable ampoule Washing machine, with the latest GMP demand. The machine is enclosed in stainless steel construction with flexibility to wash 1ml to 20ml ampoules with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively timer operated solenoid valve system or microprocessor controlled timer sequences can be in-corporate upon specific customer request. Multijet Ampoule Washing Machine is widely use in medium & small scale injectable organizations.

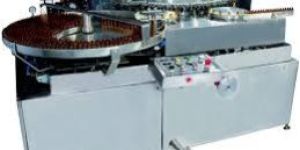

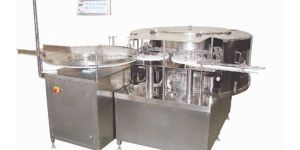

Automatic Ampoule Washing Machine is specially designed to wash Ampoule with minimum contact of machine parts with Ampoules. Machine with specially designed Gripper system holds the Ampoule from Neck and invert the Ampoule till the washing operation completed and again after washing release the Ampoule on outfeed feedworm system in vertical position ensures positive wash of Ampoules. Machine is suitable to wash 1ml to 10 ml Ampoules with the help of change parts, Ampoule feeds through feedworm to infeed Star Wheel and specially designed Gripper hold the Ampoule from neck and invert the Ampoule and move it further on rotary moving system for washing process.   Salient Features Complete cGMP model. Higher production output capacity of 120 Ampoules per Minute. All contact parts with the internal surface of Container and the wash media are made from AISI 316L Stainless Steel. Non contact parts are made from engineering plastic, AISI SS 304 or other FDA approved material. All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards. Machine provides 3 water washes & 3 Air washes. Complete flexibility with user for washing cycle. 18 Jets for 6 internal washing zones. 15 Cassette of Grippers each having 2 Grippers. Suitable for 1ml to 10ml Ampoules. Washing sequence can be made as per customer’s requirements. 3 Pumps and 3 Tanks of 25 liters each. (Optional) Each washing zone with independent circuit to avoid contamination. Automatic Infeed and Exit of containers. Machine is equipped with PLC system & printing facility with passwords. Container unit counter with display in the control panel Machine can use as a sole machine or inline. Digital speed indicator for current output   Process Operation   Ampoules feed from the Infeed tray are received on an Infeed Feedworm then moves on Infeed starwheel. The Grippers picks up the Ampoule from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed Ampoules are again inverted to neck upward position and feed to output star wheel. Washed Ampoules received from output starwheel can be collected on Output Tray or can be pushed to tunnel. A separate pumping station (optional) gives the right quantum of water at the desired pressure. In the absent of separate pumping station we can provide the re-circulation & siliconization system on request

Multi Jet Ampoule and Vial Washing Machine, Model : HAVW-340. Technical details are as under DESCRIPTION: Harsiddh is one of the paramount ampoule washing machine manufacturers, introducing a simple, compact, and versatile and a reliable Ampoule Washing Machine and high speed ampoule washing machine. Model: HAVW-340 designed with the latest GMP demand. The machine is enclosed in S.S Construction with a flexibility to wash 1 ml to 20 ml ampoule & 2 ml to 100 ml vial with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively, for demanding customer timer operated solenoid valve system or even a micro processor controlled timer sequences can be in-corporate to enhance and derive the best out of simple unit. PROCESS DESCRIPTION: The dump loading procedure may be used, if ampoule & vial are received in ready to dump boxes, which will have exactly into the same number of ampoule & vial and the pitch, as loading tray. Alternatively, each ampoule & Vial has to be arranged into the tray. The loading tray & trays are placed directly in to the machine & the handle bar is lowered for ampoule for automatic centering of washing needles in to the ampoule & Vial mouths. The top cover is also lowered & switch is operated for automatic sequential washing both from inside & outside of each individual ampoule & vial. The machine will automatically stop after one complete cycle & for removal of tray, reverse procedure is to̢۪ be observed. Depending on dump loading or individual & operator's efficiency one Gan derive as high as 30 loading of tray / hour. SALIENT FEATURES: 1. Positive & pressurized jets through washing needle for pressure cleaning at minimum usages of Washing Media. 2. Sound design concept of pressure tanks for reverses & continuous supply of washes Medias. 3. Both internal & external washing ensuring absolutely & continuous ampoule & Vial after sequential washing. 4. Acrylic top cover for clear view of washing events taking place in the machine. 5. On-line poly carbonates housing with P.P. replaceable filter cartridge of 10 microns for water & 5 microns for air for best possible washing. All contact parts of washing media & compressed are of S.S 316 or HDPE of Poly carbonate or P.P. 6. In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down TECHINICAL SPECIFICATION OUTPUT/CYCLE: each cycle time will be of approximately 60 seconds. Depending on the operator's efficiency & method of ampoule & Vial loading, 30 cycles/hour can be achieved. Further, Ampoule/Vial size and corresponding Multi Jet Needle Plate will decide the total output.

Temperatures, pressure media spraying time, cycle speed are loaded and saved as recipes for various types of vialsampoules. Each Process parameter is password protected and is accessible only to supervisors and validation staff. Actual process parameters and alarms are data logged to a storage devices or online printer Compliance to 21 CFR part 11 is available

we are offering multijet ampoule & vial washing machine description: - multijet ampoule & vial washing machine is a simple, compact, versatile and a reliable ampoule & vial washing machine, with the latest gmp demand. the machine is enclosed in stainless steel construction with flexibility to wash 1ml to 20ml ampoules and 2ml to 100ml glass vials with the help of suitable change parts. the standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. alternatively timer operated solenoid valve system or microprocessor controlled timer sequences can be in-corporate upon specific customer request. multijet ampoule & vial washing machine is widely use in medium & small scale injectable organizations. salient features:- * positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media. * sound design concept of pressure tank for reverses & continuous supply of washes medias. * both internal & external washing ensuring absolutely & continuous ampoule vial after sequential washing. * acrylic top cover for clear view of washing events taking place in the machine * on-line poly carbonates housing with p.p. replaceable filter cartridge of 5 or 10 micron of water for best possible washing. * all contact parts of washing media are of s.s. * in the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down. process operation:- the dump loading procedure may be used, if ampoulesvials are received in ready to dump boxes, which will have exactly into the same number of ampoulevial and the pitch, as loading tray. alternatively, each ampoulevial has to be arranged into the tray. the loading trays is placed directly into the machine & the handle bar is lowered for ampoulevial for automatic centering of washing needles into the ampoulevial mouths. the top cover is also lowered & switch is operated for automatic sequent washing cycle:- 1st wash dm water 2nd wash purified air 3rd wash dm water 4th wash purified air 5th wash distilled water (wfi) 6th wash purified air

ositive & pressurized jets through washing needle for pressure cleaning at minimum usages of Washing Media. Sound design concept of pressure tanks for reverses & continuous supply of wash medias. Both internal & external washing ensuring absolutely & continuous ampoule & Vial after sequential washing. Acrylic top cover for clear view of washing events taking place in the machine. On-line poly carbonates housing with P.P. replaceable filter cartridge of 10 microns for water & 5 microns for air for best possible washing. All contact parts of washing media & compressed are of S.S 316 or HDPE of Poly carbonate or P.P. In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.

The water jetting and the compressed air blow are intermittent. The jetting cycle depends on the dimensions and shape of the container and can be adjusted and programmed from the machine panel. The process parameters are password protected and can be recalled for use. This ensures repeatability of the process inputs.

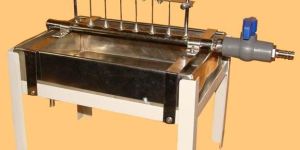

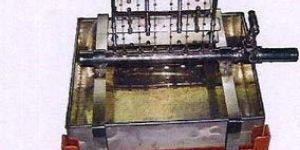

We are offering ampoule washing device jet needle type, consist of 6 s. Steel needle jets fixed on a brass (chromium plated) pipe of 12.5 mm dia with side tap and serrations for fixing rubber with tap water. Spring

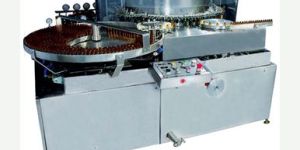

Ampoules feed from the Infeed tray are received on an Infeed Feed worm then moves on Infeed Star Wheel. The Grippers picks up the Ampoules from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed ampoules are again inverted to neck upward position and feed to output star wheel. Washed ampoules received from output star wheel can be collected on Output Tray or can be pushed to tunnel.All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.

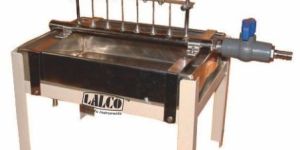

AMPOULE WASHING DEVICE Jet needle type, consists of 6 stainless steel needle, jet fixed on a stainless steel pipe of 12.5mm. Dia. With side tap and serrations for fixing rubber tube with tap water. Spring loaded ampoule holding arrangement for various sizes of ampoules and a stainless steel bottom tray on the stand.

The bottles are loaded on the subsequent indexing part of rotating platform and are cleared in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water and sequence of various washing media to suit specific requirement.

All thanks to our smart inventory management owing to which safe and quick deliveries are furnished by us. Ours is a well-established firm located in Ahmedabad(India) and engaged in the business of providing a wide assortment of quality products.   Salient Features : Positive & pressurised jets through washing needle for pressure cleaning at minimum usages of Washing Media. Sound design concept of pressure tanks for reverses & continuous supply of washes medias Both internal & external washing ensuring absolutely & continuous ampoule & Vial after sequential washing. Acrylic top cover for clear view of washing events taking place in the machine. On-line poly carbonates housing with P.P. replaceable filter cartridge of 10 microns for water & 5 microns for air for best possible washing. All contact parts of washing media & compressed are of S.S 316 or HDPE of Poly carbonate or P.P. In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.

We are offering ampoule washing machine. Jet needle type, consists of 6 s. Steel needle jets fixed on a brass (chromium plated) pipe of 12.5 mm dia with side tap and serrations for fixing rubber with tap water. Spring loaded ampoule holding arrangement for various sizes of ampoule. With stainless steel bottom tray on stand.

AUTOMATIC EXTERNAL/OUTER AMPOULES-VIALS WASHING MACHINES MODEL :AHEW 200 OPERATION: The Automatic External Vial Washing Machine is suitable for Round Ampoules/Vials sizes of appx. 1ml to 20 ml size with maximum speed of 200 Ampoules Vials per minute Entire Machine construction is in Stainless Steel finish including ss frame body. All parts coming in contact with water are made from SS-316 L Materials. Continues travelling of Vials on rotary station ensure the washing of each Ampoules vials from top as well as side. We offer Machine with customised options of end user for washing sequence as per customers requirements. SALIENT FEATURES : • 6 Jets for 2 washing zones • All contact parts made of SS-316 material • Machine construction in SS-304 material • Suitable for 2 ml to 3oml Vial Size with help of change parts • Washing sequence can be made as per customers requirements. • Built-in 2 ss 316 water Pumps, 1hp blower and 1 ss 316 materials Tanks • Direct In-feed of Ampoules vials from hopper/Turn Table and Exit of Ampoules Vials to connect with Ampoules or vials sticker labelling machine

Automatic Ampoule Washing Machine is specially designed to wash Ampoule with minimum contact of machine parts with Ampoules. Machine with specially designed Gripper system holds the Ampoule from Neck and invert the Ampoule till the washing operation completed and again after washing release the Ampoule on outfeed feedworm system in vertical position ensures positive wash of Ampoules. Machine is suitable to wash 1ml to 10 ml Ampoules with the help of change parts, Ampoule feeds through feedworm to infeed Star Wheel and specially designed Gripper hold the Ampoule from neck and invert the Ampoule and move it further on rotary moving system for washing process. Features     Complete cGMP model.   Higher production output capacity of 120 Ampoules per Minute.   All contact parts with the internal surface of Container and the wash media are made from AISI 316L Stainless Steel.   Non contact parts are made from engineering plastic, AISI SS 304 or other FDA approved material.   All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.   Machine provides 3 water washes & 3 Air washes.   Complete flexibility with user for washing cycle.   18 Jets for 6 internal washing zones.   15 Cassette of Grippers each having 2 Grippers.   Suitable for 1ml to 10ml Ampoules.   Washing sequence can be made as per customer’s requirements.   3 Pumps and 3 Tanks of 25 liters each. (Optional)   Each washing zone with independent circuit to avoid contamination.   Automatic Infeed and Exit of containers.   Machine is equipped with PLC system & printing facility with passwords.   Container unit counter with display in the control panel   Machine can use as a sole machine or inline.   Digital speed indicator for current output
