Angle Plate Dealers

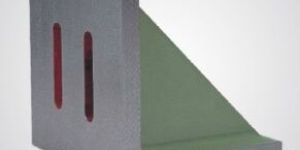

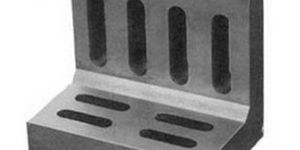

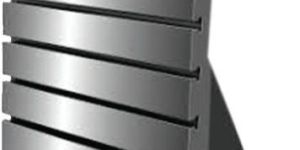

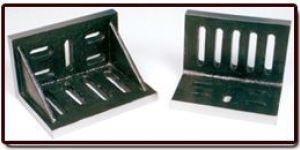

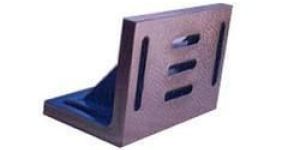

'SATGURU' C.I. Angle Plate- Slotted is made out of high quality seasoned casting having precision ground outside faces & ends. Accuracy in Parallelism & Squareness within +-0.01mm per 200mm length Inspection certificate is furnished.

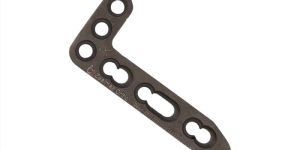

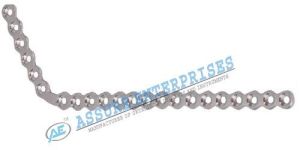

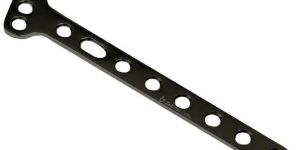

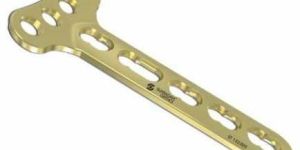

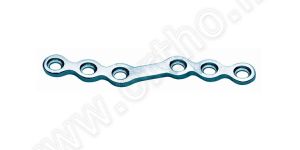

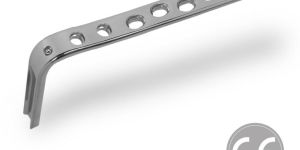

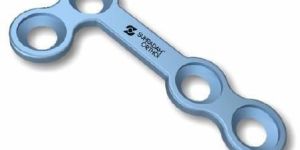

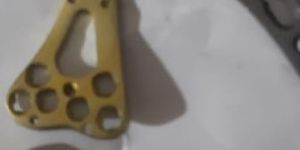

Indications NET MIDFACE CMF Plating System is intended for use in selective trauma of the midface and craniofacial skeleton; craniofacial surgery; reconstructive procedures; and selective orthognathic surgery of the maxilla and chin. Contraindications The use in areas with active or latent infection or insufficient quantity or quality of bone.   No. of Holes Stainless Steel - Screw  1.5 mm 2 mm 2.5 mm 4 17.04R 18.04R 19.04R 6 17.06R 18.06R 19.06R     No. of Holes Titanium - Screw  1.5 mm 2 mm 2.5 mm 4 Ti-17.04R Ti-18.04R Ti-19.04R 6 Ti-17.06R Ti-18.06R Ti-19.06R

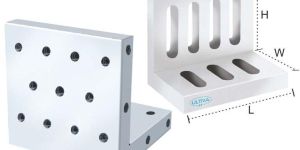

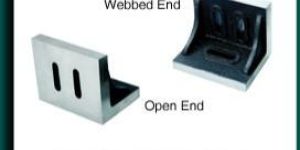

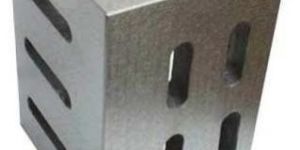

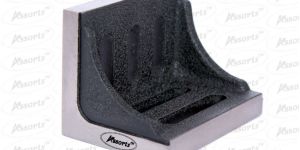

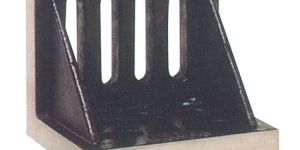

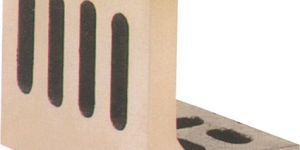

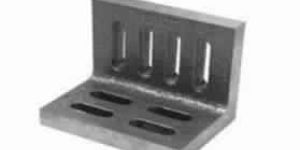

Features : These slotted angle plates have all the features of Code 751 except are provided with convenient clamping slots for mounting and are widely used for machining lay out and inspection. Spplied in two types webbed end have side webs & an open end. Code 754G : Open End Precision Ground

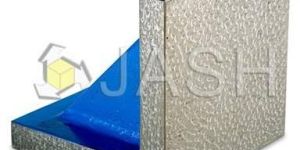

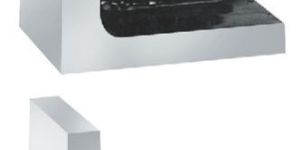

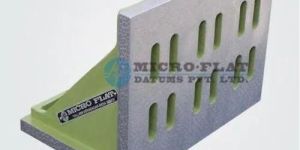

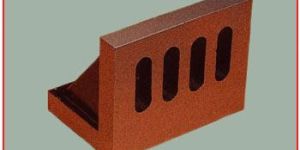

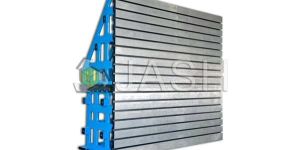

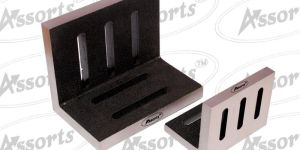

The company provides Angle Plates, which are designed by experienced technicians and engineers. We provide a practical, versatile means of clamping and holding work in a vertical position for layout, machining, and inspection, or for a vertical reference, in the form of Angle Plates. Angle Plates are ideal for use as time-saving, reusable fixture components. Angle Plates are heavily ribbed for strength and rigidity. Sides and ends of Angle Plates are machine finished. Highlights Highly efficientDurableLow maintenanceEasy to operate

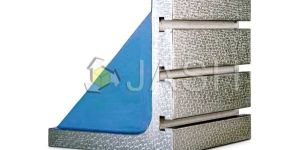

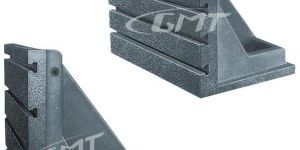

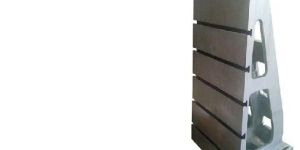

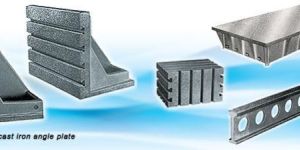

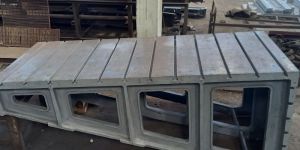

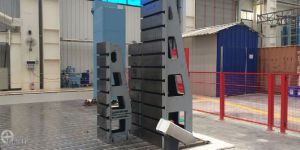

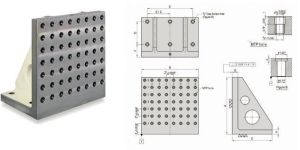

Technical Specification of Cast Iron T-slotted Angle Plate Jagdeep Cast Iron T-slotted Angle Plates are being used in various industries for varied application like vertical mounting of large jobs while machining, used as precision vertical base for Marking, Inspection, Fabrication, checking accuracy of other surfaces and many other types of operations. Jagdeep T-slotted angle plates manufactured completely in house, with world class manufacturing facility equipped with CNC machines, starting from Design, Casting, Machining and till finish and packing to ensure product quality, with international standards like IS and DIN having Cored and ribbed construction, Cast Iron of grade starting from FG 200 (as per IS 210) OR GG-20 to FG-300 OR GG-30 (or higher) having hardness minimum 160 BHN. Basic Features: Profiles: Generally provided with T-slots sizes 18, 22, 28, 36mm conforming to IS:2013 / DIN 650 in tolerance from H12 to H7. Holes, square slots, guiding slots or other profiles on vertical as well as on bottom face may be provided as per requirement of customers. Stress Relieving: Angle shall be manufactured with castings duly stress relieved, after rough machining to prevent distortion. Large Size: Jagdeep T-slotted Angle Plates shall be manufactured in various sizes and combinations in single piece or multi piece construction depending upon application and requirement. Flatness & Perpendicularity: T-slotted Angle Plates shall be manufactured with flatness of vertical and horizontal surface and perpendicularity of vertical surface with horizontal face or table face and per DIN 875. Surface Finish: CNC finish or Hand Scrapped finish can be provided as per requirement. Sizes: Jagdeep T-slotted Angle plates can be supplied with in various sizes starting form height of 1000mm up to 5000mm in single piece. Multi piece construction can also be provided to use it and modular angle plate or Box table.     *Other sizes & combinations and with special features can be manufactured as per requirement.

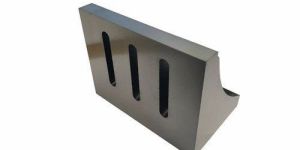

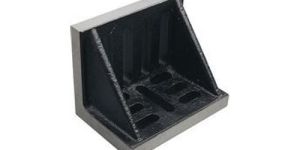

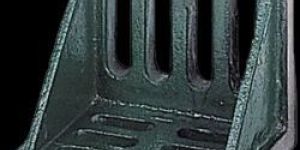

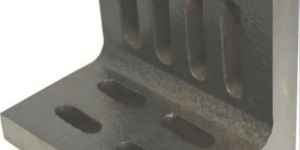

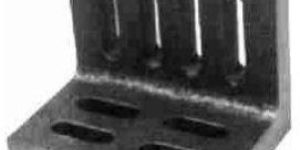

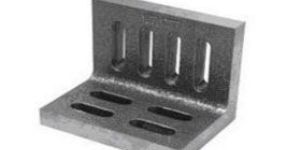

We hold expertise in manufacturing and supplying a comprehensive range of C I Angle Plates, made of high quality grained cast iron. Precisely engineered to meet the specific requirements of our customers, these angle plates are provided with a stress relieving surfaces that help in easy grinding and milling.

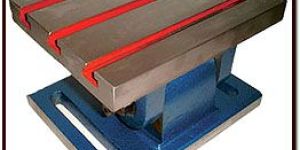

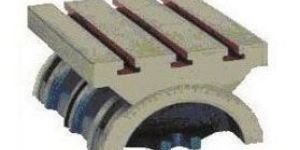

Made of high grade cast iron Table surface is ground to accuracy Graduations in degrees Machined T -slots

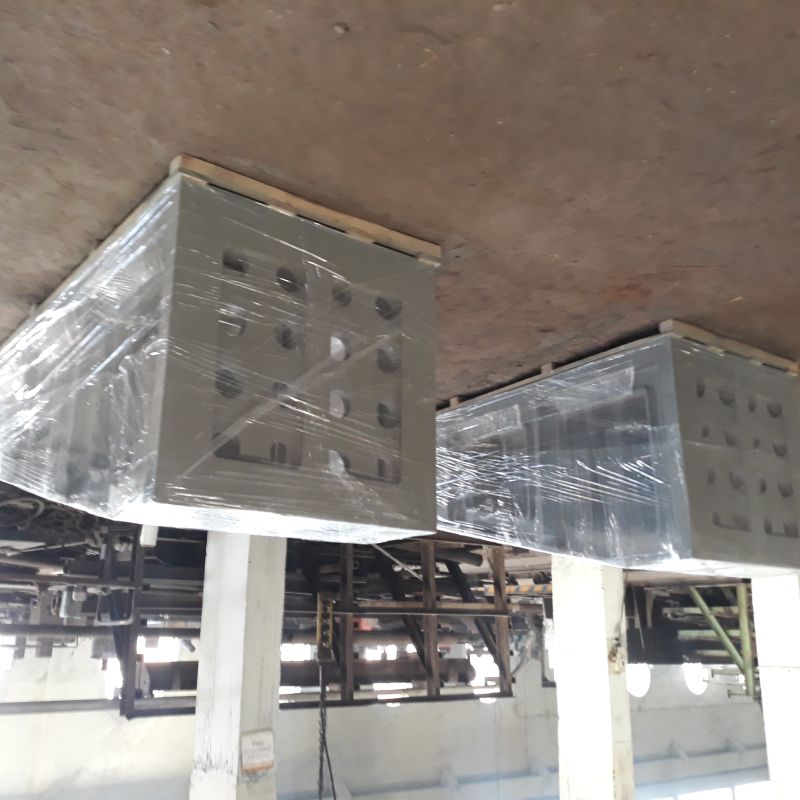

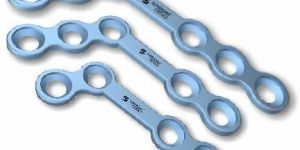

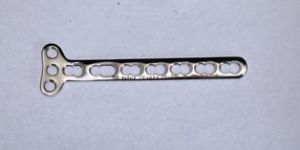

Our team members and professionals possess rich domain knowledge and experience concerning the packaging of all products. We make certain that the products are packed sternly using the best in class material. Quality control is a huge part of our company and we make sure, all our products are quality assured and trustworthy. Sizes : 3 Holes, 45 mm Length 4 Holes, 56 mm 5 Holes, 67 mm 6 Holes, 78 mm 7 Holes, 89 mm 8 Holes, 100 mm 9 Holes, 111 mm

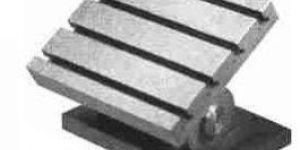

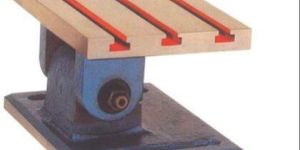

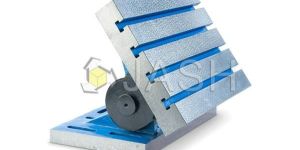

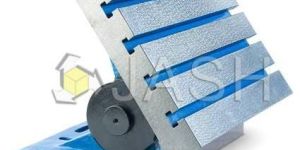

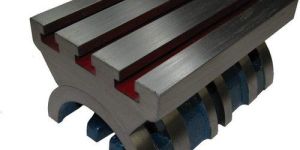

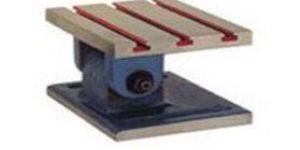

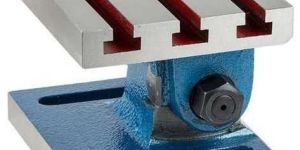

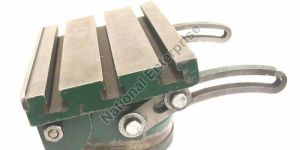

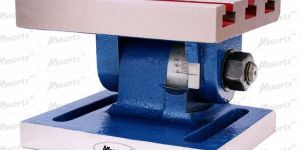

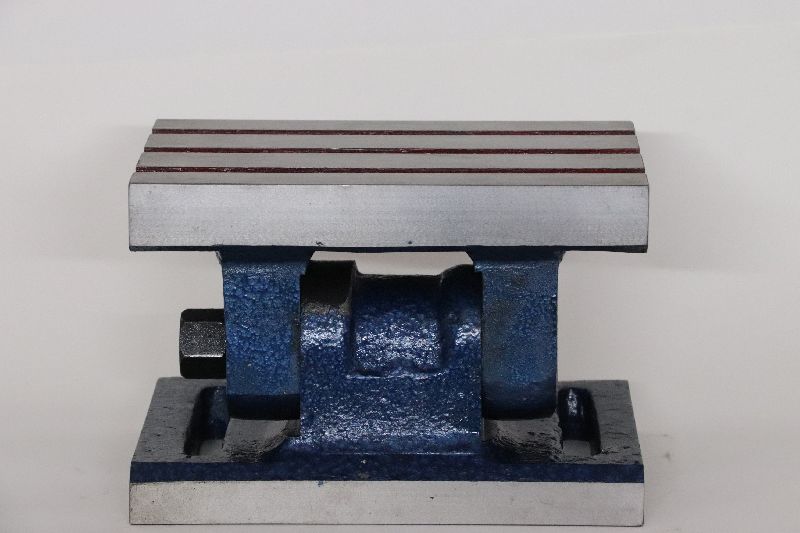

Manufactured from High Grade Casting. The Table can swivel from 0 -90 Degrees & can be locked at any angle with the help of screws at each end. Graduated in Degrees. Precisely ground on all working faces. Tee-slots are machined for a clean, precise & better finish.
