Batch Controllers Dealers

The batch house controller provided by us are used to process, fine-tune and control capability of common packages. Manufactured using advanced programming interface, our batch house controller comprises features like: analog display panel backlit lcd displays four-button keypad to adjust the batching system

We are a well-known Manufacturer and Supplier of Weigh Batch Controller. Having a digital microprocessor base, our Weigh Batch Controllers are designed to efficiently control batching operation of a multi component (upto 5) system. Moreover, with the help of load cell input, our Weigh Batch Controllers can control feeding of multiple components (upto seven). They are also useful in batch mix processes. Specifications Operation voltage supplies 230 VACMains frequency Hz 50Keyboard : Eight keys membrane like keypadDisplay : 10 digit 7- segment, red LED displayLoad cell Input 10VDC Field Programmable Parameters Set pointOffsetFilterVarious timings for batching sequence

Batch Weight Controllers are used for Digital Weighing of Batches of Dry Bulk Materials under Gain-In-Weight principle. In a typical arrangement the Batch Weigher is mounted on Load Cells connected with Junction Box and the Batch Weight Controller. Based on the set points the Feeding Equipment ( like Screw Feeder or Vibratory Feeder ) will refill in Bulk and Dribble mode under repeatable Gravimetric Accuracy.

We are offering hopper batching controller. Hopper batching controller is panel mounted weight controller, this controller is used to control weighing quantity on hopper up to four materials, it is having four relay output for controlling material filling in hopper. specifications brand: planet automation systems hopper batching controller is having set point facility in which we can set required weight and infly, also it is having printing facility in which we can printing actual material field in hopper, this controller is wildly used in industrial as well as construction equipment, it is having good stability on industrial envoirmental, and this indicator is made for sites and industrial use, use: 1) mobile concrete batching plant 2) process industries 3) beaching of material

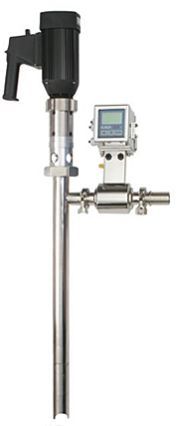

Ultra mag series standard’s sanitary batch control system engineered for bulk, precision dosing and filling operations from drums, tote® tanks and kettles – virtually hands-free. This system utilizes a non-invasive full bore magmeter for flow volume measurement. Simply dial in desired volume, press enter, and the sanitary batch control delivers a preset volume of material within .05% accuracy. The system is an excellent solution for conductive food products, pharmaceuticals, and cosmetic materials. Common applications lotions shampoo chocolate pie fillings juice concentrates brine pharmaceuticals tomato paste features 3a certification large graphic display tri-clamp® fittings low shear design non-invasive measurement easy to clean design multi-language display standard or metric units of measure measures volume

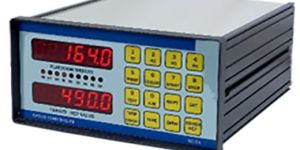

BC 04 Batch controller is a multipurpose relay based controller for industrial application. It is useful were the feeding and discharge of single / multiple material needs to be control through relays. Features    BC-04 is a fully customized product depending on application and user’s requirement.    It controls the batch operation through Relays without printing & saving option.    Multiple recipes can be programmed with different set points.    Provision to connect 1 no weighing platform.    Coarse and fine feed of material can be set.    Provision for In-flight correction.    Operation can be fully automatic or semi automatic, as per user’s requirement.    Dual Display on front panel to display current platform weight, target weight, programming parameters, alarms and total of process.    16 key front keyboard for programming and operating the batch controller.    Key Lock option is provided to prevent un-authorized use of the keyboard for programming or operating the system.    Software Calibration of the weigh platform, without changing any internal resistors for gain or dead load. The calibration process is software based using front panel keyboard and gain and dead load are set automatically by software Commands.    Display test option is provided to check the quality status of all the segments on the display. This feature can be used to check if all the displays and indication LEDs are in order.    Multi level password protection for preventing accidental or un authorized changes in calibration and other run time parameters.    Provision for recipe settings. The procedure allows for defining multiple recipes with each recipe containing the set points and delay for relay operations as per process requirement.

Product Details: Accepts Universal inputs – 4-20 mA or 0-10 V or pulse (2 or 3 wire) Non-volatile memory to retain Totalistic flow Liner or Square root input selections with 0.1% Accuracy 8/10 digit Flow Totalistic with password protected resetting Retransmission and RS-485/232 communication Available Weather proof or flame proof housing GSM mobile connectivity for wireless remote reading purpose. (sms)

Accepts Universal inputs 4-20 mA or 0-10 V or pulse(2 or 3 wire). Maximum 4 CO on Batch values generated. Liner or Square root input selections with 0.1% Accuracy.

BATCH CONTROLLERS FLOW INDICATORS – Predefined Universal type MODEL 855 ( Microprocessor based & Fully Configurable ) Introduction Pantech Instrument’s Model 855V represents BATCH CONTROLLERS FLOW INDICATORS AND TOTALIZRS for flow applications where single flow signal is available. Model 855 is an ideal instrument for controlling amount of material flow in every batch. The input signal can be a currentvoltagelinear signal from a flow transmitter or pulses from turbine meters. It can also be UNIVERSAL input type, where user is allowed to select and configure the input signal. The analogue signal is square rooted if required, and similarly for digital pulses LitrePulses ratio ( i.e. K factor )can be adjusted to achieve precise measurement of flow and hence batching. The desired counts or the BATCH VALUE(S) are set through push button switches given in front of instrument. The relay(s) isare energised to start the flow and batch counter starts. When set batch counts are reached, relay(s) get de energised as per the batch-relay settings and the flow is stopped. The cycle repeats when start button is pressed again. The flow can be interrupted during the working cycle by pressing stop button and again started by pressing start.

Accepts Universal inputs – 4-20 mA or 0-10 V or pulse (2 or 3 wire) Non-volatile memory to retain Totalistic flow Liner or Square root input selections with 0.1% Accuracy 810 digit Flow Totalistic with password protected resetting Retransmission and RS-485232 communication Available Weather proof or flame proof housing GSM mobile connectivity for wireless remote reading purpose. (sms)

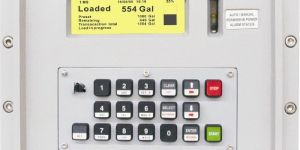

Smart Load® Electronic Preset used to measure & deliver precise  quantities of Product in loading and retail applications. Features: Controls Single or blended product loading with  additives & Blends Direct interface with flowmeters, Safetyinterlocks,  card readers & automationsoftware Controls Digital Controlvalves, additiveinjector  blocks Can Control up to 4 products / blends and six  additives Temperature & Pressure compensations asper API,  IP or linear methods W&M approved for use in custody transferas per  OIML R117. PESO, IECEx , ATEX approved for use in Gr. IIA, IIB.

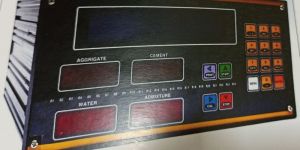

Salient Features: Sturdy Controller for the plants ranging from 20 cu.m to 60 cu.m The controller can accommodates four types of aggregates, two types of cement, fly ash, two types of chemical additives, fresh water and recycled water. Simple and easy to use. Generates all data information for Project.

We are a major Manufacturer and Supplier of Batch Controller. Batch Controller and indicators for conveyor belt weighing are majorly meant for use in mining industry. We offer accurately designed and precisely manufactured Batch Controller that comes with multiple digital inputs and outputs. The Batch Controller offered by comprises of indicators with analog signal output for control through PLC. The output of the Batch Controller includes 4-20 mA current or 0-10 V voltage. The peak hold indicator of the Batch Controller is useful for logging the peak load on scale. Further, we also supply the Batch Controller with optional alphanumeric LCD, Graphic LCD, VFD and LED displays.

The term "batch processing" originates in the traditional classification of methods of production as job production (one-off production), batch production (production of a "batch" of multiple items at once, one stage at a time), and flow production (mass production, all stages in process at once).

We offer batch controller. Features: - micro controller based unit - eeprom for data & parameter storage - onboard rtc - operating supply: 230v/110vac - display: 128 x 64 graphics lcd display with backlit - keyboard: 23 keys membrane keypad - input: load cell sensor - excitation voltage: 10vdc - adc: 24-bit adc used for digitization - field programmable parameters: - set points/offset of all component, filter, various timings for batching sequence - control outputs: total 12 relay outputs - seven relays to control feeding of components - alarm, gate on/off - status: batch over, batch ready - digital inputs: 8 digital inputs to read status & remote commands - calibration: offset & span calibration through software using keypad - report: batch wise online & offline report printing - serial interface: rs-232/rs-485 (for printer/computer) - mechanical data: mounting: panel mounting - dimensions: - outer: 269 (w) x 133.5 x 190 (d) - cutout size: 228 mm x 133.5 mm - enclosure: normal

The microprocessor-based Batch Controller is meant for fluid meter installations and it can work in manual or auto modes. Capable of handling batch loading of various kinds, the Batch Controller communicates with loading rack computer and gauging computer. We are a highly distinguished Manufacturer, Exporter, and Supplier of Batch Controller, which can work with other peripheral/host devices and has a weatherproof housing.Applications Tank Trucks Rail Cars Industrial Barrel Filling Barge for Petroleum Liquids Aviation Fuel LPG LNG Lube Oils Chemicals Salient Features Pulse security conforming to IP - 252 / ISO 6551 Multifunctional alphanumeric keyboard Field programmable options RS 232 / RS 485 connectivity Weatherproof to IP – 65 Self-diagnostic Data storage up to 200 transactions (Expandable) Can be used with any make of flow meters and pulse generators Tamperproof and sealed calibration facility and approved by Weights & Measures department Accepts all types of interlocks for fail-safe operation Dual communication ports Menu driven operator interface Optional host communication redundancy Latest generation microcomputer design Meter error curve linearization Flameproof enclosure for hazardous area application Large (240 × 128) graphic liquid crystal display or large 6-digit backlit LCD display.

The ASHE MX-450 is a micro-controller based Digital Flow Rate Indicator Totalizer offered in a highly compact, rugged and reliable execution. There are two digital displays on the front panel – the Rate Display and the Totalized display. The RATE display indicates the real time process value and the TOTALIZER display indicates the accumulated (integrated) volume over the selected time scale. The totalized value is displayed on an eight digit counter with non-volatile memory. The flow rate is continuously displayed on a four-digit seven-segment digital display.

Weighing indicator C8+ adopts fast speed ∑-Δ A/D conversion technology. It is widely applied in electronic batching scale、electronic fix-value scale and electronic catchweigher, sort of control system. Meanwhile, it has function for Max and Min limitation alarm and peak value preserving.
