Bitumen Tank Dealers

The Tank is fully insulated to minimize heat losses and is of 15,000 Ltrs. Capacity. The Bitumen inside, the tank is heated by U-shaped heating tube fitted with automatic burner of adequate capacity. A jacketed Bitumen Pump driven by D.C. Variable Speed Motor through Reduction Gear Box is provided to Pump the bitumen to the Drum. The bitumen flow rate is controlled by varying the RPM of D.C. Motor. The Bitumen Pump and all bitumen lines to and from the tank except pipe fittings and valves are hot oil jacketed. An independent electric motor driven pump is used for pumping the hot oil from hot oil tank to the jacketing lines. The single stage burner of bitumen tank is fitted with remote control system, to detect flame failure and have electric spark ignition system. The temperature is controlled through thermostatic control device to heat the bitumen in desired temperature range. The main bitumen tank, hot oil tank, blower, hot oil pump, bitumen pump with speed reduction gear box and motors are all mounted on stand by chasis and are provided with heavy legs to facilitate erection of the unit. Features External insulation with glasswool and covered with suitable thick sheet.Tested tube nest for diathermic oil circulation.Electronic High-pressure Jet Burner.Heavy duty jacketed Asphalt pump.Thermometers.

Protection of heat for a long time, perfect isolation Jacketed piping Bitumen feeding system with pneumatic 3 way Thermal-oil coil system valve It can be connected each other by 3 way valves Heat control via by thermostatic valves Level indicators Jacketed bitumen pump

We offer Bitumen tank, which is completely insulated so as to minimize the heat loss. The inside of the tank is heated by “U” shape heating tube that is fitted with an automatic burner of desired capacity. The fuel tank supplies the fuel for the burner. Also, on top of the bitumen tank the manhole is provided for inspection and charging of bitumen.

Assistance from the smart packaging system has enabled us to meet bulk and customized packaging requirements of the clients. In addition, our experts ensure safe packaging of the products. With diligence, hard work and dedication, we have worked our way up and become established provider in West Bengal(India).

Our organization is known in the trade for catering a distinguished segment of Bitumen Tanks, procured from eminent vendors of the domain. Fabricated using excellent quality raw material, these fully insulated tanks come equipped with separate low pressure electronic burner for heating the asphalt .   Features : Provided with hot oil circulating system Insulated pipelines Rugged construction Heavy duty jacketed Asphalt pump Long service life.

Enriched with high market knowledge, our organization is competent of manufacturing and supplying a premium range of Aadesh Bitumen Tank. It is a storage system that is available in horizontal or vertical shape depending on the requirements of our clients. The tank is highly insulated as the final finish is the result of single metal sheet. Basically, the tank can be heated with the help of electrical heating system that is ideally submerged at the bottom of available range. We are offering Aadesh Bitumen Tank clients in numerous designs at economical rates.   Specifications:   Controlled temperature Safe filling Safe working capacity AadeshBitumen Tank Inner wall is fabricated form 5 mm thick M.S. Plats. External insulation with ceramic wood (Glass wood) is 50 mm and covered with 18 g M.S. Sheet. The Asphalt pump coupled with Reduction Box and powered by a variable speed DC motor.

BitumenAsphalt Products such as Bitumen Asphalt binders and polymer modified Bitumen (PMB), cutbacks and emulsions.Semi-finished Steel Products and raw materials for Steel Plants such as Iron Ore, MS Scrap, Thermal and Coking Coal.

We make available Bitumen Tank with high capacity and complete insulation. The Bitumen Tank is precision engineered for easy and perfect inspection and charging of Bitumen. Our Bitumen Tank is designed as per the industrial parameters and offers long-lasting service. We make available bitumen Tank up to 2500 diameter. Construction : Heating tube fitted inside for uniform heatingFor heating regulation, an automatic burner is installed Fuel tank for supply of fuel to the fuel burnerManhole at the top for inspection and charging of bitumen

Our Bitumen Tanks are available in 15 to 20 ton capacity. These Bitumen Storage Tanks are insulated and attached with separate high pressure automatic burner for heating asphalt. Gear box and variable speed DC motor is also provided to adjust the percentage of asphalt. Further, we are identified as one of the renowned Heated Bitumen Tanks Manufacturers and Suppliers in India.

Asphalt storage tanks can be configured and supplied with wide options and sizes. These tanks are available with direct heating system or indirect heating system. Direct heating bitumen storage tanks come fitted with internal coils and burner at one end of the coil the burner. The heat generated from the burner flame flows from inside the pipe and is responsible for heating of the bitumen inside the tank. Indirect heating bitumen tank for sale come equipped with pipelines inside that allow flow of hot oil from inside the coils. These hot oil transfer coils come from an external hot oil heater fitted with a burner. Continuous flow of the hot oil from the heater to the tank and back allows fast melting of bitumen.

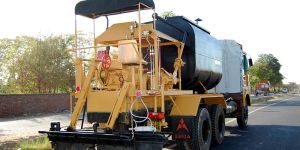

The unit is equipped with Insulated Bitumen Tank, Diesel engine prime mover, Positive Displacement type Bitumen Pump, Bitumen Piping with mechanical valves, Air Compressor, Burner, Foldable Spray Bar with nozzles, Flexible Hand Spray attachment etc.

We are offering bitumen storage tank, fabricated from m.s plates with insulation and heating coils of various sizecapacity as per customers requirement and specifications.

Our Bitumen Storage Tanks are manufactured using top-grade galvanized steel, which can be availed in different capacities, ranging from 30,000-200,000 litres. Since, we are famous suppliers of Bitumen Storage Tank, buyers can place order with us and quote their prices. We have hired expert warehousing personnel who keep a stringent check on the entire range of stored lot ensuring zero damage to the products till the final dispatch to the clients.

  Two way heating coil designed ensures fast and efficient heating process Fully insulated tank body offers minimum heat losses Easy for heating coil cleaning and maintenance process Jacketed bitumen pump station avoids jamming of pump operation Fully automatic pressure jet burner offers faster and efficient heating of bitumen and automatic temperature control from panel Additional start-up panel facilitate individual heating process by burner operation without starting main control panel low operating cost
