Blade Type Diamond Dressers Dealers

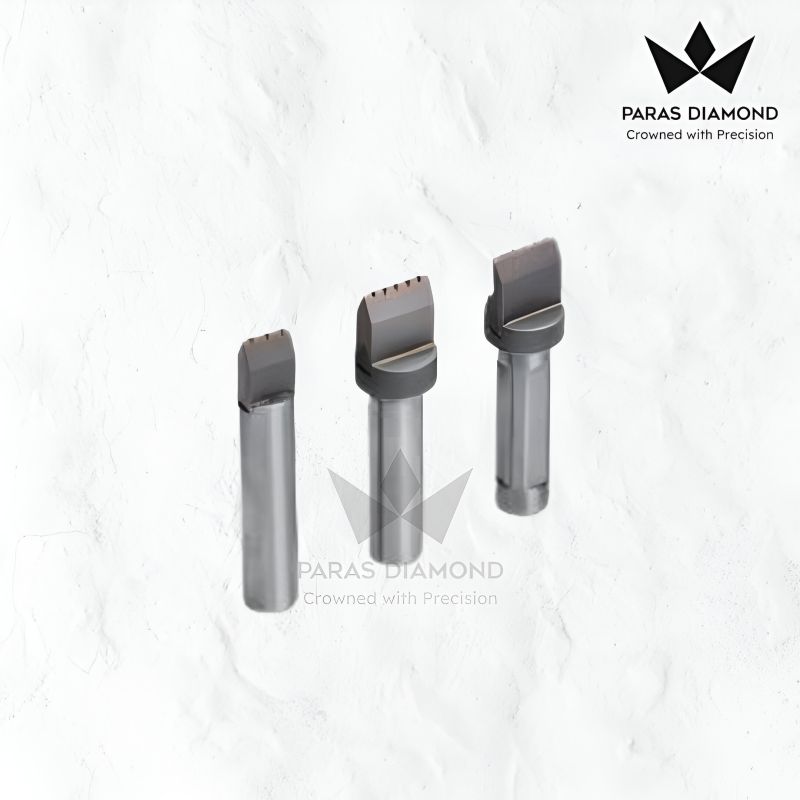

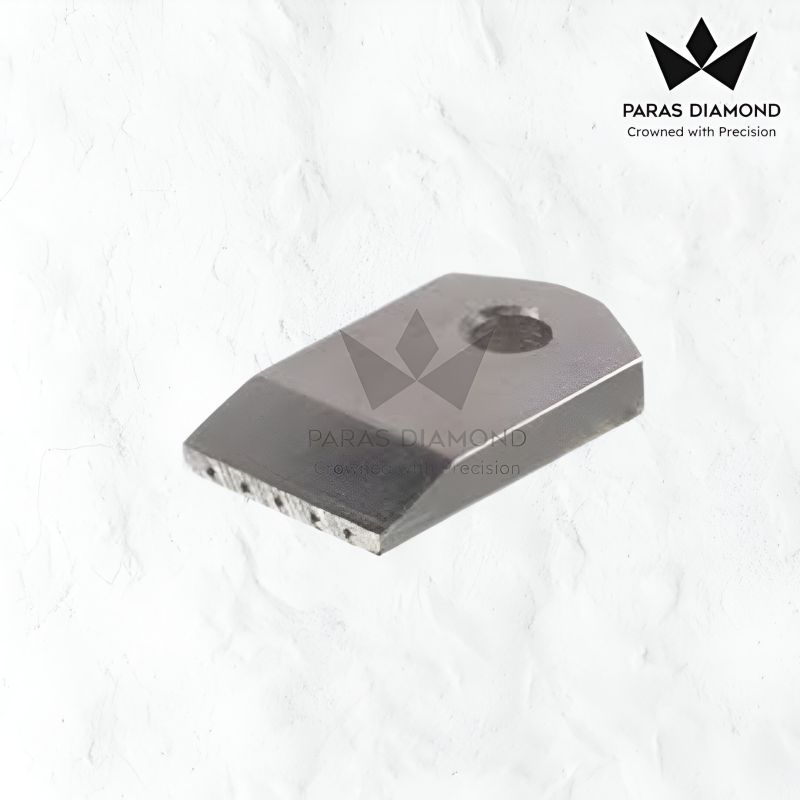

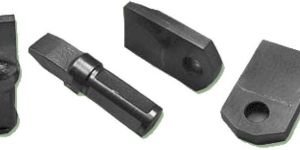

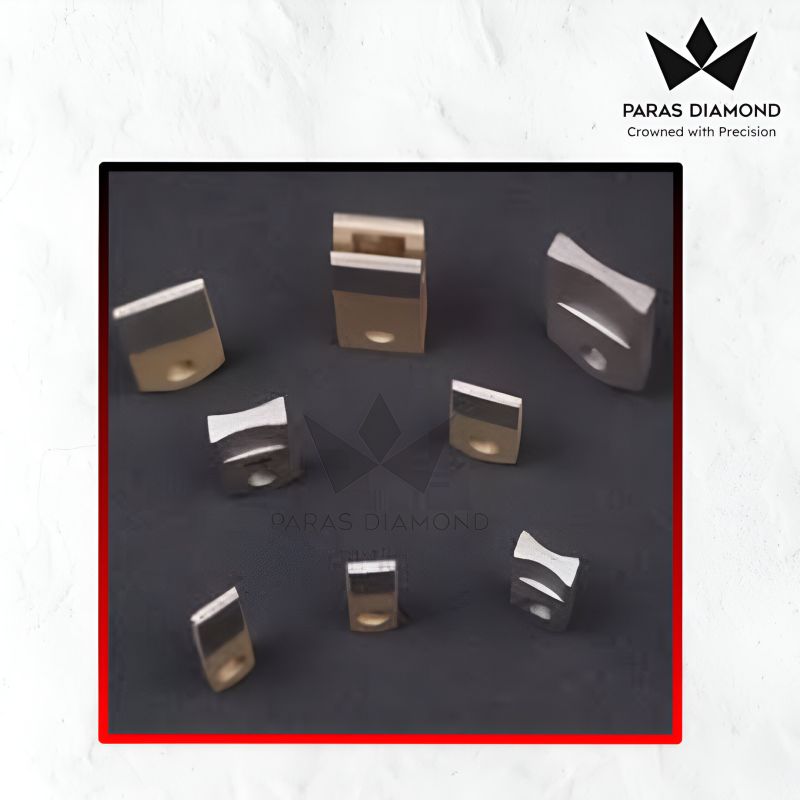

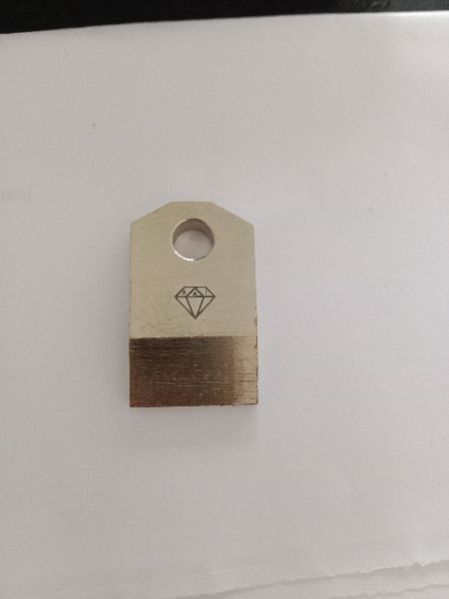

Blade Type Diamond Dresser, superfine quality needle type diamonds in multi layer are setted in Tungsten Carbide. The form blade type is moulded as a small plate. "While using, as soon as the first layer is completely used, the second layer is immediately exposed without change in setting.

Multi-layer Blade Type Diamond Dressers especially centerless grinders, often the demands are high both on quality and productivity with the following essential characteristics of wheel dressing.

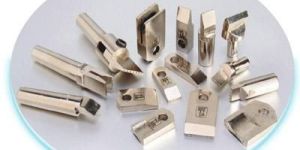

The Dragoon contains specially selected long stones, which are interlocked in layers, in a powder metal blade. This type of setting allows the tools to be fully consumed in use, no servicing is required. This is an important factor on automated and high production grinding machines. These tools are being used on a large number of centreless, cylindrical and surface grinding machines where accuracy of form and finish are important and in certain cases, the Dragoon has surpassed the more expensive polished chisel type for profiling work.

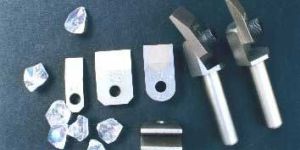

Application : Balaji Blade Type Diamond Dressers are specially recommended for Angular and centreless grinders. If desired available with swiveling holder or with diamond abrasive plate brazed in a shank. Advantages : Whole non-crushed natural grains very uniformly disposed in a special pattern. Hand-set for confirming to very close tolerances on the work piece more particularly for truing and forming of profiles. Restores the required effective roughness of the wheel surface. It is adapted to the machining operation by varying the traverse dressing feed. Complete use without maintenance. Reduced inventory.

Multi Point Diamond Dressers manufactured by SDT is fixed with number of natural diamonds of a quality crystal character fixed into a special wear resistant bond. The diamonds are arranged in different pattern in single layer or multiple layers, depending upon the field of operation. The contact between diamond point and wheel face reduces the unit pressure on each point resulting in a longer tool life with full utilization. Multipoint Diamond Dressers are used for large wide grinding wheels. Advantages No resetting   No re-lapping   Maintenance free   Higher output   Longer service life.   BRUTED DIAMONDS .   'A', 'B', 'C': These Stones are Bruted Type Commercial Quality diamonds.   'AA' Class: These Stones are natural polished stones.   'AAA' Class: These are premium grade Gem quality natural diamonds with 2-3 workable points. APPLICATION    Set the multipoint tool into the center of the grinding wheel.   Depth of cut should not exceed more than 0.01-0.04 mm.   Use plenty of coolant to increase the tool life.   The mounting must be vibration free, with the clamping length as short as possible.   APPLICATION

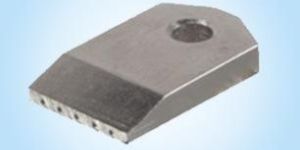

In Blade Type Diamond Dressers, there is use of small rice grain shaped diamonds mounted in a narrow width, which provides far better forming capabilities. The number of rows of diamonds can be changed as per requirement. Blade Type Multi-Point Diamond Dressers are designed for using in line, step, radius and profile adjustment in CNC grinding. Blade Type Diamond Dressers can be used till the end of their life without any repairs, making them very economical. We can offer customized Blade Type Diamond Dressers as well.

JPT Produces Blade Type diamond dressers in Grit Type and Needle Type Diamonds. Blade type diamond dressers can be a combination of single point diamond dressers and multipoint diamond dressers. It is used in straight dressing and profile dressing.

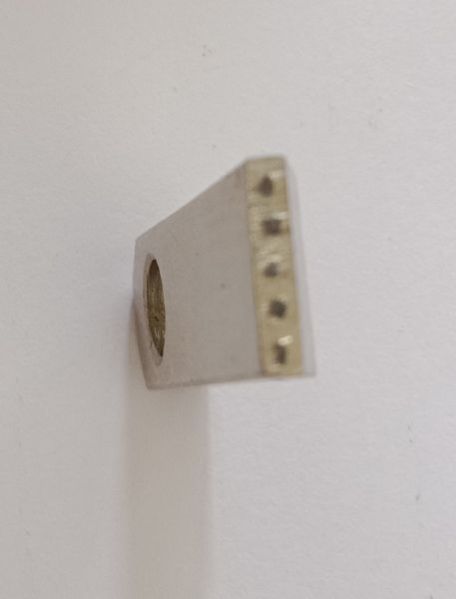

Blade Type Diamond Dresser are used for the angular & centre less grinders. Need le type diamonds are used in this tool. Diamonds are moulded in small plate. As soon as the diamonds in the first row is completely used up the second layer is exposed without change in setting.We are manufacturer of Blade Type Diamond Dresser tools.

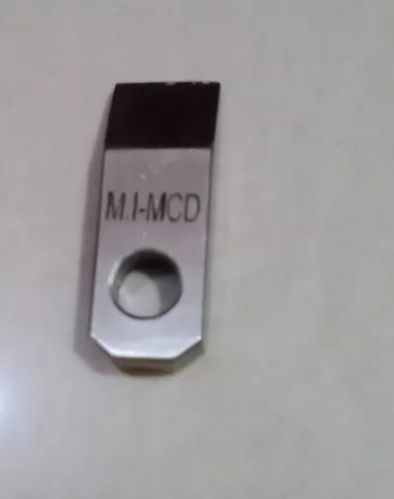

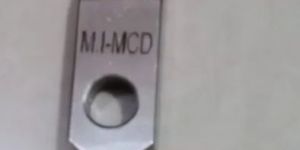

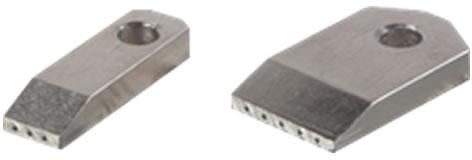

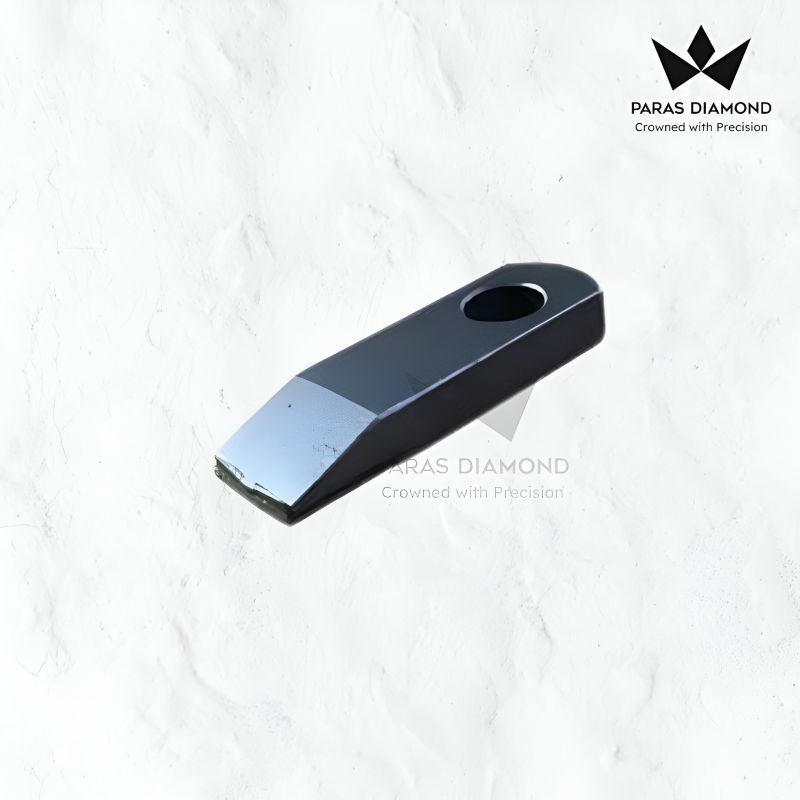

jpt produces blade type diamond dressers in grit type and needle type diamonds. Blade type diamond dressers can be a combination of single point diamond dressers and multipoint diamond dressers. It is used in straight dressing and profile dressing. importance of thickness (t) of plate:the bigger the volume to be removed the bigger is the blade dressers t (in mm) should be chosen. types: needle type blade dresser (nbd)in this blade type diamond dressers, needle shaped diamonds are carefully selected and set manually in an appropriate pattern in several layer's. It is equipped with high quality of diamond needles and set in proper scheme. Use for larger window and longer dressing. grit type blade dresser (gbd)in this blade type diamond dressers, grit type block diamonds are set according in proper scheme. It's a manual process of setting the diamonds. This blade is made for extremely long service life and used in a high precision dressing application. blade type dresser with mcd and cvd diamonds as mcd and cvd diamonds are manmade diamonds, jpt produces the same as per the customer enquiry and specifications.   there must be a perfect fit between the holder of the diamond dressing tool and the dressing    device. Otherwise dimensionally stable dressing with a true profile is not possible.  cooling improves the dressing results considerably and is mandatory for exacting dressing requirements.    a strong and continuous flow of cooling medium must be fed to the contact zone prior to the begining    of the dressing process.  dressing is performed at a normal or reduced grinding wheel speed.  infeed increments of up to 0.03 mm per dressing operation are possible.

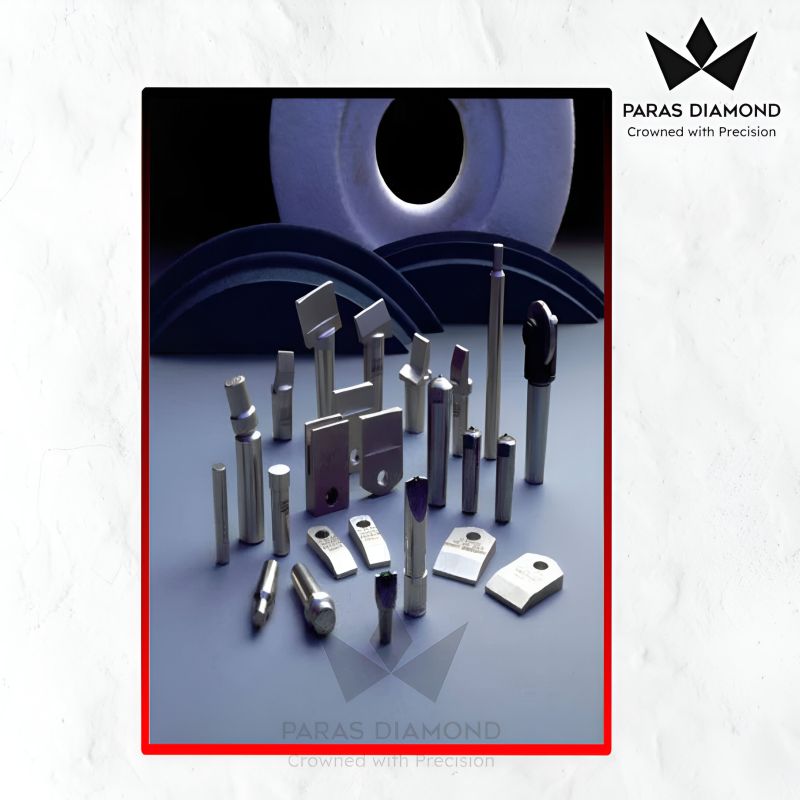

Avail from PAUL & COMPANY a distinctive range of diamond dressers which includes Single Point, shaping tool ( chisel type),cluster type, disc type, crown multipoint, diamond grit type & blade type dressers. These diamond dressers are good for exposing a new sharp cutting layer on silicon carbide & aluminum oxide wheels after dressing & true the wheel to eliminate run-out and correct geometrical shape.

Balaji Blade Type Diamond Dressers are specially recommended for Angular and centreless grinders. If desired available with swiveling holder or with diamond abrasive plate brazed in a shank. Advantages : Whole non-crushed natural grains very uniformly disposed in a special pattern. Hand-set for confirming to very close tolerances on the work piece more particularly for truing and forming of profiles. Restores the required effective roughness of the wheel surface. It is adapted to the machining operation by varying the traverse dressing feed. Complete use without maintenance. Reduced inventory.

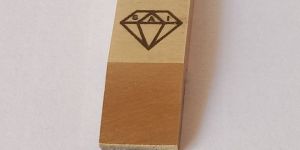

For manufacturing Blade Type Diamond Dresser, superfine quality needle type diamonds in multi layer are setted in Tungsten Carbide. The form blade type is moulded as a small plate. "While using, as soon as the first layer is completely used, the second layer is immediately exposed without change in setting.

Blade Type Diamond Dressers are specially recommended for Angular and centreless grinders. In this non-crushed natural grains are uniformly set in a special pattern. Advantages of blade type diamond dresser: Restores the required effective roughness of the wheel surface. It is adapted to the machining operation by varying the traverse dressing feed. Complete use without any maintenance. Reduced inventory. Cost cutting upto 50% Extremely long service life and used where precise dressing of wheel is required.

These Dressers are highly in demand in the market owing to their long lasting finish and accuracy. Moreover, Blade Type Dressers usually find usage in Centre less Grinders and Surface Grinders. With this dresser, we can achieve glaze free dressings as it uses Selected Longs that are set in pre-defined patterns. Applications : Bearing IndustryEngineering IndustryAutomotive Industry

Blade Type Diamond Dressers is quite similar to that of Multipoint diamond dresser. In the dresser the crushed diamond grit in both Natural & Synthetic grades are set in a several layers in random pattern. With this type of tool, the dressing work is carried out by several small diamonds which together result in excellent performance.

There must be a perfect fit between the holder of the diamond dressing tool and the dressing device. Otherwise Dimensionally stable dressing with a true profile is not possible. bullet.gif Cooling improves the dressing results considerably and is mandatory for exacting dressing requirements. A strong and continuous flow of cooling medium must be fed to the contact zone prior to the begining of the dressing process. bullet.gif Dressing is performed at a normal or reduced grinding wheel speed. bullet.gif Infeed increments of up to 0.03 mm per dressing operation are possible.

For manufacturing Blade Type Diamond Dresser, superfine quality needle type diamonds in multi layer are setted in Tungsten Carbide. The form blade type is moulded as a small plate. "While using, as soon as the first layer is completely used, the second layer is immediately exposed without change in setting.

Diamond Tools

Blade Type Diamond Dressers, Single Point Diamond Dresse

We are offering blade type dressers.

Blade Type Diamond Dresser, Diamond Needle Files, Diamond Squaring Whee
