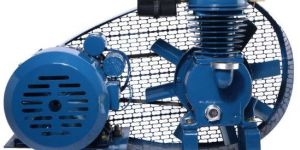

Borewell Compressor Pumps Dealers

The borewell compressor pump works on the principle of difference in density of two-inter-connected water columns and the heavier one over balancing the lighter one. Water outflow through delivery pipe will be pulsated. the discharge of water will greatly depend on the yield of the bore. Air distributor fitted at the end makes this operation possible.     Types Belt Driven Compressor Monobloc Compressor   Features Shell moulded casting Interchangeable Standardized Parts Honed Cylinders to give Extra Long Life Crank and connecting Rod are made of special Alloy Steel Forgings Needs no footvalve / Jet, hence easy to install and maintain Water outflow through delivery pipe will be pulsated and not continuous   Applications Ideal for lifting water from deep borewells Effectively used for agriculture, industry and domestic purposes Agricultural

NEC Bore well Air Compressor Pumps are designed for domestic , Industrial and agricultural purposes are provided with high operating efficiency compressor that can draw water from depths of 100 ft. to 600 ft.They are assembled with special duty Compressor Motor for quality & reliability and manufactured and Tested to high standards of excellence. Connected water columns; the heavier one.

• Available in single and double cylinder design.: Requires no priming.
• Easy installation and maintenance.: Can be installed in more than one bore based on the water levels.
• Easy belt alignment of compressor with the motor ensuring higher efficiency and close to zero maintenance.: Rigorous quality control checks at every stage of manufacturing to ensure high degree of reliability.
• Sound in design and Robust in construction withstanding overload.: Dynamic balancing of rotors ensuring vibration free performance.

We are offering borewell compressor pump. Shell moulded casting interchangeable standardized parts honed cylinders to give extra long life crank and connecting rod are made of special alloy steel forgings. needs no footvalve jet, hence easy to install and maintain. water outflow through delivery pipe will be pulsated and not continuous.

• Head Range :: 25mtrs to 125 mtrs
• Discharge Range :: 15 Lpm to 600 Lpm
• Pipe Size in mm :: 32&50

VIKRAM’s Bore well compressor pumps, manufactured out of high quality materials are of either single cylinder or double cylinder construction pumps coupled to electric motors of suitable capacity. These pumps are used mostly for agricultural and industrial purposes running on either single phase or three phase power supply. Motor Capacity :1.0HP, 1.5 HP & 2.0HP (240V, 50 Hz Single Phase Supply) 3.0 HP, HP 5.0 HP, 7.5HP &10 HP (415V, 50 Hz There Phase supply

• depth: 600 ft

Air Compressor Pumps are designed to draw water from borewells at any depth. * The compressed air will enter in the borewell through pipe line upto the bottom, where it is connected to a water pipe which pushes the water to the field, overhead tank or places where the water is required. * The water can be drawn at any depth, even at 600 ft. * The maintenance is very simple. * Compressors can be operated with motor or diesel engines. * No foot valve is required.

Borewell Compressor Pump offered is engineered under the firm direction of experienced quality controllers.crank and connecting rod are made of special alloy steel forgings.

Texmo Bore well compressor pumps are designed for drawing water from deep bore wells of diameter over 4 inches. They are coupled with high quality motors to ensure efficient performance. Also available in Monobloc versions where the motor and compressor are assembled into a single integral unit.

• Type: Borewell Compressor
• Condition: Old
• Capacity: 10-15 Hp
• Driven Type: Diesel
• No Of Cylinders: 2-4
• Water Pipe Size: 1-2 Inches
• Air Pipe Size: 1-2 Inches
• Inlet-Outlet Pressure: 7kg/cm2
• Country of Origin: India
• Color: Yellow
• Thickness: Atlas coop (Air Compressor)
• Size: 400/200
• Atlas corporation ( tailer mounting): Yellow bannet colour

RMP-The first Small Scale Industry to get ISI recognition for their compressor Pumps. RMP ,the first and foremost manufacturer of compressor pumps, has won a distinctive as a leading manufacturer of compressor pumps and the superior quality and matchless performance of RMP compressor pumps are appreciated by each and every customer. Used mainly for domestic, industrial and agricultural purposes, these high performance pumps draw water easily from greater depths where most of the other pumps prove failures and, if you hesitate to take our word for it, just spare a few minutes to see how an RMP pump work and you will start trusting it like nothing else.

• Single phase & Three Phase: 0.5 hp to 2.0 hp
• 8 mts to 200 mts: 16 lpm to 200 lpm

Hi-tech breather valves increase the efficency and it is easy to clean or replace Provision of oil indicator to check the oil level clearly Special provision to adjust the belt tension Single compressor with double cylinders can be used in two borewells simultaneously Can be operated with diesel engine or tractor when electricity not available Can be easily dismantled & repaired Dynamically balanced rotating parts including rotator and Compressor fan

Columbia borewell water lifting compressor pump for agriculture, factories, housing complexes, domestic and for many more applications with a simple method. Compressor pressure lift the water from 150 feets to maximum 950 feets . These pumps are suited for continuous operations with a low power consumption. Special type compressor also available (Double bed type)

• Type: Borewell Compressor Pumps
• Voltage: 110V, 220V, 380V, 440V
• Application: Industry
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Warranty: 1Year, 2Years

InfodirectoryB2B .com is an emerging online B2B marketplace for Small & Medium Size Businesses, connecting global buyers with suppliers. The company offers a platform & tools to suppliers to generate business leads from global buyers, who use the platform to find reliable & competitive suppliers.

• Horse Power: 1HP
• Brand: Texmo
• Material: Crankcase: CI FG 200,Cylinder: CI FG 260,Piston: Aluminum alloy
• Discharge Range: 20.0 m3 / hr
• Head Range: 122 m
• Applications: Flood irrigation,Drinking water supply,Industrial water supply

The borewell compressor pump works on the principle of difference in density of two-inter-connected water columns and the heavier one over balancing the lighter one. Water outflow through delivery pipe will be pulsated. the discharge of water will greatly depend on the yield of the bore. Air distributor fitted at the end makes this operation possible.

NEC Bore well Air Compressor Pumps are designed for domestic , Industrial and agricultural purposes are provided with high operating efficiency compressor that can draw water from depths of 100 ft. to 600 ft.They are assembled with special duty Compressor Motor for quality & reliability and manufactured and Tested to high standards of excellence. Connected water columns; the heavier one. On balancing over the light one. On operation the compressed air is pumped down the well and gets mixed with water in the discharge pipe as very fine air bubbles by the Air distributor installed at the end of the Air pipe line.

• Condition: New
• Model: ST-300
• Stage: 1
• Cylinder: 2
• Required Motor: 3 hp
• Air Pipe: 1/2" inch
• Pumping Height: 25%, 50%, 75%
• Lifting Height: 75%, 50%, 25%

VASANTHAM Borewell Compressor is the first Compressor to get the ISI Spare parts in small scale industries. VASANTHAM spare parts are manufactured with modern high technology. VASANTHAM also manufactures the oil free Air Compressor with best quality materials under most arduous conditions. VASANTHAM Borewell Compressor Pumps to lift the water from maximum depth & discharge of water will be greater output to other compressor. VASANTHAM is a oil leak proof pump. So it discharge clean non-oil water and easy maintainence with less cost VASANTHAM Borewell compresor pump suitable for Agriculture, Domestic & Industrial purpose Columns (s) gives level of water at working condition. Water outflow through delivery pipe will be pulsated and not continuous. The discharge of water will greatly depend on the yield of the bore.

We start with saying. "One Compressor Can Lift the Water from 16 No. Of Borewells, Can You Believe!", When we making borewells in low ground water level areas where we get low yield of water. So we have to make more number of bore wells to get required water. To lift the water from these borewells more number of Compressor or Submersible Motor have to be errected. It consumes more power and more investment.

• Application: saline water, muddy or dirty water, bore collapsing
• Power: Ac Voltage
• Brand Name: BAC Compressor
• Place of Origin: Coimbatore
• Cylinder: Shell moulded cylinders
• Bearings: Original SKF Bearings

A Borewell compressor pump works by forcing compressed air into bore through a pipe. The compressed air and water mix together resulting in a mixture that is less dense than the surrounding water and therefore flows upward through the pipe. BAC made its mark in India with its borewell compressors. BAC has been the tier one player in borewell compressor pumps since decades. We have supplied to customers with depths ranging from 50 feet to 1500 feet. Unlike other manufacturers we have special models for the borewell segment to obtain the maximum possible efficiency. We are one of the leading Borewell Compressor pump manufacturer in Coimbatore with thousands of installations so far. When comparing to a submersible pump a borewell compressor has the following advantages, 1.Can work in saline water (salty water) effortlessly compared to submersible pump that has salt sedimentation on the impeller if not used regularly, can cause breakdown. 2.Borewell compressor can work if muddy or dirty water. 3.In a borewell compressor, no damage is done if there is no water in bore. In submersible there are chances where the pump will dry run and cause motor failure. 4.Installation is much cheaper 5.Cost of repairing a submersible pump is very high as the pump will have to be pulled out from the bore. But the borewell compressor is always on ground level so any service can be done quick and cheap. 6.Borewell compressor is preferred in areas where there is a chance of bore collapsing. The submersible pump cannot be pulled out once the bore has collapsed. Despite the many advantages of borewell compressor there are few drawbacks such as, lower discharge compared to a submersible and high noise level if not isolated properly.

• HP: 1 - 2 HP
• Speed: 50Hz – 1440 Rpm
• Total Head Range: 30 - 550 ft
• Nominal Outlet Size: 25, 32 mm

Our clients can avail from us an extensive range of Borewell Compressor Pumps. Offered Pumps are designed for lifting water from deep bore wells. These Borewell Compressor Pumps are widely used for agriculture, industrial and domestic purposes and needs no foot-valve or jet. These are easy to install and maintain. Apart from this, these are inbuilt with honed cylinders which are responsible for their long life.
