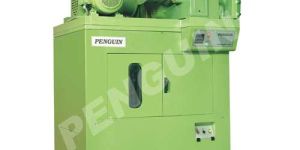

MACHINE FEATURESSize Of Machine             :- 6(L) x4(W) x 6(H)Net Weight                     :- 250Kgs. ApproxMotor                            :- 2 Hp. Three Phase 1440Rpm.Gear Box                       :- 2,1/4”Note                              :- Braiding machine vertical type in 6.25”, 8.25” spur dia & 16sp., 24sp., 32sp., 36sp., 48sp., are also available on order for high pressure hose.

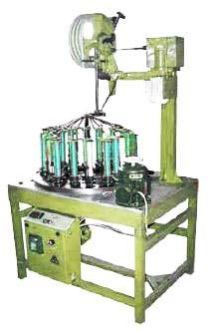

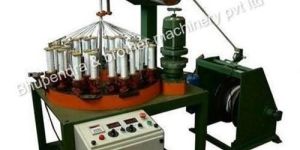

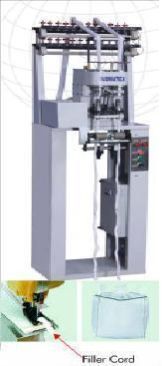

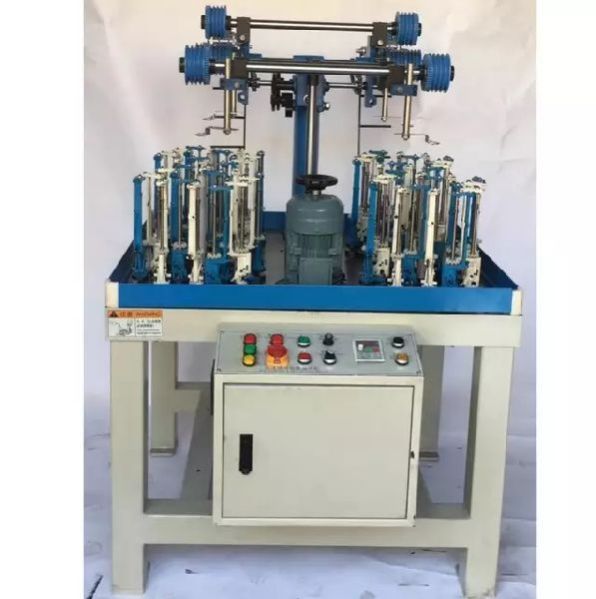

The availability of Solid Cord Braiding Machine with optional aluminum enclosure and Meter Counter makes the operations more easy and effective than ever before. The perfectly fabricated Solid Cord Braiding Machine automatically gets shut off in the case of broken end as well as empty bobbin. Attributes : Overload motor protectionVertical Axis and carriersHeat treatedbraided platetrackhorn gearshorn plateLine forward reverse jog Used In : Climbing ropeRope for bigger sizeSleeving Technical Specifications DescriptionBMSC-109-100BMSC-112-100BMSC-118-100BMSC-209-100BMSC-212-100BMSC-218-100Length (L)145012901530131015001150Depth (D)450400410380430490Height (H)135013501350135014001400No of Heads120604030302Carriers per Head030913172125Horn Gear Speed300300300300300300Bobbin Size42x12042x12042x12042x12042x12042x120Control Volume135135135135135135Carrier Tension1 N ~ 10 N1 N ~ 10 N1 N ~ 10 N1 N ~ 10 N1 N ~ 10 N1 N ~ 10 NMotor (Ph Kw V)3 1.10 4153 1.50 4153 1.50 4153 2.9 4153 2.1 4153 2.9 415OptionTake off on DrumStandardStandardStandardStandardStandardStandardEmpty Bobbin ControlStandardStandardStandardStandardStandardStandardMeter CounterOptionOptionOptionOptionOptionOptionHousing with Safety DoorsOptionOptionOptionOptionOptionOptionInfinitely Variable Speed ControlOptionOptionOptionOptionOptionOption

Optimally and flexibly used in the weaving of various kinds of rope belts, bootlaces, high-tension belts, elastic tapes, decorative belts, rope nets, trailer tapes, electrical wiring and etc. Durable, superior performance, simple operation, high yield, good quality, low loss and etc.

Braiding machine, Alloy track plate for hassle-free life long operation. A.C. frequency drive for running the machine at different Heater with microprocessor based PID controller. Stop motion for yarn breakage as well as empty bobbin. Sturdy mechanical design with mild steel track plate with surface grinding for long period operation. A.C. frequency drive for running the machine at different Heater with microprocessor based PID controller.

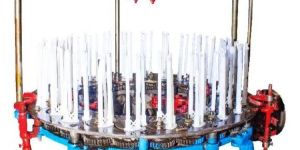

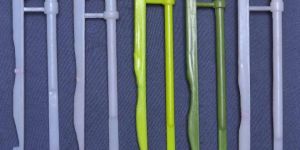

We are manufacturing all kind of spindle which is used in braiding machines. Also making bobbin for braiding machine. We are manufacturing scine last 16 years.

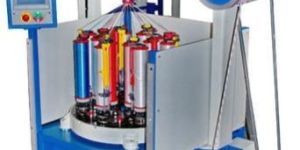

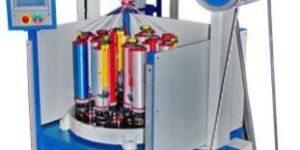

We are offering braiding machine mtp/br8-104. Key features user friendly touch screen dislpay with plc control. all parameters will be shown on display. braid length adjustment by display. meter set point for desired length. auto stoppage at empty bobbin. stepless variable synchronized speed control. machine with fenced guard. helical gear box. machine lubrication warning. daily, weekly & monthly report system. (direct save in excel format) wi-fi connectivity system for computer.

With the assistance of sophisticated packaging system and skilled personnel, we are able to provide damage-free products to the clients as we ensure complete safety during packaging. Ours is a quality-driven organization that is engaged in offering only high-quality products. Thus, we use superior grade raw materials for the fabrication of our entire range.
