Cap Torque Tester Dealers

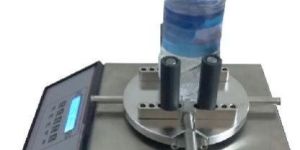

Torque Tester – Digital is a consistent tool to measure the force or torque required to open a closed cap of PET bottle. It gives Torque in digital format. The digital display is a high-end sophisticated read out with Auto Tare (ZERO) set facility and Peak Hold arrangement. The test sample is placed in between the anti-slip holderspegs for the strong holding of the test sample. Torque Tester is designed to provide accurate and precision based torque value. The instrument is used for testing the opening force of the PET bottles when subject to a load under twisting. PET industries cater the requirements of a wide assortment of industries such as food industries, beverage bottling plants etc. The PET bottles are used for packaging of food items and beverages for better safety and long lasting freshness. A major aspect of bottles that must be tested before usage is the fastening of the bottles caps. Presto’s Torque tester-Digital is an ideal testing instrument to test the fastening of the bottle caps and lids. The digital model of torque tester offered by Presto is one of the most efficient and accurate testing instrument that is used in most of the PET industries and bottling plants to test the fastness of the lids and caps of the PET bottles and jars. The instrument is provided with a digital display which allows easy reading of the test results with greater accuracy.

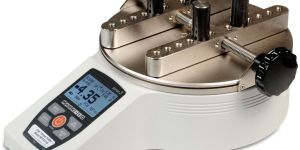

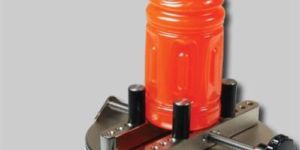

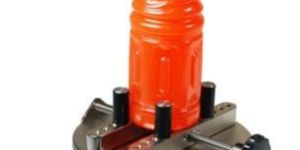

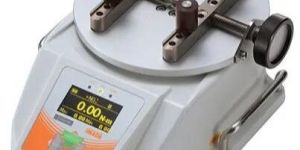

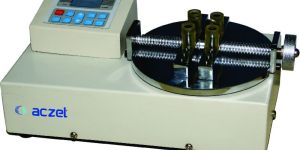

We are offering cap torque tester. series tt01 cap torque testers are designed to measure application and removal torque of bottle caps up to 100 lbfin [11.5 nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments. class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration. the tt01 includes a range of sophisticated productivity-enhancing features, including usb, rs-232, mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures. series tt01 testers include mesurtm lite data acquisition software. Mesurtm lite tabulates continuous or single point data. Data stored in the tt01’s memory can also be downloaded in bulk. One-click export to excel allows for further data manipulation.

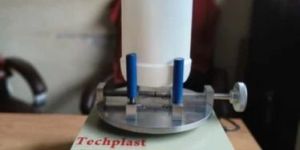

To apply Screw measure cap on PlasticGlass capped bottles with the specified torque Cap diameter:- 20 mm to 50mm Cap Height :- 12 mm to 30mm Bottle diameter:- 30mm to 80mm Bottle Height:- 30mm to 150mm

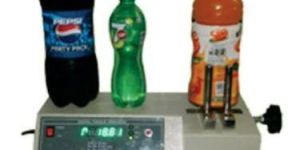

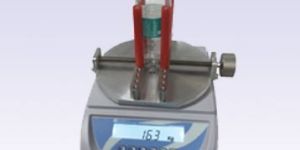

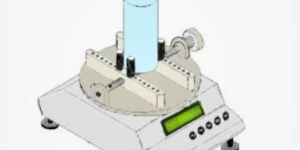

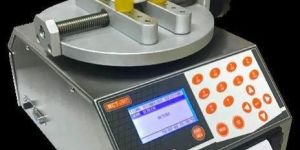

Contech bottle torque tester is used for measuring the torque required to open the cap of bottles. * Operates on electrical power/battery.* RS232 serial interface for computer connection. * Capacity : 0~100Kg fcm/10 N-m * Units : Kg-cm/N-m * Bottle diameter : upto 200mm * Accuracy : + 0.5% * Over load safety.* Peak hold function.* Backlite LCD display.* Calibration facility (Optional).* Storage facility for 100 data.

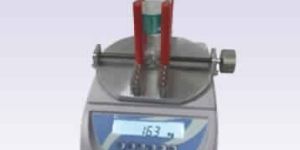

Contech bottle torque tester is used for measuring the torque required to open the cap of bottles. * Operates on electrical power/battery. * RS232 serial interface for computer connection. * Capacity : 0~100Kg fcm/10 N-m * Units : Kg-cm/N-m * Bottle diameter : upto 200mm * Accuracy : + 0.5% * Over load safety. * Peak hold function. * Backlite LCD display. * Calibration facility (Optional). * Storage facility for 100 data.

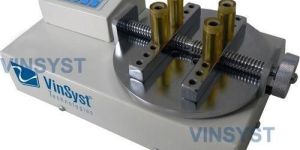

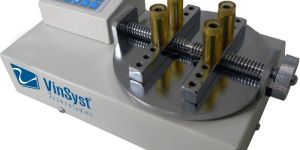

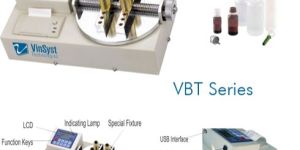

VinSyst Bottle Cap Torque Testers VBT Series are a Torque-Measuring Device specially designed to work on Bottle Caps. The exact determination, especially of the opening torque, is a Quality-Defining Factor and provides Reliable Assurance and Documentation that bottle caps have been closed with the appropriate amount of Torque. Even child-resistant caps requiring downward force during the opening operation can be tested. 1. Precise Measurement of Cap Torque. 2. Flexible Bottle Holder. 3. Universal or Custom-Made Cap Adapters. 4. Ideally Suited for Child-Resistant Closures. 5. Printing of Reports. 6. Measurement In N, kgf or lbf. 7. USB Interface. 8. Display Test Force Graph and Detailed Test Process on the Computer. 9. Saves upto 99 Groups of the Test Data.

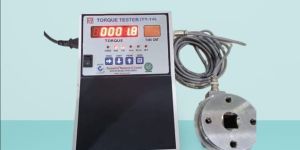

The Presto Torque Tester is a rugged, user-friendly instrument especially designed for quality testing in the PET bottle industry, catering to the beverages as well as the pharmaceutical industry. The Presto Torque Tester is a must have testing equipment for all laboratories, it is useful for examining the opening & closing torque of bottle caps used for different beverages & in pharmaceutical companies. The instrument is handy and can be carried on the shop floor as well as be placed within the laboratory. The exclusive self-regulating holding fixture can easily accommodate any shape and size of bottle with zero slip guarantees. A completely imported kit has been incorporated. It has an amazing bottlejar adjustable mechanism which can accommodate bottles jars of different diameters with ease.

Capacity: 1200 N-cm or as required Resolution: 1 N-cm Display: 2 line LCD module with backlight. Unit: N-cm, Kg-mm, lb-in Power: 7.5VDc from SMPS power supply Function: Peak, Zero, Hold Direction: Clockwise (closing torque) and Anticlockwise (opening torque). Output: RS232 optional
