CPC received from our own plant or ECA received from overseas suppliers is screened to different fractions and stored in different hoppers. The various fractions are then weighed using electronic batching system and taken in a bin. The proportions of the fractions are fixed according to the desired properties of electrode paste. The total aggregate is then preheated in sigma type mixer upto 180oC and then liquid coal tar pitch is added at 200oC and mixed. Depending on desired plasticity of Electrode paste, quantity of liquid Coal Tar is added. Coal Tar pitch is used as a binder. Specifications of Carbon Electrode Paste : Green PastePropertyUnitECA BasedCPC BasedPlasticity%As per customers requirement, typical range 30-50As per customers requirement, typical range 30-50Fixed Carbon%83 Min87 MinVolatile Matter%11-1212-13Ash%5.0 Max0.5 MaxAparent Densitygm/cc1.65 Min1.68 Min

We, along with our team members make all the payment procedures completely transparent that makes us a trustworthy name in the industry. Keeping in consideration the latest standards, we are involved in supplying only high quality Electrode Carbon Paste at reasonable prices.   Typical Characteristics of CPC Based Tamping Paste - Green Paste Volatile Matter : 12% Max Fixed Carbon : 87% Ash : 1.0% Max Plasticity : 5.15% Apparent Density : 1.55gms/cc Binder Content : 19.21%   Baked Paste At 1000 0C Apparent Density : 135gms/cc Min Volatile Matter : 12% Max Electrical Resistivity : 90 ohm-meter Max Compressive Strength : 200kg/cm2 Min Porosity : 35% Max   Typical Characteristies of Anthracite Coal Based Tamping Paste - Green Paste Volatile Matter : 11% Max Fixed Carbon : 84% Ash : 5.5% Max Plasticitiy : 5.12% Apparent Density : 1.55gms/cc Min Binder Content : 15.17%   Baked Paste At 1000 0C Apparent Density : 18 gms/cc Min Electrical Resistivity : 70 ohm. Meter Max Compressive Strength : 225 kg/cm2 Min

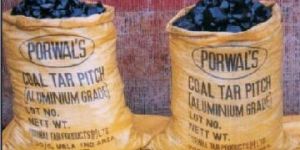

Quality Pitch manufacturer by unique Hi-Tech process of its kind in India with high Beta resin & high Cooking value to feed requirements of different Indian Industries like... Aluminum grade, Graphite grade, Electrode Grade, Foundry Flux Grade & Carbon Paste Grade. Use : Manufacture of Roof binder, Refractory Bricks, Battery Industries, Pitch Fibres Pipes, Fireworks and in blast furnaces !addle repairs etc. Packing : 50 Kg. H.D.P.E. Bags, 200 Kgs. M.S. Drums & Liquid in self heated insulated tanker.

Our company is reputed as trader in the industry and situated in the well-connected area of Tamil Nadu(India). As we are supported by wide distribution network and fastest transportation facilities, we deliver the orders on time.

Functioning smoothly from Maharashtra(India); we are capable enough of serving the clients in a shortest time possible. We are known for providing a qualitative array of products and thus our entire range is strictly checked against varied quality parameters.

we offer crc graphite assembly paste + mos2. 1. general description a universal assembly spray paste. special sprayable paste which contains a combination of the extremely pressure-resistant solid lubricants molybdenum disulphide (mos2 ) and graphite, stabilised in adhesive mineral oil. 2. features high load-carrying capacity reducing the appearance of the grooves when inserting components water-repellent good corrosion protection oxidation resistant high thermal stability (up to 650°c) very good adhesion prevents seizing prevents fretting corrosion, scuffing and stick-slip constant ratio of starting torque to initial tension smoothes out rough surfaces 3. applications mounting of longitudinal press fits, eg. for bolts and bearing seats assembly of seals and screws surface treatment of rolling and sliding bearings to improve the running-in and to extend lifetime lubrication of guides and joints with very slow sliding movement bearing lubricant for wheel bearings and kiln carts lubrication of all types of open gears running-in lubricant of new gear wheels 4. directions shake can very well till agitator ball is free apply a thin, even layer as running-in for rolling and sliding bearings, polish the applied product with a soft cloth. remove any excess. as running-in for new gear wheels : let the gears operate at a low speed and with a low load (eg. moving by hand) without the operating lubricant.then fill the system with the lubricant. 5. typical(*) product data temperature range : -30°c to +650°c load carrying capacity (four-ball welding load) (din 51350) : 7.000 n flash point of aerosol : < 0°c

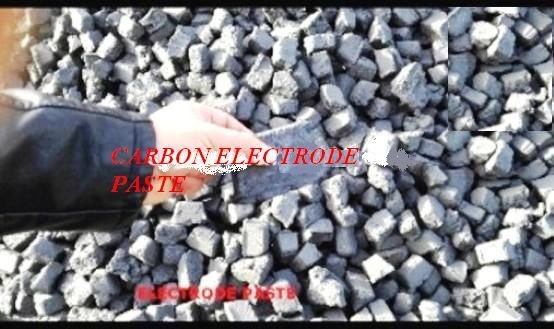

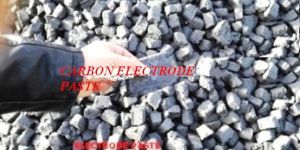

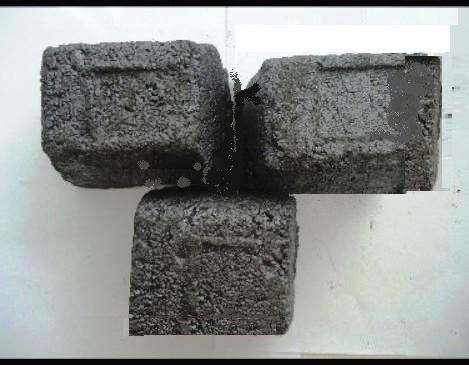

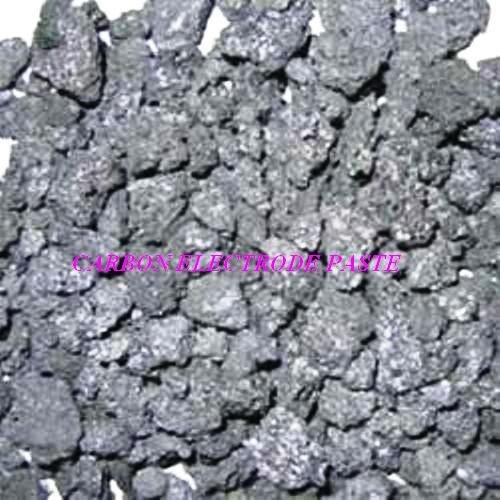

we are amongst the well reputed manufacturers, exporters and suppliers of electrode carbon paste. The electrode carbon paste is a soderberg paste and there has been a constant increase in their demand in the market. The electrode carbon paste can be availed at market leading prices from us. processed from a mix of a specific amount of calcined petroleum coke (cpc) and / or electrically calcined anthracite coal (eca), saturated with selective coal tar pitch binder at a definite temperature. used in submerged arc furnaces for production of various ferro alloys and calcium carbide manufacturing process the first step in the manufacture of electrode carbon paste is screening the calcined petroleum coke (cpc) and / or (eca) to different fractions and pulverizing and storing it separately. Following this, pre-determined quantities of different fractions are weighed and transferred to a sigma mixer which is heated to about 150ºc by thermic fluid. The required quantity of binder is also weighed separately and added to the mixer. the mixing is continued for a pre-determined period known as the mixing cycle. At the end of the mixing cycle, the mixed material is dumped on the mould box and cast into blocks for shipment. quality specification at the customer's end the paste is fed in the upper part of the electrode. As the paste moves downwards in the electrode it softens and melts forming the shape of the electrode casing. Flowability of carbon paste is essential for proper operation of the electrode. It is important that the paste flows at a reasonable temperature and fills the casing of the electrode, maintaining a consistent mixture of components. The paste then gets baked to a solid mass as it moves down and is capable of passing the required current to the furnace charge. The plasticity of paste, the measure of its flowability is controlled in the mixer by adjusting the binder content or percentage of coke fines. The lower baked part of the electrode is the final electrode product. The physical properties of this paste are of vital importance to ensure proper electrode operation with out breakages. typical characteristics (green paste) volatile matter 15% maxfixed carbon 84% minash 1.0% maxplasticity45 - 55%apparent density1.55 gms/cc minbinder content22 - 24% typical characteristics (baked paste at 1000deg centigrade) apparent density1.35 gms/cc minelectrical resistivity90 ohm-meter maxcompressive strength150 kg/cm2 minporosity35% max
