Applications Gigabit Ethernet ATM 622 or higher Broadband video (77 channels, 550MHz) Electricoal & Transmission Characteristics DC Resistance Unbalanced (percent), max. : 5 Pair-to-Ground Capacitance Unbalanced (pF 100 meters), Max : 330 Impedance (ohms) : 100 ± 15% Attenuation-to-Crosstalk Ratio At 100MHz: 24.4dBmin. At 155MHz: 16.2dBmin. At 200MHz: 10.0dBmin.

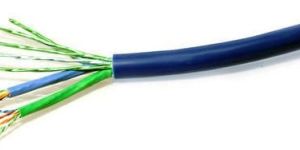

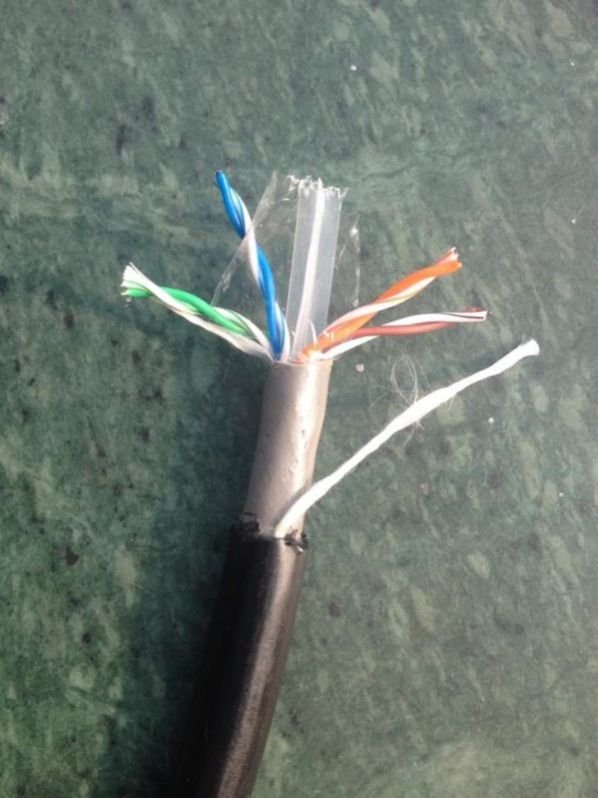

Copper: Annealed electrolytic copper conductor with diameter of 0.4mm & 0.5 mm as per IEC28 and ASTM B3. Insulation: Conductor insulation is Solid HDPE insulation. Cable Core: Two insulated conductors are twisted together to form a pair with uniform specific lay length .Cable is assembled by stranding of 5 Pairs, 10 pairs & 20pairs basic subunit. Core wrapping: A non hygroscopic and dielectric polyester film is applied helically over the cable core. Sheath: PVC / FRLS PVC / PE Sheath is extruded over the cable core. Option of Water Blocking tape in place of Polyester & Yarns is also available. Option of Aerial Fig-8, CAT - 3 cable upto 100 Pairs for Aerial applications is also available.

In order to cater to requirements of clients, we are offering Cat5 Cable to them. Boasting of excellent insulation and electrical resistance property, this Cat5 Cable is easy to install and attach to different other types of cables available. It is ideally suited for horizontal installation in local area network or LANs and is available in standard sizes and customized options.

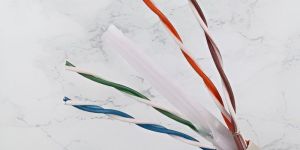

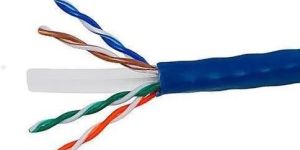

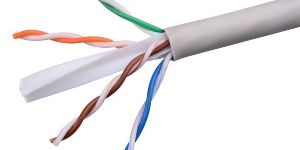

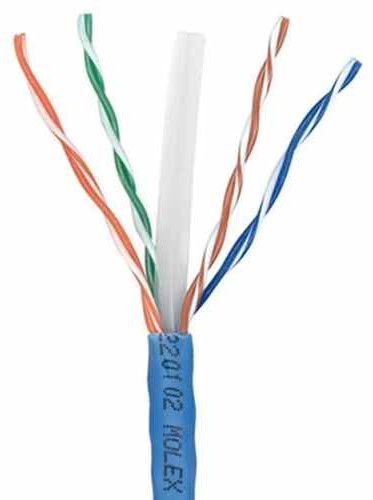

Category 6 cable, commonly referred to as cat 6, is a standardized twisted pair cable for ethernet and other network physical layers that is backward compatible with the category 55e and category 3 cable standards.

Cat5 cable is broken into two separate categories: Cat5 and Cat5E cables. Cat5 has become obsolete in recent years, due to its limitations compared to Cat5E and Cat6 cables. Although the Cat5 cable can handle up to 10/100 Mbps at a 100MHz bandwidth (which was once considered quite efficient), the newer versions of Cat cables are significantly faster. Category 5 cable is used in structured cabling for computer networks such as Ethernet over twisted pair. The cable standard provides performance of up to 100 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet).   Features   Tested to 100 MHz Applicable to most LAN topologies, suitable for 4 and 16 Mbps UTP Token Ring Systems Meets and exceeds IEEE 802.3 10 BASE-T Ethernet, NEMA “Low-loss extended frequency”, EIA/TIA 568 Commercial building wiring standard. UL NEC CM (non-plenum) or CMP (plenum) rated, CSA PCC FT4 or FT6 rated.

Gigabit Ethernet ATM 622 or higher Broadband video (77 channels, 550MHz) DC Resistance Unbalanced (percent), max. Pair-to-Ground Capacitance Unbalanced (pF100 meters), Max Impedance (ohms)

AMP Category 6 cables exceed 2nd Edition and proposed TIA requirements for Category 6 performance. They comply with all of the performance requirements for current and proposed applications such as Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TP-PMD, ISDN, analog (broadband, baseband) and digital video and analog and digital (VoIP) voice. The cables are available in PVC and Low Smoke Zero Halogen (LSZH) and packaged Reel in a Box and on wooden reels.

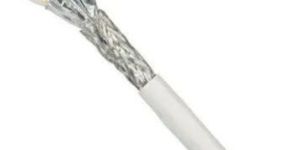

LAN (local area network) cable or Ethernet cable includes cat5e, cat6, and cat7 twisted pair cable. A LAN is a network that connects devices such as computers or printers to each other and then will connect out to the internet or phone lines via a WAN (wide area network). The cable that connects all of the devices in a LAN today is Ethernet cable. This cable comes in cat5e, cat6, and cat7; each is progressively faster and a cleaner connection than its predecessor but cat6 Ethernet cable is the most common. The Ethernet cable wiring consists of 4 pairs: whiteorange and orange, whitegreen and green, whiteblue and blue, and whitebrown and brown. Each of these pairs of wire is twisted onto each other and the four pairs are also twisted. The tighter the twist on the cable the cleaner the signal is as this reduces crosstalk or EMI (electro-magnetic-interference).

We at Datafield manufacture UTP (Unshielded Twisted Pair) CAT5, CAT5e & CAT6 Cables. UTP Cables are commonly used in Computer (computer network cable ethernet cable) and telephone networks. We supply the UTP cables alone or with the modular plugs crimped UTP Cords (Cable with RJ45 Connectors). With inhouse PVC compounding unit and cable assembly, we manufacture best quality UTP cables meeting the standard specifications.

Category 6a performs at improved specifications, in particular in the area of alien crosstalk as compared to Cat 6 UTP (unshielded twisted pair), which exhibited high alien noise in high frequencies.   1. Conductor: Stranded Bare Copper (7 x 32 AWG) 2. Insulation: HDPE (CMI-75E)Nominal Wall Thickness: 0.178mm Min. Thickness: 0.153mm 3. Color Code: Pair 1: Blue & White/Blue Pair 2: Orange & White/Orange Pair 3: Green & White/Green Pair 4: Brown & White/Brown Packing - 305 mts
