Chamfering Machine Dealers

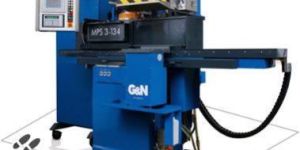

Silicon Ingot Ductile polish-grinding & chamfering   MPS 3-134 High precision surface and chamfer grinding machine to finish mono- and multi-crystalline and UMG silicon bricks for solar wafer.   Detailed Specs Silicon Ingot Ductile polish-grinding & chamfering MPS 3-134 High precision surface and chamfer grinding machine to finish mono- and multi-crystalline and UMG silicon bricks for solar wafer. – Ductile polish-grinding method – 50% Si wafer breakage reduction – Prepared for in-line-system (robot-loading) – Twin-spindle ® grinding concept for rough and fine / finish grinding of the surfaces – Second grinding spindle for simultaneously chamfering the edges of the brick – Grinding of the surfaces and the edges in the same clamping position (no rechucking / handling in between) – Automatic handling (loading, unloading, turning) of the brick – Automatic grinding progress with integrated measuringWAFER BREAKAGE REDUCTION – Ductile polish grinding for solar bricks helps to reduce wafer breakage significantly

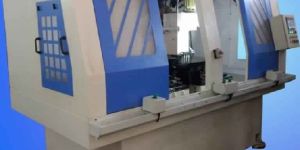

This machine chamfers the bore on connecting rod’s small end. The client used to do this machining operation on an VMC, which was a time consuming process. In order to reduce the time and deliver an output of 4 component every 20 seconds, we proposed a pendulum type loading unloading concept. Basic features and sequence of operation is given below: FEATURES & SPECS: Rigid, stress relieved and fabricated structural. Atop the base, two fixtures are mounted side by side along the length. Each fixture has hydraulic clamping and can hold 4 components at a time. Adjacent to these fixtures, a servo driven longitudinal slide is mounted with approximate slide stroke of 600mm. Atop this slide a chamfering head with servo driven vertical movement is mounted. The chamfering head will be mounted with a chamfer tool. The chamfering head, at start of each cycle, will be positioned at the center, in between the fixtures. The machine will be provided with a recirculating coolant system. The machine will be provided with complete machine enclosure. LM guides will be used for slideways. Machine will be provided with centralized lubrication system for sliding surfaces. Machine will be provided with touch panel HMI, for easy parameter setting of feed and positions. SEQUENCE OF OPERATION: Load the component onto one of the fixture and press auto-cycle. The components at 1st fixture get clamped. The longitudinal slide moves the unit head top the 1st component of the 1st fixtures and vertical head plunges the chamfer head into the component to chamfer. The chamfer head then retracts and moves to the next component and repeats the above steps for the rest of the component. While chamfering is going on at the 1st fixture, the operator has to load components onto 2nd Now after chamfering components at 1st fixture, the chamfer head returns home and stops inbetween two fixtures. The operator has to press-autocycle. Steps 2 to 5 is now repeated at 2nd fixture, while the operator unloads chamfered component and loads new component at 1st

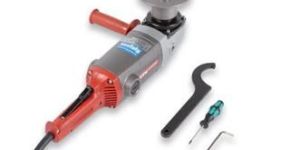

Assfalg GmbH is company in Germany, founded in 1932, now in 4th Generation, and offer solutions in Chamfering, Deburring or edge bevelling. JITAMITRA Electro Engg Pvt Ltd is part of established group ZEN, having manufacturing units at Ahmednagar & Marketing HO at Pune alongwith Business Associate Network spread across INDIA.

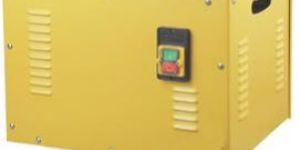

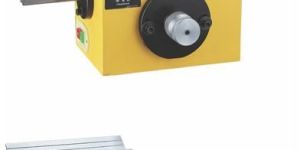

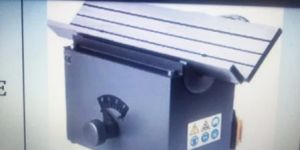

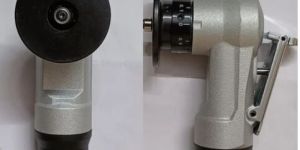

It’s suitable for reqular and irreqular parts of mechanism or mould.The angle of straight line part can be adjust from 15 degree to 45 degree. It’s easy ,quick to change the cutter, no need to clamp,easy operate perfect chamfering,easy adjust, and economic,suitable for irreqular parts of mechanisms and mould. The angle of straight line part can be adjust from 15 degree to 45 degree. It can instead the CNC maching center and general-purpose machine tools,which can not chamfer. It is convient, fast and accurate and the best choice for chamfering.

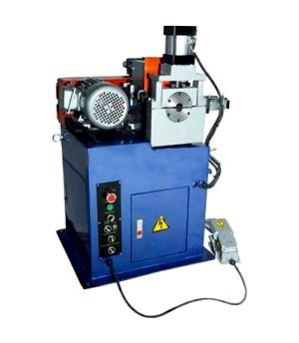

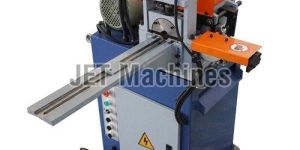

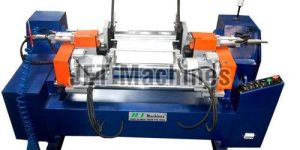

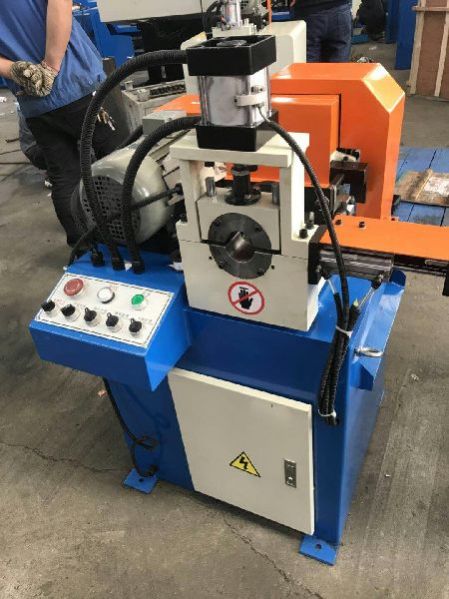

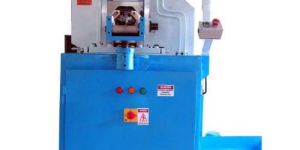

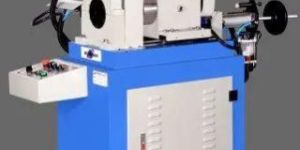

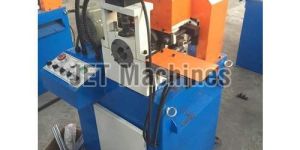

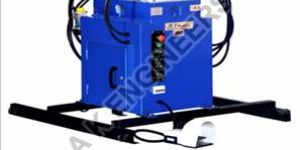

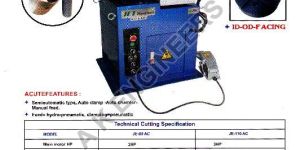

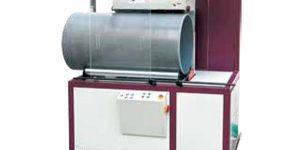

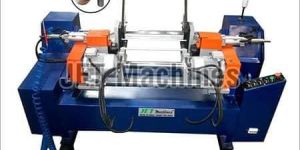

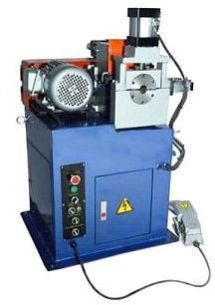

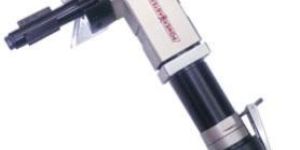

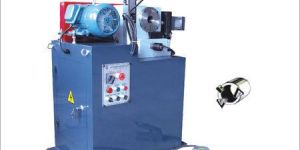

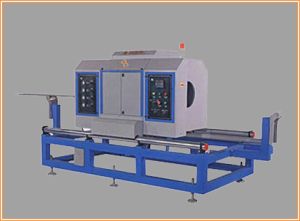

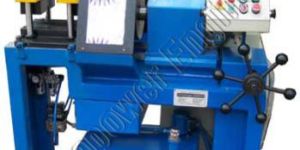

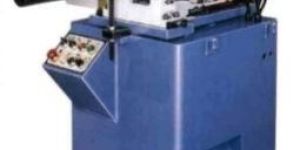

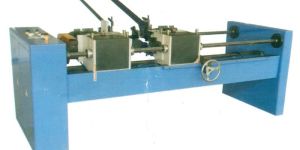

We are engaged in the supply of very efficient and reliable Semi-Automatic Pipe Chamfering Machine. Semi-Automatic Pipe Chamfering Machine provided by us is helpful in increasing productivity and making manufacturing processes more convenient. The design of Semi-Automatic Pipe Chamfering Machine provided by us is engineered according to the demands of the market. We provide Semi-Automatic Pipe Chamfering Machine at highly attractive prices. Acute Features Semiautomatic type, auto clamp – Auto chamfer – Manual feed. Feed = Hydro – pneumatic, clamping = pneumatic OD = ID = Facing * Any combination

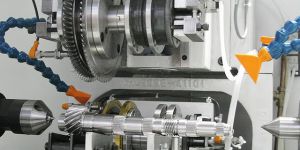

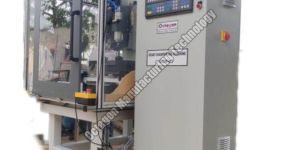

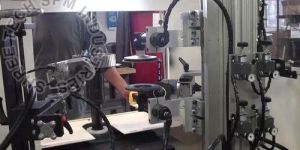

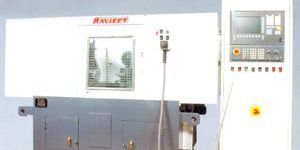

Gear Tooth Chamfering Machine AC variable speed Motor coupled to turntable with 200mm dia capacityself-centering 3 jaw with chuck. Single Chamfering Head Having pneumatic grinder with abrasive wheel. Electonic controller for auto stopping after preset turntable revolutions. Retraction of Chamfering Head on completion of auto cycle.

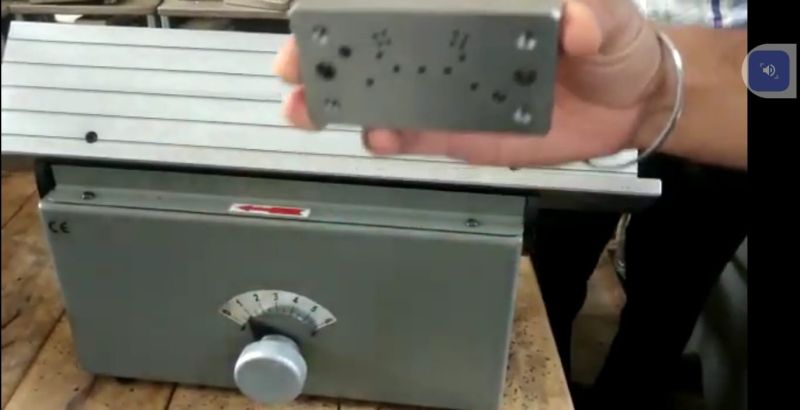

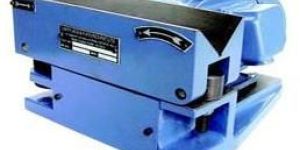

The company is a well-known chamfering machine manufacturer, exporter, and supplier in india. The chamfering machine, which we offer, is used for chamfering the square and rectangular components. The chamfering machine can be availed from us at the most competitive prices. sizes : chamfering machine, other than 450, is available on request caters to automobile industryengineering industrypressing shopspressing tool industries description this is small table - top chamfering machine for 45o chamfers from 0 to 2.5 mm. The cutter is a throwaway. Carbide inserts type facilitating quick change of inserts. The guide track is hardened.
