CNC Milling Machine Dealers

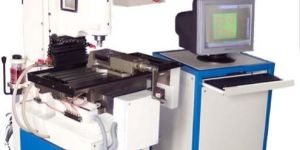

Sourced from trusted vendor, this CNC Trainer Milling Machine is the best for milling activities. This CNC Trainer Milling Machine is highly demanded in construction activities for effective milling and for fast results. CNC Trainer Milling Machine offered by us is precision engineered to offer high performance. Specifications max drilling capacity 20mm max end milling capacity 16mm size of work table(LxW) 800x240mm T slot 16 x 3 x60mm Max loading weight of work table 60kg X & Y & Z Axis 420mm290mm Distance between spindle nose and table 50 -450mm Distance between spindle center and column 297mm Spinlde taper ISO30/BT30 Max spindle speed 4000 or 6000rpm spindle motor power 1.5kw Feeding motor power x axis 1kw y axis 1kw z axis 1kw Rapid feeding speed X,Y,Z axis 6m/min Feding speed 0-2000mm/min Min.setting unit 0.01mm Max size of tool 60x 175mm Loosing and clamping way for tool manually Max loading weight of tool 3.5kg Net weight 735kg Packing size 1220x1380x1650mm

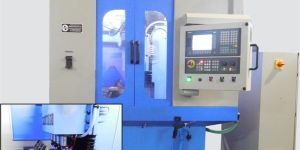

used a spm with single spindle and 2 vmc. component output on spm was one component every 45 seconds component output on vmc would be 10 components every 7.5 minutes apart from manual loading, unloading and clamping time. features and specs: heavily ribbed, rigid, fabricated & stress relieved base. a top the base a two axis slide system is mounted with servo driven axes on the two axis slide, a fixture is mounted, which can house 4 components at a time. adjacent to the fixture, a vertical column with vertical servo driven slide is mounted. on the servo driven slide, a 4 spindle milling head is mounted. Each spindle is mounted with a ø4mm end mill. all the sliding surfaces made of lm guides and blocks. Drive is through servo motor connected to ballscrew through servo reducer and couplings. recirculating coolant system is provided for easy chip flushing, improving tool life & for better finish. hydraulic power packs and cylinders of our make. complete machine enclosure is provided to contain the coolant and chips. siemens sinumerik 808d advanced cnc controller is provided for machine controls. sequence of operation: load the job onto the fixture and press auto-cycle. The job gets clamped the milling head moves to mill the profile slot with the help of two axis servo slide system. after one pass the vertical slide lowers the milling head and another pass is made. all slides move to home and job gets de-clamped. final conclusion: vmc: component setup time is high. machining time is high. due to manual clamping, operation is prone to operator’s fatigue, which may lead to loss in efficiency of production. an expensive vmc is used for low production output four spindle cnc profile milling spm: no need of skilled operator. Cost of skilled operators is reduced. uses 4 spindles for 4 components at a time. the total milling time is 35 seconds, for 4 components instead of 7.5 minutes for 10 components on a vmc. Efficiency is more than 3.5 times/ 350%. Increases the productivity, increases profitability, increases the scrap generation rate. due to cnc controls this has a flexibility of a vmc, but has the production capacity of spm

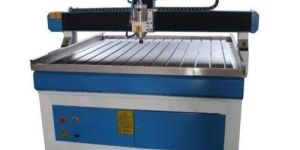

Buy CNC Milling Machine made using top-grade raw materials at competitive prices form us. We are among the best Suppliers in town. The quality analysis system, we have, is headed by a pool of professional quality experts having rich domain experience. Our CNC Milling Machine requires 220V for operation and weighs 300 kg.

We are a renowned Manufacturer, Supplier, Exporter and Importer of CNC Milling Machines. Our CNC Milling Machines have programming supported by cycles and contours. Features Variable speedHigh concentricity precision due to taper roller bearingsLinear Motion / Dovetail, slide ways, provides for highest stability and optimum precisionAutomatic cycle̢۪s modePrice-efficient and stable valueCan be learned in short timeRapid, simple setting up of the tools and work pieceProgramming supported by cycles and contoursSimple drive link-up with step-by-step techniqueComplete unit with little dimensions

Gantry Welding System type WA 1000 / WA 1500, BM-25 Plate Bevelling Machin

Providing CNC Milling Job Work. We are a leading Supplier & Manufacturer of Plastic Parts such as Textile Machine Plastic Components, Plastic Machinery Parts, Plastic Lens Covers, Industrial Electronic Plastic Parts, Plastic Electrical Parts, Textile Plastic Machine Parts and many more items from India.   Features       Quality tested Strict supervision Expert workmanship Fine engineering
