CNC Turning Machine Dealers

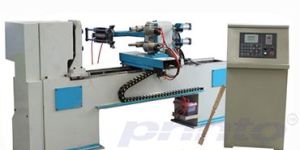

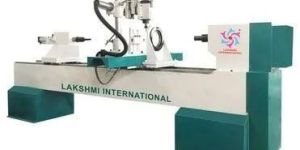

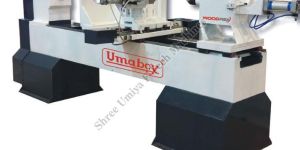

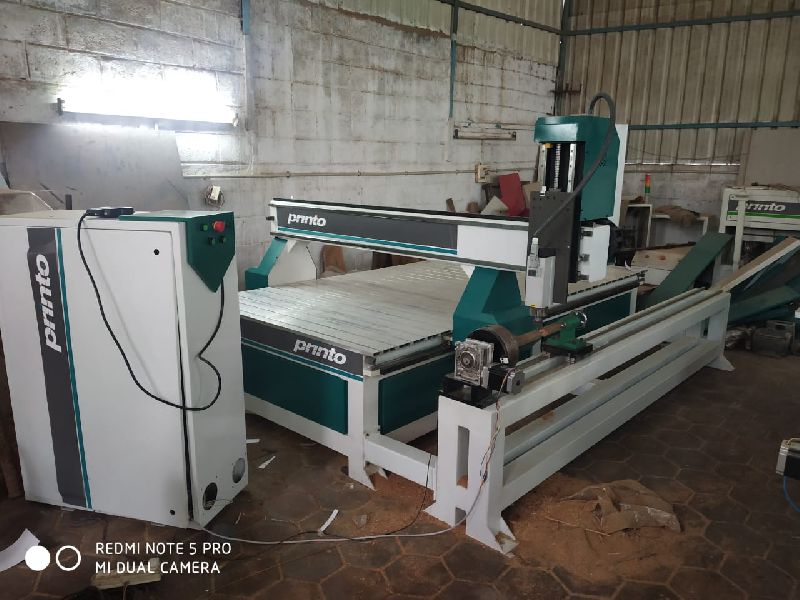

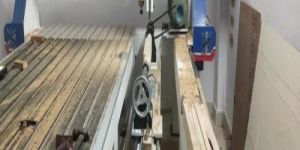

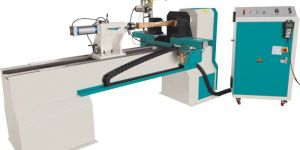

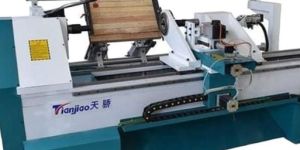

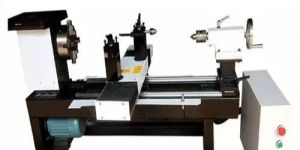

The machines feature thick-walled seamlessly welded steel lathe bed that is exposed to vibration aging for making it stress and vibration free. Dust-free sandblasting technology is used for its surface treatment which helps to eliminate internal stress rigidity. This makes the machines perfectly strong, durable and ideal for long-term use without any signs of deformation. The machines can be used extensively for wood turning as well as wooden cylinder engraving functions for creating stair railing and table legs, Wooden Handles suitable to Farming and Gardening Tools.

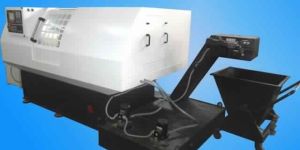

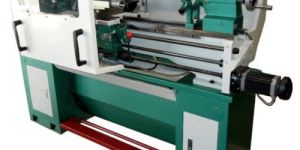

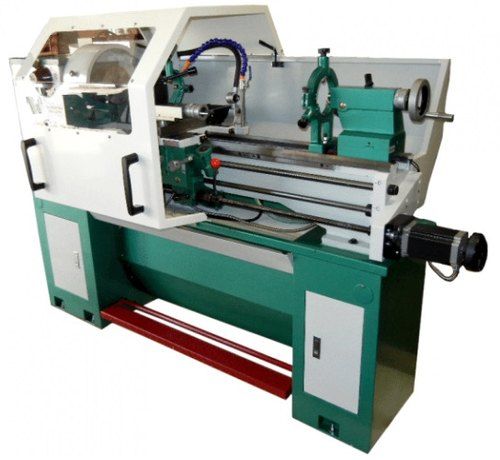

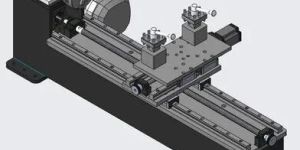

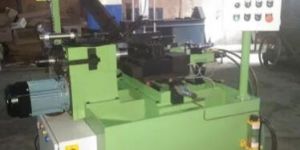

Customer’s Initial Machining Process and problems faced: Used to outsource the job to a vendor. The vendor used hydro-copying attachment to make the tapers. The finish obtained was not good & buffing had to be done. The vendor was not able to cope up to the production requirement. The customer tried to turn on turning centre, but due to job not having centers, job clamping became difficult & each canned cycle would take around 20-30 minutes. Feature’s and Specs: Lathe type configuration. Heavily ribbed, rigid, fabricated & stress relieved base. Carriage slide with a stroke of 500 mm. The carriage mounted on the horizontal slide consists of cross slide having stroke of 150 mm. A tool post is mounted on the cross slide. Both the cross slide & horizontal slide is driven by servo motor through Ball screw & ball nut arrangement for multi axes interpolation and for infinitely variable feed ranges. Head stock mounted on LH of the base is driven by motor through timer belt and timer pulley arrangement routed through Vector VFD for stepless speed variation from 750 to 1500 RPM. A hydraulically actuated precision self centering 3 jaw chuck is mounted for easy job clamping. Tail stock consists of pair of roller & hydraulic cylinder, so that when hydraulic cylinder is actuated and pressed down on the job, automatic centering is observed. Appropriate supports provided to avoid bend on job during cutting Power-pack of our own make. Chip Conveyor to facilitate easy chip disposal. Coolant System for heat dissipation & fine surface finish. Completely enclosed guard to protect from chips and coolant splash. Sequence of Operation: Load job onto the chuck and press auto cycle. The 3 jaw chuck clamps and head stock turns on. The single point cutting tool rapid traverse from home to cutting position. The required tapers are turned on the job by 2 axis interpolation Job unclamps. Unload job.

Manufactured as per Customers drawing and specification Made using in-house CNC turning & Grinding and conventional boring machines Manufactured in specifided casting grade Outer diameter is coated with Tungsten Carbide Coating is ground to mirror finish for lowest wear and abrasion

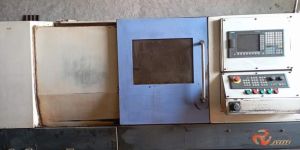

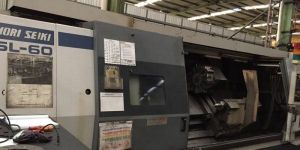

Maximum Machining Diameter: 660 mm Swing Over Bed:770 mm Maximum Shaft Length: 3500 mm Maximum Bar Capacity: 120 mm Number of Turret Position : 12 ( 6 Rotary tools) Control: Fanuc MF-T6 Equipped With Chip Conveyor,Servo Voltage Stabilizer and Manuals Machine has no faults and it is under power at the moment.

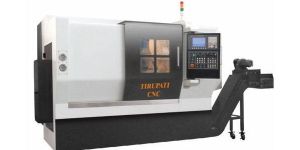

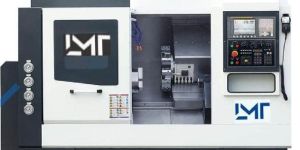

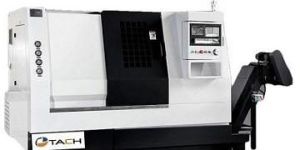

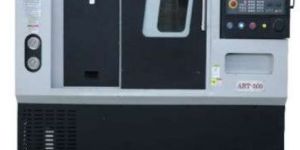

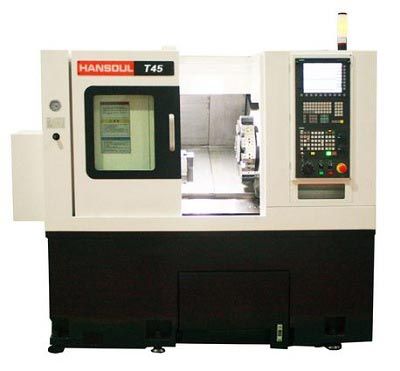

LM Guide ways for fast and accurate positioning of slides. 45 degree slant angle for better chip disposal. 8 station bi-directional Hydraulic turret for superior cutting performance Plug and start concept. Compact, less floor space with all items like hydraulic power pack, electrical cabinet etc machine mounted. Independent Coolant tank and chip tray for ease in cleaning. Trouble free servo motors directly coupled to ball screws through servo couplings

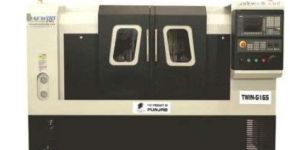

Twin G 165 is a double spindle CNC Turning Machine that will double your profits. The dual spindle technology ensures the machine can be loaded while one component is in processes. This increases productivity drastically as the load-unloading time is zero. The machine uses 2 A2-5 type spindles. It gives linear tooling with up to 10 tools. The Twin series was created to increase the productivity drastically on the shop floor. The two spindles working in tandem increase the productivity by 30% to 40%. This makes the machine more profitable. The compact size of the machine and its simple elegant design means that it can fit into small spaces and works with negligible overheads. The machine is easy to operate and it provides the technical thrust that Indian workshops need to achieve optimum productivity.

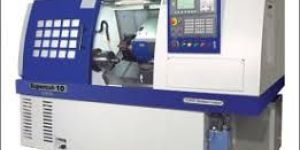

Manufacture CNC Turning and Turnmill Centers to PMT Machines in India. The Traub CNC Turning Lathe model TND 360 and CNC Turnmill Center Model TNS 4260 were the machines that were successfully manufactured and sold in India. a progressive leap forward by collaborating with Pittler, Germany for the manufacturing of the CNC Twin Spindle Machine Model, Pittler 'PETRA' Series. In 2000 PMT launched the new version of the Traub CNC Lathes now famous as the SUPERCUT CNC Turning Series. Masterpieces that continue in the long-standing traditions of the company, delivering on the parameters of consistency of performance, precision of engineering and reliability of quality.

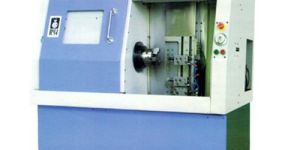

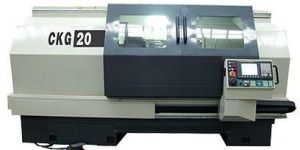

Big Flat Bed CNC Turning Center suitable for large chucker jobs, Machine available with Pneumatic and hydraulic Clamping device, Max. Swing over Bed is 500 mm,Machine can automatically process the inside and outside cylinder surface, cone surface etc
