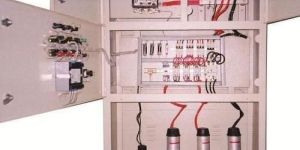

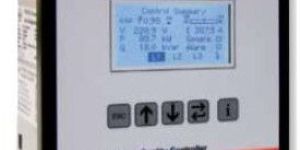

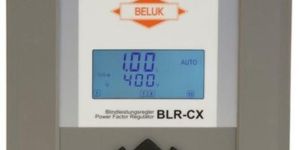

Features : Tripping with alarm Completely automatic 4 quadrant regulation Microprocessor based No over compensation during low load Continuous monitoring for defective capacitor stages   Power Factor Control Relay- FRAKO make power factor control relays are micro-processor based & advanced features with harmonic display. This can be interfaced with all types of communication protocols. Fully automatic microprocessor based and simple commissioning. Patented control characteristic - no overcompensation during low load. Measurement and monitoring of harmonics. Over current trip function - protection for capacitors. Four-quadrant regulation. Continuous monitoring for defective capacitor stages through self adjustment of control program. Zero voltage and zero current tripping with alarm signal. Manual / Automatic operation with ability to switch each individual capacitor stage ON or OFF.

Designed using advanced technology, the AVF Control Relay is offered by us to clients across India. The AVF Control Relay that we offer is made up of advanced technology and top-grade materials & components, making it widely demanded by the clients. These AVF Control Relays are used in varied industries for protection of 3 phase power supply working equipment against over volt, over frequency, over current, under volt, under frequency, under volt, reserve phasing and single phasing. Salient Features Of Our AVF Control Relay Based on DSP TechnologyCT Ratio ProgrammableTwo no, of Potential Free contactRS 485 Port for computer interfacingEach unit is digital addressablePassword protection setup parameterIndication-16 character, 2 lines LCDEasy to program with front panel keyDisplay of volt, current, frequency, and all set limit on LCD Our AVF Control Relay Is Useful For Control PanelMotor control CentersPower distribution panelPlant Mentoring and control systemGenets panel original equipment manufacturing (OEM) Technical Specifications Sense Voltage : R.Y.B. PhaseSense Current : R.Y.B. PhaseFrequency : 50/60 Hz  +- 3%Panel Mounting : 96*96 mmAccuracy : Class 1Dimensions : LWD (96x6x110 MM)

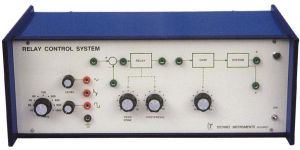

We offer Relay Control System use full for control labs. In the present unit a simulated second order system is controlled by an electronic relay. Apart from a study of the relay characteristics the experiment introduces the concept of Describing Function. Finally the phase plane method of analysis is covered in detail where the switching trajectories can be displayed on an X-Y oscilloscope. >>Highlights System with electronic relay Adjustable hysteresis and dead zone Display phase plane diagram on CRO Stability study by describing function method >>Experiments Study of the relay characteristics and display of the same on CRO for different values of hysteresis and dead zones. Study of the effect of hysteresis on system stability. Graphical analysis to predict sustained oscillations. Phase plane analysis of relay control system for various values of Hysteresis and Dead Zones. View the trajectory for different hysteresis and dead zone. >>Features and Specifications Simulated electronic relay using high speed IC’s Simulated 2nd order linear plant. Facility for displaying x and x. signals Dead zone variable from 0-600mV Hysteresis variable from 0-500mV Built-in signal sources – Sine and Square Amplitude: 0-1V (min.) Variable Frequency: 10, 20, 40, 80, 100, 200, 400, 800 and 1000Hz IC regulated internal power supplies Literature and patch cords included Accessory - a dual beam CRO The experiment is complete in all respect, except a CRO.

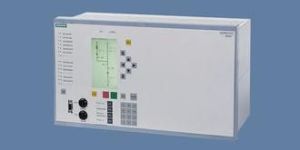

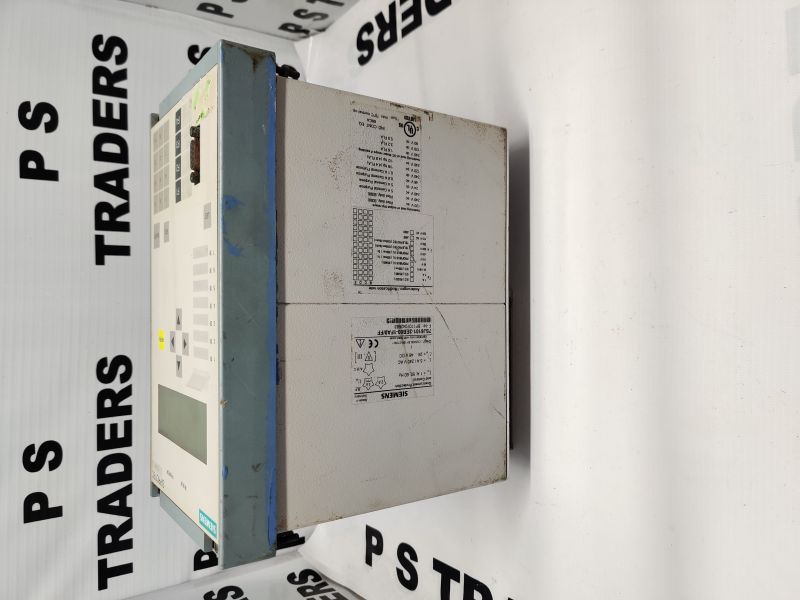

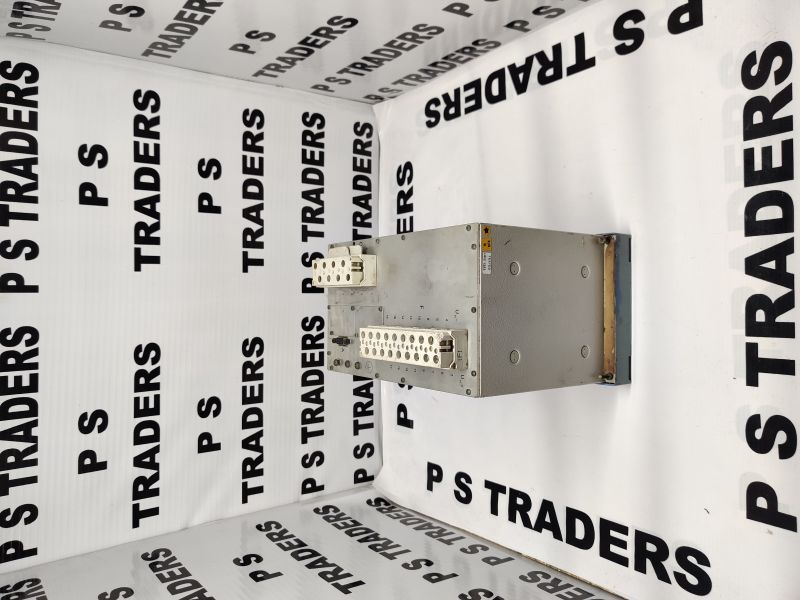

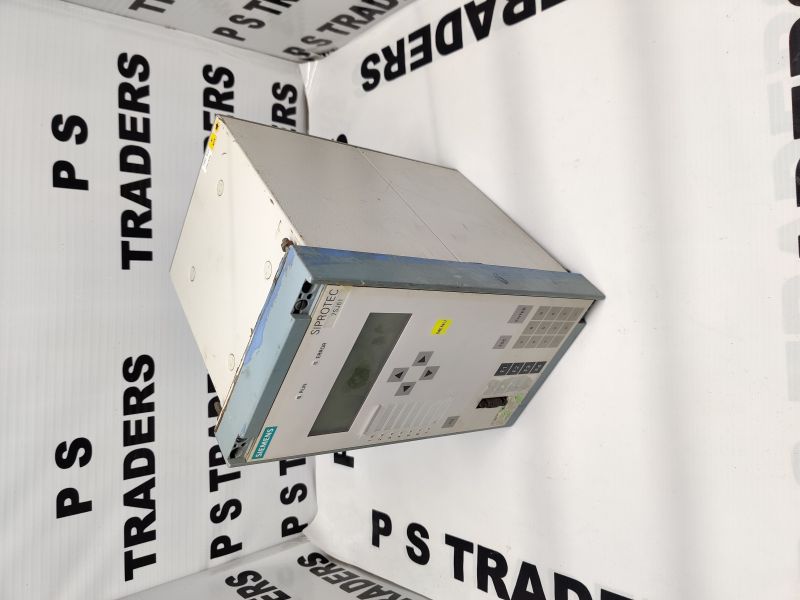

the 6md66 high-voltage bay control unit is the control unit for high voltage bays from the siprotec 4 relay series. Because of its integrated functions, it is an optimum, low-cost solution for high-voltage switch bays. The 6md66 high-voltage bay controller unit also has the same design (look and feel) as the other protection and combined units of the siprotec 4 relay series. Configuration is performed in a standardised way with the easy-to-use digsi 4 configuration tool.for operation, a large graphic display with a keyboard is available. The important operating actions are performed in a simple and intuitive way, e.g. Alarm list display or switch gear control. The operator panel can be mounted separately from the unit, if required. Thus, flexibility with regard to the mounting position of the unit is ensured. Integrated key-operated switches control the switching authority and authorisation for switching without interlocking. High-accuracy measurement ( 0.5 %) for voltage, current and calculated values p and q are another feature of the unit.   application integrated synchro-check for synchronized closing of the circuit-breaker breaker-related protection functions (breaker failure 50bf, auto-reclosure 79) automation can be configured easily by graphic means with cfc flexible, powerful measured-value processing connection for 4 voltage transformers, 3 current transformers, two 20 ma transducers volume of signals for high voltage up to 14 1 ½-pole circuit-breakers can be operated up to 11 2-pole switching devices can be operated up to 65 indication inputs, up to 45 command relays

Electrical device control ESIM252 allows to expand existing security panels and systems with GSM capabilities. Adds SMS and auto dial alerts a call is dialled and an SMS message is sent to the programed phone numbers. ESIM252 allows prerecord 10 different voice messages up to 15 sec. length each for different user and situation. It is possible to remotely control electric equipment by a call too. Easy configuration ESIM252 supports configuration through USB and SMS. There is an Eldes configuration tool for quick and easy setup. Possibility to add users and change settings later with simple short messages too. Comfortably access event logs through the Internet. Supports non GSM control panels ESIM252 can add GSM and GPRS functionality to almost any security control panel. Expand system’s capabilities with SMS alerts, automatic phone calls and Internet event logs. ESIM252 GSM has 5 inputs and 2 outputs. Business flexibility Up to 5 users can use one ESIM252 GSM system. It is possible to prerecord up to 10 auto dial messages. Configure ESIM252 so that different users would get alerts only important to them or about devices they are responsible for. Choose between auto call or SMS, maybe some will prefer to receive both + status alerts about auto reboots and device faults. For example: get informed when food vending machine is full of coins by getting an SMS, this will help to avoid unnecessary checking, or monitor ventilation system in your shopping center with accuracy. The system reports about electronic devices failures too.

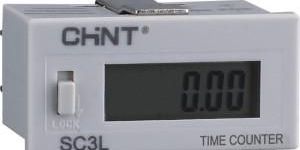

SC3L microminiature electronic time accumulator has built-in lithium battery and small overall dimensions and is used to provide time accumulation in various types of circuits.

The relays is an important primary controlelement in a control system which is beingcontrolled by an electrical signal givesadvantage of cost reduction. These systemdeliberately introduced as on - off control.Thisset up is designed to study of such relay controlsystem characteristics. The set up hassimulated relay with simulated process.Therelay : The relay controller system is representin blocks upon the panel

We offer Relay Control System use full for control labs. In the present unit a simulated second order system is controlled by an electronic relay. Apart from a study of the relay characteristics the experiment introduces the concept of Describing Function. Finally the phase plane method of analysis is covered in detail where the switching trajectories can be displayed on an X-Y oscilloscope. Highlights >>System with electronic relay >>Adjustable hysteresis and dead zone >>Display phase plane diagram on CRO >>Stability study by describing function method Experiments >>Study of the relay characteristics and display of the same on CRO for different values of hysteresis and dead zones. >>Study of the effect of hysteresis on system stability. Graphical analysis to predict sustained oscillations. >>Phase plane analysis of relay control system for various values of Hysteresis and Dead Zones. View the trajectory for different hysteresis and dead zone. Features and Specifications >>Simulated electronic relay using high speed IC's >>Simulated 2nd order linear plant. Facility for displaying x and x. signals >>Dead zone variable from 0-600mV >>Hysteresis variable from 0-500mV >>Built-in signal sources – Sine and Square Amplitude: 0-1V (min.) Variable Frequency: 10, 20, 40, 80, 100, 200, 400, 800 and 1000Hz >>IC regulated internal power supplies >>Literature and patch cords included >>Accessory - a dual beam CRO The experiment is complete in all respect, except a CRO.

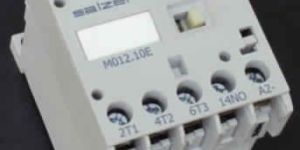

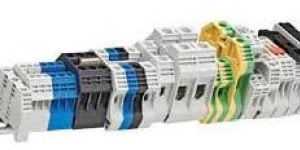

In stock and ready for immediate shipment, contactors are suitable for a variety of applications like motor control, heating and ventilating, air conditioning, pumping, lifting equipment, lighting, and process power. This Electrical Control Relay is perfect for rugged industrial applications, T-Line and F-Range electrical contractors meet the requirements of steel mills, cement mills, mines, rock quarries, furnaces, cranes, and hoists. Definite purpose contactors are used in industrial electrical equipment including HVAC, refrigeration, and food processing.

Contact protection relays are used in type 821 contact devices. They increase the switching reliability and switching capacity of electromechanical contact devices and lower their contact voltage. Undesired switching operations of contact devices caused by vibrations are significantly reduced by a drop-out delay of 0.5 sec. On the side of the contact they operate with a lower control voltage, however, on the output side they can be highly loaded. Contact protection relays consist of a power supply unit, control unit, switching amplifier and relay output. The contacts are supplied by a control unit with 35 to 40 V clocked DC (i.e. only every hundredth switching occurs under voltage). This enables the optimum contact protection and switching reliability for millions of switching cycles.

Micro controller technology. Wide range of auxiliary supply: 7 V to 35Vdc. Withstands a dip to OV of auxiliary supply for second. Flush mounting Alphanumeric LCD display with keypad for ease of operation. Display and supervision of three phase mains voltages for UV, OV & unbalance.

To furnish the diverse requirements of our clients in the best possible manner we are involved in offering an extensive range of Electric Control Relay.

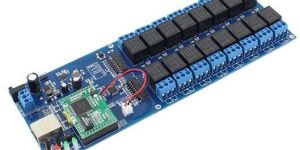

TCP interface, remote control switch. 16 channel normally open/closed relay output. Support password authentication for safe control. 3 channel timing switch function in each output. Restore factory settings function.   USR-R16-T is a 16 channel break controller. Direct connect control, local LAN control, and remote control are available for your real time control and timing control. Lonhand software,which is the control software of USR-R16-T, supports five platforms from Windows,MAC,IOS,Android to Webpage.So users can easily realize remote control.

Welcome to the RS Components range of Control Relays. If you're looking to monitor temperature, voltage, current or frequency, you'll find the products within Monitoring Relays. For all of your Signal Conditioning and Conversion requirements, visit our Signal Conditioning range.
