Cup Locks Dealers

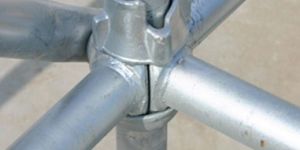

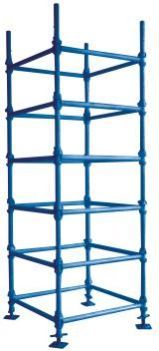

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding. Cup lock Scaffolding for variety of applications just like , Slab, Façade ,Any work of Outer side of building & Plastering Work , Support wall formwork ,demolition and maintenance projects throughout the globe. Features: Cup lock systems –Erect easy to stand –say no to nuts and bolts or wedges Just a simple locking Top cup allows locking and resists sabotage at each node point on the standards enables connection of the ends of up to four members in one locking action. Cup lock systems – Versatile for staging and access around any structures, best suitable for access or formwork support. It can be erected by unskilled labor. It’s very easy to work, handle it and move very fast. Cup lock Systems –timely tested and proven design with safety accessories cup lock systems has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies. Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid. Quick / fast / solid erection and dismantling result in time and labor saving. Widely and versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved. Lightweight but high loads carrying capacity. Easy to Storage and Staking and Utilizes minimum space and maximum benefit in Transport cost less.

Cuplock (Statared) Cuplock verticals are provided in Ten different sizes with cup joints welded at 500 mm or 1000 mm intervals. The captive mobile top cups are malleable castings which endure rough site handling whilst the fixed bottom cups are pressed from high quality steel. Painted in durable pleasant colours as per buyers requirements. Available Lengths: (mm) 3000, 2500, 2300, 2000, 1800, 1500, 1300, 1200, 1000, 800. Specifications Pipe : 48.3 mm O.D. , 3.00 to 3.10 mm Wall Thickness Top Cup : 440 Grms (malleable castings) Bottom Cup : 195 Grms (pressed from high quality steel)

As a known name, we ensure safe and timely delivery of the orders at any desired Maharashtra(India). Reckoned for our excellent customer care support, we have become preeminent suppliers of cup locks in the industry.

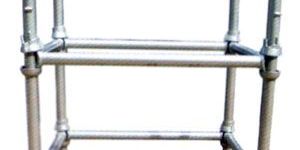

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding. Cup lock Scaffolding for variety of applications just like , Slab, Façade ,Any work of Outer side of building & Plastering Work , Support wall formwork ,demolition and maintenance projects throughout the globe. Features: Cup lock systems –Erect easy to stand –say no to nuts and bolts or wedges Just a simple locking Top cup allows locking and resists sabotage at each node point on the standards enables connection of the ends of up to four members in one locking action. Cup lock systems – Versatile for staging and access around any structures, best suitable for access or formwork support. It can be erected by unskilled labor. It’s very easy to work, handle it and move very fast. Cup lock Systems –timely tested and proven design with safety accessories cup lock systems has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies. Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid. Quick / fast / solid erection and dismantling result in time and labor saving. Widely and versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved. Lightweight but high loads carrying capacity. Easy to Storage and Staking and Utilizes minimum space and maximum benefit in Transport cost less.

To meet huge market requirements, we are instrumental in supplying best quality of Cuplock Scaffolding which is widely used in different suitable applications. Our team of professionals strives hard to provide unmatched quality products to our clients and ensures to satisfy their specific requirements. One can avail these products from us in bulk at affordable prices and customized specifications.

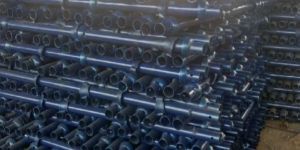

Made out of 40 mm N.B. "M" Tubes conforming to I.S.1161 or I.S.-1239 with provision of cups @ 500 rnm interval. Welded bottom are pressed from high quality steel as per I.S.1079 and the captive mobile top cups are made out of malleable casting. Both the cups provide firm grip to Ledger Blades & make the connection rigid and to endure rough site handling. Standards Sizes: 1.0M, 1.5M, 2 OM, 2.5M, and 3.0M & as per client's requirement.

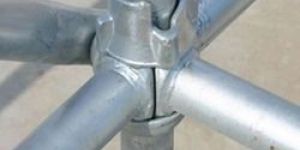

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding. Cup lock Scaffolding for variety of applications just like , Slab, Façade ,Any work of Outer side of building & Plastering Work , Support wall formwork ,demolition and maintenance projects throughout the globe. Features: Cup lock systems –Erect easy to stand –say no to nuts and bolts or wedges Just a simple locking Top cup allows locking and resists sabotage at each node point on the standards enables connection of the ends of up to four members in one locking action. Cup lock systems – Versatile for staging and access around any structures, best suitable for access or formwork support. It can be erected by unskilled labor. It’s very easy to work, handle it and move very fast. Cup lock Systems –timely tested and proven design with safety accessories cup lock systems has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies. Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid. Quick / fast / solid erection and dismantling result in time and labor saving. Widely and versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved. Lightweight but high loads carrying capacity. Easy to Storage and Staking and Utilizes minimum space and maximum benefit in Transport cost less.

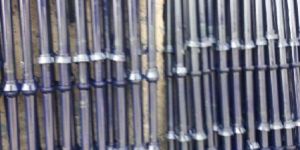

Cuplock standard have cup joints welded at every 500mm intervals, thus offering levels for working & also for bracing the standards while using in the slab support when loaded.   Available in sizes 3.0 Mtr 2.5 Mtr 2.0 Mtr 1.5 Mtr 1.0 Mtr

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding .Cup lock Scaffolding for variety of applications just like , Slab, Façade ,Any work of Outer side of building & Plastering Work , Support wall formwork ,demolition and maintenance projects throughout the globe.   Features: Cup lock systems –Erect easy to stand –say no to nuts and bolts or wedges Just a simple locking Top cup allows locking and resists sabotage at each node point on the standards enables connection of the ends of up to four members in one locking action. Cup lock systems – Versatile for staging and access around any structures, best suitable for access or formwork support. It can be erected by unskilled labor. It’s very easy to work, handle it and move very fast. Cup lock Systems –timely tested and proven design with safety accessories cup lock systems has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies. Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid. Quick / fast / solid erection and dismantling result in time and labor saving. Widely and versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved. Lightweight but high loads carrying capacity. Easy to Storage and Staking and Utilizes minimum space and maximum benefit in Transport cost less.

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding .Cup lock Scaffolding for variety of applications just like , Slab, Façade ,Any work of Outer side of building & Plastering Work , Support wall formwork ,demolition and maintenance projects throughout the globe. Features: Cup lock systems –Erect easy to stand –say no to nuts and bolts or wedges Just a simple locking Top cup allows locking and resists sabotage at each node point on the standards enables connection of the ends of up to four members in one locking action. Cup lock systems – Versatile for staging and access around any structures, best suitable for access or formwork support. It can be erected by unskilled labor. It’s very easy to work, handle it and move very fast. Cup lock Systems –timely tested and proven design with safety accessories cup lock systems has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies. Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid. Quick / fast / solid erection and dismantling result in time and labor saving. Widely and versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved. Lightweight but high loads carrying capacity. Easy to Storage and Staking and Utilizes minimum space and maximum benefit in Transport cost less.

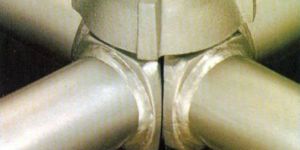

We manufacture and supply Scaffolding Cup Locks using high quality galvanized steel. This ensures the Scaffolding Cup Locks to be corrosion resistant. The holes of the Scaffolding Cup Locks are accurate and of fixed diameters. The finishing of these Scaffolding Cup Locks is quick and easy to fasten and can hold huge weights. Our Scaffolding Cup Locks are widely used in the construction companies. Attributes Easy to erect and dismantleNo loose components Lightweight with high loads carrying capacity

Pee Kay Scaffolding and Shuttering Ltd. is one of the largest and reliable suppliers of Scaffolding and Shuttering in india. Cuplocks are available on rent and hire for construction of residential, commercial and industrial sites. Cuplock can be erected for straight, curved and circular configuration for both access and support, and for independent and mobile towers.The success of cuplock lies in the node point or fastening method. SPEED OF ERECTION CUPLOCK Provides major savings in erection and dismantling times thus minimizing on site cost. It can be erected 75% faster than traditional scaffoldings. When not in use, its modular constructions ensure minimal space requirements for storage. SIMPLICITY AND STRENGTH The success of cuplock lies in the node point or fastening method. Four horizontal can be fastened at one time making a very rigid connection. The horizontal bear directly on the verticals and are firmly clamped by the action of the cup. There are no loose parts to lose. The rigid node point allows for high horizontal loads experienced with a 57kN leg load. VERSATALITY When investing in equipment's it must be as versatile as possible. Cuplock can be erected for straight, curved and circular configuration for both access and support, and for independent and mobile towers. DURABILITY With no loose parts and with corrosion protection it can be easily stored and maintained. Designed to be tough, cuplock is highly resistance to damage. When not in use, it's modular construction ensure minimal space requirement for storage.

Cuplock scaffolding is a type of scaffolding characterized by a joining method that uses metal cups to lock beams together. Cuplock scaffolding is a temporary network of frames used to support workers during construction of high access points. The overall stability and ease of assembly of the cuplock system makes it the preferred type for projects where a large scaffolding must be constructed quickly and must support a relatively heavy load.

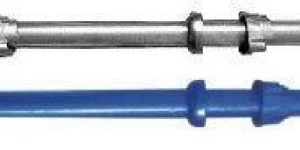

Cuplocks Standards are used as vertical part of scaffolding system. Cuplocks are very trusted and frequently used system of scaffolding. They are very popular due to special node point connection which ensures its speedy Erection/Removal and safety of men and materials at heights. Cuplocks are known for their flexibility as they can be installed for Straight, Curved and Circular shapes. Its easy and fast installation ensures saving of at least 80 % of labor cost and time. After fastening of four horizontals at one node point Cuplock Standards it  become a very strong and rigid system for load bearing or to be used as a platform for supporting men and materials at heights. These Cuplock Standards are very resistant to corrosion and any kind of wear and tear. Cuplock Standards  don’t have any loose part and require minimal space for storage. They are painted with high protection paint to deformation and cracks. With the use of high-grade material, a very resistant Cuplock Standards can be manufactured which can be reused many times. Features : Corrosion Resistant Can be reused for many times Known for their load bearing capacity Resistant to Damages Ensures safety of men and materials at heights

Owing to a sophisticated and modern manufacturing facility, we have been successful in serving the clients with a huge gamut of Cuplock Shuttering Systems. The offered range of Cuplock Shuttering Systems comes with easy erection process and no loose components.  Specifications: Made out of 48 mm OD tube medium/light confirming to IS 1161/1239 with forgedend blabes weided at both ends Standard size available are 0.450 Meters, 0.600 Meters, 0.850 Meters, 1.2 Meters, 1.5 Meters, 2.0 mts  Features: Fine performance High quality Durable

Vertical / StandardEICL-02A Size (mtr.) Weight (kg) 1 4.96 1.3 5.92 1.5 7.43 1.8 8.34 2 9.91 2.5 12.38 3 14.82

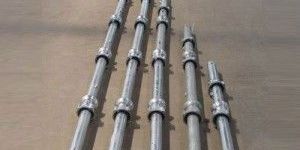

Vertical are available to suit any propping or access application economically. The connection point is set at 5001000mm vertical intervals for maximum variation in use. The lower cups are welded in position, the upper moveable cups are retained by a fixed stop. The vertical are drilled for the fixing of SPIGOT joint. A bolt can be used to restrain upward forces if required. These are available in different sizes of 3000mm, 2500mm, 2000mm, 1500mm, 1000mm or as required

Our organization is one of the promising business entities engaged in supplying quality and sturdy cuplocks vertical at competitive prices. Engineered to perfection, our range is used for brick wall, plaster, pasting stone in wall and for other works in construction industry. Additionally, these verticals are capable of expanding from minimum to maximum height. Specifications: size: 1.0, 2.0, 2.5, 3.0 meter

Cup lock unique node point connection makes the fastest, safest, and most versatile scaffolding ever designed.Cup lock verticals are manufactured from (YST 240Grade) steel tubes which allow up to 57kn load/leg. the connection point is set at 500/1000mm. the captive mobile cups are made out of malleable cast – iron to ensure rough site handling and welded bottom cups are pressed from high quality steel . loose spigots are used to provide trouble free & stronger connection between verticals All ledgers /horizontals have forge blade ends to fit in the cup of the verticals. STANDERED SIZES FOR VERTICALS(STANDEREDS) AND LOAD TABLE Sr.No Sizes Cups @500c/c 1 3000MM 2 2500MM 3 2000MM 4 1500MM 5 1000MM 6 500MM                 ANDERED SIZES FOR HORIZANTALS (LEDGERS) AND LOAD TABLE Sr.No Sizes Cups @500c/c 1 2500MM 2 2000MM 3 1800MM 4 1500MM 5 1200MM 6 1000MM 7 900MM   Salient Features: Greater flexibility of use.Cup joint gives rigid connection between vertical & horizontal member.Faster erection allows 4 horizontals to be fixed or realized in a single operation Only hammer is required to tighten the top cupAccessories Adjustable Jack suitable for providing an adjustment from 45MM to 500MM length at the top & base

We are a very reputed & well known scaffolding & shuttering manufacturers and supplier on hire basis based in chandigarh(india).we sell and rent out all kinds shuttering and scaffolding materials like steel shuttering plates, channels, props, cuplocks, ledgers, jacks, joint pins, ballies etc. To chandigarh, panchkula, mohali, zirakpur,dhakauli, delhi, karnal, panipat, ambala, kurukshetra, ludhiana, patiala, amritsar and all parts of punjab, haryana, himachal pradesh, and u.p. We supply shuttering and scaffolding for construction purposes to most reputed construction houses,construction companies of india fame& a-class govt. Contractors. We use the tested and high-quality materials to manufacture our products and assure to provide our customers with highly standardized products in order to ensure safety and smooth working at the construction sites.we put our heart and soul to provide our customers with best services every time. Your requirements are our chief concern. We would be highly pleased and delighted to serve you with our ideal services.our clients have always been appreciative of not only our high quality properly repaired & neat and cleaned material but also timely delivery for projects having a very aggressive schedule.we also offer consulting services for clients seeking a hassle-free material delivery at very competitive prices and within timelines.contact us for all kins concrete wall formwork, roof scaffolding formworks, scaffolding brackets & scaffolding formworks in india.
