Data Acquisition Software Dealers

Nvis 633SD DAQ device endowed with true high quality measurement, its ability of logging data in micro SD Card makes it favorable for user to examine intimately all the measurement using our PC software at any time. This device comes with 4 GB micro SD card which is having storage facility of logging data up to 2 year. For easy connections, screw terminals are provided. It also incorporated real time display functionality over LCD and 7 Segment intended for easy view. Product Features 8 Single ended analog inputs Up to 76.9KSPS speed Built in signal conditioning Micro SD card (4GB) storage capacity Logging capacity of 2Year In-built RTC with CMOS battery backup LED and LCD display Can be interfaced with PC directly Graph view: Second/Minute/Hours/Day Auto insert data from SD card Globally availability of data or graph (through My SQL)

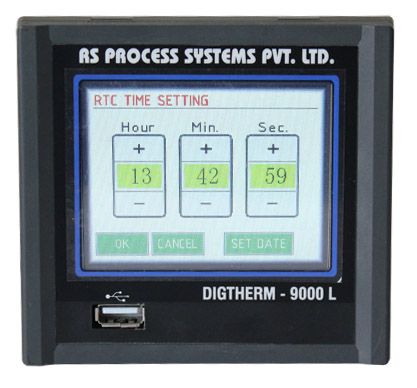

HMI (Human Machine Interface) is a medium for information exchange and mutual communication between electromechanical system’s and the user. It allows the user to complete settings through touchable images or keys on the user-friendly window. This not only offer’s fast and convenient control of manufacturing automation, but also has replaced traditional controlling panel’s which need extensive wiring. Human Machine Interface (HMI) equipment provides a control and visualization interface between a human and a process, machine, application or appliance. HMIs allow us to control, monitor, diagnose and manage our application.   The Human Machine Interface (HMI) includes the electronics required to signal and control the state of industrial automation equipment. These interface products can range from a basic LED status indicator to a 20-inch TFT panel with touch screen interface. HMI applications require mechanical robustness and resistance to water, dust, moisture, a wide range of temperatures, and, in some environments, secure communication. They should provide Ingress Protection (IP) ratings up to IP65, IP67, and IP68. Features and Benefits   Supports high source and sink output IO capabilities up to 60mA for direct drive of LEDs. High-speed PWM units enable LED dimming and screen back lighting. Robust touch technology provides reduced wear and increased product lifetime. The excellent signal-to-noise ratio makes the design immune to water, moisture, or dust and enables operators to use gloves. Capacitive touch eases design of full hermetic or sealed products, while power efficiency minimizes heat dissipation.

The Expert Key is the latest generation of data acquisition equipment from Delphin Technologies. It enables data acquisition and test stand automation from a PC using either USB or Ethernet. The Expert Key incorporates Analog and Digital inputs and outputs in a compact unit. It supports sample rates up to 100 kHz with 18 bit measurement resolution. The analog inputs can be attached to RTD sensors, thermocouples, volt or 20 mA signals enabling any physical value to be acquired (e.g. temperature, pressure, flow-rate). The measurement data is saved as scaled and linearized to the device (e.g. PSI, ftsec, GPM). Scaling is pre-configured for all current thermocouple and RTD sensor types.Analog, digital and PWM outputs enable control for experiments or test automation.

  Microprocessor based   Up to 256 channels   Up to 1 month data logging and storing into internal or external module nonvolatile memory   Comes with Windows based software to download the data, store, display in graphical and other formats   Settable alarms   Enable or update any system to a complete computerized control system

Due to a vast industry experience, we have emerged as a prominent Importer and Supplier of Data Acquisition System. Our entity is based in Karnataka, India. Data acquisition (DAQ) is the process of measuring an electrical or physical phenomenon such as voltage, current, temperature, pressure, or sound with a computer. A DAQ system consists of sensors, DAQ measurement hardware, and a computer with programmable software. Compared to the traditional measurement systems, PC-based DAQ systems exploit the processing power, productivity, display, and connectivity capabilities of industry-standard computers providing a more powerful, flexible, and cost-effective measurement solution.

Our Supervisory Control & Data Acquisition Systems find applications in various industrial processes such as power generation, fabrication, oil and gas treatment etc. These Supervisory Control & Data Acquisition Systems operate with coded signals and provides control over the working of the system. Designed to provide efficiency, convenience and high performance to the clients, our Supervisory Control & Data Acquisition Systems are available at industry leading prices. We are a leading Manufacturer and Supplier of Supervisory Control & Data Acquisition Systems.

Micro Controller : AT89S52 Crystal : 11.0592 MHz Smoke Sensor : MQ200 Bluetooth Modem Level Sensor : Wired Leads ADC : LM35 Software Requirements Keil Proteus Uc Flash C# Embedded C

Semiconductor technology and devices are the driving forces for high power application, Features and benefits Press-pack encapsulation - high surge capacity. Uniform and low voltage drop suitable for parallel connection. Matched Qrr and VT values available for series and or parallel connections. Interdigitated amplifying gate for fast turn-on and high di dt. Low switching losses.

We are one of the notable SCADA developing companies, our SCADA solutions are provided to power generation sector, process industries, with a remote monitoring / control function built in as per customer specific requirement. SCADA is the acronym for Supervisory Control and Data Acquisition. The supervisory control system is a system that is placed on top of a real-time control system. The term SCADA usually refers to centralized systems which monitor and control entire sites, or complexes of systems spread out over large areas. Data acquisition begins at the RTU or PLC level and includes meter readings and equipment status reports that are communicated to SCADA as required. Data is then compiled and formatted in such a way that a control room operator using the HMI can make supervisory decisions to adjust or override normal RTU (PLC) controls.

from different points of production unit into a single Control Room source from where they can be extracted. Our Research, design, development and implementation methodologies adhere to and are compatible to all European and other International Standardization’s. Based on the customer’s requirements, conditions and needs, We source your implementation platforms from just across the best of the  industry. Dynamic plant visualization with easy operator interface. Customized reports and data logging options. Optional emailing periodic reports.

Every data acquisition task has its own special challenges. Whatever your application, mobile or stationary, on a test cell or under extreme environmental conditions, our range of DAQ has the right measurement data acquisition system / measuring amplifier for your needs.We provide solutions for every Data Acquisition application ranging from strain gauge Quarter, Half & Full bridge to Voltage & current output from transducers.

We are offering 8 channel data acquisition system. The daqpro is a portable, battery operated data acquisition and logging system offering 16-bit, high-resolution, 8 channel data logging. The daqpro features powerful graphical display and analysis functions for measuring voltage, current and temperature. It is designed to provide a professional, compact, standalone low cost data logging system for a wide variety of applications

Universal data acquisition systems High Speed Data Acquisition:sampling rate 200ksS to 100MSSChannel.Precision Amplifiers & Calibration instruments, Rugged Mobile Data Acquisition Systems.

Nippon Technologies was established in 1991 with the objective to design & manufacture INSTRUMENTATION products. In the journey of twelve years range of products delivered have become 'benchmark' in the industry. A milestone was reached in 1997 with introduction of state-of- art data acquisition system The customer acceptance was enormous.   Nippolog is constantly upgraded as per the requirement of industry. We have invested more than 25 man-years in up gradation of Nippolog. Today Nippolog is flagship product of the company, it consists of SCANNERS, CONVERTORS, MEMORY BANKS & SOFTWARE. If your measurement & data logging application involves a diverse array of sensors or events, located centrally or over large distance, then Nippolog is the answer. Nippolog can become foundation of your measurement & data acquisition. It increases PRODUCTIVITY through accurate measurement, data acquisition, data analysis & data visualiz. Nippolog- a robust architecture functions reliably even in electrically & environmentally harsh environment. The software periodically aquires data from scanners and presents it in various forms at the user's monitor. Nippolog is interactive and very simple to use. It's features include Graphical Trends, Tabular Listing, Batch-wise data archival, Online Help, and many others. This becomes simplest tool for dozens of uses. Nippolog finds application in Pharmaceuticals, Bulk Drug, Dyes and Chemicals, Petrochemical, Engineering, Power Plants, Glass, Textiles, Air-Conditioning/ Refrigeration, Test Laboratories and many other industries. There are over One hundred successful installations.

  QDA Series Data Acquisition Systems are multi-channel (upto 64), high-speed systems, available with a wide variety of signal conditioners to to suit any application. They are currently being used in various fields such as monitoring health of civil structures, acoustic and vibration sensing and many more.

Acquire & Measure an electrical or physical phenomenon such as temperature, humidity, pressure, sound etc. with software provided. Can also be used as Analog and Digital Input output device and data logger.
