Diaphragm Gauges Dealers

The Compact Sealed Diaphragm Gauges assembled by Hitech are available in different sizes. These gauges are verified by the experts and able professionals and then they are are passed for selling and usage.

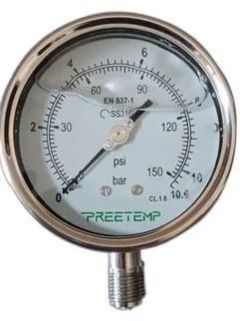

Sealed diaphragm with pressure gauge aisi s.s. 316l diaphragm bourdon ,socket & bottom chamber s s s o c & o o c s & ( ) % s aisi s.s. 304 : top chamber with nut & bolt , movement , case & bazel ( bayonet type ) , accuracy + -1%fsd. zero adj. pointer, sealing fluid silicon oil food grade oil joints : argon arc welding, blow of disc.

• Standard Versions: 50mm, 63mm, 100mm

We bring forth for our clients a large assortment of Compact Seal Diaphragm Pressure Gauge which is machined from quality approved stainless steel that is procured from reliable suppliers of the industry. These are designed as per the International quality standards to isolate the sending element of pressure gauges and pressure switches from process fluids which can be corrosive, viscous, sediment us and / or of a high temperature. Clients can get this Compact Seal Diaphragm Pressure Gauge from us at industry leading rates. Special Features :  Economical Version Diaphragm is welded to the body to ensure-separation of the filling fluid from the process medium   Application :  MEDICAL, BIOMEDICAL, FOOD, FILTARATION, CHEMICAL PLANTS, SHIPBOARD, INDUSTRIAL MACHINERY.

These gauges can be used for corrosive gases and liquids. Diaphragm Material is made with Stainless steel and Teflon protection. The Case Material is of pressure die cast aluminum, steel or stainless steel in addition to the Wetted parts of Stainless Steel, Mild Steel which is available in all standard process connections NPT, BSP etc. It has accuracy of ± 1 % and has the dial Size of 100 mm and 150 mm. Pressure Ranges from 40 millibar to 600 Millibar and 0-1 kgcm2 up to 0.21 kgcm2.

• Application: Chemical & Petrochemical, Food & Beverage Industry, Mechanical Engineering Plant & Apparatus Const..
• Nominal Size (mm): 100, 150
• Scale Range: 0..to 6000 mmWC Low Pressure & 0..to 0.6 to 25 kg/cm2 High Pressure
• Accuracy in FSD: 1.6%
• Thread Connection: 3/8", ½ ", BSP & NPT, M-20 and Flanged connection
• Mounting of Gauge: Direct Bottom
• Case and Bezel: Drawn steel, SS 304
• Pressure Elements: Schaffer’s Diaphragm
• Diaphragm: YES
• Wetted Parts: Spring Steel Teflon Coated, SS 304, SS 316 and other material on request
• Optional: Teflon lining, Electric Contact and Liquid Filled

Diaphragm gauges are suitable for measuring pressure of all kind of fluid and gaseous medium. The measuring element is a sensitive corrugated diaphragm fixed between two flanges. For slurry and viscous liquids flanged connections can also be incorporated. Low Pressure Bellow Capsule Gauge are designed for non-corrosive and non-aggresive application.

• Application: Suitable for all gasesious and liquid media.
• Connection: 3/8" BSP or NPT
• Feature: Teflon protected Diaphragm provides excellent resistance property against Corrosive media and heat
• Dial size: 4",6"
• Scale range: Form 0 to 15 lb/sq.in to upto 400 lb/sq.in 0 to -30 Vacuum, Compound up to 300 lb/sq.in
• Accuracy / Class as per Indian Standards: +/- 1.5 % FSD
• Mounting: Direct Bottom
• Case: Grey Cast Iron 316 Stainless Steel
• Pressure element: Diaphragm
• Wetted parts: Carbon Steel Diaphragm protected by Teflon sheet, 316 Stainless Steel lower Flange & Socket.
• Movement: Brass
• Dial: Aluminum with White background and black markings & numbering
• Pointer: Non-adjustable
• Window: Glass
• Optional: Optional Stainless Steel Weatherproof case Electrical Contact

Owing to our experience, we have been successful in catering the requirements of our esteem clients by offering a wide range of Diaphragm Gauges. This wide range of Diaphragm gauges are offered by us in variegated custom-designed models to meet the variegated requirements of our clients. Salient Features :   -   Durability  -   Efficiency and accurate dimension  -   Reliable performance  -   Requires low maintenance  -   Compact designs

These guages are suitable for use on corrosive gases and liquids. Diaphragm Materials of Stainless steel with Teflon protection; Case Material of pressure die cast aluminium, steel or stainless steel. Wetted parts of Stainless Steel, Mild Steel. Available in all standard process connections NPT, BSP etc ; Accuracy ± 1% Dial Size 100mm and 150mm. Pressure Range from 16 millibar to 600 millibar and 0-1 kg/cm2 upto 0-21 kg/cm2. Also Vacuum and Compound.

We are highly instrumental in the process of manufacturing and supplying of a wide range of All SS Sealed Diaphragm Gauges. These are offered to our clients who can avail the precision-engineered gauge in various connection sizes, window material and mounting. We offer these Sealed Diaphragm Gauges in premier quality with non-ferrous / SS 304 / 316 movement material. Our gauges comprise of teflon, silver foil and stainless steel diaphragm protection and fitment with micro zero adjustment facility and blow off disc. Specifications: Make: Hi-Tech Type: Sealed Code: SEALED Accuracy: ± 1% of FSD Sensing: SS 316 Diaphragm (Standard) Top Chamber Material: SS 304 Bottom Chamber Material: SS 316 Connection: 1/2" BSP (M) (Standard) Case & Bezel: Die cast Aluminium, Weatherproof, Painted Stove Enamelled Black with screwed inner Bezel of ABS Plastic Glass: Plain Sealing Fluid: Silicon Oil Temperature Limit: 170°C

• Accuracy: 11.5% and+2% of the f.s.d.
• Connection: 3/8M/2-BSP/NPT. T type flanges & Direct Flanges. As per ASA, ANSI, BS & DIN Standard.
• Range: -760 mmHg Vaccum and up to 21 Kg/sq.cm for diaphragm type " D " model & from 250mmwcUpto 10,000 mmwc for low pressure diaphragm type " LPD " model.
• Dial size: 100mm, & 150mm
• Element: Diaphragm / Capsule
• Element material: Capsule: Brass/S.S.316 Diaphragm:S.S.316 / Teflon or Silver protected.
• Socket material: Brass / Stainless Steel
• Movement material: Brass / S.S.304/S.S.316
• Lower Chamber: Carbon Steel/SS 304/SS 316/ Any Spacial material (Only for diaphragm gauge)
• Case & Bezel: Die Cast Aluminium Weatherproof housing, with screwed outer bezel, stoved enamel black finish. M.S. Powder coated or 304 SS snap action bayonet type.
• Flange material: Carbon Steel / SS 304 / SS 316 / any spacial material / Polyproplene/Teflon/PVC
• Window: Glass / Toughened Glass / safety glass
• Optional Features: Special graduation and range on dial, other thread connection and anti-corrosive epoxy coated black paint can be provided.

These gauges are suitable for low pressure measurement of non-corrosive gases, commercial heating, gas distribution and filtration. Measuring System of Brass or SS 304 Capsule. Case Material cast aluminium. Available in pressure range 0-50 mm WC upto 10000 mm WC in pressure, vacuum and compound ranges. Available in all standard process connections NPT, BSP etc. ; in dial sizes upto 150 mm Accuracy upto  ± 2percentage. APPLICATIONS Robust design and ingress protection IP 54 For gaseous, dry and non-aggressive media Medical, vacuum, environmental, laboratory technology, for contents measurement and filter monitoring SPECIAL FEATURES Zero adjustment through window Stainless steel case Special location of connection on request Low scale ranges from 0 … 6 mbar DESCRIPTIONS DesignEN 837-3 Nominal size in mm63, 100, 160 Accuracy class1.6 Scale rangesNS 63: 0 … 25 mbar to 0 … 600 mbarNS 100: 0 … 10 mbar to 0 … 600 mbarNS 160: 0 … 6 mbar to 0 … 600 mbaror all other equivalent vacuum or combined pressure and vacuum ranges Pressure limitationSteady: Full scale valueFluctuating: 0.9 x full scale value Permissible temperatureAmbient:-20 … +60 °CMedium: +100 °C maximum+ 80 °C maximum (with NS 100 and 160 back mount) Temperature effectWhen the temperature of the measuring system deviates from the reference temperature (+20 °C):Max. ±0.6 percentage/10 K of full scale value Ingress protectionIP 54 per EN 60529 / lEC 529

• Range –: 0 to 70kg/cm, 0-760 cm/hg and 0 to 6000mm we (low pressure)
• Dial Size(in mm) –: Sealed with Glycerine, Schaffer Low pressure

Our product Keeping in mind the precise demands of clients, we supply a wide range of Diaphragm Gauge as per the specific requirements of clients.   Sensing Element – Spring Steel/Stainless Steel Diaphragm Accuracy – Cast Aluminium, Cast Iron/Cast Iron, SS 304/316 AISI Application – Fertilizers, Petro Chemicals, Refinery, Cement/Sugar/Pulp Industries, Steel Plant, High Vaccum etc.

We manufacture high efficiency diaphragm gauges having a dial size of 10 mm, 150 mm. These diaphragm gauges are made from aluminium and stainless steel, these gauges are durable and have a longer life. Diaphragm pressure gauges are used to measure gases and liquids. They cover measuring spans from 10 mbar to 40 bar. The measuring element consists of one circular diaphragm clamped between a pair of flanges. The positive or negative pressure acting on these diaphragms causes deformation of the measuring element. The magnitude of the deformation is proportional to the pressure to be measured, and it is coupled to the pointer mechanism.

MIEPL make Diaphragm Sealed Pressure Gauges are the criterion of accuracy and leadership in the field of Precise Pressure Measurement with exclusive design and construction which adapt the gauges to even the most effective application of corrosive fluids such as area of Crude Petroleum, Paper Pulp, Fertilizers etc.

These gauges are suitable for use on corrosive gases and liquids. Diaphragm Material in Stainless steel OR spring steel with teflon protection; Case Material of pressure die cast aluminium, steel or stainless steel. Wetted parts of Stainless Steel, Mild Steel, and with Optional teflon coated. Accuracy ± 1%. Dial Size 100 mm and 150 mm. Pressure Range from 40 millibar to 600 millibar and 0-1 kg/cm2 upto 0-25 kg/cm2, Also Vacuum and Compound.

Diaphragm sealed gauge are designed & recommended to isolate the measuring system of a pressure gauge from corrosive, pasty or dangerous fluid depending on the viscosity, pressure, vacuum, solidification of a particular process medium. The diaphragm is argon arc welded to the top chamber to ensure a perfect selling "No LEAK". The welded construction facilitates removal of the gauge for repair/service without process shut down. They are also ideal for low pressure measurement of dry and gaseous media, commercial heating, level measurement, gases distribution & filtration system CHEMICAL SEALED DIAPHRAGM GAUGE Technical Specification � Scale Dial 100mm, 150mm, 250mm Scale Range 0� all measuring units to scale pressure, vacuum Accuracy ±1.0% of FSD Case & Ring AISI 304 SS (BAYONET LOCK TYPE) Joints Tig Argon Arc Welding Element Diaphragm AISI 316 SS / AISI 316 SSL/ Monel / Teflon Coated Flanges AISI 316 SS Movement AISI 304 SS All wetted parts AISI 316L SS Bourdon & Socket AISI 316 SS Protection Weatherproof IP 65, SAFETY PATTERN GAUGE TO EN871 Dial Aluminium Pointer, black graduation on white background Pointer Aluminium, micro zero adjustment Window Acrylic / Toughened Glass Thread Connection 3/8", 1/2" BSP & NPT Threads M-20 Flanged connection Mounting Bottom, Surface (OPTIONAL) LIQUID FILLING, ELECTRIC CONTACT Applications: Chemical & Petrochemical, Plastic & paper, Pharmaceutical, water treatment

• Brand Name: Edwards
• Accuracy: 0.2 %
• Model Name/Number: 7025
• FS Options: 1000(1100)
• Resolution: 0.003 (percent FS)
• Lowest Feading: 0.05 (percent FS)
• Ambient: +5 to + 50 Degree C
• Bakeout: <110 Degree C
• Storage: -40 to +65 Degree C
• Supply Voltage: +14 to +30V (dc)

MIEPL make Diaphragm Sealed Pressure Gauges are the criterion of accuracy and leadership in the field of Precise Pressure Measurement with exclusive design and construction which adapt the gauges to even the most effective application of corrosive fluids such as area of Crude Petroleum, Paper Pulp, Fertilizers etc.

Pharmaceutical, Chemical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc Dial Sizes 100mm (4") and 150mm (6") 4 SS316 Diaphragm and Bottom ChamberFlange 4 38”, ½” bsp npt connection or Flanged End as per DIN, ANSI, BS Standards 4 Bottom or Back Mounted 4 Accuracy ±1.6% F.S.D.

• Accuracy: ±1.6% F.S.D.
• Dial Sizes: 100mm (4") and 150mm (6")

Schaffer Diaphragm Gauges have a Diaphragm whos displacement is transferred via a link to the movement. They are suitable for low pressure measurement from 0 -400mmwc to 6000mmwc and high side from 0-1 kgcm2 to 0-25 kgcm2. Schaffer Gauges are suitable for Pharmaceutical, Chemical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc

MIEPL make Diaphragm Sealed Pressure Gauges are the criterion of accuracy and leadership in the field of Precise Pressure Measurement with exclusive design and construction which adapt the gauges to even the most effective application of corrosive fluids such as area of Crude Petroleum, Paper Pulp, Fertilizers etc.

Providing you the best range of Schaffer Diaphragm Pressure Gauge such as Low Pressure Diaphragm Pressure Gauges, Diaphragm Sealed Pressure Gauge and Diaphragm Differential Pressure Gauges with effective & timely delivery.Sensing Element:Diaphragm SS 316L , Diaphragm SS 316L: Die cast aluminium & SS 304 with Bayonet Bezel as a standard (SS 316 Optional), Mounting:DirectProjection with Bottom entry.

Nominal Size (mm) 100, 150 Scale Range 0..to 6000 mmWC Low Pressure & 0..to 0.6 to 25 kgcm2 High Pressure Accuracy in FSD 1.6% Thread Connection 38", ½ ", BSP & NPT, M-20 and Flanged connection Mounting of Gauge Direct Bottom Case and Bezel Drawn steel, SS 304 Pressure Elements Schaffer’s Diaphragm Diaphragm YES Wetted Parts Spring Steel Teflon Coated, SS 304, SS 316 and other material on request Application Chemical & Petrochemical, Food & Beverage Industry, Mechanical Engineering Plant & Apparatus Construction Optional Teflon lining, Electric Contact and Liquid Filled

Features Dial Size : 100 & 150 mm. Accuracy : ± 1.5% of range span. Sensing Element : Spring SteelStainless Steel Diaphragm. Diaphragm Protection : Teflon, Silver foil (for chlorine) Stainless Steel. Movement : Non ferrousStainless Steel. Top Chamber : Cast aluminiumCast iron, weatherproof stove enamelled black with screwed bezel. Connection : 12" BSP (M). Mounting : Direct with bottomback entry. Ranges : 1, 2, 4, 7, 10, 14, 16, 21, 25 kgcm2, -760 mmhg & Compound -1 ± 25 kgcm2. Capsule : (Low pressure range) : 100, 250, 400, 600, 1000, 1600, 2000, 2500, 4000, 6000 mmwc.
