Die Punches Dealers

Tablet Design: Using CAD CAM Technology generated entirely new and exciting designs to create a high quality profile. Tablet design and the clarity of a Logo Embossing carried on the tablet face will reflect a Precise image for any Pharmaceutical company. arrow Euro And IPT Standards: Working closely with EURO AND IPT STANDARDS. This provides Interchangeability of all "B" and "D" type tooling. arrow Shaped Tooling: Special shaped tooling no matter how complex, is held to very fine tolerances for clearance and alignment of punch tip to key.

Salient Features Punches and dies are made of OHNS / HCHC. OHNS – Oil Hardened Nitride steel / HCHC – High carbon High chromium steel. Made on CNC machines. Careful matching of material and hardness Trouble free fitting and removal Manufactured to the smallest tolerances. High precision finish

For the look that defines a product - Dies and Punches Industries across the globe need one machine that gives the product a unique shape which makes their product easy to be identified. Some artisan manufacturers still mould the product by hand, but the most common method is the Dies and Punches method. What is a Die and Punch? A die is a mould made to shape a specific product into its required shape. A punch is what forces the product through the die making sure it takes the desired shape. Together these two create the unique shape of the object. Customised Dies and Punches suppliers   As Dies and Punches manufacturers, we have been catering to many industry segments for many years. We have customised Dies and Punches for the food sector, pharmaceuticals, metal forgeries, apparels etc. It has been our goal to give quality products at an affordable price.

We are offering die punching, creasing machine etc.profile: the most advanced machine available today is fitted with: double sided helical gears electro magnetic clutch & brake delayed dwell system electronic timer & counter centralized lubrication specifically designed for die cutting excellent for scoring and creasing work on cardboard corrugated board, linoleum, fiber board, paper cork, leather, plastic & pvc. for adding a punch into packaging price register minimal make ready time, good hourly production, compact make for minimum floor space coverage, works well on short and long runs. sizes: 19" * 25", 25" * 37", 32" * 42", 36" * 50", 38" * 58" salient features basic description high tension cast iron perfectly seasoned & steel alloy are used to make the frame, platen & other parts of the machine. The powerful action of this machine is obtained by double helical reduction gearing through double helical gears. impression adjustment quick and simple adjustment of impression is made through two eccentric bushes and the amount of impression can be easily read off a graduated scale. electromagnetic clutch and brake electromagnetic clutch and brake enable push bottom control of the machine for easy and efficient operation. full electrical interlocking ensures complete safety. Synchronization of the both clutch and brake eliminates the possibility of time lag or over lag between drive and braking. dwell timing device: this timing device can be set to delay variable period from half to thirty seconds. This time for moving block remains stationary in the open position before automatically resuming motion at the end of the set dwell period. impression counter: the impression counter allows an accurate cheek to be kept on the number of impression made by the machine. standard accessories: each machine is supplied complete with self contained motor, one specially both side precision ground steel cutting. Plate, two steel chases, delivery feeding tables and a set of tools. technical specifications : inside chase size inches 20x26 22x32 25x37 32½ x 42½ 37x51 42x62 52x72 mm 508x660 559x813 635x940 825x1079 940x1295 1067x1575 1320x 1828 moving platen size inches 23x29 25x35 28x40 35½x45½ 40x54 45x65 56x76 mm 584x736 635x889 711x1016 901x1155 1016x1371 1143x1651 1422x1930 floor space inches 52x68 61x70 70x72 72x80 78x90 83x99 90x115 mm 1320x1727 1549x1778 1778x1828 1828x2032 1981x2286 2108x2514 2286x2921 impressions per hour 1600 1500 1400 1200 1100 1000 900 power required 3 h.p. 3 h.p. 5 h.p. 7.5 h.p. 7.5 h.p. 12.5 h.p. 15 h.p. weight apx.(kgs) 2700 3450 4400 5600 7100 11000 14500

We are specialized in manufacturing “b, “bb” & “d” type tablet tools as per tsm euro standards. The raw material used is of the highest standards ensuring optimum life of the tool. All the tooling manufactured has an excellent surface finish resulting in enhancement of the tablet produced by it in terms of appearance as well as accuracy. We also provide test certificate of the raw material and also provide its tracebility. We manufacture tablet tooling in ohns, d2, d3, s7, sus440, and bholer as per customer requirement. 1.round 2.shapes 3.special shapes

101520 drawers design Can be made, as per customer requirement Special drawers for dies & punches Each drawer having two crates for upper and lower punches Each drawer having one tray for dies Soft nylon caps for each punch to avoid tip damage Full stainless steel construction

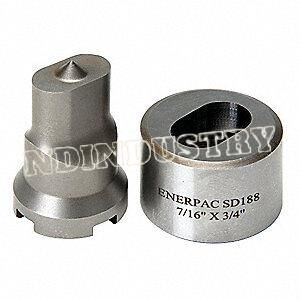

(Die & Punch for Turret punch press machines mfg. In HSS material)   These are used for plastic moulds and press tools. Die is a tool , useful in all manufacturing industries to shape the material. Steel-rule die, rotary die are some of the examples.

APPLICATION & PROCESS : Punches and dies are manufactured in-house with state of art machines. The raw material used in the production of tablets is compressed by a pressure of several tons on a small area of a few square millimeters, to produce a visually perfect tablet. There fore the Tablet press tooling is required harder and smoother and good finish surface. Bhagwati Machtech has developed an advance technological system especially for manufacturing of precise, perfect and finished tablet tools. SALIENT FEATURES : Choice for material of construction of Die and Punch-. OHNS (T) Oil Hardened Non shrinking steel (Tungsten) - AISI 01. HCHC - High carbon High chromium steel - AISI D3. Tooling size as per EURO, IPT Standards and Special tooling. Can be manufactured any shape of the tooling. Can be manufactured Multi tips and Polo type tooling. Careful matching of material and hardness. Trouble free fitting and removal. Manufactured to the smallest tolerances. High Precision finish. OPTIONAL FEATURES : Hard Chrome Plating. « Lab Scale Mini Tablet Press - 8, 10, 12 Station
