Product Category :  BreadBoard Trainer (Series: 900-D)Product Name :  Digital Circuit Lab TrainerModel No. : SD-904Product Details   This has on-board Fixed DC TTL/CMOS Power supply +5V,+12V,+15V/1A, TTL/CMOS circuit selector, Digital TTL/CMOS Logic Level Generator 18 Nos, Digital TTL/CMOS Logic level Indicator 12 Nos., Mono clock pulse generator, Variable clock (Square) pulse generator upto 100KHz for TTL/CMOS, one 24 pin Zip socket and Two Bread Boards. The trainer is suitable to fabricate any type of TTL/CMOS Digital circuits.  Objectives : To Study the Digital Circuit Lab Trainer for various inputs and outputs. To study the TTL/CMOS Power supply section. To Study the Clock Pulse generator section. To study the Logic Generator, Indicators and Mono clock pulse generator. To assemble the desired Digital circuit on the bread board. To test the assembled circuit. Accessories Included :  Set of Patch Cords, Operating Manual.

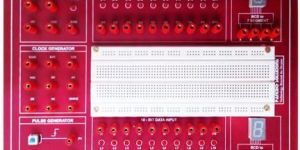

DIGITAL IC TRAINER APPARATUS KIT (Model: IL-04) Specifications: Built in 8 logic inputs with SPDT switches at 5VOnboard output LED sockets Onboard fixed 12V, 5V & Gnd at 250mAOnboard Breadboard for connectionsFixed & Variable Clock on board Variable 10K & 47K potentiometers on board Required Number of patch cords Operation Manual

TECHANICAL SPECIFICATIONS: 1. Capacity : 500VA 2. Test Points : 13 Nos. 3. Faults : 9 Nos. 4. Lamp Load : 1 No. 5. Output Voltage : 230 V AC Nominal 6. Input Voltage : +12V DC Battery. 7. Output Frequency : 50 Hz. 8. Accuracy : + 5%. 9. Switching : Automatic. 10. Backup time : 10 Minutes. 11. Standard Accessories : 1. Manual having practical.

With onboard one Bread board QUAD 2-input NAND Gate using IC 7400 – 01 No QUAD 2-input NOR Gate using IC 7402 – 01 No NOT HE X Inverter using IC 7404 – 01 No QUAD 2- input AND Gate using IC 7408 – 01 no QUAD 2- input OR Gate using IC 7432 – 01 no QUAD 2- input XOR Gate using IC 7486 – 01 no 4 input NAND using IC 7421 -01 no 4 input NOR using IC 7425 – 01 no TR-3- input NAND Gate using 7410 IC – 01 no BCD seven segment decoder using 7447 IC – 02 no.s 4-bit parallel adder using IC 7483 – 02 no.s Dual D flip-flop using 7474 IC – 02 no.s Dual Master slave JK flip flop using 7476 IC – 02 no.s 4-bit counter using IC 7493 – 02 no.s 4 bit comparator using IC 7485 – 01 no 4 bit ALU using IC 74181 – 01 no Dual 4:1 multiplexer using IC 74153 – 02 no.s QUAD 2:1 Multiplexer using IC 74157 – 01 no Dual 2x4 decoder using IC 74155 – 01 no 8:1 multiplexer using 74151 IC-01 no Shift Register using IC 74194 – 01 no Shift Register using IC 74195 – 02 no.s 6X4 RAM using IC 74189 – 01 no Logic level input switches with LED indicators to    indicate Status of HIGH or LOW 16 No.s 16 – pin DIP IC Bases – 02 no.s 14 - pin DIP IC Bases – 02 no.s Single shot pulser (-Ve & + Ve) – 01 no Fixed DC Power supply (+5V,-5V,+12V,-12Vwith switch control -01 Fixed Clock selection (1Hz,10Hz,100Hz,1KHz,2KHz,4KHz,&8K ALL IC’S ARE MOUNTEDON IC BASES WITH ENCLOSURE

Under Voltage & Over Voltage Relay Trainer is designed for practical training in protective devices implemented on transmission lines, cables and network sections in high voltage power transmission systems. A Relay is an electrically operated switch and the basic working principle of a relay is an electromagnet which is used to operate a switching mechanism mechanically. Relays protect the power distribution system against continues voltage surges that can cause damages to motors and other electrical equipment. Our Under Voltage & Over Voltage Relay Trainer provides theoretical and practical experience to students by controlling, monitoring and analyzing individual relay settings and tripping characteristics.

HP QuickTest Professional (QTP), an automated functional testing tool that helps testers to perform automated regression testing in order to identify any gaps, errorsdefects in contrary to the actualdesired results of the application under test. Radical Technologies will give you an in-depth understanding on HP QuickTest Professional, its way of usage, record and play back of tests, object repository, actions, checkpoints, sync points, debugging, test results etc. and other related terminologies.

RF Input 950-2150 MHZ with Input Impedance : 75 Ohm RF Output 470MHz to 862MHz (approx) Ku & C band type LNB are provided. 6" Dish Antenna with Dish Input F type Connector RCA type Composite Video Output,Audio Output,TV Output. PAL/NTSC Video Output IF Frequency Bandwidth 27MHz-36MHz Video Output level 1Vpp (75 load) 352 x 288 Image Resolution Controls Power, Menu, Channel Up/Down OK, Left, Right 17 nos of Test Points provided. Power Supply 110V - 260V AC, 50Hz/60Hz Dish Antenna & LNB Should be mounted on Alluminium profile.

Built in regulated power supply, Covers basic logic gates, universal gates, flip-flops, counters, registers, multiplexer and de-multiplexer, seven segment display driver, parity generator checker and code converters, Easy interconnections between circuits, On board resources such as logic switches for providing inputs to digital ICs and LED indicators to check the outputs from the digital IC, 20 pin ZIF socket.

Specifications Aesthetically designed injection moulded electronic desk / Master unit carrying useful experiment resources like variable. Power supplies / Status Switches / Indicator probe / Pulsar / Function Generator DPMs etc. Connection through study 4mm Banana Sockets & patch cords. Built in bread board panel with 1280 tie points and 400 distribution points totalling to 1680 points along with 4mm banana sockets for tapping from the trainer +5V, +/-12V/ GND for the circuits to be assembled on bread board using single stand (#22/24) wire.

Static Characteristics of SCR, DIAC, TRIAC, MOSFET & IGBT SCR both converter and inverter grades Power rectifier diodes ordinary and fast recovery Triac Power circuit & triggering circuit UJT triggering circuit Single Phase and three phase bridge triggering circuits. (Converter type) Single Phase Mc-Murray inverter power circuit and triggering circuit DC-Chopper power circuit and triggering circuit Single Phase half and fully controlled converter power circuit Three Phase half and fully controlled converter power circuit Isolation units – (a) Pulse amplifier (6 in 1 and 8 in 1); (b) Optocoupler LC commutation units

Analog trainer Introduction to Industrial electrical components such as limit switches, push buttons, emergency switches, proximity sensors etc.Standalone workstation with option of computer

To study & verify Truth table of 'RS', 'D' Type, 'T' Type, 'JK' & 'JK Master slave' flip flops using TTLIC's. Instrument comprises of Power Supply, 4 logic inputs, logic '1' & logic '0' selectable using switches, 1 Hz clock pulse, Two output indicators, Circuits diagram for 'RS', 'JK' & 'JK Master Slave' flip-flops Printed, their respective IC's placed inside the cabinet & connections for inputs & outputs brought out on the sockets, 1 NOT gate for converting 'RS' flip-flop to 'D' type flip-flop Please visit www.jLabexport.com for bulk inquiries for more Instruments and Kits for Schools & Colleges. You can also get in touch with us at sales@jLabexport.com and 85699-09696.

Our clients can avail from us quality range of digital communication trainers that is designed in line with the international quality standards. These trainers find application in the defense and the satellite communication industries. The trainers help the user understand the basic theory of digital communication system.

  Advanced lab trainer for students to perform more than 100 experiments of analog & digital electronics Compatible with optional ready to use experimental modules Glass Epoxy PCB used as front panel & mounted on light weight shock proof Plastic cabinet On board power supplies, Function generator, and other input signals Bread board provided Supplied with connecting wires

Nvis 7036 Ward Leonard Method of DC Machine is an elite training system for Electrical Laboratories. The product helps you to get fully acquainted with the basic concepts and functioning of a DC machines. The product demonstrates the Ward-Leonard Method of DC Machine through which user can not only operate but also control the speed of DC Machine in either direction without using DC supply. Separate terminals of Armature and Field windings are brought out on a terminal box fitted on top of the Motor so that one can connect them separately to the panel and can perform experiment correspondingly. Reverse connecting Switch is provided to control the speed of DC Motor in either direction. The trainer thus provides explicit understanding of the subject. All protection devices are in built so there is almost no chance of fault or danger to user. Product Features Exclusive and Compact Design Electrical Loading Arrangement Flexible Shaft Coupling Arrangement Provided with Digital Tachometer Machine with Class “B” Insulation Heavy Duty Base/Channel Equipped with Supply Indication Lamps Terminals Provided to Use the Optional Externally Equipped with Supply Indication Lamps Designed by Considering all the Safety Standards Diagrammatic Representation for the Ease of Connections Product Tutorial Scope of Learning Study of the speed control of Separately Excited DC Shunt Motor in either direction by Ward Leonard Method.
