Digital Weighing Indicator Dealers

We as Jyoti Weighbridges are well known for digital weight indicators in India. Microprocessor based State of Art Electronics combined with high volume production provide for best value in precsion digital weighing features like auto zero tracking,7 segment 6 digit LED/Graphic display, A/D Converter sigma Delta type with 24 bit resolution, 128k memory make it unique digitizers.     Technical Specifications & Features of 1000E/ 2000E Weight Indicator   • Internal increment upto 250000. • Memory 128K extendable upto 512kb. • Protection - 200MA fuse for input AC mains. - ...Input line filter for EMI and RFI supression. • SMPS power supply. • 90V to 270V AC @ 50 Hz. • Power consumption 10VA. • Optional graphic display. • Remote display optional 1.2", 2.3" , bright ...red LED display to indicate the weight on ...platform. • Isolated RS-232 OR RS-485 serial port provided for computer interfacing. • Operating temperature 0 to 55 C & Humidity up to 95% RH non-condensing. • Triple range system for achieving lower graduation size. • Smart calibration for minor correction • Password protection to avoid tampering. • Auto zero tracking with programmable delay.

Alpha Numeric Indicator is a microprocessor based indicator for use on single weigh platform. Microprocessor 8051 derivative Clock 11 MHz Memory 128 K for data storagewith battery backup Power Supply SMPS with EMI/RFI filter and Spike Suppressor A/D Converter Duel slop type with charge balancing feature A/D Clock 100 KHz Conversion Speed 5Hz Load Cell Excitation 10V @ 300mA ( up to eight load cells of 350 ohms each ) Signal / Unit Weight 1micro volt to 3 microvolt Keyboard 101 – Keyboard IBM PC AT type Printer Port Centronics compatible parallel port Printer EPSON LX 800 / LX 300, TVSE Serial Port RS – 232C type port is available (For computer Interface or remote display interface ) with Pen drive & SMS system. Display 16 char X 2 lines LCD display with backlight for Data entry and display of weight, date and time Remote Display Port 9 – pin D – shell female connector for optional ½” / 1” / 2.3” / 4” 6-digit bright red LED display Indications Buzzer for fault and data entry Fuse F1 fuse 2.5A for power in Protection RFI/EMI filter for input power Spike Suppressor for input transients Weight Record Storage 1530 records, depending on options programmed. Consolidated Report Date wise, RST wise and all 5 entries wise for full & Pending report Input Voltage 150 V 270 V AC @ 50 Hz / 60 Hz Power Consumption 10 VA (approx) Environment Operating Temp : 10 º to + 55º Celsius Humidity 0 to 95% relative humidity non- condensing

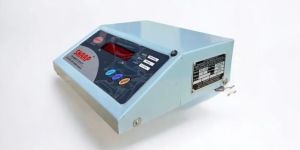

Digital Weight Indicator ELP – 305 is a sophisticated, microcontrolled Electronic Digital Weight Indicator, Software Calibrated, Password Protected which ensures Higher Accuracy & excellent repeatability. Diligent Industrial intelligent Terminal have user-friendly software, fully solid state circuitry without floppy/hard disc. They are suitable for operation in harsh environment and have parallel centronics output for connection to most printers. Intelligent Terminal model is a computer specially designed for weighbridge applications, and is used at weighbridges for printing weighment slips and generating weighment reports. Customers can select various software options available   Features Sleek Table Top Design Easy To Operate Tamper Proof Very Good Visibility - Back-lit LCD IBM Compatible Keyboard High Record Storage Various Report Options

Provides Analog Load Cell output in digital To get material weight

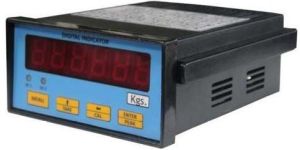

Simple Digital Weight Indicator Micro Processor based  Power supply SMPS with EMI/RFI filter and Spike Suppressor  Auto Zero tracking  Bright red 6-digit,7 segment LED weight display 02 Nos,Rs-232 C ports for P.C. link up. Extra port for Remote display.

Micro controller based highly versatile controllers for Weighing. Ajinkya Electronic Systems manufactures remote displays to display the weighing results along with information like set values, measured weight, batch, charges etc. for applications like weigh bridges.

We provide different models Digital Weight Indicator it is used in weighment . When truck comes on the platform of weighbridge or scale a weight will be come on digital weight indicator people can see only weight. it has optional Interfacing facility Rs 232 Port facility it will connect with P.C. for so that it will connect with port of P.C. for interfacing & get printout or weight data. Digital weight Indicator has inbuilt battery backup facility.
