Digital Readout System (DC-3000)
Get Price Quote
This Digital Readout System (DC-3000) exhibits matchless efficiency in 2D data processing. This Digital Readout System is the best for measuring system using video and digital liner scales. This Digital Readout System is appreciated since it is easy to be connected with measuring microscope, optical comparator, video measuring system and other equipment for getting exact readouts. Specifications : Hardware Specifications : Input Voltage : AC 90V - 240V Power Consumption : Max. 15W Dimension : 295 mm x 185 mm x 68 mm Weight : 1.49 kg Linear Scale Signals : Orthogonal TTL square wave, frequency 2 MHZ Current : 1mA Settable Resolution : 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm. Software Functions : Conveniently axis skew and coordinate shift, Quick data retrieval by foot-switch and edge detector, Print out user program, graphic elements and displayed three-axis coordinates, Transfer current linear scale positions to PC by RS232, graphic element, Storage : 100 permanent and 10 temporary, Record the measuring steps and the measure the same work pieces in batch quantity, Various coordinates Displaying Ways : Polar, Cartesian, INC and ABS coordinates in metric units or imperial units measure, preset and construct the graphic elements such as : point line circle angle distance, rectangle thread and so on correction for : linear error and segmental linear error, Connect with linear scale or rotary encoder with Z-axis

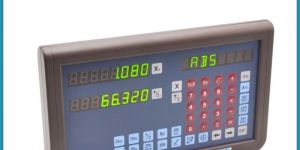

Digital Readout System
Get Price Quote
1 Piece (MOQ)
Best Deals from Digital Readout System
Single channel readout
Get Price Quote
1 Piece (MOQ)

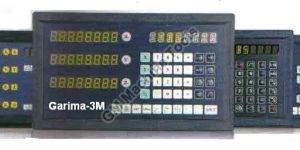

Digital Readout System (GM3M Series)
Get Price Quote
Our company is chiefly involved in bringing forth Digital Readout Systems (GM3M Series) that are precisely engineered at our manufacturer’s location. These Digital Readout Systems (GM3M Series) are admired for their efficiency and rugged construction and longer operational life. These Systems are examined properly before final dispatch.
Digital Readout System
Get Price Quote
1 Piece (MOQ)
Vibrating Wire Readout Box
45,000 Per Piece
1 Piece(s) (MOQ)
Buyers are free to place orders, safe and timely deliveries are guaranteed with us. The range, we offer, is stringently checked for the raw material used; our quality auditors ensure that the final product is sternly designed using the beat in class inputs to bring forth quality range.
LCD Digital Read Uut Unit
Get Price Quote
1 Piece (MOQ)
DRO System
Get Price Quote
We have developed our own facility for making safe and secure transactions. In addition to this, we let the clients free to choose the payment mode as per their convenience. Superior raw materials are essential for the development of a quality product. Thus, we obtain these materials only from the dependable sources available in the market.
Vibrating Wire Readout Unit
Get Price Quote
50 Pieces (MOQ)
Digiview1001 is a general purpose, Hand held, Multi channel vibrating wire readout unit. It can read the data of over 7000 water level sensors and store the same against the channel number. Data has to be taken by carrying the readout to the junction box at the mouth of the hole and connecting the 4 wires of the level sensor to the clips on the readout unit. On selecting the channel no. Which has been programmed for that bore hole, the user can read the water level at that particular instant. He can even store the date and time stamped data by selecting the store option. The stored data may be transferred to a PC/ Laptop through a USB cord.
Digital Readout System
17,000 - 27,000 Per piece
1 Piece (MOQ)
We are trading and installation & Servicing of Dro Displays linear scales Optical Magnetic Reader heads Spares
Geometric Digital Readout System
Get Price Quote
We supply highly efficient 3-Axis Geometric Digital Readout System. It is widely used for profile projector and measurable optical instruments like video measuring microscope, toolmaker microscope, etc., having geometrical features like point, line, circle (rad./dia), distance, angle, Org. MM/inch, polar/cartitian, Inc/Abs. & Skewness characters. Our Geometric Digital Readout System can measure all kind of 2-D reverse engineering measurements. Moreover, rotary encoder for angular means is a provision in 3rd axis, otherwise result window. Our Geometric Digital Readout System features PC based RS 232 port for transferring all saved data to take printouts of user make report with respect to sent data.
digital read out system
Get Price Quote
We ensure on time distribution of wholesale as well as retail consignments owing to an extensive vendor, distributor and logistic facility base. Backed by a capacious warehouse, we can easily undertake urgent and massive orders of the clients. Also, we ensure complete security of the products.
Digital Readout for Measurement
Get Price Quote
Stern quality checks, frequent examinations and perfect packaging, we make certain that the range is as per the industrial standards. We are reckoned for the quality that we offer in our products. And, for maintaining it, we make use of the world-class raw material for manufacturing the products. Features: Specifically designed Long lasting Precise Maintenance-free Sturdy
Digital Read Out (DRO) Optional
Get Price Quote
Crosscut mitre fence is equipped with DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.
Digital Readout System
15,000 Per Piece
Pearl v3 series of Dros
Get Price Quote
Specifications Interactive message display Metric/Inch conversion Radius/diameter conversion Preset Dimension define Absolute counting Machine reference Homing facility Non volatile memory backup Power saving mode Calculator Encoder direction select 0-9 keyboard Halving function Center of circle Near zero warning beep Liner encoders supported LE2534, LE1820, LE3040, ME2910, ME6012 read heads / scales 2/3/4 Axes configuration Any axis can be configured as linear / angular axis High counting frequency up to 3.75 Mhz Multi datums-total 6 drums Settable display refresh time Up to 1000 points of circle / arc / straight line / inclined line / frames matrix hole pattern Mirroring / scaling Liner error compensation Nonlinear error compensation of 200 points each axis Angular error compensation of 200 points also possible Angular pcd of 100 points Settable encoder resolution 0.1/ 0.01/0.05/0.005/0.001/0.0005/0.0001 mm/user defined Selectable display resolution 0.1/0.01/0.05/0.005/0.001/0.0005/0.0001mm Measuring range-9999.99 to 99999.999mm Constant surface speed output (optional) Taper turning Taper calculation Tool offset-no of tools-20 Job clock / feed rate display Programming block (2000points) Direct loading of dxf file using the software Axes summing / vectoring Polar coordinates Z+Q Skew Serial RS232 interface Programmable six relay output-pulse / level type (optional) Touch probe interfacing (optional) Infrared remote keyboard XY, YZ, XZ interpolation OPTIONAL Remote console-wireless or wired Backlash compensation
Aluminium DRO Metrology
Get Price Quote
Digital Read Out Measurement Systems
Get Price Quote
We are one of the leading manufacturer,exporter,supplier,trader and wholesaler of high quality measurement systems such as digital readout measuring systems.
Digital Readout System
Get Price Quote
We are dealing in digital readout system, 1A DRO - battery operated Linear and Rotary option available Complete guided system available In-built sensor compatible with magnetic tape with 10µm100 µm res
Digital Readouts
Get Price Quote
Offers digital readouts. Features : pulse multiplication: to improve the resolution of the dro pulse multiplication technique has been used i.e. Input module counts the leading and trailing edges of the pulse trains from ch-a and ch-b of the encoder. Hence the cro counts (pprx4) per revolution of the encoder. Start from preset : a preset value can be set and reading will start from the preset value. Scaled reading : a scale factor can be set within the range from 0.00001 to 9.99999.
Digital Readout - Dro
Get Price Quote
1 Pair (MOQ)
We are offering digital readout - dro. digital readouts dro multi functional with latest features like: (1)multi function counter with latest features. (2)30mm slim, attractive & tough counter. (3)flexible to work with 1/2/5 microns (4)special feature of bolt hole circle machining(holes on same p.c.d) divide holes on an oblique line. machining on an oblique line machining on radius (curve) shrinkage function (5)in built calculator(ready for math. Calculation sin/tan/deg.) (6)linear & non-linear error compensation. (7)999 event memory. (8)half calculation for locating work piece center. (9)instant power failure memory with machine reference recall (10)most importantly very user friendly operating.
Digital Readout System
Get Price Quote
We offer Digital Readout System to the clients located in different parts of the world. The Digital Readout System that we dispatch in national and international markets is made using the latest production techniques. The Digital Readout Systems can be availed in different specifications from us. We are a well-known name as Digital Readout System Manufacturer, Exporter and Supplier in Delhi (India). Why Our Digital Readout System? New 2, 3 and 4 axis available ADR-10 Series Digital Readouts can meet the application in all machine tools with maximum performanceIncludes features that are essential for increasing productivityWith high-capacity memory it is possible to save 1000 pcs program and for the lathes 1000 pcs tool memory5 different language choices is existed as Turkish, English, German, Spanish and PortugueseConnection opportunity by touch probe is also available With 8+1 digit display and standard resolution values with user designated resolution, ADR-10 is designed for your all requires Highlights At A Glance 2, 3 or 4 AxisUser Designated ResolutionRS-232 Digital OutputAngle Measuring Touch Probe Option8+1 Digit Display5 Language OptionsAluminium Case Functions ABS / INC System Metric / Inch Measurement Axis Quick Zero Keys Bolt Hole Circle Shrink Function ½ Function Trigonometric Calculator Linear Error Compensation Segmented Error Compensation (100 Segments) Rectangular Pocket Centre Find Digital Filter Function Smooth Radius Simple Radius Bolt Hole Line Distance Measuring by Probe Part Angle Measuring Last 5 Digits On-Off Tool Diameter Compansation Linear Hole Patterns Inclined Z Axis Machining Taper Function Last Position Save Axis Addition Machine Reference Selection Tool Storeroom Tool Teach Datum Point Memory (1.000 Points) Travel Limit Coordinate Freeze (Hold) Value Addition / Subtraction Undo Pause / Sleep Mode Number Of Axis 2 : 2 Axis3 : 3 Axis 4 : 4 Axis
Digital Readout Systems
Get Price Quote
digital read out systems
Get Price Quote
HAS has the Accurate display series designed for the machinery and machine tool user who needs effective features at an attractive price in a digital readout systems. The compact and extensive range of accurate counters are constructed with clear,easy to read LEAD display.
Single Axis Display
12,500 Per Piece
Digital Readouts System
Get Price Quote
We are offering digital readouts system.
Digital Readout System
Get Price Quote
Coupled with Linear Transducers ( Linear Glass Scales or Encoders or Digital Micrometers ) is most suitable for measuring the traverse of work table and positioning of tool practically on any machine. It's upto date technology and advanced features enhance the operational working volume of the machine. These are Micro size DROs and are suitable even for smaller machines and don't require any separate panel and very light weight.
Air Electronic DRO
Get Price Quote
Six Digit Digital Display Selectable Ranges / Least Count. Auto Calibration / Auto Mastering Facility. Tolerance Status Indicator Lamps. Programmable Absolute Value, USL, LSL. Master Values RS 232C Interface for data transfer, Optional USB interface Gauge Ware-Out Detection. Options for Blinking, Buzzer On/Off & Relay Output Compatible to all types of APG and ARG In-built Air Transducer & Unit mounted Filter Regulators Compatible to LVDT/Half bridge probes make TESA, MARPOS, SOLATRON, MERCER etc, Our Product range Single Channel Air Electronic Digital Readout Unit. Two Channel Air Electronic Digital Readout Unit. Three Channel Air Electronic Digital Readout Unit.
Digital Readout System
230,000 Per Piece
1 Piece(s) (MOQ)
Milling Machine Digital readout System Indian Make Sino One display Two Scale (X-900 Y-400) One Year Warranty.
Digital Readouts
Get Price Quote
FEATURES : Pulse Multiplication: To improve the resolution of the DRO pulse multiplication technique has been used i.e. input module counts the leading and trailing edges of the pulse trains from ch-A and ch-B of the encoder. Hence the CRO counts (PPRx4) per revolution of the encoder. Start from preset : A preset value can be set and reading will start from the preset value. Scaled reading : A scale factor can be set within the range from 0.00001 to 9.99999.
