Dipole Antenna Dealers

(17 products available)

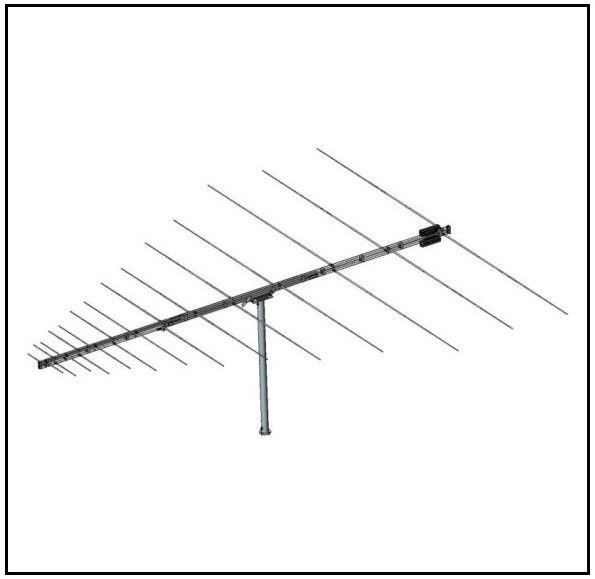

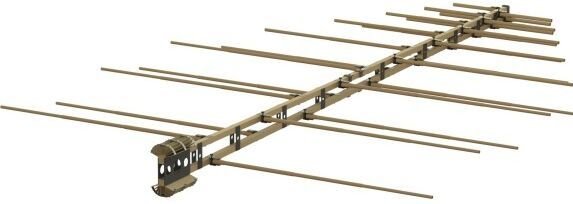

  • 100-500 Mhz Lpda LOG Periodic Dipole Antenna

    100-500 Mhz Lpda LOG Periodic Dipole Antenna

    45,000 / Piece
    • TypeLog Periodic Antenna
    • Frequency Range100-500 Mhz
    • Gain9 DBi
    • BandwidthEntire Band
    • PolarizationVertical,Horizontal
    • Input Impedance50 Ohms
    • Radiation PatternDirectional
    • Horizontal Beamwidth110 +/-10 Degrees
    • Front To Back Ratio14 +/-2 DB
    • VSWR<1:3.0
    • Input TerminationN-Female
    • Lightning ProtectionDirect Ground
    • Antenna Length6 Meters
    • Insulator MaterialTeflon, Delrin
    • Mount Pipe Diameter50-102 Mm (2-4 Inches)
    • Gross Weight40 Kgs
    • Wind Rating180 KMPH
    • MILITARY LOG PERIODIC DIPOLE ANTENNA Design Features: The LPL-100-500 Mhz log periodic dipole antenna use 6063T6 ultra corrosion resistant architectural anodized aluminum alloy and designed to provide wideband directional transmission/reception of radio signals from 100-500 Mhz bands. The complete antenna is supplied with powder coating to protect it further from severe environmental conditions. The extra spacers are used between the support booms to improve mechanical durability of antenna. The antenna can be assembled in less than 10 minutes by two technicians. This log periodic dipole antenna system is particular suitable for transmission, reception, monitoring, scanning and jamming applications due to its broad band design feature. The shipping length of antenna is 10 feet making it highly suitable for mobile and tactical application. Two mounting brackets are fitted on the support boom one for horizontal polarization and other for vertical polarization. Constructions: The LP-100-500 Mhz assembled log periodic antennas outer-most dimensions are 6.5 meters (21.3 feet) long and 7.5 meters (24.5 feet) wide. The antenna has removable elements, the longest of which is 3.5 meters. All elements are supplied in two segments for easy of shipping and handling. Similarly the support boom of antenna is supplied in two sections for easy of shipping/transportation and handling. The elements are attached via stainless steel stud systems with spring washer at points along the boom. The log periodic antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise. All the screws, nuts and bolts of log periodic dipole antenna are made of type 316 marine grade stainless steel. Specially designed mounting arrangement results in fast installation. The polarization can be changed from horizontal or vertical and vice-versa. Electrical Specifications: Frequency Range 100-500 Mhz Gain 9 dBi Bandwidth Entire Band Polarization Vertical or Horizontal Input Impedance 50 Ohms Radiation Pattern Directional Horizontal Beamwidth -Half Power Points 110 +/-10 Degrees Front to Back Ratio 14 +/-2 dB. VSWR - Equal To or Better Then <1:3.0 RF Power Handling Capacity 1000 Watts Input Termination N-Female Lightning Protection Direct Ground Mechanical Specifications: Antenna Materials 6063T6 Aluminum Mounting Hardware -Materials Marine Grade Stainless Steel Wind Rating 180 KMPH Overall Length 6 Meters Shipping Length 3.75 Meters Support Boom - Material - O.D. Aluminum Square Tube Elements - Materials - Cross Section - Outer Diameter Aluminum Round Tube Insulator Material Teflon& Delrin Maximum Mount Pipe Diameter 50-102 mm ( 2-4 Inches) Gross Weight 40 Kgs.
    ...more
    www

    Defence Wireless

    Uttam Nagar, Delhi
    GST 1 yr
  • HF Dipole Antenna

    HF Dipole Antenna

    Get Price Quote
    We are listed among the most celebrated HF Dipole Antenna manufacturers and suppliers from Delhi. We offer highly durable and efficient HF Dipole Antennas that are ideal for frequency ranging from 3 to 30 MHz. The HF Dipole antenna offered by us have, two wires with frequencies marked upon it, which are later attached to broadband balun, Technical Specifications Model : TA30DFrequency: 3-30 MHz. Impedance : 50 Ohms (Antenna to be used with ATU) (Nominal)Radiation pattern : Omni-directionalPower rating: 100 Watts.Polarization : HorizontalConnector : UHF Female Advantages Easy to Install, Use and MaintainHigh Technical SpecificationsUnique ConstructionWide Applications
    ...more

    Txrx Antenna and Components

    Bawana, Delhi
    17 yrs
  • Dipole Antenna

    Dipole Antenna

    Get Price Quote
    • SpecialitiesInnovative design, High gain etc.
    • SMART ELECTRONICS COMMUNICATION manufacture Omni directional Folded Dipole antenna for HF VHF and UHF frequency band. Our antenna design and manufacturing reflects innovative modern antenna construction. A special mounting hardware permit to mount the omni directional exposed folded dipole antenna in a very quick time with less efforts. These Omni directional folded exposed Dipole Antenna comes factory tuned and does not require any field adjustment.
    ...more

    Smart Electronics Communication

    Delhi
    12 yrs
  • HF Broadband 3 Folded Dipole Antenna

    HF Broadband 3 Folded Dipole Antenna

    11,000 / piece
    • Brand NameSkylink
    • MaterialPVC
    • Surface FinishingPower Coated
    • ShapeRound
    • ColorGray,GREY
    • UsageScienticfic Use, Industrial Use, Wireless Communication, Radio, Radar
    • Length28 MTR
    • TypeWIRELESS COMMUNICATION
    • The term “HF broadband 3-folded (or 3-wire / 3-folded) dipole” typically refers to a broadband (wideband) HF antenna consisting of three parallel conductors (wires) forming a kind of extended folded structure, to increase bandwidth and raise feedpoint impedance (or flatten impedance variation) compared to a simple dipole. Below is a summary of typical / representative specifications and design considerations (with some examples), and then a generic “spec sheet template” for such antennas. Extending that concept, a 3-wire (or “three-folded”) arrangement further increases the impedance and tends to flatten the impedance variation over frequency. In other words, more wires in parallel help broaden the frequency response and make the feedpoint impedance more stable.
    ...more
    www

    C Communication Electronic

    Uttam Nagar, Delhi
    9 yrs 4.5 (30)
  • Dual Band Dipole Antenna

    Dual Band Dipole Antenna

    800 - 1,500 / Piece
    • Frequency2400-2500 MHz
    • ApplicationIndoor
    • Weight1.3 Oz
    • Voltage240 V
    • Operating Temperature-20-60 DegreeC
    ...more

    TC Infotech Private Limited

    Nehru Place, Delhi
    9 yrs
  • Dipole Antenna

    Dipole Antenna

    Get Price Quote
    The dipole antenna is one of the most straightforward antenna configurations. It can be realized with two thin metallic rods that have a sinusoidal voltage difference applied between them. The length of the rods is chosen such that they are quarter wavelength elements at the operating frequency. Such an antenna has a well known torus-like radiation pattern.
    ...more

    COMSOL Multiphysics Pvt. Ltd.

    MG Road, Bengaluru
    9 yrs
  • Dipole Antenna

    Dipole Antenna

    Get Price Quote
    • TypeDipole Antenna
    • MaterialMetal
    • ColorSilver
    • ApplicationWireless Communication
    • Frequency RangeTypically 2.4 GHz To 5 GHz
    • PolarizationLinear
    • Connector TypeRP-SMA
    • GainAround 2-3 DBi
    • PackagingBox
    • We offer a sleek Silver Dipole Antenna designed for Wireless Communication applications. With a Frequency Range of 2.4 GHz to 5 GHz and Linear Polarization, this Metal antenna provides reliable connectivity. Featuring an RP-SMA Connector Type and around 2-3 DBi Gain, it ensures optimal performance. Packaged in a convenient box, this Dipole Antenna is perfect for importers seeking high-quality products. Enhance your wireless network with our efficient and durable antenna solution.
    ...more

    gov teacher

    Pachamba, Giridih
    5 yrs
  • Helium Miner Dipole Antenna

    Helium Miner Dipole Antenna

    200 - 250 / piece
    • MOQ12 PIECE
    • Packaging TypeBulk
    • Number Of FlowerLpda
    • Total Carbohydrate1 Year
    • a INDIAN  manufacturer of Antennae, Cable assemblies, Microwave Components, IOT and M2M learning,DAS/ IBS and BTS installation materials, Solar passive components  Synergy is Indian Antenna and RF Cable assembly mfr, deal in rf connector, rf Cable, all types of antenna cables, mw components, Attenuator, splitter, Duplexer, Couplers, Combiners, tools, Ibs n DAS product, GPRS, rfid, Iot , 5g products for smart city, https://www.rfconnector.in/product_catalogu e
    ...more
    www

    Synergy Telecom Pvt. Ltd.

    Vikas Puri, Delhi
    GST 11 yrs 4.4 (29)
  • 2.4Ghz 5dBi Dipole antennas

    2.4Ghz 5dBi Dipole antennas

    Get Price Quote
    Now we offer 2.4Ghz 5dBi Dipole antennas with RPSMA connectors! Take BaseBox2 and simply attach two of those antennas on connectors of BaseBox2 to have 2x2 MIMO 2.4Ghz AP! By this you can have "2.4Ghz OmniTik", ideal for Outdoor Campus areas, for example, campings or trailer parks. Antennas are waterproof, so you can use BaseBox without top cover if both antennas are properly attached.
    ...more

    JRS Communication Pvt. Ltd.

    Nehru Place, Delhi
    9 yrs
  • Dipole Antenna

    Dipole Antenna

    Get Price Quote
    Dipole Antenna, Military Aircraft Antenna S37b101-c2, Surveillance Antenn

    Spectrum Antenna

    Kochi
    14 yrs
  • HF Broadband Dipole Antenna

    HF Broadband Dipole Antenna

    Get Price Quote
    HF Broadband Dipole Antenna, Aviation Band Antenn

    Antenna Experts

    Najafgarh, Delhi
    9 yrs
  • Flexible Dipole Wifi Antenna

    Flexible Dipole Wifi Antenna

    Get Price Quote
    Flexible Dipole Wifi Antenna, Smart Card, MIfare Classic 1k Card 13.56MH

    Campus Component Pvt. Ltd.

    Swargate, Pune
    9 yrs
  • Dipole Antennas

    Dipole Antennas

    Get Price Quote
    Dipole Antennas, Broad Band Antenna, Horn Antenna, Telecom Tower & Shelter

    JPSS Technologies

    Selaiyur, Chennai
    9 yrs
  • Dipoles Antenna

    Dipoles Antenna

    Get Price Quote
    Dipoles Antenna, Stubby Whip Antenna, Frc Connector, Flat Flex Cabl

    Electro Spec Systems

    Gandhi Nagar, Bengaluru
    9 yrs
  • Dipole Antennas

    Dipole Antennas

    Get Price Quote
    Dipole Antennas, Nicd Batteries (24 Volt 4ah), Nicd Batterie

    Rajendra Technologies

    Air Force Area, Jodhpur
    12 yrs
  • Dipole Antenna

    Dipole Antenna

    Get Price Quote
    We deals in manufacturing of wide range of dipole antenna

    S G R Technologies

    Jeedimetla, Hyderabad
    15 yrs
  • V UHF Dipole Blade Antenna

    V UHF Dipole Blade Antenna

    Get Price Quote
    V UHF Dipole Blade Antenna, IFF Antennas, V / UHF Blade Antenn

    Verdant Telemetry And Antenna System

    Thevara, Ernakulam
    9 yrs
