Disc Diffusers Dealers

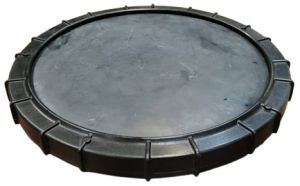

Description PROFLEX Fine Bubble membrane disc diffusers are compression molded and made with less than 10% extractable oils to ensure strength and longer product life. The base and retaining ring are designed to seal tightly and made of polypropylene having properties of higher temperature resistance and greater ductility. The membrane has an integral O-ring seal which is tightly compressed by the retaining ring keeps water out and air inside. PROFLEX disc diffusers offer a perfect balance of high oxygen transfer and modest headless with small bubble size as required by customers. Our membranes are of standard sizes and prices are competitive. We make available to the clients exceptional quality Fine Bubble Disc Diffuser, which is manufactured using highly advanced technology. The Fine Bubble Disc Diffuser offered by us is precisely engineered to suit the specifications of various clients. Additionally, clients can avail this Fine Bubble Disc Diffuser at most discounted prices. Features High shelf and service lifeVery fine bubble aerationEfficient oxygen transfer rateNon-cloggingLow maintenanceGood Mechanical strengthHigh temperature resistance Applications In a fixed Aeration system where the pipes are bolted to the floor, and longevity and low maintenance are required, disc diffusers are highly efficient.Textile EffluentPaper, Sugar EffluentAquaculture AerationSwimming Pools

  Technical Details  Range: PIK 300 Size range: 336 mm Air Flow range: 1.5-8 m3/hr Membrane surface area: 0-0.60 m2 Bubble dia.: 1-3 mm Material of construction: main body - polypropylene; wedge piece - polypropylene; membrane disc - EPDM/HDPE; flat seal - EPDM   Applications  Continuous aeration   Key Features  Classic ABS NOPON fine-bubble disc diffuser with an HDPE aeration plate Equipped with a non-return valve Diffuser materials are made of PVC and HDPE Has a double layer disc to achieve top oxygen transfer yield with very low back pressure Equipped with a non-return valve For stainless steel pipes thread attachment is also available

We are offering disc diffuser. The air diffusers are discs with a special epdm membrane that create micro bubbles. These micro bubbles increase greatly the air – water contact surface, thus improving the oxygen transfer rate to water and then the oxygen transfer rate between the water and the bacteria that needs it in order to perform the biological oxidation and remove the pollutants from water.

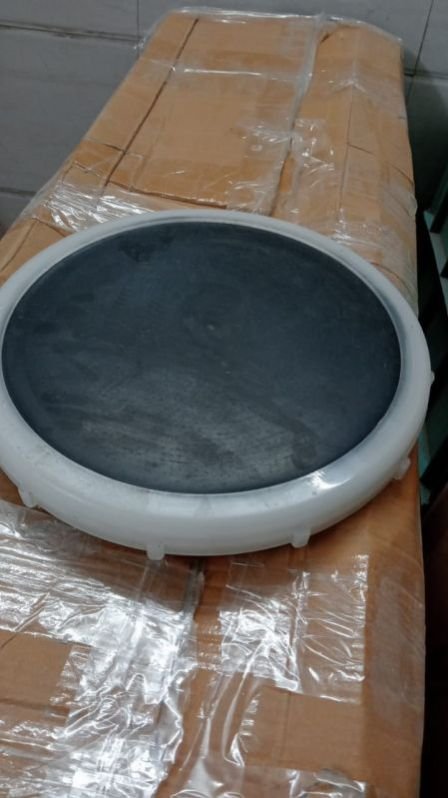

We offer 250mm and 300mm disc diffusers with compression moulded EDPM membranes. A higher density of perforations results in a more efficient diffuser and adds to increased efficiency. Premium EDPM disc diffuser offers very good tear resistance and higher efficiency.

We are offering disc diffuser. Ring diffuser made up of aero tubes can be used in all the areas where disk diffusers are used. The diffuser can be joined to the header with 3/4 inch ss nipples. Thickness of disk diffuser membrane is only 1 mm while it is 6 mm in ring diffusers. Operating pressure up to 5 kg in aerotubes while it is .7 kg in membranes. Sotr 4.8 kg/hour in aerotube it is 2.7 kg in disk diffusers/tube diffusers. Circle or ring diffusers are fine bubble diffusers. This diffusers are fitted with one 90 cm aerotube. 45cm on the right and another 45 cm on the left side of the pvc pipe which is of 40 cm length. Both sides of the pvc pipe is closed with end caps. In the middle we have saddle or threaded pvc t. This saddle or threaded pvc t can be fitted with 3/4 inch ss nipple which is a standard one for all disk diffusers or tubular diffusers. From blower the pipe headers are fitted with saddles. Hence the ss nipple works as a connecting air link between headers and diffusers. The fine bubble aeration from the diffuser helps to control bod and cod. Each meter length of aerotube will give 5 m3 air/hour. technical datasheet: type of aero tube microporous tube size od 25.4 mm; id 12.6 mm; moc of aero tube car tyre rubber and pe moc of aero tube clamps ss304 moc of nipple pvc operating temperature of aero tube 70 effective area of aerotube 0.078 m2 area of influence zone 1 m2 optimum through put 5 cubic meters per hour per meter tubing minimum through put 0.5 cubic meters per hour per meter tubing maximum through put 8.5 cubic meters per hour per meter tubing maximum allowable pressure 5 kg/cm2 make colorite plastic usa standard oxygen transfer rate 4.2 kg o2/kw

The diffusers have special features that improve the operation reliability and efficiency, such as the non-return valve available on all models and the sliding ring available on the latest version of ABS Nopon diffusers.

Disc diffuser series combines cost effective design, low installation costs, reliability and performance in intermittent and continuous aeration processes. Precision die cut openings for high oxygen transfer efficiency and performance: The operating pressure (DWP) can be adjusted to customer or system specification by using different slit patterns varying the number and length of the slits and the spacing between the slitsDifferent standard and special membrane materials specially engineered for a wide spectrum of applications: Specifications: ·         Size – Ø90mm, Ø150mm ·         Air Flow – 4-15 m3/hr ·         MOC of membrane : EPDM Type – Fine Bubble & Coarse Bubble

We make available to the clients exceptional quality Fine Bubble Disc Diffuser, which is manufactured using highly advanced technology. The Fine Bubble Disc Diffuser offered by us is precisely engineered to suit the specifications of various clients. Additionally, clients can avail this Fine Bubble Disc Diffuser at most discounted prices. Features High shelf and service lifeVery fine bubble aerationEfficient oxygen transfer rateNon-cloggingLow maintenanceGood Mechanical strengthHigh temperature resistance Applications In a fixed Aeration system where the pipes are bolted to the floor, and longevity and low maintenance are required, disc diffusers are highly efficient.Textile EffluentPaper, Sugar EffluentAquaculture AerationSwimming PoolsSpecification Download

We offer 250mm and 300mm disc diffusers with compression moulded edpm membranes. A higher density of perforations results in a more efficient diffuser and adds to increased efficiency. Premium edpm disc diffuser offers very good tear resistance and higher efficiency.
