Disc Polishing Machine Dealers

The Disc Polishing Machines are extensively used for polishing the Metallography Samples for Microscopic observation to study various metal structures. Disc Polishing Machines are finely polished to ensure smooth, scratch free and mirror like appearance that enable accurate metallographic interpretation. Polishing is the final stage in producing a surface that is flat , smooth , scratch- free and mirror like in appearance. Such a surface is necessary for subsequent accurate metallographic interpretation, both qualitative & quantitative. In this Machine the drive is given the motor spindle, which is mounted on the motor shaft through friction mechanism. Polishing discs are fitted on the shaft and locked by nut. Shaft has two bearings, which are fitted into bearing holder for smooth working.

Metallurgical Polishing Machine Assisted by an adroit professionals, we are engaged in manufacturing and exporting a superior quality range of Metallurgical Polishing Machines. The offered machines are simple and convenient, extensively used for rough and fine polishing of metallurgical specimens. Powered by high torque A.C/D.C motor, the machine has water faucet and smooth drainage system. Working: Specimen is held against a rotating flat disc, on which a polishing cloth, impregnated with suitable polishing media such as Silica Carbide powder, Polishing Alumina (all grades) and Hifin Paste is stretched The disc is easily removable for quick changing of the Polishing cloth or Paper It can deliver mirror finished specimen completely scratch free and with minimum artifacts, divulging true micro-structure of parent material Features : Easily Replicator grinding and lapping discs Drainage System Noise Less operation Easy and quick clamping facility Higher results in measuring image analysis study.

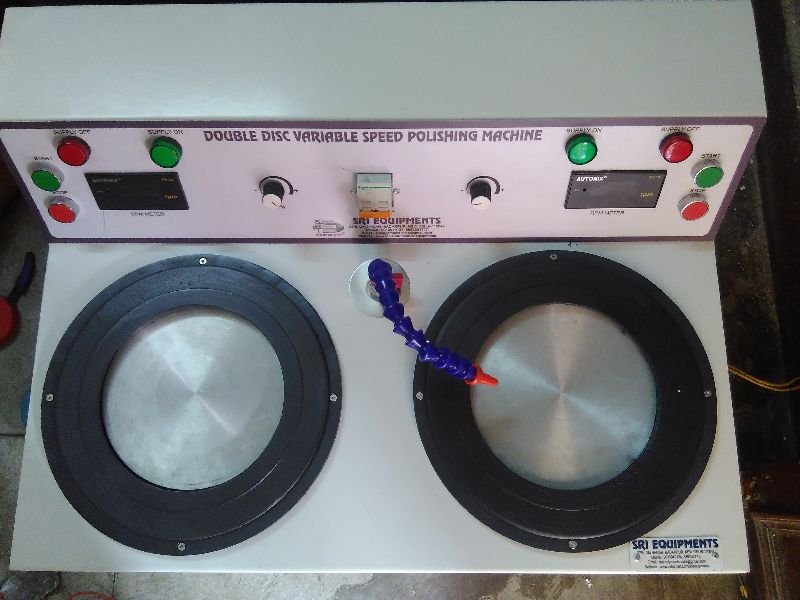

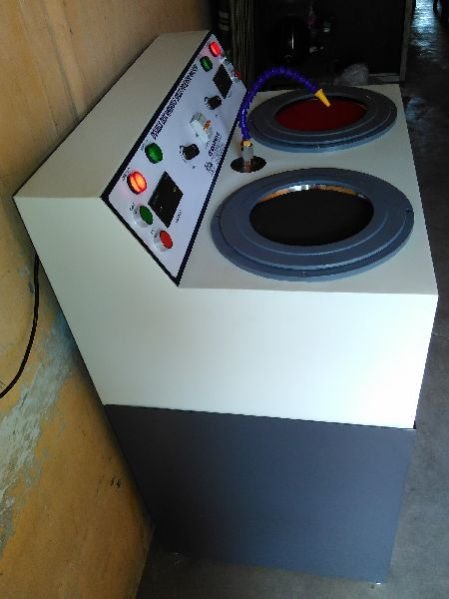

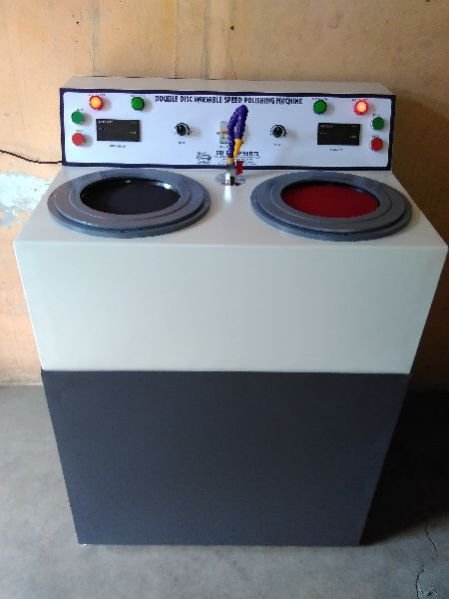

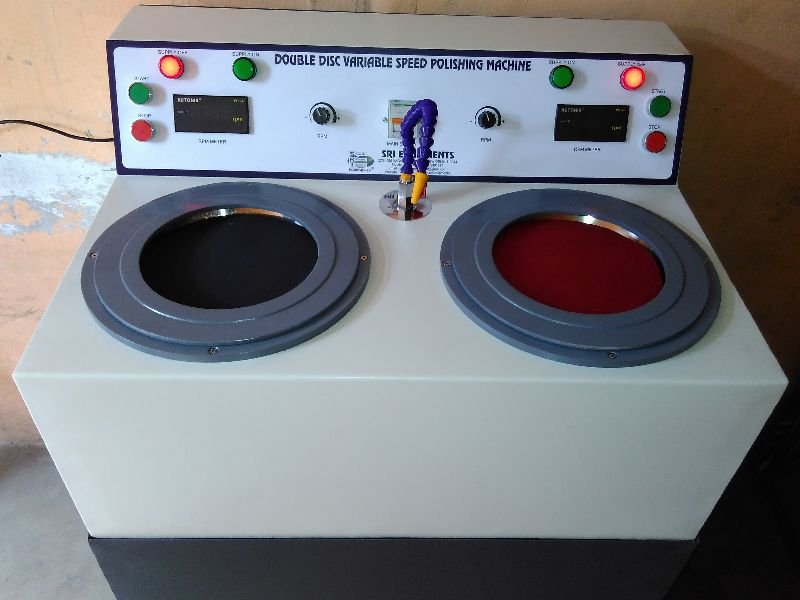

We offer double disc polishing machine with variable speed. It is compact model with digital rpm meter. the speed controller for the rpm meter is provided for set the rpm of the machine as required for the testing. In the centre, water supply pipe is provided for the both the disc with control knob. It is nicely painted. Each polishing disc has separate speed controller & rpm meter. machine is also available in single disc model .

we are the Prominent metallurgical Polishing Machine Manufacturer, Exporter, Importer and Supplier in India. the Metallurgical Polishing Machine Provided By the Company is Highly Acknowledged amongst the Wide Spread Clients, Owing to Its Performance and Durability. We Offer the Metallurgical Polishing Machine At Reasonable Prices. description : metallurgical Polishing Machine is Used for Polishing the Metallographic Samples for Microscopic Observation, to Study Various Structures of Metal (like Grain- Size, Case Depth Etc.) polishing : polishing is the Final Stage in Producing a Surface that is Flat, Smooth, Scratch- Free and Mirror-like in Appearance. such a Surface is Necessary for Subsequent Accurate Metallographic Interpretation, Both Qualitative and Quantitative. the Speed is Adjustable, to Provide Stepless Variable Speed from 400 to 1100 Rpm Approx (as per Required for Sample). the Driven is Provided By Suitable H.p. Single Phase 220v A.c. Motor. the Disc of 8” Dia (easily Replaceable) Easily Sticks to the Polishing Cloth.

Description :-This high quality constructed Polishing machine is great for polishing and scratch removing all kind watch flat crystals. Very easy to use and completely reliable.

we are offering metallurgical polishing machine. gained by the years of industrial experience, we are presenting metallurgical polishing machine to our esteemed patrons. these quality machines are widely used in various industries for rough and fine polishing of metallurgical specimens. powered by high torque a.cd.c motor, the machine has water faucet and smooth drainage system. features: drainage system noise less operation easy and quick clamping facility higher results in measuring image analysis study working: specimen is held against a rotating flat disc, on which a polishing cloth, impregnated with suitable polishing media such as silica carbide powder, polishing alumina (all grades) the disc is easily removable for quick changing of the polishing cloth or paper it can deliver mirror finished specimen completely scratch free and with minimum artifacts, divulging true micro-structure of parent material accessories: paper clamping ring cloth clamping band polishing media (polishing cloth, diamond paste and fluid, separate discs, dropping bottle plastic) ac motor in se mpm 01 series dc motor in se mpm 02 series application areas: metallurgical laboratory forging industry fasteners industry casting industry iron and steel industry auto-parts ancillaries specifications: description se mpm 01 02 se mpm 01 a02 a se mpm 01 b 02 b operation manually by rotating pulleys or by rpm meteron or off switch on se mpm 02 series manually by rotating pulleys or by rpm meteron or off switch on se mpm 02 series manually by rotating pulleys or by rpm meteron or off switch on se mpm 02 series rotational disc speed 350 to 1200 rpm 350 to 1200 rpm 350 to 1200 rpm lapping wheel dia 200 mm 200 mm 200 mm lapping discs 1 no. 2 no. 3 no. working volts 220 volts single phase

Pedestals stand for single, Double and three disc Polishers with storage • Cast iron disc • Digital rpm meters • Automatic polishing attachment with digital timer • Extra cloth Holding spring • Extra paper Holding ring • Hot air drier blower

Description :-This high quality constructed Polishing machine is great for polishing and scratch removing all kind watch flat crystals. Very easy to use and completely reliable.

The Disc Polishing Machine that we are offering is being appreciated for its performance and accuracy. One of the best attribute of our Disc Polishing Machine is that it is corrosion resistant. Our Disc Polishing Machine is the best in performance as it is designed by implementing sophisticated technology. We make use of superior quality parts and components in our Disc Polishing Machine. Features Highly efficientCorrosion resistantAccurate resultsOptimum performance Technical Specifications Disc size : 200mm DiameterSpeed : 400- 1200 rpmElectrical power supply : 230V,AC, Single phase , 50 Hz

We offer premium quality range of double desk polishing machine extensively used for polishing metallographic samples. Procured from our reliable vendors these are provided with double disc, driven by high torque DC motor. The paper holding band and water faucet enhances drywet grinding and assist in final lapping. Used for microscopic observation to study metal structures, these machines are finely polished to ensure smooth, scratch free and mirror like appearance that enable accurate metallographic interpretation.

We are among the major players in the market offering top-notch Automatic Polishing Machine and that too at marginal prices. When it comes to payment, we offer convenient and practical methods to our clients. We undertake both online and offline payment methods which are hassle free and safe for the clients.
