Drilling Cum Tapping Machine Dealers

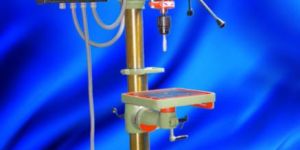

ITCO Indian Machine Tools Corporation is famous for its machinery such as its manufacturing, supplying and exporting of drilling cum tapping machines in India and abroad. In drilling cum tapping machine tapping or threading operation is done along with drilling. This tap drill machine is most suitable in areas where operator needs to perform drilling and tapping operations without opening the job such as using a quick change chuck. The tapping attachment of the machine tap is fitted on the motor plate that is fixed on the machine body. The tap when completes the desired depth is reversed automatically by the limit switch. The electrical panel on the electrical tapping machine has a toggle switch with options of limit control and foot control. When the universal tapping machine does tapping for a blind hole, then move the toggle switch upwards to ‘limit control’ and set the depth with two small stoppers fitted on the main rod. For the semi automatic tapping machine to tap a through hole, then move the toggle switch to ‘foot control’ option and complete the tapping using the foot switch. Here the stoppers and limit switch is not used. The tapping operation on these vertical tapping machines starts by engaging the tap to the hole and the tapping tool itself takes its own movement to complete the depth of thread. So no effort is needed during the tapping cycle. In case of blind holes tolerance is required between bottom surface and tap depth. The tap tool is held in tap sleeve which fits in the spindle Morse taper of these machine taps. ITCO tapping machine is very accurate and productive machine which successfully passes the thread gauge test.

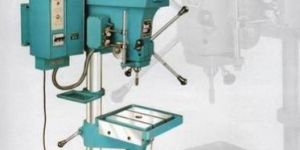

Itco INDIAN ENGG CORP is manufacturing, exporting & supplying state of art Drilling cum Tapping Machine in INDIA & abroad. These Tap Drill machines are custom designed and fitted with special best quality bearings. Reliable branded electrical components are fitted in tapping attachment electrical panel for economical high precision production of drilling and tapping operation. This Universal Tapping machine is suitable to tap any type of thread inside a vertical hole. One can do threading in Metric or BSW threads, Left Hand (LH) or Right Hand (RH) threads depending upon the machine tap selected. Tapping Drill sizes are selected from drill and tap chart. Working of this electric tapping machine is very simple. There are two limit switches operated by means of an adjustable cams which are used for Tapping in blind holes. While tapping through holes foot control switch is provided. These are semi automatic tapping machine i.e. the operator has to bring the tap towards the hole by manual action and once few threads are cut (1 to 2 nos) no further hand feed is required and the tap automatically advances towards the depth set and withdraw back successfully to home position. To switch between drilling and Tapping process mode a selector switch is provided. Machining of External threads is also possible by using a special purpose tapping tool. These Vertical Tapping machines are simple to operate, very accurate and offers a unique combination of drilling & tapping operation suitable for mass production tool room jobs.

We are offering Tapping Cum Drilling Machine. Capacity 3/4" (20mm) heavy duty. No specifications mm 1 Drilling capcity in steel 20 2 Drilling capcity in cast iron 25 3 Tapping capcity in steel 12 4 Tapping capcity in cast iron 15 5 Tap chuck capacity 3 to 12 & 4 to 18 6 Column to centre of spindle 206 7 Spindle nose to work table 410 8 Spindle nose to base plate 785 9 Spindle travel 125 10 Speed range (with 1440 r.p.m.) 80-2850 11 Morse taper in spindle mt 2.

We are offering drilling and tapping cum drilling machines. Designed and built with an expertise of more than five decades in precision machine-tools. sturdy streamlined construction. high grade alloy steel, carburised, case hardened and precision ground to close tolerances for precision components viz; main spindles, shafts, gears etc. close-grained cast iron duly stress relieved with appropriate wall sections for head stocks, work tables and bases. columns made out of seamless steel tube ground and hard chrome surfaced. wide range of spindle speeds and feeds to facilitate drilling, tapping and boring requirements on varied materials. main spindles and pulleys are dynamically balanced and mounted on anti-friction bearings to ensure sustained accuracy. the electrical reversing mechanism provided for both hand and automatic spindle reversal for tapping applications.
